Description
The MikroTik wAPGR-5HaxD2HaxD&R11e-LTE7 is a versatile wireless router designed to provide reliable connectivity in various environments. With an operating temperature range from -30°C to 70°C, it can withstand challenging conditions, making it suitable for outdoor use. This router features multiple data link protocols, including support for Wi-Fi 6, allowing for fast and efficient wireless communication across various devices. Equipped with a 2-port switch, users can expand their network effortlessly while enjoying data rates of up to 1200 Mbps on the 5 GHz band.
In addition to its robust performance, the MikroTik router is built with a variety of compliance standards, including IP66 for resistance to dust and water. The integrated Power over Ethernet (PoE) capability simplifies installation by allowing power and data to be transmitted over a single cable. With features like CPU temperature monitoring and voltage monitoring, users can keep track of their device’s performance, ensuring longevity and stability in network operations.
- Wide operating temperature range from -30°C to 70°C
- Data rates of up to 1200 Mbps on the 5 GHz band
- Supports Wi-Fi 6 for enhanced wireless connectivity
- Includes power over Ethernet for flexible installation

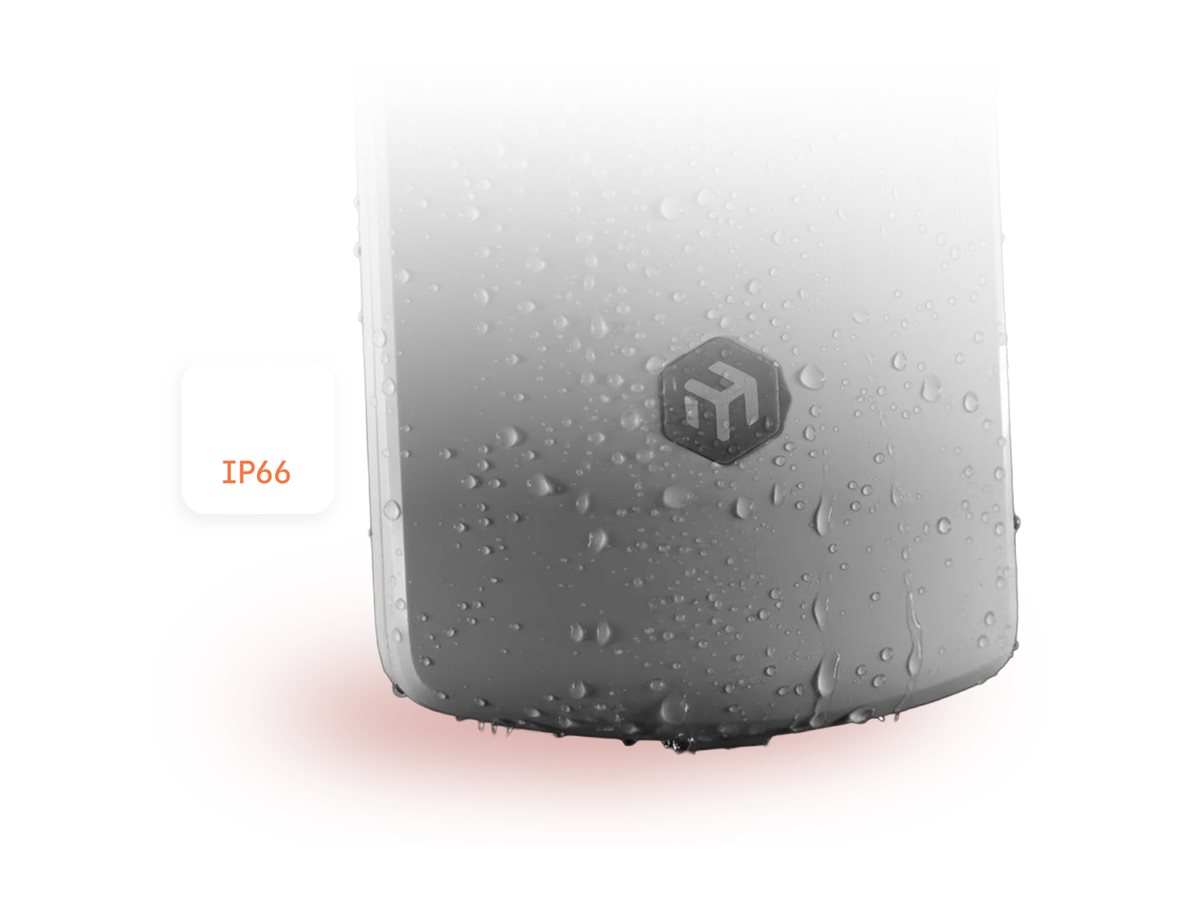

- Built for durability with an IP66 rating
- Reliable outdoor performance
Operating effectively in extreme temperatures from -30°C to 70°C, this wireless router is built to handle outdoor conditions while maintaining reliable network connectivity. - Enhanced wireless technology
Featuring Wi-Fi 6 support and a maximum data rate of 1200 Mbps on the 5 GHz band, users can experience faster speeds and improved performance for multiple connected devices. - Flexible installation options
With Power over Ethernet (PoE) capabilities, the router simplifies installations by allowing both power and data to be transmitted through a single Ethernet cable, reducing clutter. - Comprehensive monitoring features
The built-in CPU and PCB temperature monitoring functionalities ensure that the device operates within safe limits, enhancing its overall durability and performance. - Durable construction standards
Compliant with various international standards such as IP66, this router provides protection against water and dust, ensuring its reliability in challenging environments.
Main Specifications
Product Description | MikroTik wAPGR-5HaxD2HaxD&R11e-LTE7 – wireless router – Wi-Fi 6 – 3G – desktop |
Device Type | Wireless router – 2-port switch (integrated) |
Enclosure Type | Desktop |
Mobile Communication Protocol | LTE Cat7 |
Generation | 3G |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.3af, IEEE 802.3at |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Maximum data rate (2.4 GHz): 574 Mbps
Maximum data rate (5 GHz): 1200 Mbps |
Features | PoE, CPU temperature monitor, PCB temperature monitor, voltage monitoring, 2×2 MIMO technology |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
Power | 24 V 0.8 A |
Documents
Extended Specifications
General
Device Type | Wireless router – 2-port switch (integrated) |
|---|
Enclosure Type | Desktop |
|---|
Connectivity Technology | Wired, wireless |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.3af, IEEE 802.3at |
|---|
Frequency Band | 2.4 GHz / 5 GHz |
|---|
Performance | Maximum data rate (2.4 GHz): 574 Mbps
Maximum data rate (5 GHz): 1200 Mbps |
|---|
Features | PoE, CPU temperature monitor, PCB temperature monitor, voltage monitoring, 2×2 MIMO technology |
|---|
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IP66, EAC, RoHS, Directive 2014/53/EU, EN IEC 62311:2020, EN IEC 62368-1:2020+A11:2020, IEC 60529:1989+A1:1999+A2:2013, EN 301 489-1 V2.2.3, EN 55035:2017/A11:2020, EN 301 489-3 V2.3.2, EN 301489-52, EN 301-489-17, EN 55032:2015/A11:2020, EN 300 328 V2.2.2, EN 301893, EN 301 908-2 V13.1.1, EN 300 440 V2.2.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.3.1, EN 18031-1: 2024, EN 18031-2: 2024, Directive 2011/65/EU, EN/IEC 63000:2018, EN 301 549 |
|---|
Processor | 1 x ARM IPQ5010 800 MHz |
|---|
RAM | 256 MB |
|---|
Flash Memory | 128 MB |
|---|
Communications
Mobile Communication Protocol | LTE Cat7 |
|---|
Generation | 3G |
|---|
Expansion / Connectivity

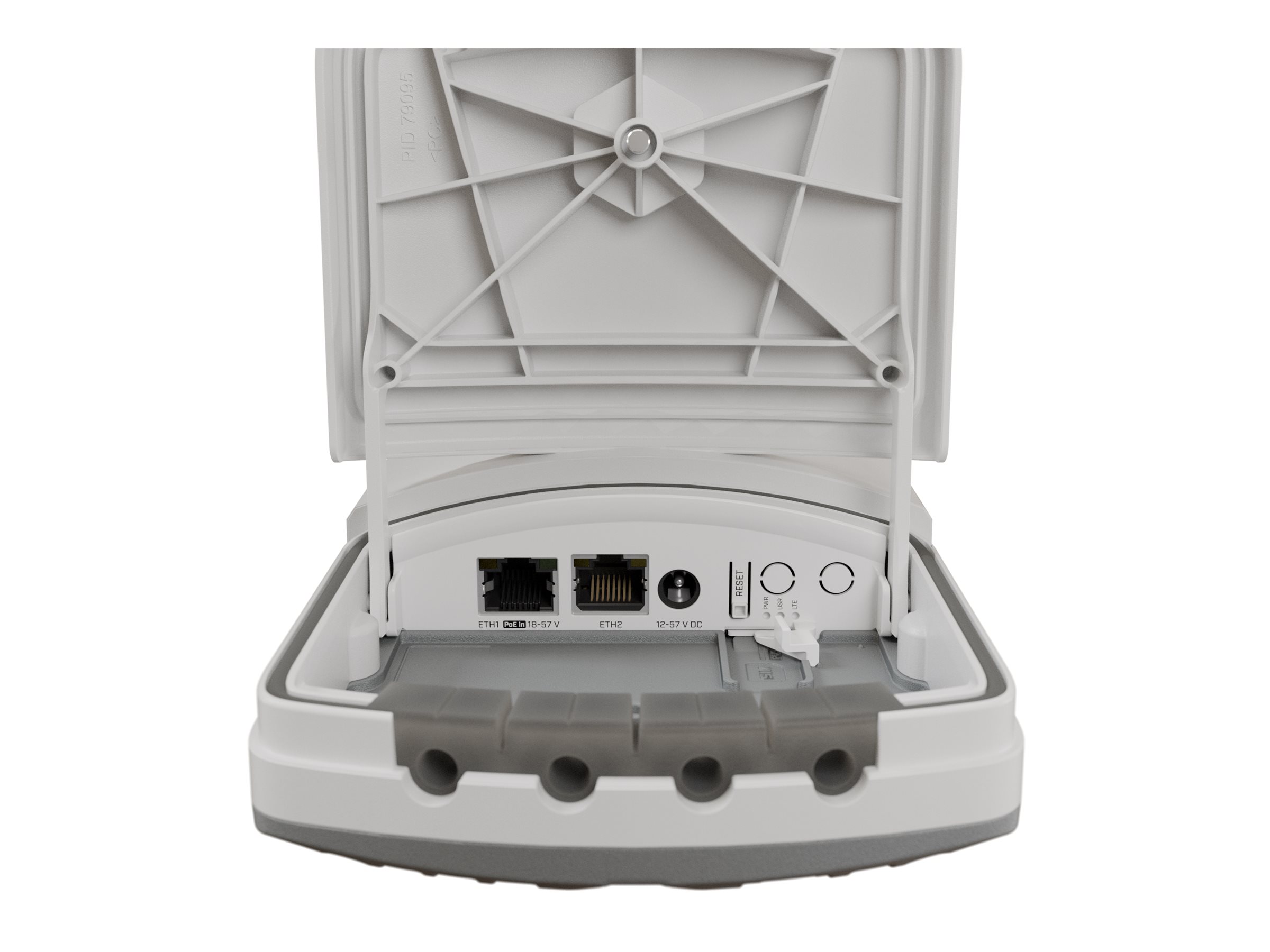

Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
|---|
Expansion Slots | 1 (total) / 1 (free) x Micro-SIM |
|---|
Power
Power Device | External power adapter / power injector |
|---|
Voltage Required | 24 V |
|---|
Electric Current Required | 0.8 A |
|---|
Miscellaneous
Included Accessories | Hose clamp, PoE injector, fastening set |
|---|
MTBF | 200,000 hours |
|---|
Software / System Requirements
OS Provided | MikroTik RouterOS v7 |
|---|
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
