Description
APC Easy UPS is a versatile, high-quality, cost-competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
- Intelligent battery management
- USB connection
- Audible alarms
- Intuitive interface
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging. - USB connection
Use your PC to access additional power protection and management features for your UPS via the USB port. - Audible alarms
Provide notification of changing utility power and UPS power conditions. - Intuitive interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Main Specifications
Product Description | APC Easy UPS SRV SRV1KRIRK – UPS – 800 watt – 1000 VA |
Device Type | UPS – rack-mountable |
Rack Size | 19″ – 2U |
Weight | 11 kg |
Input Voltage | AC 220/230/240 V |
Output Voltage | AC 220/230/240 V ± 1% |
Power Capacity | 800 watt / 1000 VA |
Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 3 x power IEC 60320 C13 |
Battery | Lead Acid – 9 Ah |
Networking | USB, RS-232 |

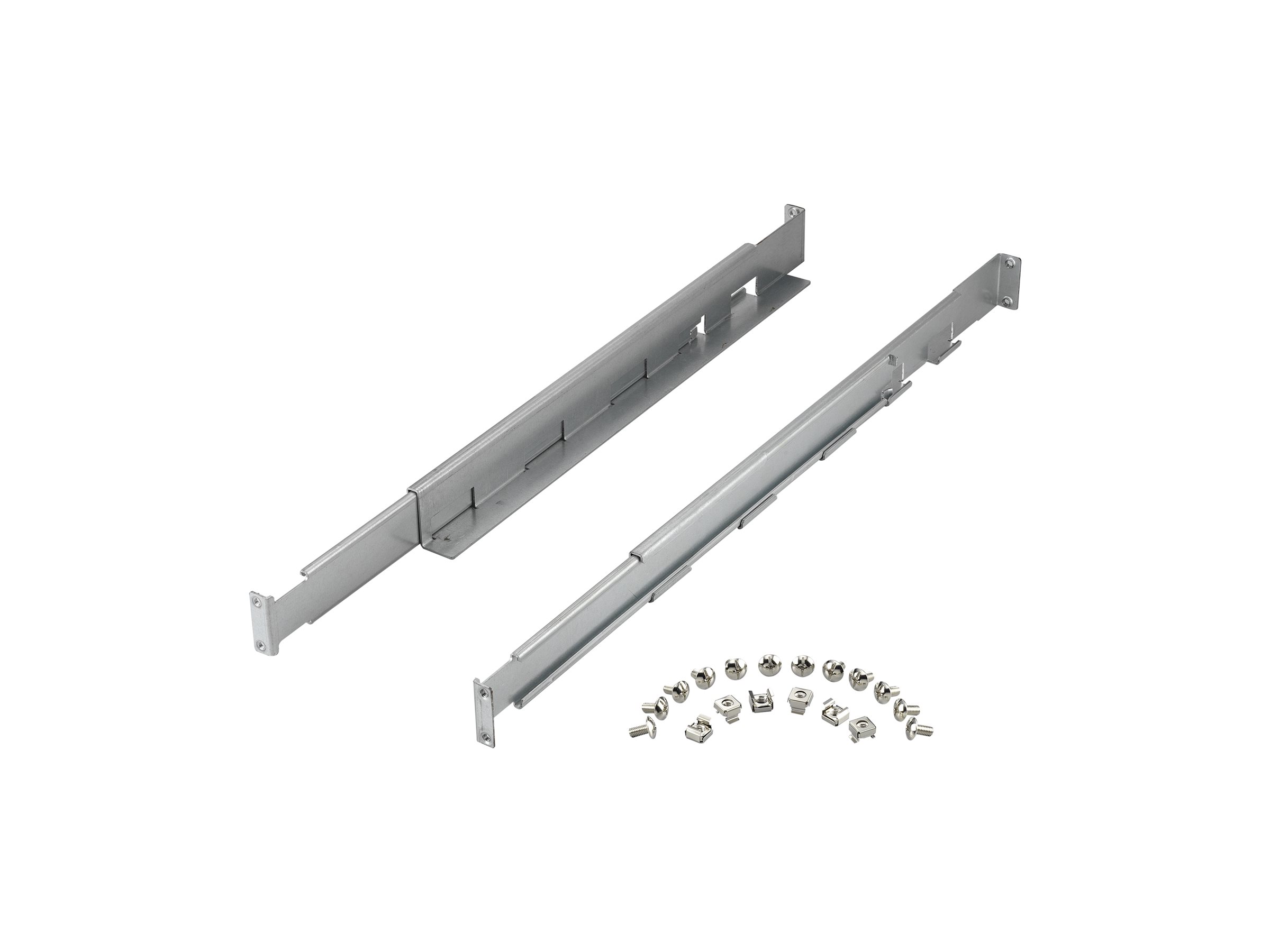

Included Accessories | Rack mounting rails |
System Requirements | Microsoft Windows 2000/XP/Vista/7/8, Microsoft Windows 2003, Microsoft Windows Server 2008, Linux, UNIX |
Dimensions (WxDxH) | 43.7 cm x 31.2 cm x 8.6 cm |
Extended Specifications
Software / System Requirements
OS Required | Microsoft Windows 2000/XP/Vista/7/8, Microsoft Windows 2003, Microsoft Windows Server 2008, Linux, UNIX |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 0 – 95% (non-condensing) |
|---|
Sound Emission | 50 dBA |
|---|
Dimensions & Weight
Width | 43.7 cm |
|---|
Depth | 31.2 cm |
|---|
Height | 8.6 cm |
|---|
Weight | 11 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 45.5 cm |
|---|
Shipping Depth | 55.1 cm |
|---|
Shipping Height | 21.8 cm |
|---|
Shipping Weight | 13.1 kg |
|---|
General
Device Type | UPS – rack-mountable |
|---|
Height (Rack Units) | 2U |
|---|
Rack Size | 19″ |
|---|
Power Device
UPS Technology | On-line |
|---|
Input Voltage | AC 220/230/240 V |
|---|
Input Voltage Range | AC 160 – 280 V |
|---|
Frequency Provided | 50/60 Hz ± 0.5% |
|---|
Frequency Required | 40 – 70 Hz |
|---|
Input Connectors | 1 x power IEC 60320 C14 |
|---|
Power Output Connectors Details | 3 x power IEC 60320 C13 |
|---|
Output Voltage | AC 220/230/240 V ± 1% – 50/60 Hz |
|---|
Power Capacity | 800 watt / 1000 VA |
|---|
Output Waveform | Sinewave |
|---|
Surge Suppression | Yes |
|---|
Surge Energy Rating | 600 joules |
|---|
Circuit Protection | Circuit breaker |
|---|
Efficiency | 88% |
|---|
Power Factor (PF) | 0.95 |
|---|
Battery
Technology | Lead Acid |
|---|
Voltage Provided | 24 V |
|---|
Capacity | 9 Ah |
|---|
Features | Maintenance free, sealed |
|---|
Networking
Remote Management Interface | USB, RS-232 |
|---|
Expansion / Connectivity
Interfaces | 1 x management (USB) – 4 pin USB Type B
1 x management (RS-232) – 9 pin D-Sub (DB-9) |
|---|
Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
|---|
Miscellaneous
Included Accessories | Rack mounting rails |
|---|
Cables Included | USB cable – external
Serial cable – external |
|---|
Rack Mounting Kit | Included |
|---|
Features | LCD display, internal bypass, Green Function, audible alarm, LED indicators, manual self-test, Eco-Mode |
|---|
Compliant Standards | IP20, IEC 62040-1-1, IEC 62040-1-2, RoHS, REACH |
|---|
Software / System Requirements
Software Included | APC Easy Ups Online SNMP Shutdown Wizard |
|---|
