D-Link DGS 3630-52PC, Switch, L3, Managed, 44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+, rack-mountable, PoE+ (370 W)
$10,795.38 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The DGS-3630 series Layer 3 stackable managed switches are designed for small to mediumsized businesses, small to medium-sized enterprises, large enterprises, and Internet service providers. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet, SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 series can act as core, distribution, or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 series suitable for a variety of applications.
- High availability and flexibility
- Switch and link failover
- High availability and flexibility
The DGS-3630 series allows multiple switches to be combined to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. - Switch and link failover
In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the DGS-3630 series also supports advanced Ethernet failover redundancy technologies, such as ERPS and FlexLink. Ethernet Ring Protection Switching (ERPS) provides millisecond-level failover in a ring topology. Meanwhile, FlexLink offers link failover on designated switch ports, providing link redundancy without STP or LBD.
Main Specifications
Product Description | D-Link DGS 3630-52PC – switch – 44 ports – Managed – rack-mountable |
Device Type | Switch – 44 ports – L3 – Managed – stackable |
Enclosure Type | Rack-mountable |
Ports | 44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Switching capacity: 176 Gbps Forwarding performance: 130.95 Mpps Stacking bandwidth: 80 Gbps |
Capacity | IPv4 routing table entries: 16000 IPv6 routing table entries: 7000 IPv4 forwarding table entries: 32000 IPv6 forwarding table entries: 16000 VLAN groups: 4000 Dynamic VLAN entries: 4000 Static ARP entries: 512 IPv4 routes (static): 512 IPv6 routes (static): 256 QoS hardware queues per port: 8 ACL entries (egress): 4000 ACL entries (ingress): 1000 |
MAC Address Table Size | 68K entries |
Jumbo Frame Support | 12KB |
Routing Protocol | MLD, MLDv2, IGMP, IGMPv2, IGMPv3, VRRPv2, VRRPv3, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), static IPv4 routing, static IPv6 routing, VRRP, RIP-1, RIP-2, RIPng, URPF, BGP-4, BGP-4+, OSPFv2, OSPFv3, DVMRPv3, PIM-DM, PIM-SM, PIM-SSM, MSDP |
Remote Management Protocol | HTTPS, CLI, Telnet, SNMP 1, SNMP 2c, SNMP 3, TFTP, RMON 1, RMON 2, RMON 3, RMON 9 |
Features | 4MB packet buffer, 2 fans, Head of Line Blocking Prevention, Loop Guard, Link Aggregation, ERPS v2, port mirroring, VLAN mirroring, RSPAN, VLAN Double Tagging (Q-in-Q), VTP, GVRP, MLD snooping, IGMP snooping, PIM snooping, ARP support, Loopback, tunnelling, IGMP filtering, MLD filtering, QoS, SP, WRR queuing, PFC, bandwidth control, IP Precedence, DSCP support, SRTCM, TRTCM, ACL support, ToS, Energy Efficient Ethernet, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Safeguard Engine, DHCP server, DAI, IP source guard, DHCP snooping, Duplicated Address Detection, packet filtering, BPDU, DoS attack prevention, AAA, 802.1x authentication, host based access control, WAC, Cable Diagnostics Function, Dying Gasp support, DDM, NTP, PTP, SNMP trap, TFTP client, LLDP support, DHCP client, SRM, sFlow, VRF-Lite, SSM, MIB II |
Compliant Standards | IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 44.1 cm x 38 cm x 4.4 cm |
Weight | 6.3 kg |
Extended Specifications
General
Device Type | Switch – 44 ports – L3 – Managed – stackable |
|---|---|
Enclosure Type | Rack-mountable |
Ports | 44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Switching capacity: 176 Gbps Forwarding performance: 130.95 Mpps Stacking bandwidth: 80 Gbps |
Capacity | IPv4 routing table entries: 16000 IPv6 routing table entries: 7000 IPv4 forwarding table entries: 32000 IPv6 forwarding table entries: 16000 VLAN groups: 4000 Dynamic VLAN entries: 4000 Static ARP entries: 512 IPv4 routes (static): 512 IPv6 routes (static): 256 QoS hardware queues per port: 8 ACL entries (egress): 4000 ACL entries (ingress): 1000 |
MAC Address Table Size | 68K entries |
Jumbo Frame Support | 12KB |
Max Units In A Stack | 9 |
Routing Protocol | MLD, MLDv2, IGMP, IGMPv2, IGMPv3, VRRPv2, VRRPv3, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), static IPv4 routing, static IPv6 routing, VRRP, RIP-1, RIP-2, RIPng, URPF, BGP-4, BGP-4+, OSPFv2, OSPFv3, DVMRPv3, PIM-DM, PIM-SM, PIM-SSM, MSDP |
Remote Management Protocol | HTTPS, CLI, Telnet, SNMP 1, SNMP 2c, SNMP 3, TFTP, RMON 1, RMON 2, RMON 3, RMON 9 |
Encryption Algorithm | SSL, TLS 1.0, TLS 1.1, MD5 |
Authentication Method | Secure Shell v.2 (SSH2), TACACS+, RADIUS |
Features | 4MB packet buffer, 2 fans, Head of Line Blocking Prevention, Loop Guard, Link Aggregation, ERPS v2, port mirroring, VLAN mirroring, RSPAN, VLAN Double Tagging (Q-in-Q), VTP, GVRP, MLD snooping, IGMP snooping, PIM snooping, ARP support, Loopback, tunnelling, IGMP filtering, MLD filtering, QoS, SP, WRR queuing, PFC, bandwidth control, IP Precedence, DSCP support, SRTCM, TRTCM, ACL support, ToS, Energy Efficient Ethernet, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Safeguard Engine, DHCP server, DAI, IP source guard, DHCP snooping, Duplicated Address Detection, packet filtering, BPDU, DoS attack prevention, AAA, 802.1x authentication, host based access control, WAC, Cable Diagnostics Function, Dying Gasp support, DDM, NTP, PTP, SNMP trap, TFTP client, LLDP support, DHCP client, SRM, sFlow, VRF-Lite, SSM, MIB II |
Compliant Standards | IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at |
Status Indicators | Status |
Expansion / Connectivity

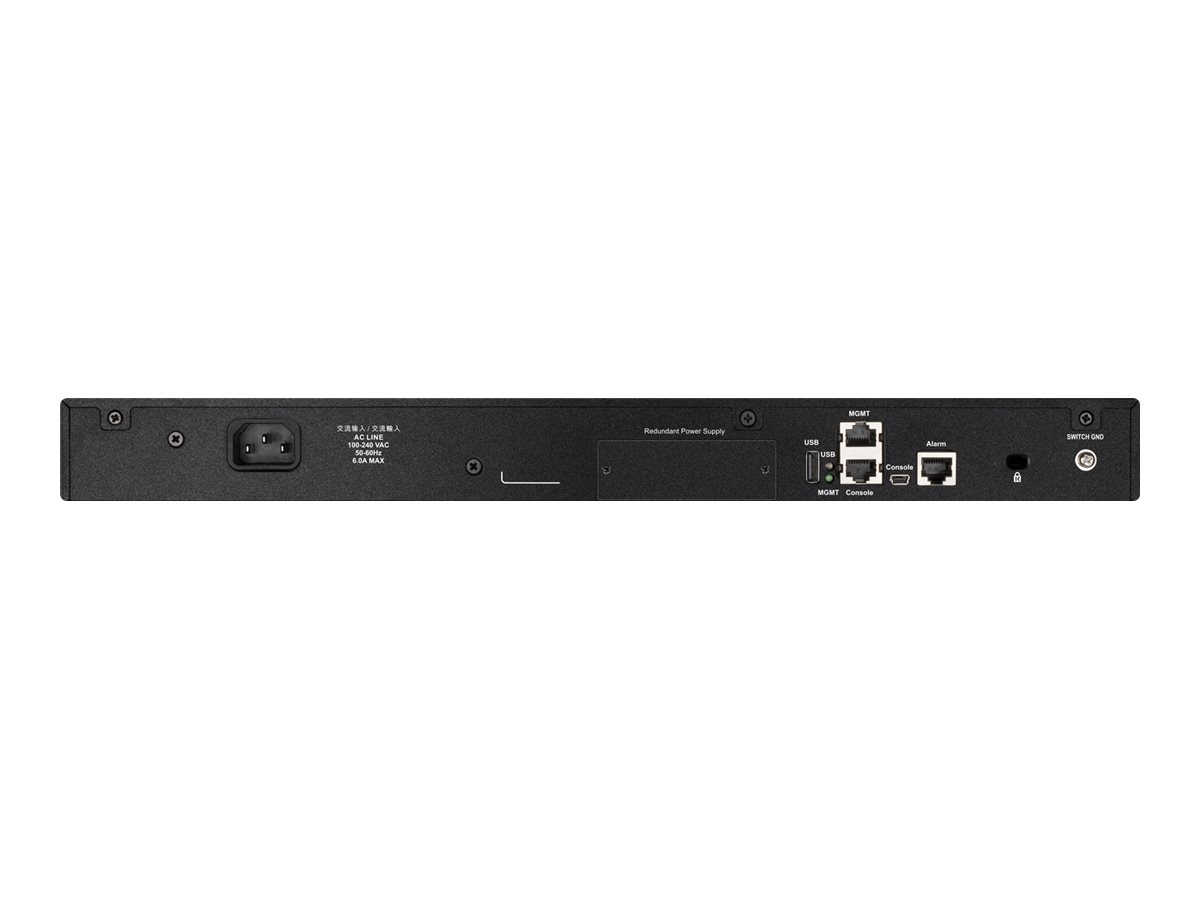

Interfaces | 48 x 1000Base-T RJ-45 PoE+ 4 x 1000Base-X SFP 4 x 10GBase-X SFP+ 1 x console RJ-45 management 1 x management (Gigabit LAN) RJ-45 1 x USB 2.0 Type A 1 x alarm RJ-45 1 x console (mini-USB) |
|---|
Power
Voltage Required | AC 120/230 V (50/60 Hz) |
|---|---|
Power Consumption Operational | 54.1 Watt |
Miscellaneous
MTBF | 199,929.76 hours |
|---|---|
Compliant Standards | cUL, CB, CCC, BSMI, FCC Class A certified, C-Tick, VCCI, ITU Y.1731 |
Dimensions & Weight
Width | 44.1 cm |
|---|---|
Depth | 38 cm |
Height | 4.4 cm |
Weight | 6.3 kg |
Environmental Parameters
Min Operating Temperature | -5 °C |
|---|---|
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 – 95% |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 95% |
