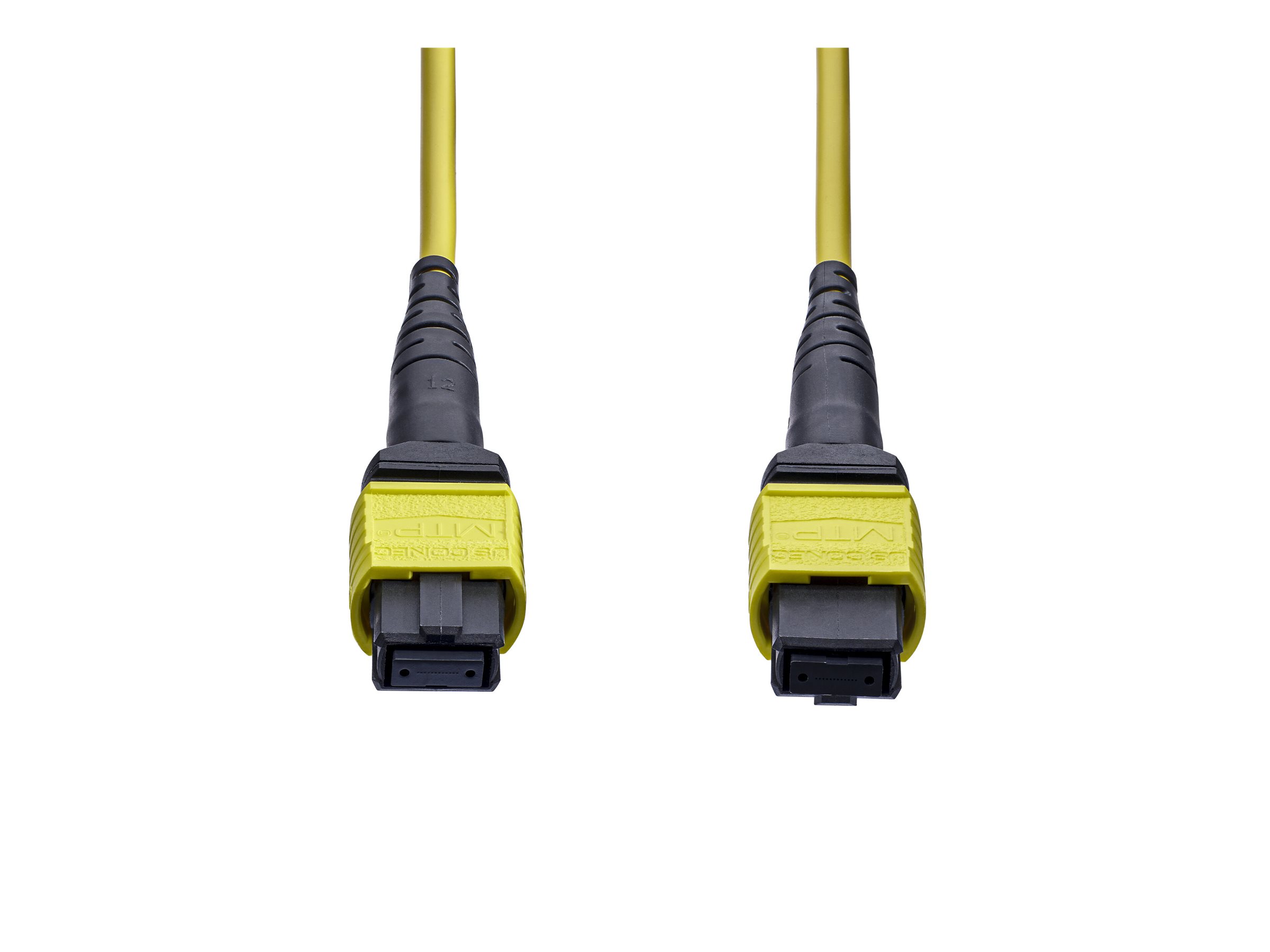

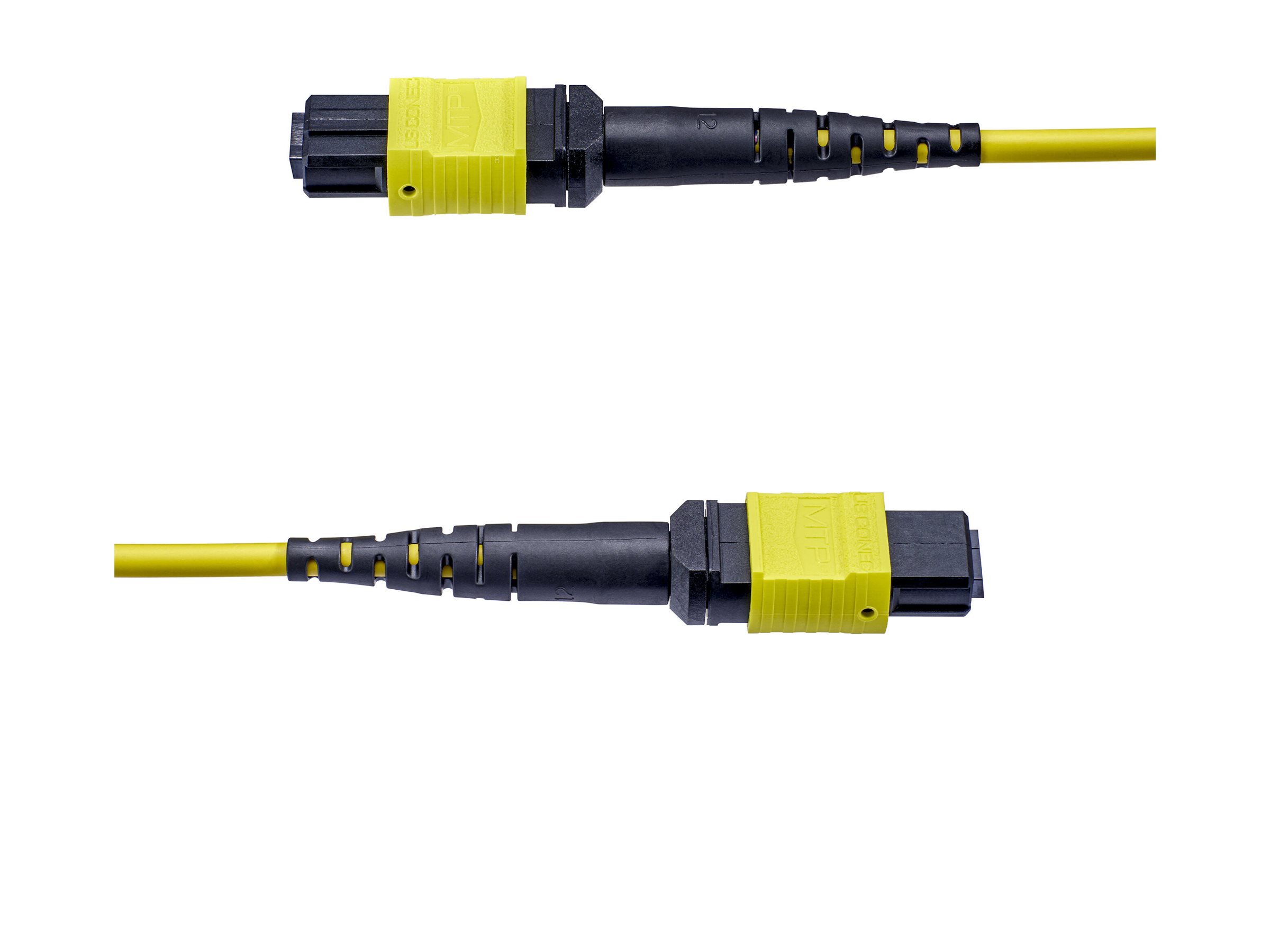

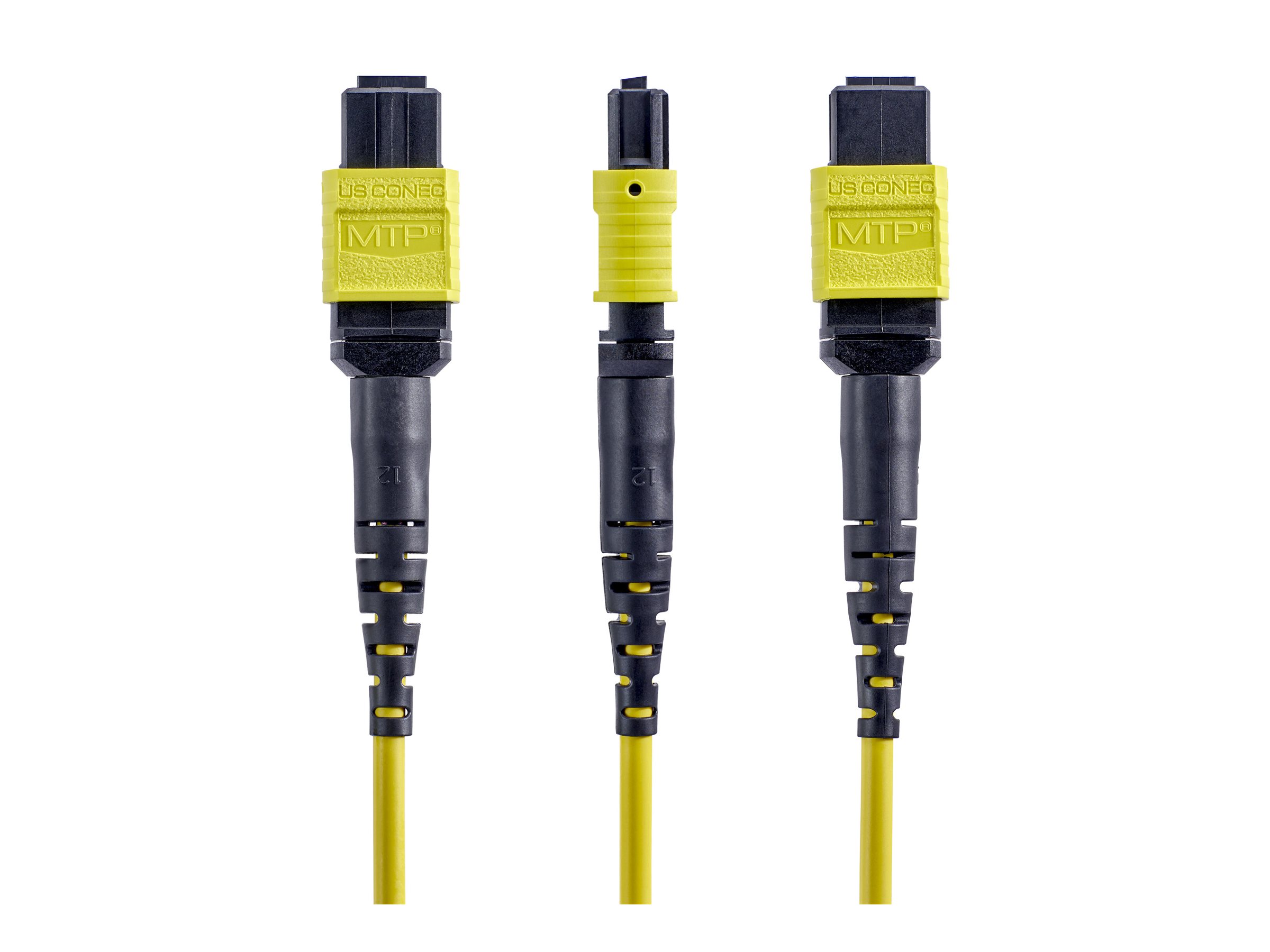

Startech, Patch cable, MTP/MPO-16 single-mode (F) to MTP/MPO-16 single-mode (F), 10 m, fibre optic, 9 / 125 micron, OS2, OFNP, plenum, yellow
$754.41 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
StarTech MTP/MPO-16 single-mode 16-fiber patch cable is designed to provide dependable high-density fiber connectivity for data centers and network distribution panels. The plenum-rated OFNP jacket and straight-through Type-B construction deliver safe installation in air-handling spaces while maintaining consistent single-mode transmission with Angled Physical Contact connectors. The 10 m length, yellow jacket color, and female-to-female MTP/MPO-16 connectors simplify routing and identification during installation and maintenance.
- Plenum-rated OFNP jacket for safe use in air-handling spaces
- Female-to-female MTP/MPO-16 connectors for high-density single-mode links
- Angled Physical Contact (APC) endfaces for reduced back-reflection
- 16-fiber singlemode design for consolidated cabling in data centers
- 10 m length in a yellow jacket for easy routing and identification
- Reliable plenum-rated construction
The OFNP plenum jacket supports installation in air-handling spaces, helping meet building safety requirements while protecting the fiber cable during routing and use. - Precise angled physical contact
Angled Physical Contact (APC) connectors reduce back-reflection, which helps maintain consistent optical performance for single-mode links. - High-density 16-fiber design
Sixteen single-mode fibers in a single cable allow consolidation of multiple links into one compact connection, reducing cable bulk and simplifying cable management. - Compatible female-to-female connectivity
MTP/MPO-16 female connectors on both ends provide straightforward integration with compatible high-density panels and equipment without re-terminating the cable. - Convenient installation length and color
A 10 m length in a yellow jacket offers a balance of reach and visibility for typical data center runs, making identification and routing easier during deployment. - Supported lifetime coverage
Limited lifetime warranty provides ongoing product support and helps protect the investment over the cable’s service life.
Main Specifications
Product Description | Startech patch cable – 10 m – yellow |
Type | Patch cable – OS2 – OFNP |
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Features | Plenum, Angled Physical Contact (APC), Type-B, straight through |
Cable Length | 10 m |
Length | 10 m |
Core / Cladding Diameter | 9 / 125 micron |
Connector | MTP/MPO-16 single-mode – female |
Connector (Second End) | MTP/MPO-16 single-mode – female |
Colour | Yellow |
Extended Specifications
General
Network Cable Type | Patch cable – OS2 – OFNP |
|---|---|
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Fibre Qty | 16 |
Core / Cladding Diameter | 9 / 125 micron |
Features | Plenum, Angled Physical Contact (APC), Type-B, straight through |
Cable Length | 10 m |
Length | 10 m |
Weight | 86 g |
Colour | Yellow |
Connectivity
Connector | MTP/MPO-16 single-mode – female |
|---|---|
Connector (Second End) | MTP/MPO-16 single-mode – female |
Miscellaneous
Compliant Standards | WEEE, OFNP |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 30 cm |
|---|---|
Shipping Depth | 25 cm |
Shipping Height | 1.5 cm |
Shipping Weight | 112.5 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 70 °C |
