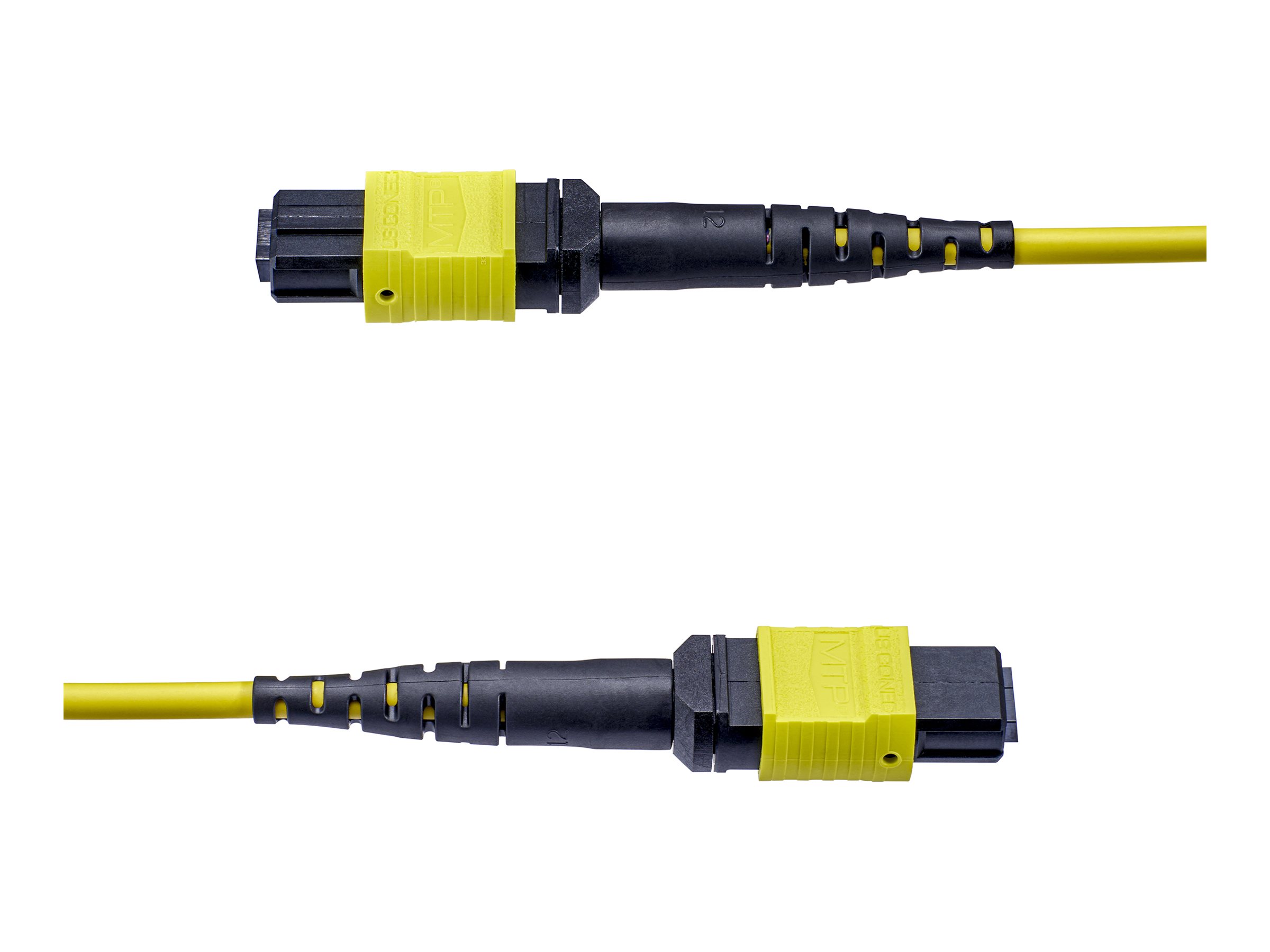

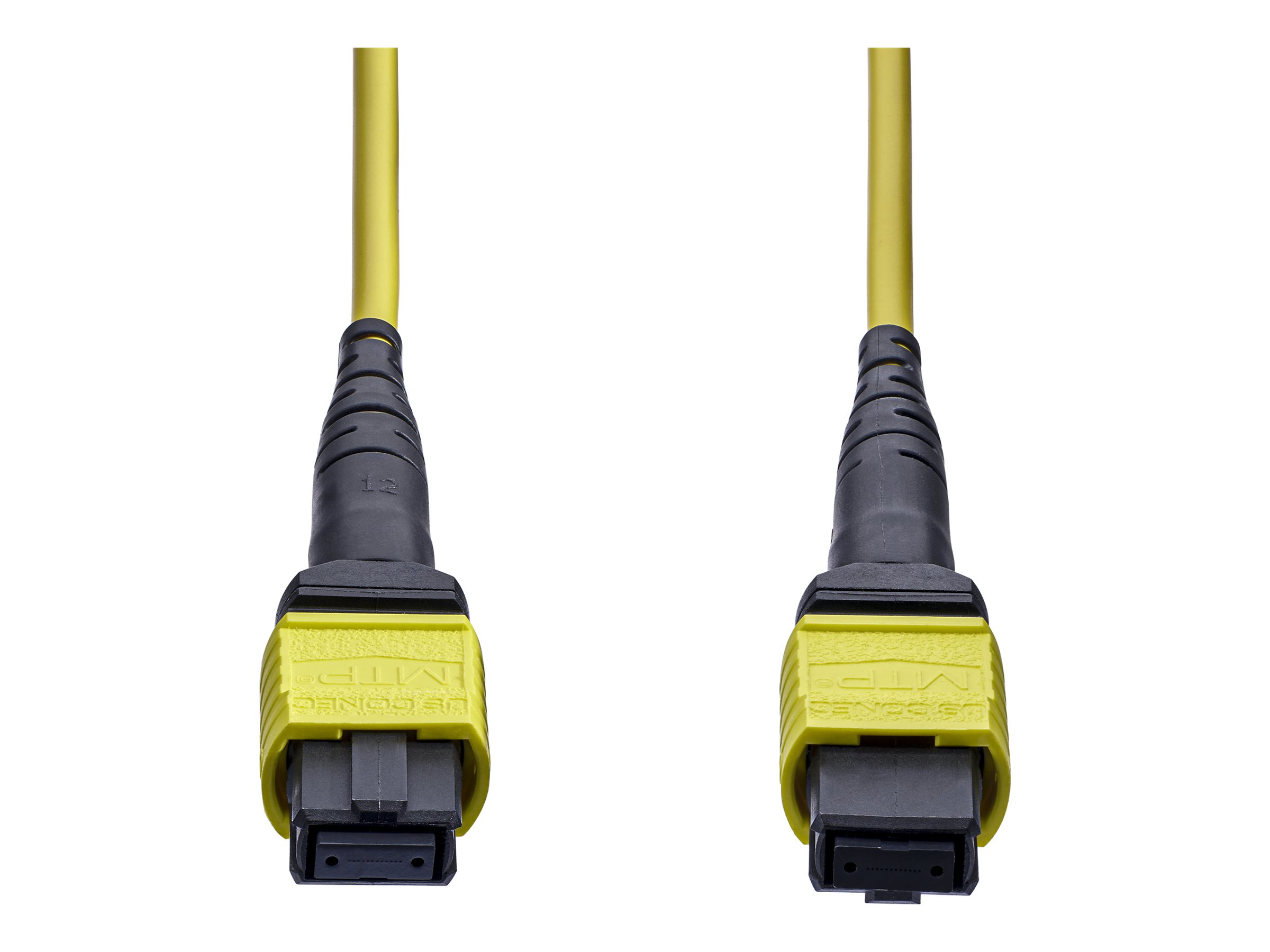

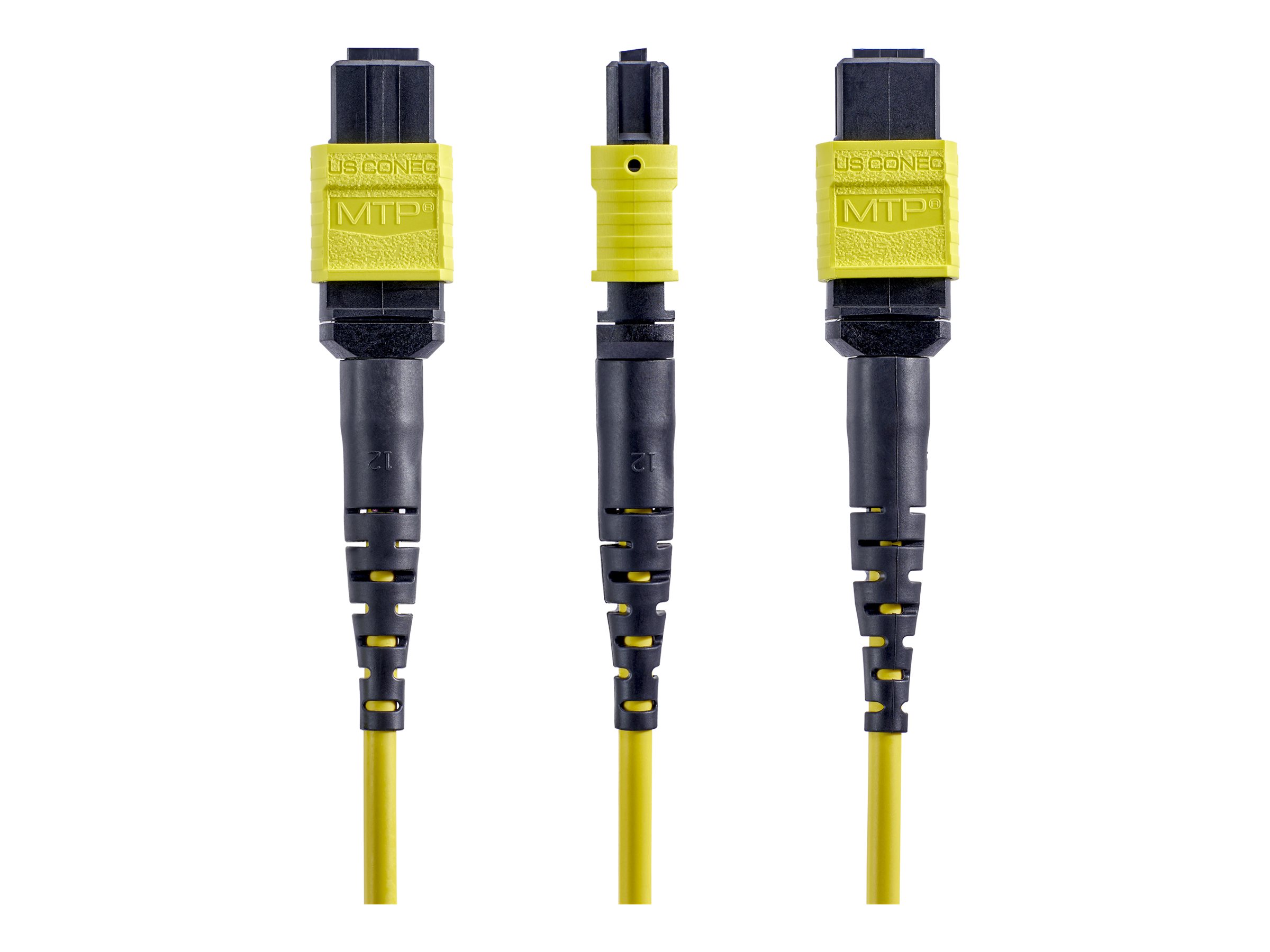

Startech, Patch cable, MTP/MPO-12 single-mode (F) to MTP/MPO-12 single-mode (F), 10 m, 3 mm, fibre optic, 9 / 125 micron, OS2, OFNP, plenum, jumper, yellow
$326.20 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The StarTech OS2MTP12AOFNP10M patch cable is designed for reliable performance in demanding fiber optic environments. This singlemode fiber optic cable features a core diameter of 9 microns and a cladding diameter of 125 microns, ensuring superior light transmission for optimal data integrity. With its durable plenum-rated construction, this cable meets stringent NEC compliance while maintaining flexibility for various applications in networking setups. Equipped with two MTP/MPO-12 connectors, this cable offers easy connectivity with female connectors on each end, making installation straightforward and efficient.
- Designed with singlemode fiber for efficient data transmission
- Includes MTP/MPO-12 female connectors for versatile compatibility
- Constructed with plenum-rated materials for safety in air handling spaces
- Fits well in various temperature environments, operating between 0 °C and 70 °C
- Compliant with RoHS, WEEE, and OFNP standards for environmental safety
- Reliable singlemode technology
The patch cable utilizes singlemode fiber optics which provides high bandwidth and long-distance transmission capabilities, making it ideal for data centers and enterprise networks. - Durable plenum-rated construction
Built with plenum-rated materials, this cable can be safely installed in air handling spaces without compromising fire safety protocols, ensuring compliance with NEC standards. - Easy installation with MTP/MPO-12 connectors
Equipped with MTP/MPO-12 female connectors, the cable allows for easy and quick connections in tightly packed environments, promoting efficient setup and maintenance.
Main Specifications
Product Description | Startech patch cable – 10 m – yellow |
Type | Patch cable – OS2 – OFNP |
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Features | Plenum, jumper, Angled Physical Contact (APC), Type-A |
Cable Length | 10 m |
Length | 10 m |
Diameter | 3 mm |
Core / Cladding Diameter | 9 / 125 micron |
Connector | MTP/MPO-12 single-mode – female |
Connector (Second End) | MTP/MPO-12 single-mode – female |
Colour | Yellow |
Image Colour Disclaimer | The displayed product image may be a different colour |
Extended Specifications
General
Network Cable Type | Patch cable – OS2 – OFNP |
|---|---|
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Fibre Qty | 12 |
Core / Cladding Diameter | 9 / 125 micron |
Features | Plenum, jumper, Angled Physical Contact (APC), Type-A |
Cable Length | 10 m |
Length | 10 m |
Diameter | 3 mm |
Colour | Yellow |
Image Colour Disclaimer | The displayed product image may be a different colour |
Connectivity
Connector | MTP/MPO-12 single-mode – female |
|---|---|
Connector (Second End) | MTP/MPO-12 single-mode – female |
Miscellaneous
Compliant Standards | RoHS, OFNP, WEEE |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 30 cm |
|---|---|
Shipping Depth | 25 cm |
Shipping Height | 1.5 cm |
Shipping Weight | 19.5 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 70 °C |
