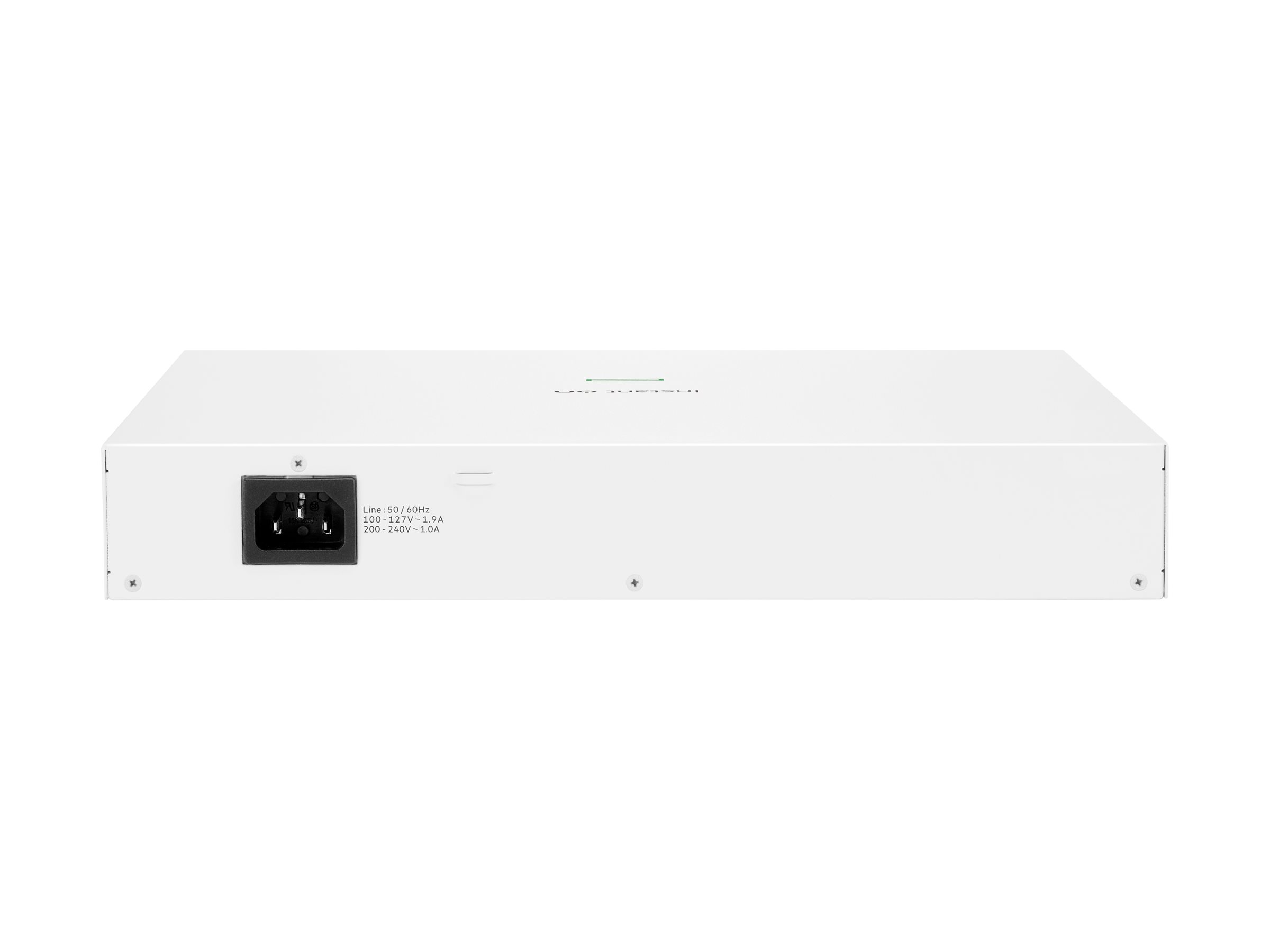

HPE NW ION Sw 8SRX 2P 120W 1940
$1,387.13 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The HPE Networking Instant On 1940 8p SR10 4p CL6 PoE 2p SFP+ 120W is a versatile and reliable switch designed to enhance networking capabilities for various environments. With a switching capacity of 200 Gbps and support for up to 256 VLANs, it ensures efficient data flow and network management. This model features eight ports, including four 100/1000/2.5G/5G/10GBase-T ports with PoE Class 6 capabilities, providing power to devices while eliminating the need for additional wiring.
- Robust performance with 148.8 Mpps throughput
- Supports static IPv4 routing and Layer 2+ switching
- Easily manageable via SNMP, HTTP, and HTTPS
- Includes a rack mounting kit for versatile installation
- Compliant with multiple international standards for safety and performance
- Efficient power management
The switch supports Power over Ethernet (PoE) Class 6 with a budget of 120 W, allowing efficient power delivery to connected devices, simplifying installation and reducing clutter. - Comprehensive networking capabilities
Featuring Layer 2+ advanced switching, IGMP support, and multiple spanning tree protocols, this model accommodates complex network management needs while ensuring optimal data flow. - High capacity and performance
Capable of handling high traffic loads with a switching capacity of 200 Gbps and a packet buffer size of 2 MB, facilitating smooth operations in busy environments. - Reliable environmental operation
Designed with a wide operating temperature range of 0°C to 40°C and a humidity range of 15% to 95%, this switch maintains stability even under challenging conditions. - Extensive model compliance
This switch adheres to various international standards, ensuring safe operation and compatibility, providing peace of mind for a reliable networking solution.
Main Specifications
Product Description | HPE Networking Instant On 1940 8p SR10 4p CL6 PoE 2p SFP+ 120W – switch – 8 ports – Managed – rack-mountable, table-top mountable, under-table mountable |
Device Type | Switch – 8 ports – L2+ – Managed |
Enclosure Type | Side to side airflow rack-mountable, table-top mountable, under-table mountable 1U |
Subtype | 10 Gigabit Ethernet |
Ports | 4 x 100/1000/2.5G/5G/10GBase-T + 4 x 100/1000/2.5G/5G/10G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE Class 6 |
PoE Budget | 120 W |
Performance | Throughput: 148.8 Mpps Switching capacity: 200 Gbps Latency (100 Mbps): < 5.3 µs Latency (1 Gbps): < 2.1 µs Latency (2.5 Gbps): < 5.4 µs Latency (5 Gbps): < 3 µs Latency (10 Gbps): < 0.86 µs |
Capacity | IPv4 routing table size (static): 32 Packet buffer size: 2 MB IPv4 host table (ARP): 509 IPv4/MAC ACL entries (ingress): 100 Access Control Entries (ACEs): 2048 IPv4/MAC ACL entries (egress): 512 Link aggregation groups: 8 LAG members: 4 Maximum number of VLANs: 256 IGMP groups: 1000 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMP, STP, RSTP, MSTP, static IPv4 routing |
Remote Management Protocol | SNMP, SNMP 2c, SNMP 3, DHCP, IPv4, HTTP, HTTPS, TFTP, SCP |
Features | LACP, QoS, MSTP support, RSTP support, flow control, VLAN support, auto-uplink (auto MDI/MDI-X), traffic prioritisation, traffic shaping, LLDP-MED, LLDP, layer 3 routing, AAA, LLDP support, SNMP support, EEE, Jumbo Frames support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z, IEEE 802.3bz, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x |
Power | AC 100-127/200-240 V (50/60 Hz) |
Dimensions (WxDxH) | 29.5 cm x 29.6 cm x 4.4 cm |
Weight | 2.47 kg |
Extended Specifications
General
Device Type | Switch – 8 ports – L2+ – Managed |
|---|---|
Enclosure Type | Side to side airflow rack-mountable, wall-mountable, table-top mountable, under-table mountable 1U |
Subtype | 10 Gigabit Ethernet |
Ports | 4 x 100/1000/2.5G/5G/10GBase-T + 4 x 100/1000/2.5G/5G/10G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE Class 6 |
PoE Budget | 120 W |
Performance | Throughput: 148.8 Mpps Switching capacity: 200 Gbps Latency (100 Mbps): < 5.3 µs Latency (1 Gbps): < 2.1 µs Latency (2.5 Gbps): < 5.4 µs Latency (5 Gbps): < 3 µs Latency (10 Gbps): < 0.86 µs |
Capacity | IPv4 routing table size (static): 32 Packet buffer size: 2 MB IPv4 host table (ARP): 509 IPv4/MAC ACL entries (ingress): 100 Access Control Entries (ACEs): 2048 IPv4/MAC ACL entries (egress): 512 Link aggregation groups: 8 LAG members: 4 Maximum number of VLANs: 256 IGMP groups: 1000 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMP, STP, RSTP, MSTP, static IPv4 routing |
Remote Management Protocol | SNMP, SNMP 2c, SNMP 3, DHCP, IPv4, HTTP, HTTPS, TFTP, SCP |
Encryption Algorithm | SSL |
Authentication Method | RADIUS, TACACS+ |
Features | LACP, QoS, MSTP support, RSTP support, flow control, VLAN support, auto-uplink (auto MDI/MDI-X), traffic prioritisation, traffic shaping, LLDP-MED, LLDP, layer 3 routing, AAA, LLDP support, SNMP support, EEE, Jumbo Frames support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z, IEEE 802.3bz, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x |
Processor | 1 x ARM Cortex-A9: 1.25 GHz |
RAM | 1 GB SDRAM |
Flash Memory | 512 MB |
Expansion / Connectivity
Interfaces | 4 x 100/1000/2.5G/5G/10GBase-T RJ-45 4 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 PoE Class 6 2 x Gigabit / 10Gbit LAN SFP+ uplink 1 x USB-C console |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
Miscellaneous

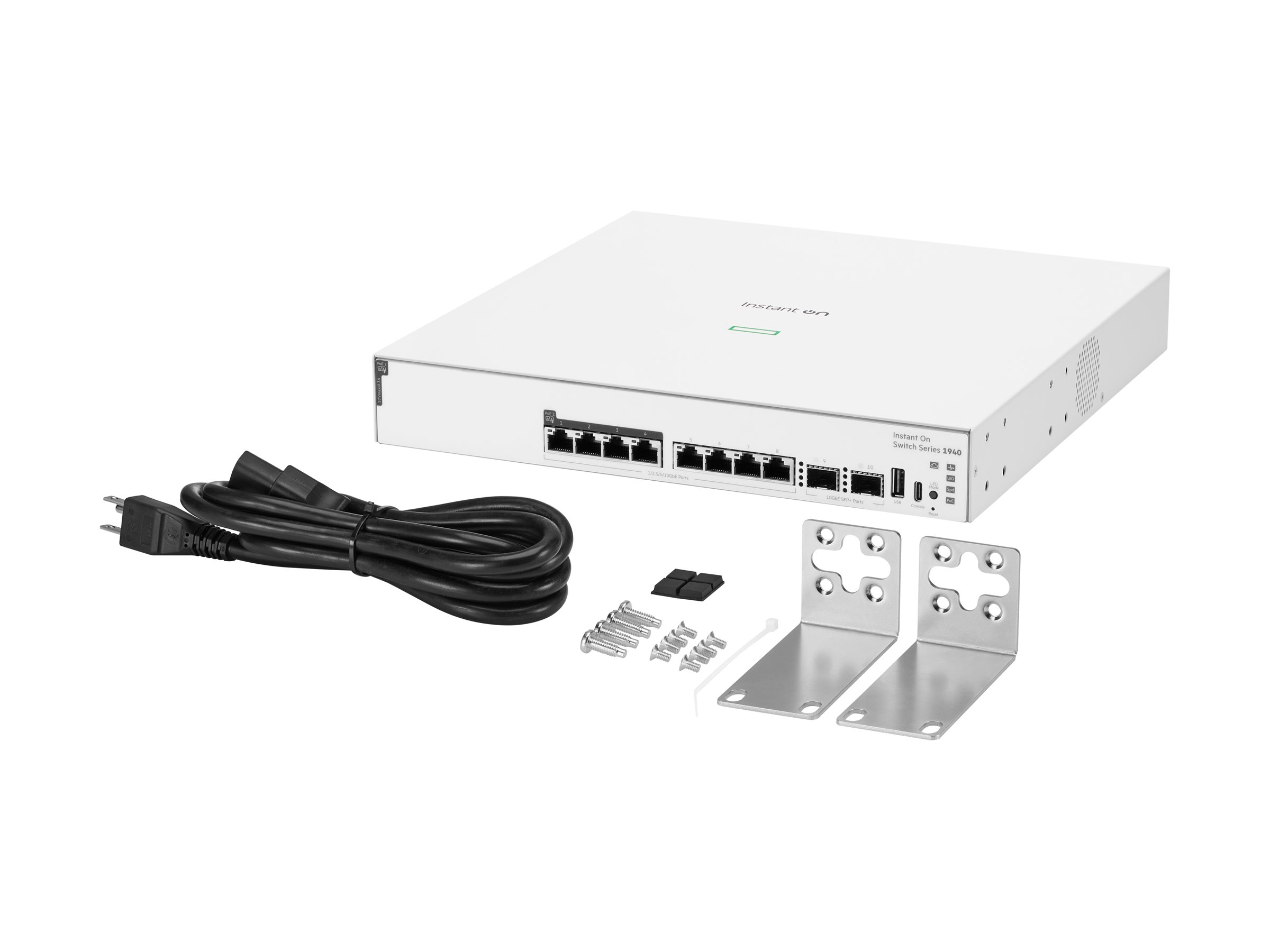

Included Accessories | 2-Post Rack Kit |
|---|---|
Rack Mounting Kit | Included |
MTBF | 64 years |
Compliant Standards | IEC/EN 62368-1 Second Edition, IEC/EN 62368-1 Third Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, EN 55032:2015, CISPR 32 Class A, FCC CFR 47 Part 15: 2018 Class A, ICES-003 Class A, VCCI 32 Class A, CNS 13438 Class A, KS C 9832 Class A, AS/NZS CISPR 32 Class A, BS EN 55035, CISPR 35, KS C 9835, EN 55035, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-3-2, EN 61000-3-2, IEC 61000-3-3, EN 61000-3-3 |
Dimensions & Weight
Width | 29.5 cm |
|---|---|
Depth | 29.6 cm |
Height | 4.4 cm |
Weight | 2.47 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 15 – 95% @ 40 °C (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 15 – 95% @ 60 °C (non-condensing) |
