Description

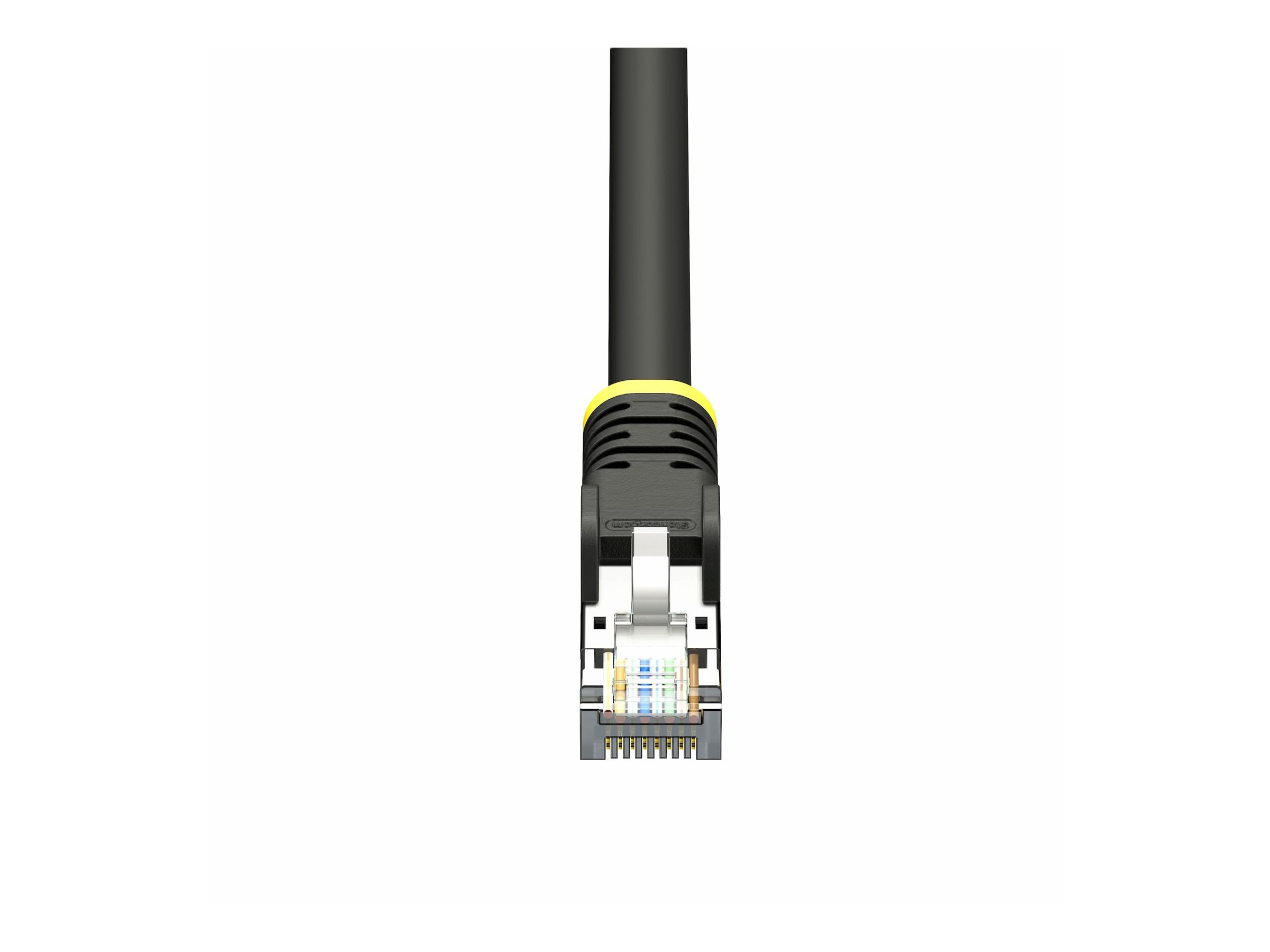

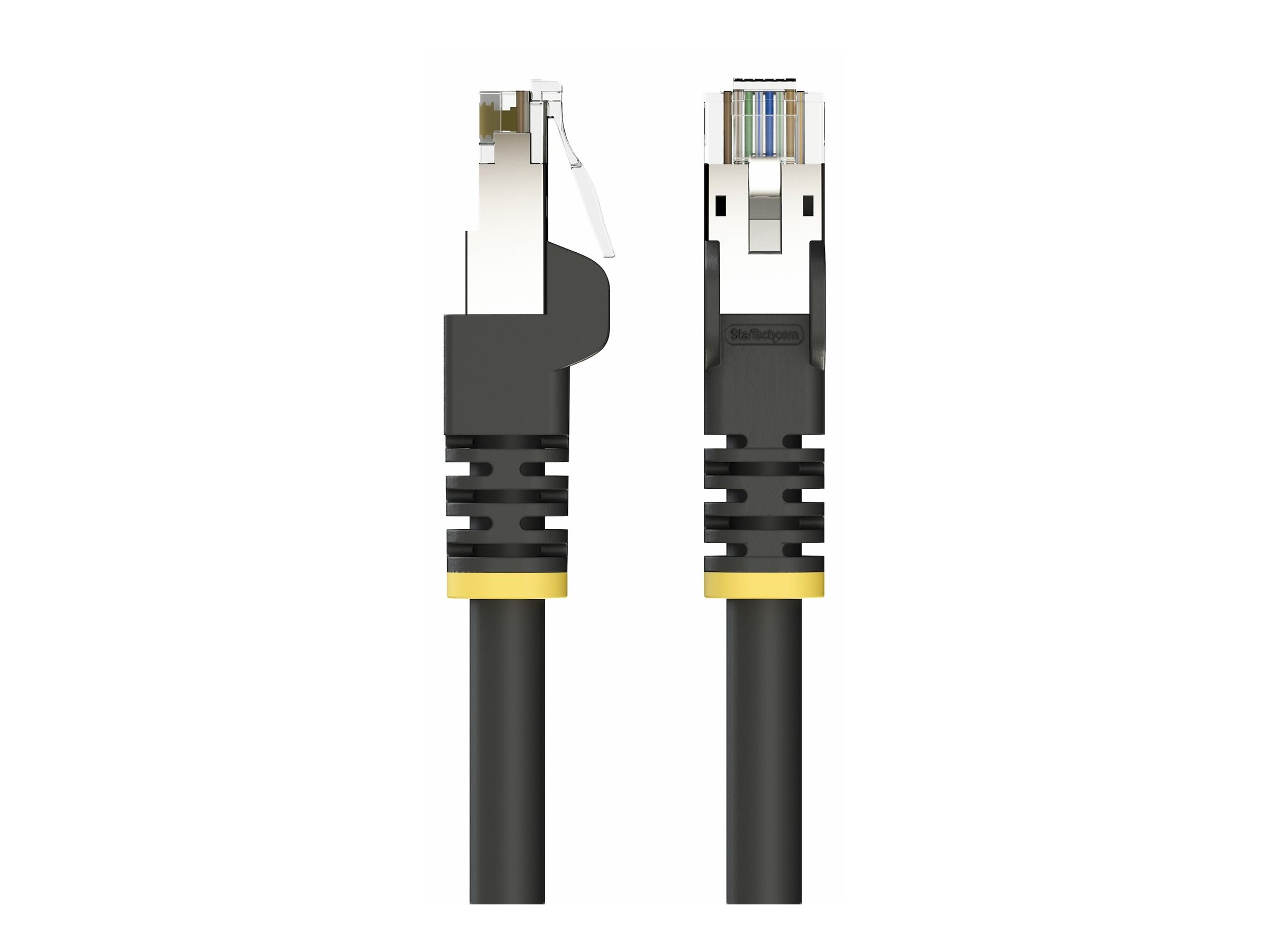

The StarTech C6APATCHUV3MBK patch cable is designed for outdoor connectivity, providing performance with S/FTP technology. It features aluminum mylar foil shielding with braid for EMI protection and a durable PVC jacket. This cable supports a tested frequency of up to 500 MHz and offers speeds of up to 10 Gbps, making it suitable for various networking applications. With 50 micron gold-plated connectors, it ensures low insertion loss while supporting 100 W PoE++ technology, allowing for efficient power delivery alongside data transmission.
Constructed with bare copper conductors, the cable is engineered for flexibility and strength in outdoor environments with UV protection. It conforms to multiple standards, including IEEE 802.3bt, ensuring compatibility with a wide range of devices. Rated for operation in temperatures from -20°C to 60°C, this patch cable maintains performance even in challenging conditions, making it an ideal choice for those who demand reliable connectivity in outdoor settings.
- Designed for outdoor use with UV protection
- Supports speeds up to 10 Gbps
- Equipped with 50 micron gold-plated connectors for low insertion loss
- Features aluminum mylar foil and braid for EMI protection
- Certified to multiple compliance standards for assured compatibility
- Durable construction
The cable jacket is made from PVC, providing resilience in various outdoor conditions while maintaining flexibility. - High-speed performance
Supports a tested frequency of up to 500 MHz, ensuring fast and reliable data transmission rates of up to 10 Gbps. - Enhanced shielding
S/FTP design with aluminum mylar foil and braid minimizes electromagnetic interference, promoting clearer data signals. - Power over Ethernet capability
Supports up to 100 W PoE++ power delivery, enabling simultaneous power and data transmission for connected devices. - Reliable connectivity
Conforms to standards such as IEEE 802.3bt and TIA/EIA T568B, ensuring compatibility with a wide range of network equipment.
Main Specifications
Product Description | Startech patch cable – 3 m – black |
Type | Patch cable – CAT 5/5e/6/6a – IEEE 802.3bt |
Technology | S/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminum mylar foil with braid |
Wires per Cable | 8 wires |
Features | Outdoor, snagless, UV protection, 50 micron gold-plated connectors, low insertion loss, up to 10 Gbps, EMI protection, bare copper conductors, 100W PoE++ support |
Cable Length | 3 m |
Diameter | 7.2 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 5/5e/6/6a – IEEE 802.3bt |
|---|
Technology | S/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminum mylar foil with braid |
|---|
Jacket Material | PVC |
|---|
American Wire Gauge (AWG) | 23 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Outdoor, snagless, UV protection, 50 micron gold-plated connectors, low insertion loss, up to 10 Gbps, EMI protection, bare copper conductors, 100W PoE++ support |
|---|
Cable Length | 3 m |
|---|
Diameter | 7.2 mm |
|---|
Weight | 174 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | CMX, ANSI/TIA-568.2-D, 802.3bt type 4, PoE++, TIA/EIA T568B, WEEE, RoHS – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 24 cm |
|---|
Shipping Depth | 22 cm |
|---|
Shipping Height | 3.5 cm |
|---|
Shipping Weight | 175 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
