Description

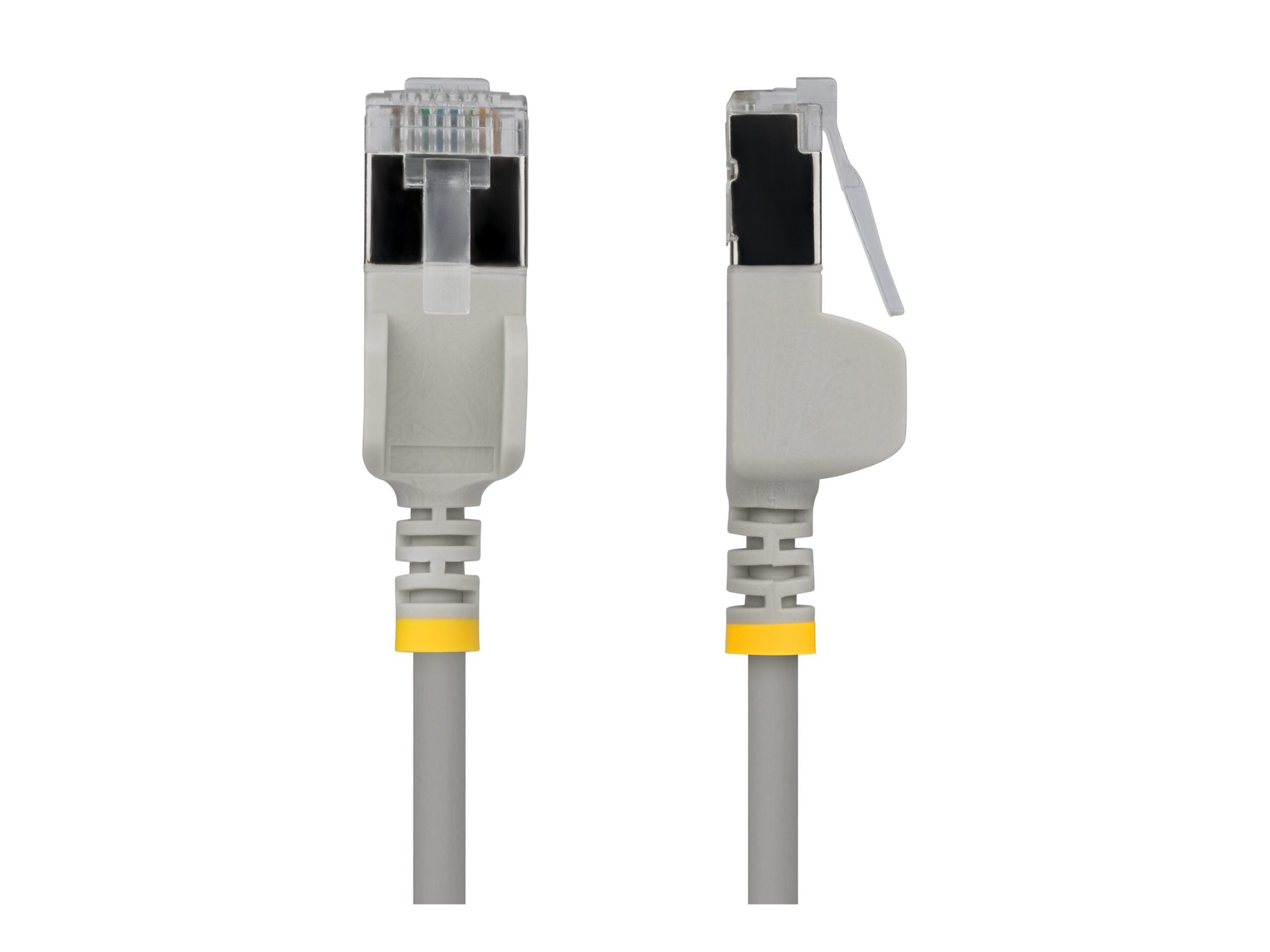

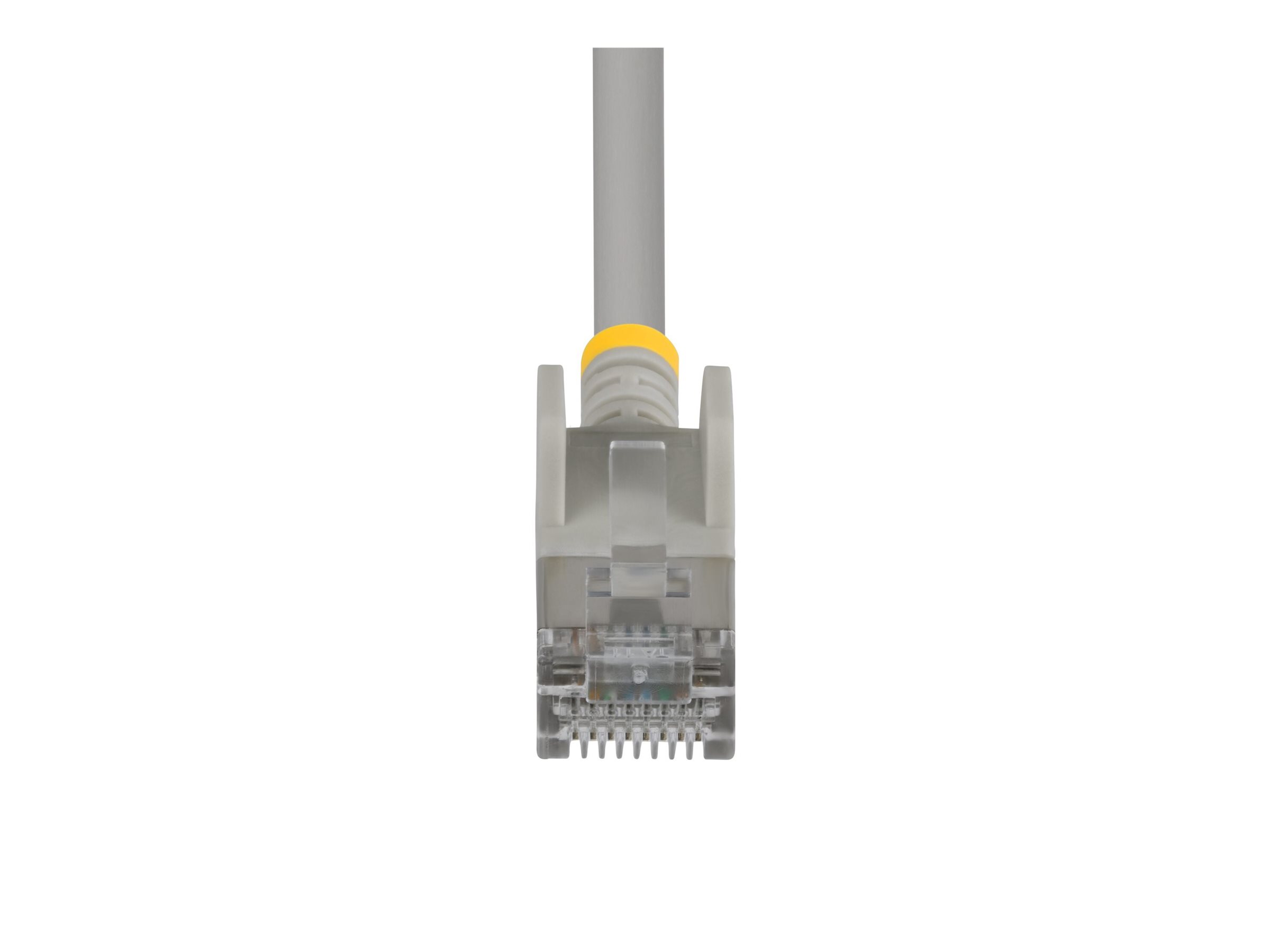

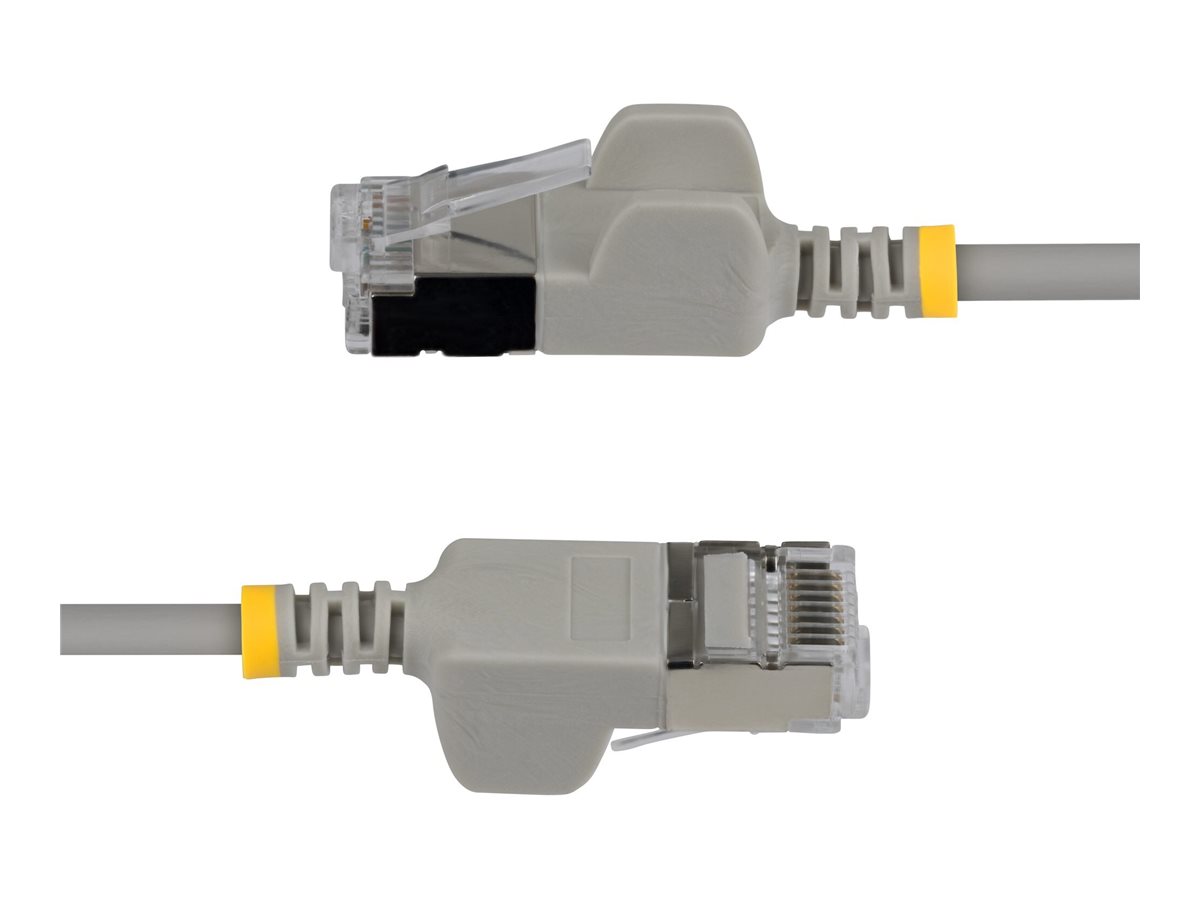

The StarTech patch cable delivers performance through its design. Constructed with U/FTP technology, it features aluminum Mylar foil shielding to minimize electromagnetic interference. The ultra-slim design and snagless connectors ensure easy management in tight spaces, while the pure bare copper conductors enable speeds of up to 10 Gbps, suitable for high-demand networking environments. This CAT 6a cable is tested for frequencies up to 500 MHz, ensuring reliable data transfer even in complex systems. The durable thermoplastic elastomer jacket provides added flexibility and longevity, making this cable a choice for both residential and commercial use.
- Supports data speeds of up to 10 Gbps
- Designed with EMI shielding for improved performance
- Snagless connectors for easy installation
- Ultra-slim design ideal for tight spaces
- Constructed with pure bare copper conductors
- Efficient design
The ultra-slim profile of the patch cable allows for neat organization in confined spaces, reducing clutter and simplifying setup. - High-speed performance
With the capability of transmitting data at speeds up to 10 Gbps, this cable is designed for high-demand applications, ensuring optimal connectivity and performance. - Robust shielding
The aluminum Mylar foil shielding significantly minimizes electromagnetic interference, enabling a stable and reliable data transmission environment. - Durable construction
Crafted with a thermoplastic elastomer jacket, this patch cable is both flexible and robust, providing resistance to wear and tear over time. - Compliant standards
The cable adheres to ANSI/TIA-568-C.2 standards, ensuring it meets industry specifications for performance and quality.
Main Specifications
Product Description | Startech patch cable – 80 cm – grey |
Type | Patch cable – CAT 6a |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
Cable Length | 80 cm |
Diameter | 3.7 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Grey |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
|---|
Cable Length | 80 cm |
|---|
Diameter | 3.7 mm |
|---|
Weight | 13 g |
|---|
Colour | Grey |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | ANSI/TIA-568-C.2, RoHS – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 15 cm |
|---|
Shipping Depth | 12 cm |
|---|
Shipping Height | 1.6 cm |
|---|
Shipping Weight | 23 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
