Description

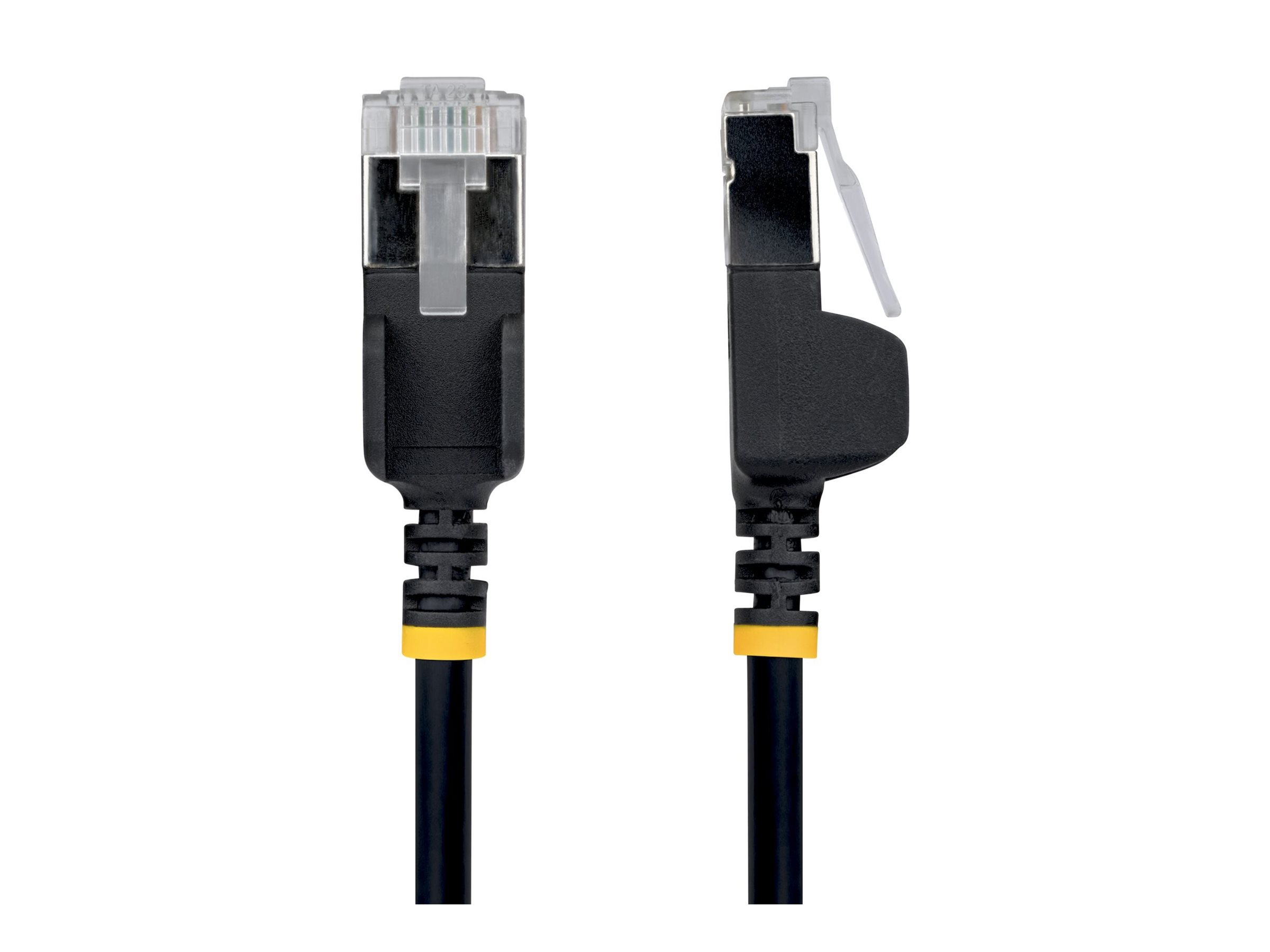

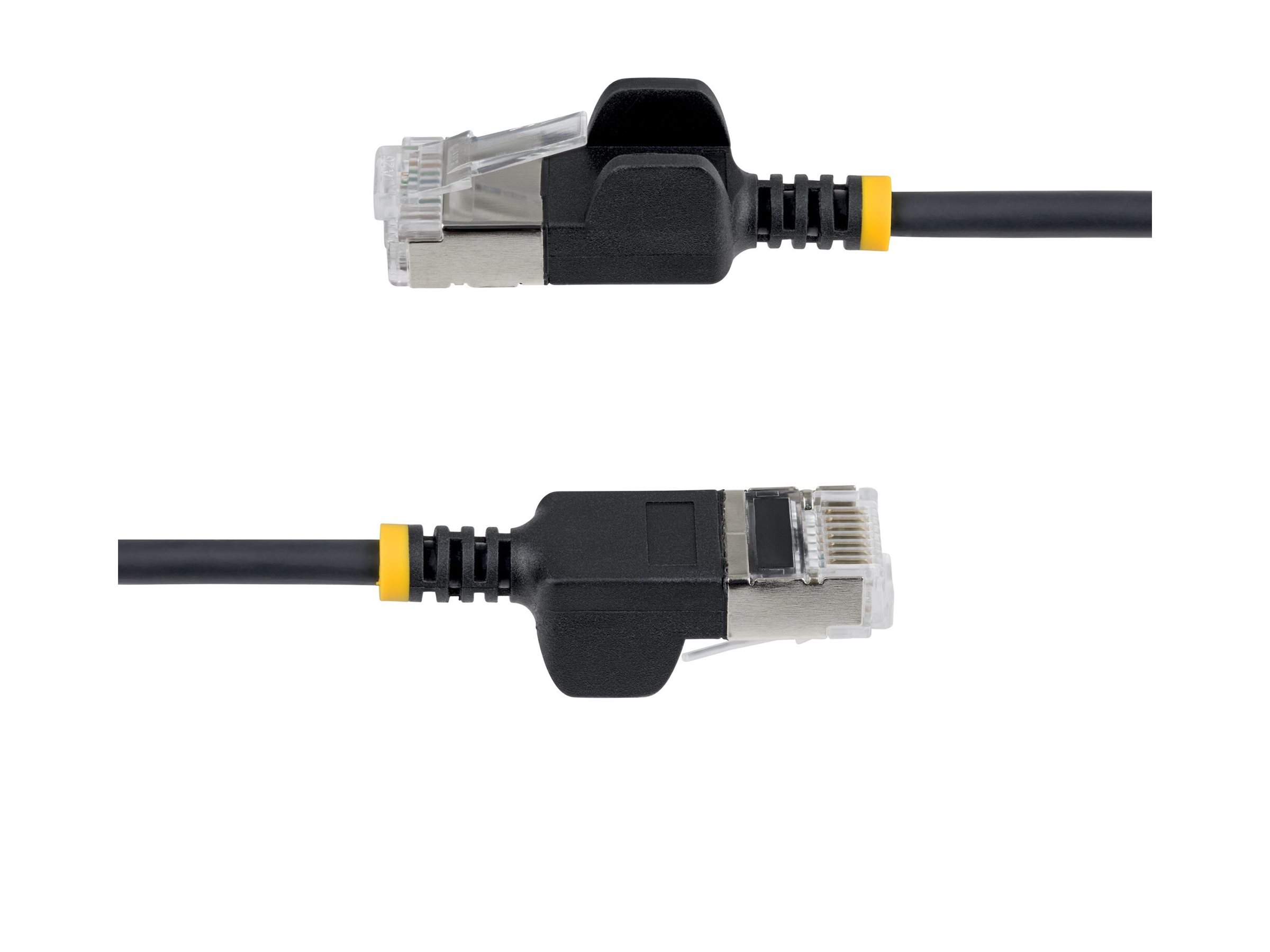

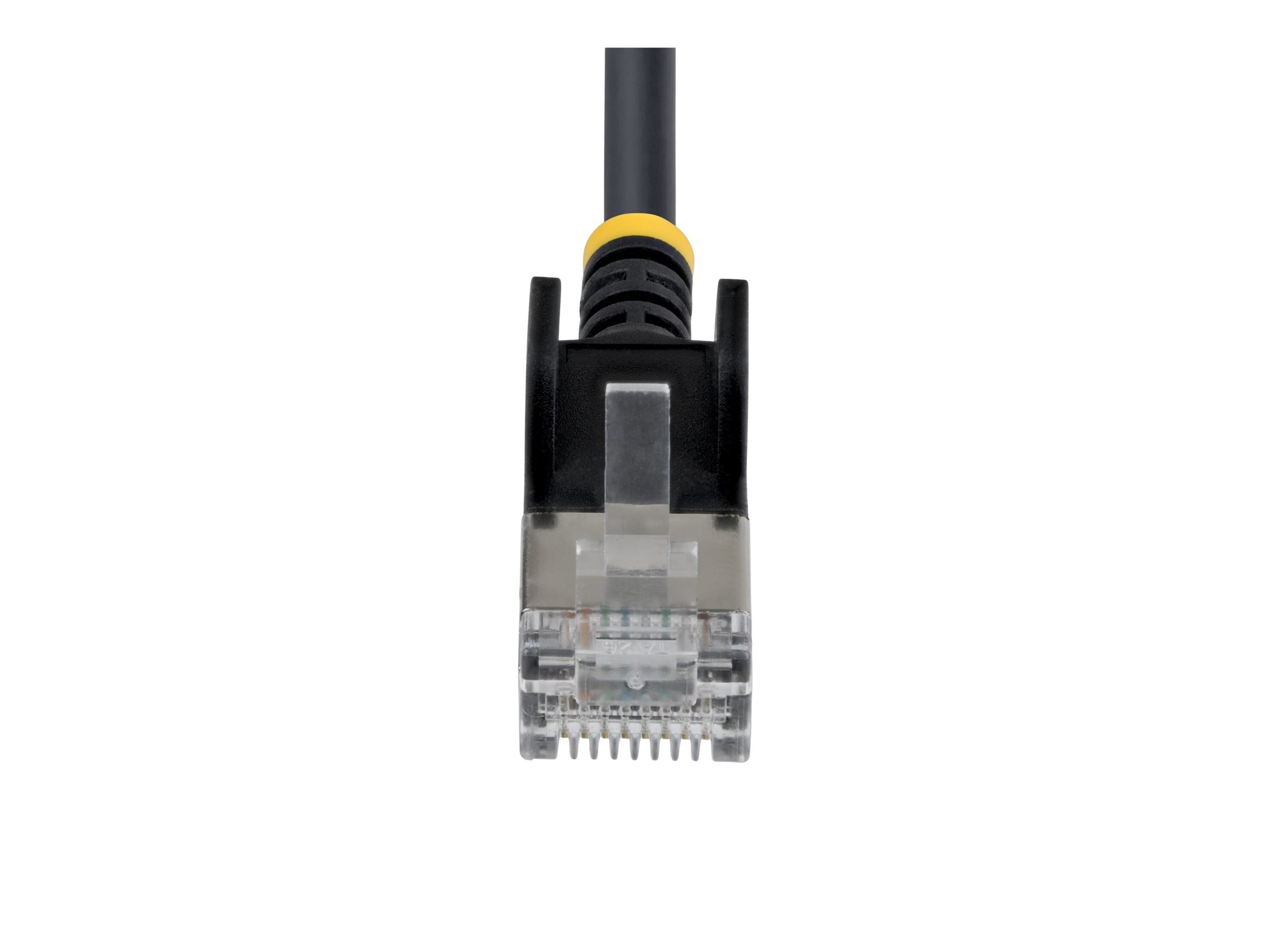

The StarTech N6APATSTP34BKS3M patch cable is designed for network performance. Featuring U/FTP technology and aluminum mylar foil shielding, this cable minimizes interference and supports frequencies of up to 500 MHz, ideal for demanding applications. Each cable is built with pure bare copper conductors and gold-plated connectors to ensure reliable data transmission at speeds of up to 10 Gbps. Its ultraslim and snagless design makes it easier to manage in tight spaces, while the translucent connector boots add a touch of style.
Crafted from thermoplastic elastomer (TPE), this cable offers flexibility and durability, suitable for a range of environments with operating temperatures from -20°C to 60°C. Compliant with RoHS, ANSI/TIA-568-C.2, and other standards, it assures users of high-quality functionality. The StarTech patch cable is a choice for anyone looking to enhance their networking setup with reliable and efficient connectivity.
- Support for data transmission speeds of up to 10 Gbps
- Minimized Near-End Crosstalk (NEXT) for stable performance
- Flexible design made from durable thermoplastic elastomer
- Gold-plated connectors for reliable connections
- Meets industry standards for quality and safety
- Reliable Performance
With support for up to 10 Gbps, this patch cable ensures efficient data transfer, making it suitable for high-speed networking applications. - Effective Shielding
The aluminum mylar foil shielding minimizes interference for cleaner signals, contributing to improved network stability. - Flexible Design
Constructed from thermoplastic elastomer (TPE), the cable remains flexible for easy routing in tight spaces without sacrificing durability. - Quality Connectors
Each connector features gold plating to provide a reliable connection, reducing the risk of signal degradation over time. - Compliance with Standards
This cable adheres to RoHS, ANSI/TIA-568-C.2, and other compliant standards, ensuring a safe and reliable product for users.
Main Specifications
Product Description | Startech patch cable – 3 m – black |
Type | Patch cable – CAT 6a |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Ultra-slim, snagless, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), flexible, reduced Return Loss (RL), translucent connector boots, up to 10 Gbps, EMI shielding |
Cable Length | 3 m |
Diameter | 3.7 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Ultra-slim, snagless, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), flexible, reduced Return Loss (RL), translucent connector boots, up to 10 Gbps, EMI shielding |
|---|
Cable Length | 3 m |
|---|
Diameter | 3.7 mm |
|---|
Weight | 38 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 21 cm |
|---|
Shipping Depth | 18 cm |
|---|
Shipping Height | 2.5 cm |
|---|
Shipping Weight | 53 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
