Description
The StarTech N6PAT25CMBLS10PK patch cable is designed to deliver performance for networking needs. With a robust structure, this CAT 6 cable supports operation up to 10 Gbps and a tested frequency of up to 250 MHz. Its low smoke zero halogen (LSZH) jacket ensures safety in environments where fire hazards are a concern, making it a choice for both residential and commercial use.

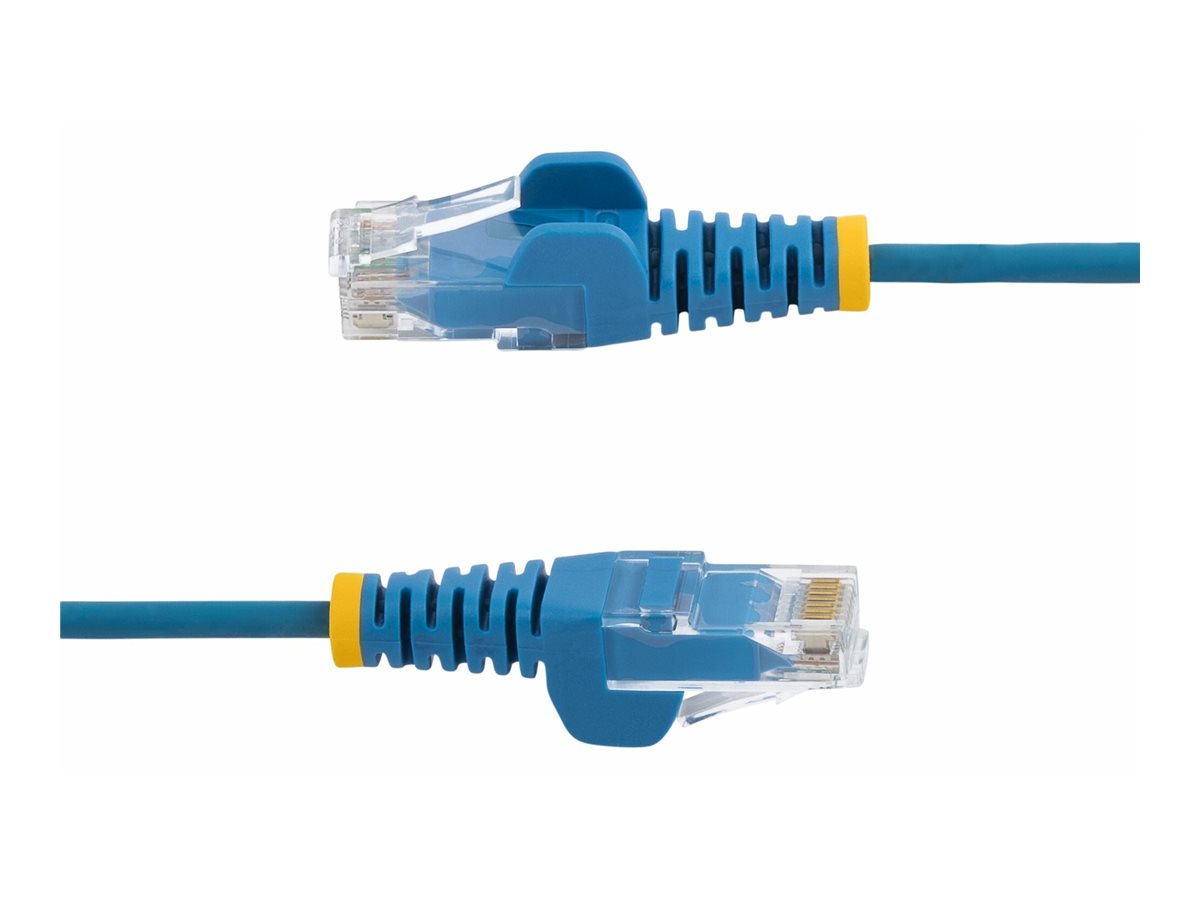

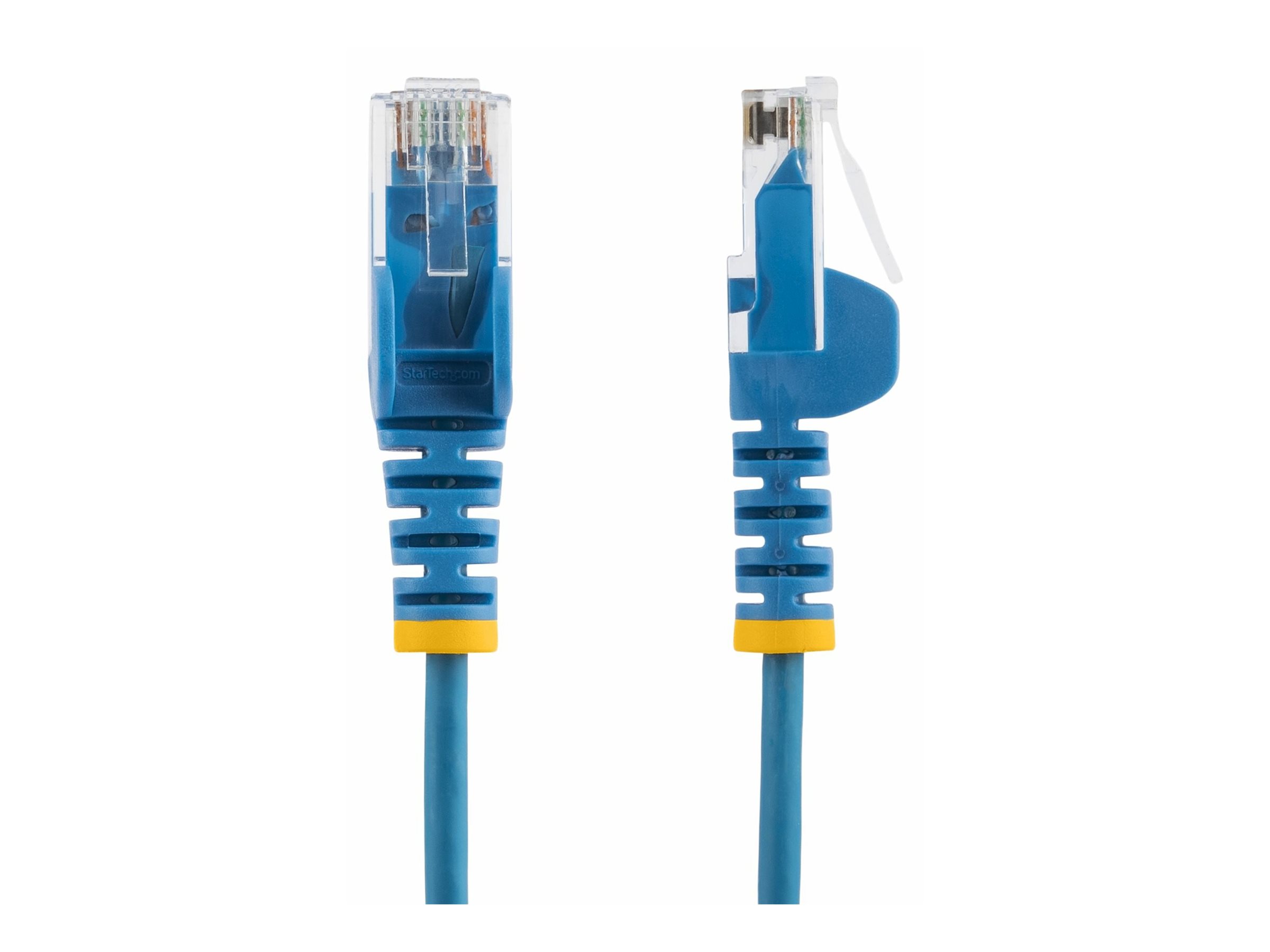

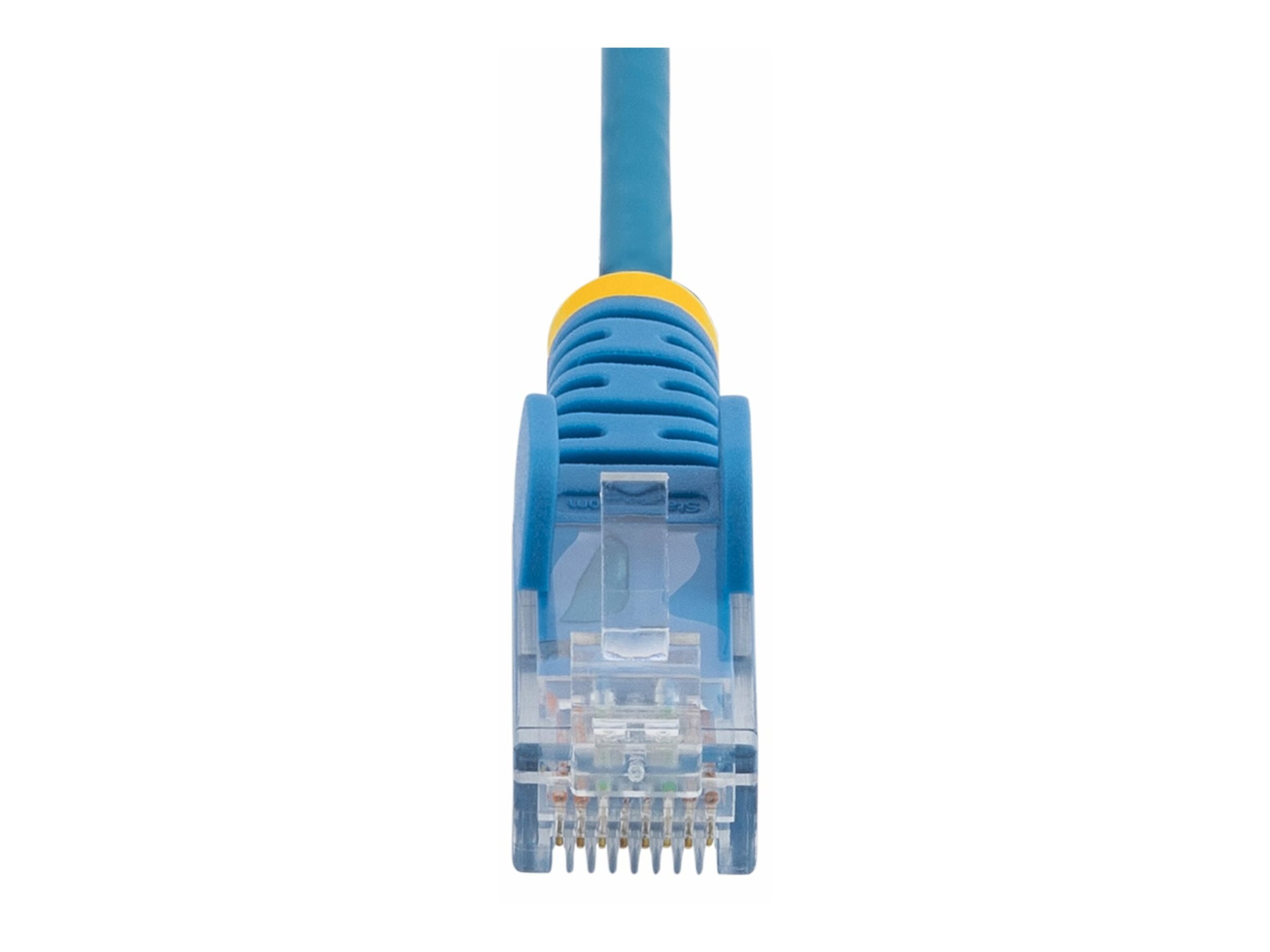

Each cable features male RJ-45 connectors on both ends, crafted with 50 micron gold plating for enhanced connectivity. The snagless design minimizes damage during installation, while the stranded cable construction provides flexibility and ease of handling. Supporting 100 W Power over Ethernet (PoE), this cable is optimal for powering devices while maintaining high-speed data transmission, ensuring that network demands are met without compromise.
- Supports up to 10 Gbps data transmission
- Low Smoke Zero Halogen (LSZH) jacket for safety
- 100 W PoE support for powering devices
- Snagless design for easier installation
- Stranded cable construction for better flexibility
- High-performance connectivity
This patch cable supports data rates of up to 10 Gbps, making it ideal for high-speed networking applications and environments with extensive data transmission needs. - Safe and compliant design
Constructed with a Low Smoke Zero Halogen (LSZH) jacket, this cable reduces toxic smoke during combustion, suitable for safety-conscious installations and compliant with RoHS and WEEE standards. - Robust connectivity
Equipped with 50 micron gold-plated connectors, this cable ensures reliable connections while minimizing signal loss and maximizing performance over longer distances. - Flexible installation
The snagless design along with the stranded cable construction allows for easy installation and routing, eliminating the risk of snags or damage during setup. - Enhanced reliability
Features such as strain relief, flame retardance, and minimal Near-End Crosstalk (NEXT) contribute to a stable and effective networking experience, supporting high-frequency applications.
Main Specifications
Product Description | Startech patch cable – 25 cm – blue |
Type | Patch cable – CAT 6 – IEEE 802.3bt Type 4 |
Packaged Quantity | 10 (specifications are for single item) |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Halogen-free, 100W PoE support, snagless, stranded, slim, molded, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors |
Cable Length | 25 cm |
Diameter | 3.6 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Blue |
Extended Specifications
General
Packaged Quantity | 10 (specifications are for single item) |
|---|
Network Cable Type | Patch cable – CAT 6 – IEEE 802.3bt Type 4 |
|---|
Technology | Unshielded twisted pair (UTP) |
|---|
Wiring Scheme | T568B |
|---|
Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
American Wire Gauge (AWG) | 28 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Halogen-free, 100W PoE support, snagless, stranded, slim, molded, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors |
|---|
Cable Length | 25 cm |
|---|
Diameter | 3.6 mm |
|---|
Weight | 13 g |
|---|
Colour | Blue |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, WEEE, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001 – up to 250 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 22 cm |
|---|
Shipping Depth | 24 cm |
|---|
Shipping Height | 1 cm |
|---|
Shipping Weight | 172 g |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
