Description

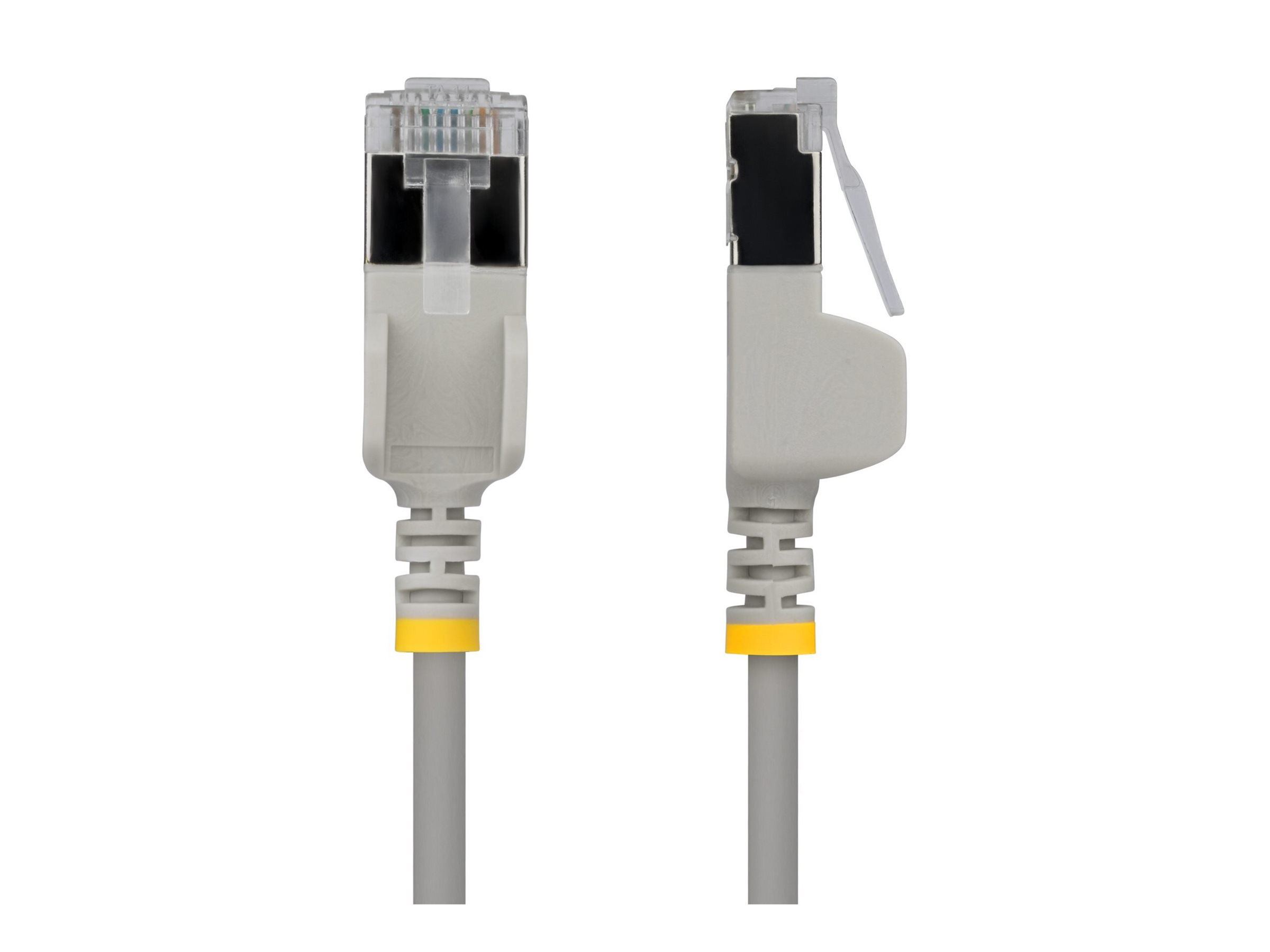

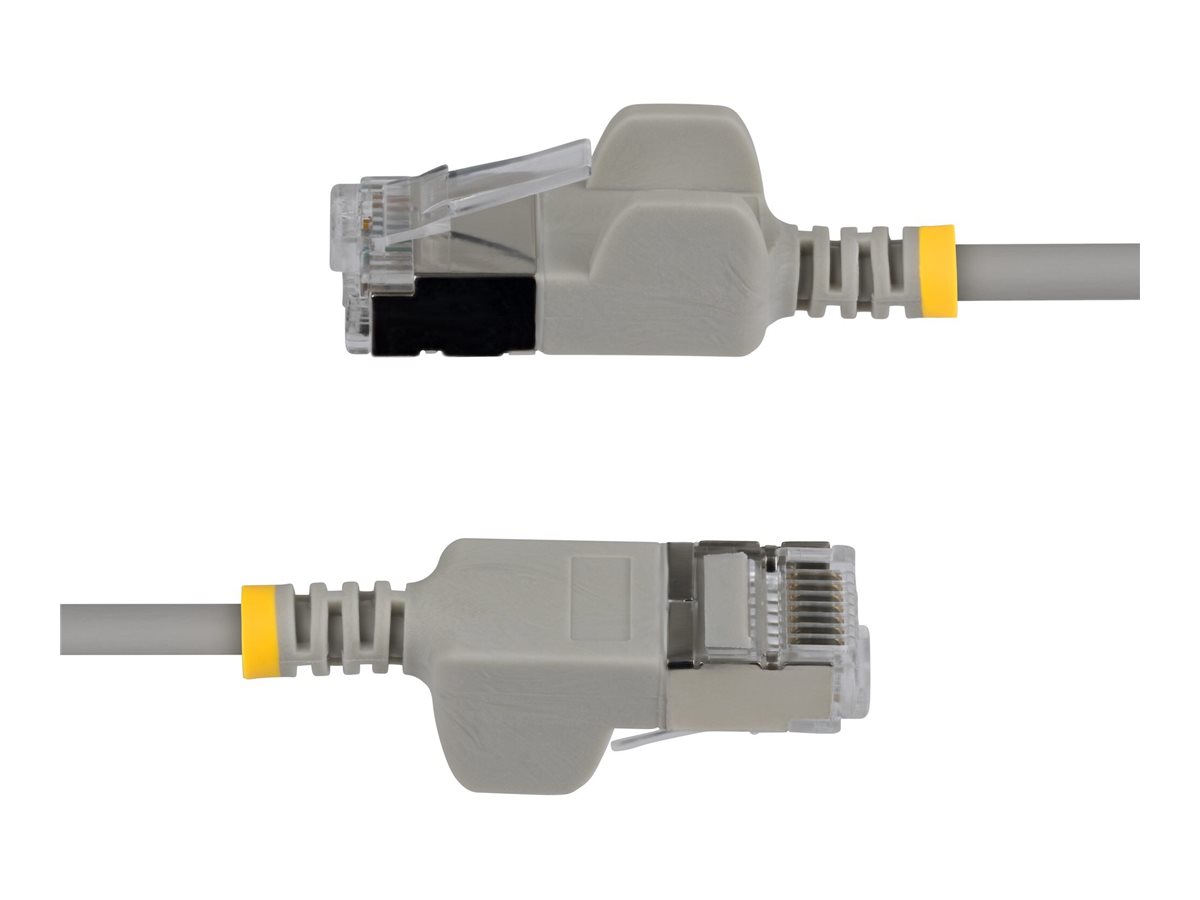

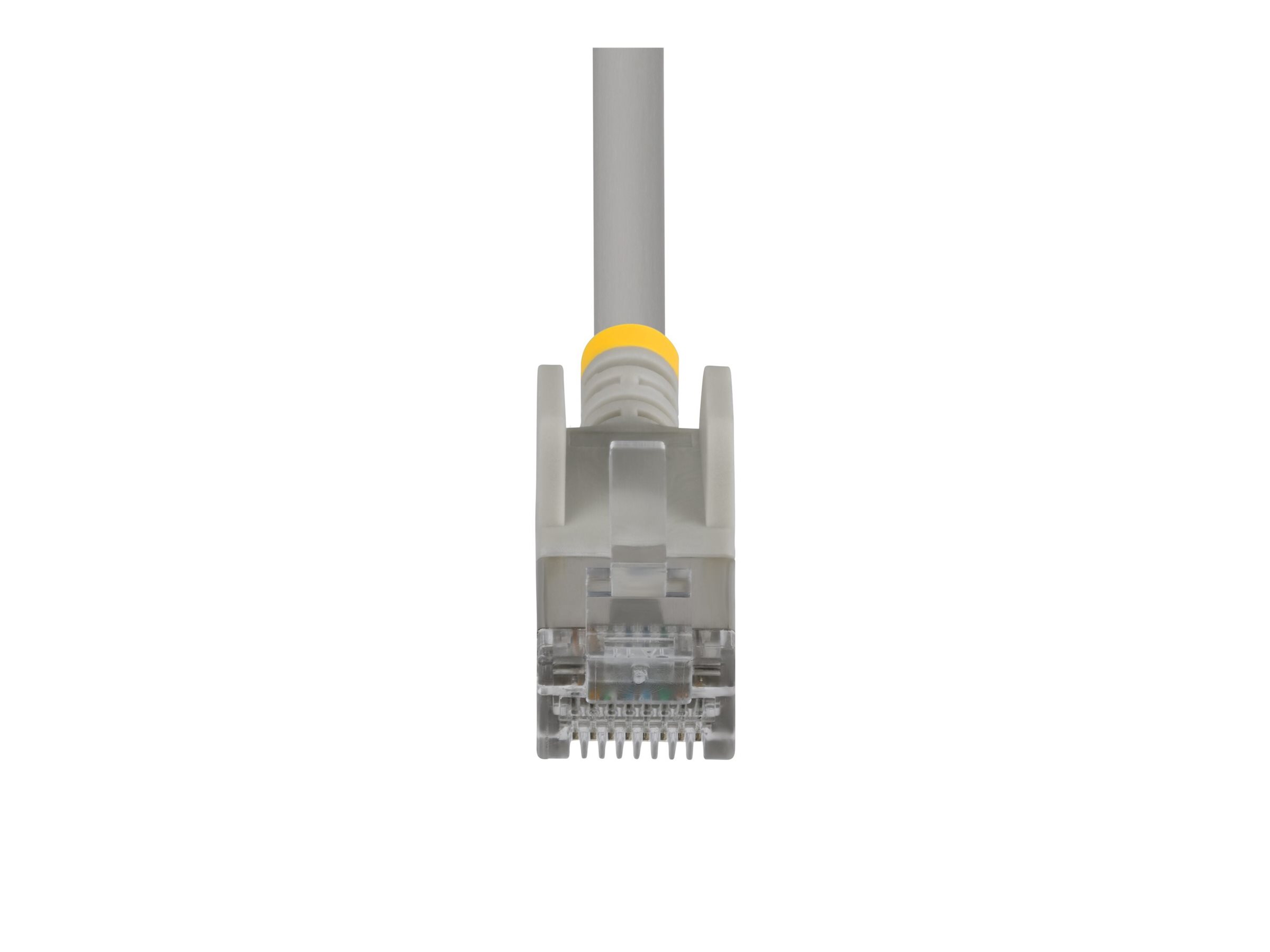

The StarTech N6APATSTP34GRS1M patch cable is designed to ensure a reliable network connection. This CAT 6a cable features pure bare copper conductors, supporting speeds of up to 10 Gbps, making it suitable for high-performance networking tasks. With a tested frequency of up to 500 MHz, it provides minimized Near-End Crosstalk (NEXT) and reduced Return Loss (RL), ensuring minimal interference and maintaining signal integrity.
Constructed with durability in mind, the cable has a thermoplastic elastomer (TPE) jacket, and its aluminum Mylar foil with drain shielding material offers excellent EMI shielding. The ultraslim and snagless design allows for easy installation and organization, while the gold-plated connectors enhance connectivity. This patch cable is compliant with ANSI/TIA-568-C.2 standards and RoHS, ensuring performance and environmental safety.
- Supports network speeds of up to 10 Gbps
- Features pure bare copper conductors for optimal performance
- Snagless and ultraslim design for easy installation
- Provides minimized Near-End Crosstalk (NEXT) and reduced Return Loss (RL)
- Gold-plated connectors enhance connectivity
- High-performance connectivity
This patch cable enables speeds of up to 10 Gbps, ensuring efficient data transmission for demanding applications. - Durable construction
The aluminum Mylar foil shielding, along with a thermoplastic elastomer (TPE) jacket, protects against interference and enhances durability. - Enhanced signal integrity
With minimized Near-End Crosstalk (NEXT) and reduced Return Loss (RL), this cable maintains high signal quality during data transfers. - Effective EMI shielding
The cable’s shielding material minimizes electromagnetic interference, allowing for clearer signal transmission. - User-friendly design
Its snagless feature prevents cable snags during installation, while the ultraslim form factor allows for easy routing in tight spaces.
Main Specifications
Product Description | Startech patch cable – 1 m – grey |
Type | Patch cable – CAT 6a |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
Cable Length | 1 m |
Diameter | 3.7 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Grey |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
|---|
Cable Length | 1 m |
|---|
Diameter | 3.7 mm |
|---|
Weight | 16 g |
|---|
Colour | Grey |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | ANSI/TIA-568-C.2, RoHS – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 15 cm |
|---|
Shipping Depth | 12 cm |
|---|
Shipping Height | 1.8 cm |
|---|
Shipping Weight | 23 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
