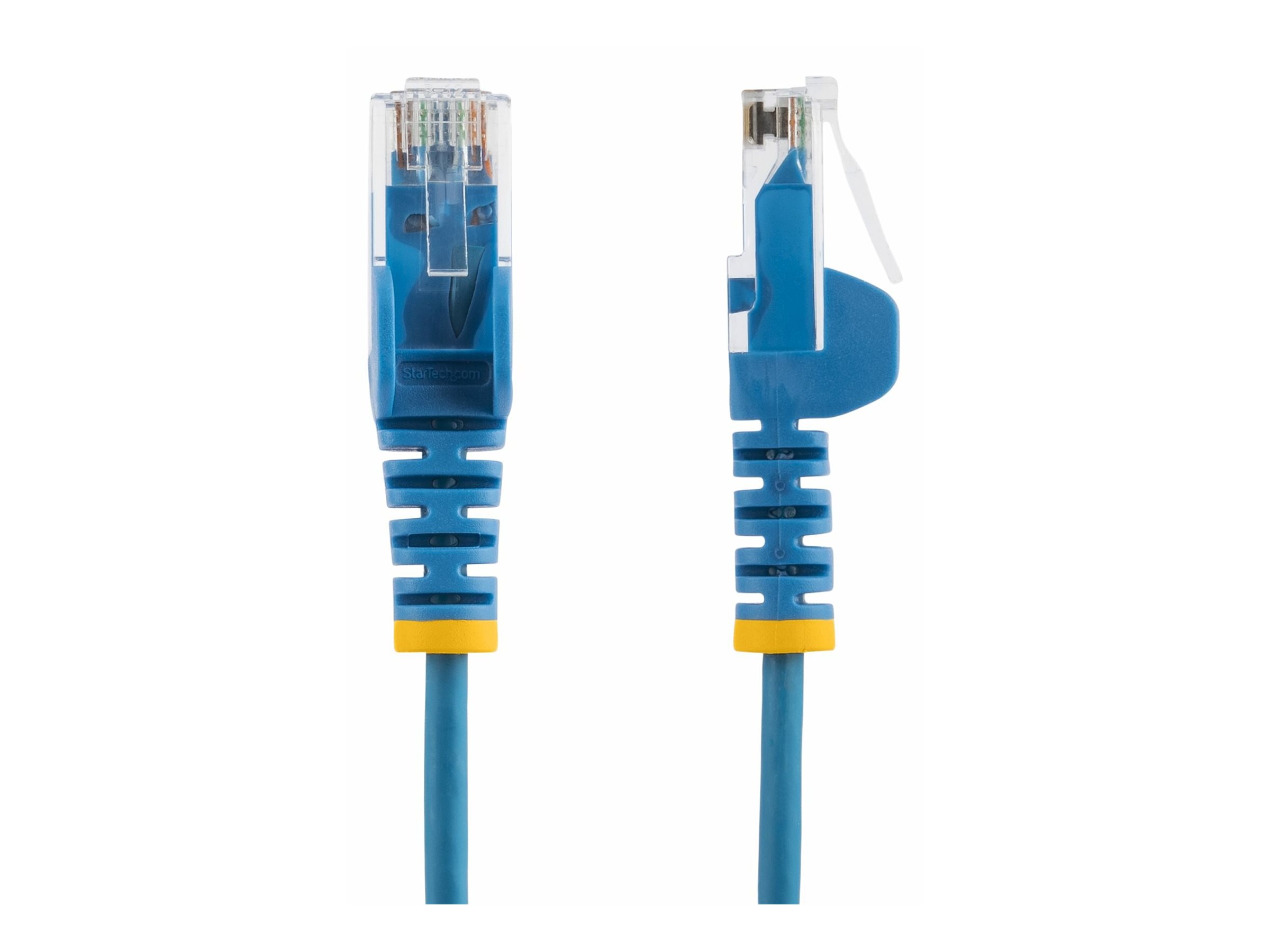

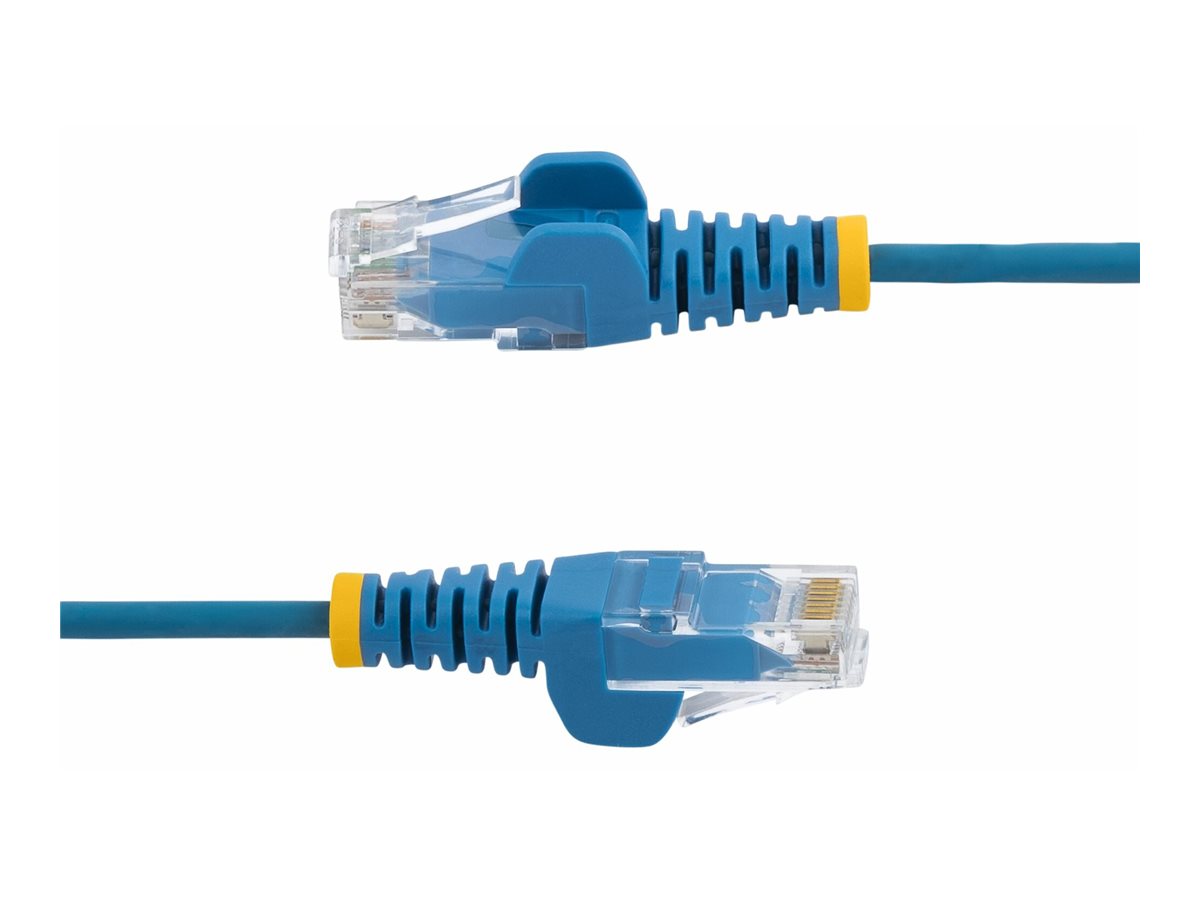

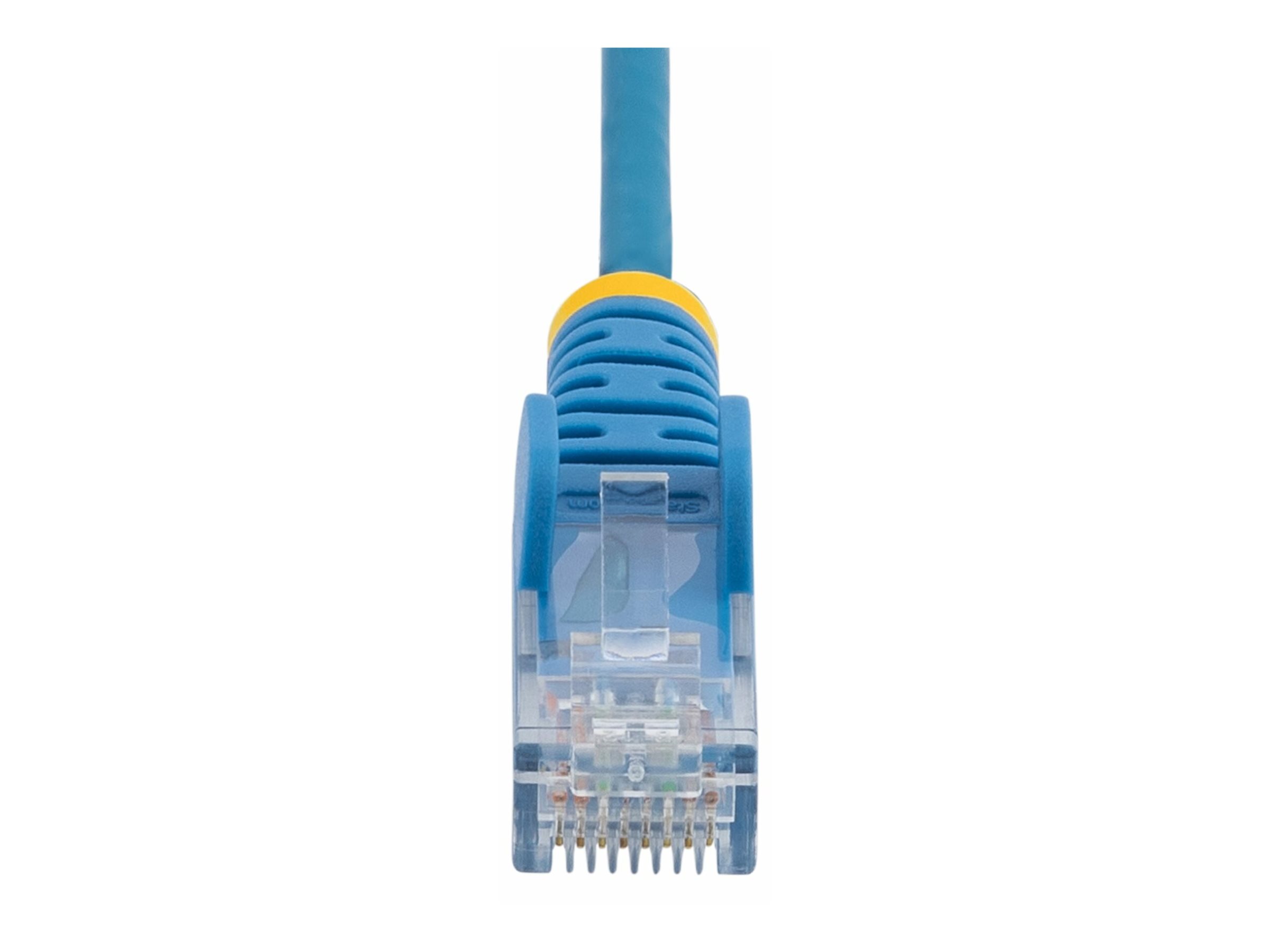

Startech, Patch cable, RJ-45 (M) to RJ-45 (M), 1 m, 3.6 mm, UTP, CAT 6, IEEE 802.3bt Type 4, halogen-free, 100W PoE support, snagless, stranded, slim, molded, blue (pack of 10)
$106.85 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The StarTech patch cable is a solution for high-performance networking. Featuring UTP technology and a low smoke zero halogen (LSZH) jacket, this cable is designed for reliable and safe operation in any environment. With gold-plated RJ-45 connectors on both ends, it ensures optimal data transmission with minimal interference, supporting frequencies up to 250 MHz and speeds up to 10 Gbps. The cable is compliant with various standards including IEEE 802.3bt Type 4, ensuring compatibility with various networking devices.
- Supports 100 W PoE for versatile power and data transfer
- Flame retardant and snagless design for enhanced durability
- Compliant with RoHS and WEEE for an eco-friendly choice
- Minimized near-end crosstalk and reduced return loss for better performance
- Slim and molded design for easy installation and management
- Durable construction
The StarTech patch cable features a low smoke zero halogen (LSZH) jacket, which is designed to be flame retardant and safe for both indoor and outdoor use, providing peace of mind for network installations. - High-capacity performance
With support for 100 W Power over Ethernet (PoE) and speeds of up to 10 Gbps, this cable is well-suited for high-bandwidth applications and devices requiring substantial power. - Optimized design
The cable is built with pure bare copper conductors and 50 micron gold-plated connectors, ensuring excellent signal integrity and transmission quality by minimizing degradation. - Eco-friendly standards
This product meets RoHS and WEEE compliance, reflecting a commitment to environmentally responsible practices while maintaining performance in networking applications. - Reduced interference
The cable’s design incorporates minimized near-end crosstalk (NEXT) and reduced return loss (RL), enhancing overall network reliability and performance.
Main Specifications
Product Description | Startech patch cable – 1 m – blue |
Type | Patch cable – CAT 6 – IEEE 802.3bt Type 4 |
Packaged Quantity | 10 (specifications are for single item) |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Halogen-free, 100W PoE support, snagless, stranded, slim, molded, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors |
Cable Length | 1 m |
Diameter | 3.6 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Blue |
Extended Specifications
General
Packaged Quantity | 10 (specifications are for single item) |
|---|---|
Network Cable Type | Patch cable – CAT 6 – IEEE 802.3bt Type 4 |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
American Wire Gauge (AWG) | 28 |
Wires per Cable | 8 wires |
Pairs per Cable | 4 pairs |
Plated Connector | Gold |
Features | Halogen-free, 100W PoE support, snagless, stranded, slim, molded, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors |
Cable Length | 1 m |
Diameter | 3.6 mm |
Weight | 25 g |
Colour | Blue |
Connectivity
Connector | RJ-45 – male |
|---|---|
Connector (Second End) | RJ-45 – male |
Miscellaneous
Compliant Standards | RoHS, WEEE, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001 – up to 250 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 22 cm |
|---|---|
Shipping Depth | 24 cm |
Shipping Height | 1.5 cm |
Shipping Weight | 281 g |
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|---|
Max Operating Temperature | 60 °C |
