Description

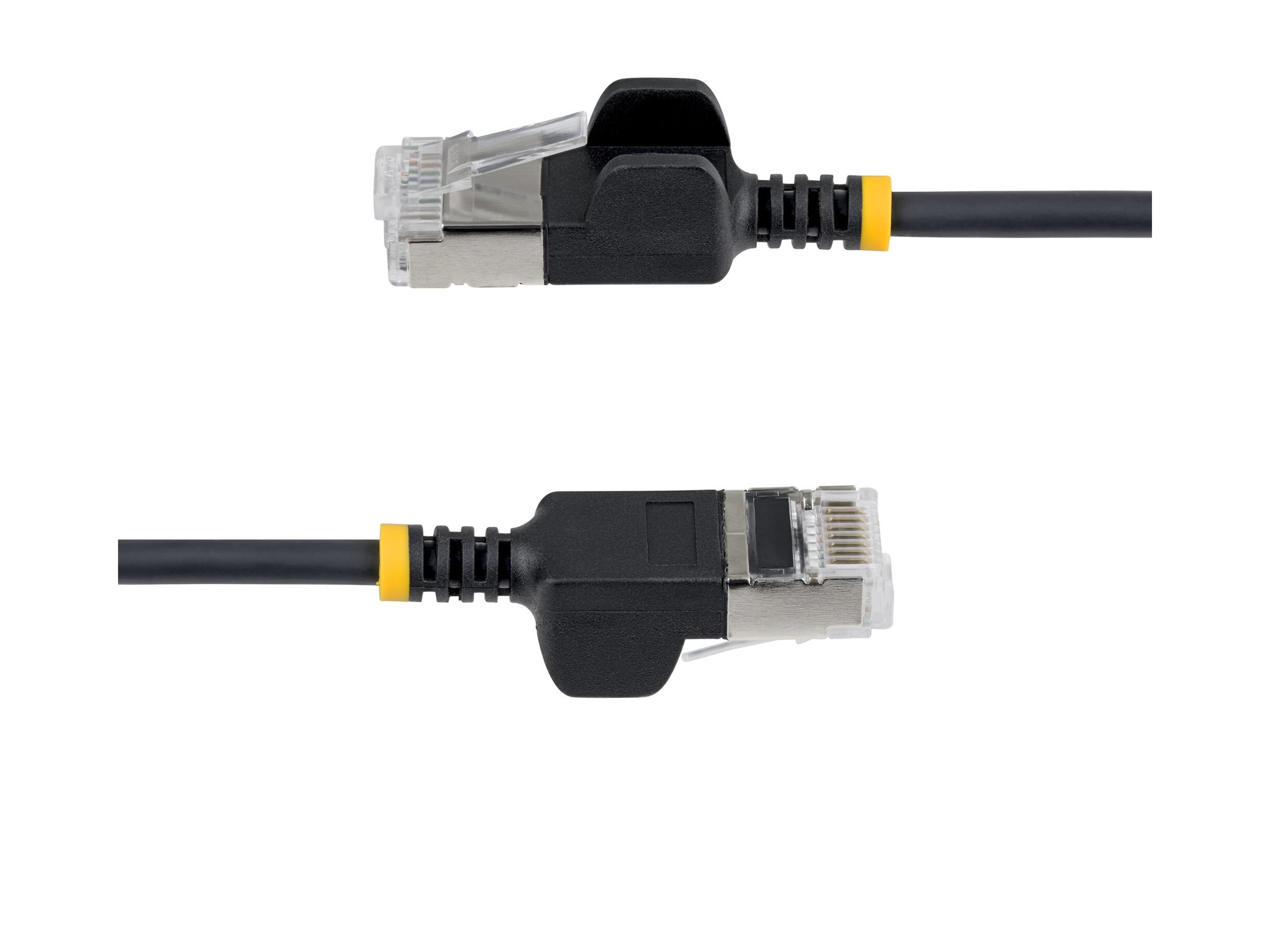

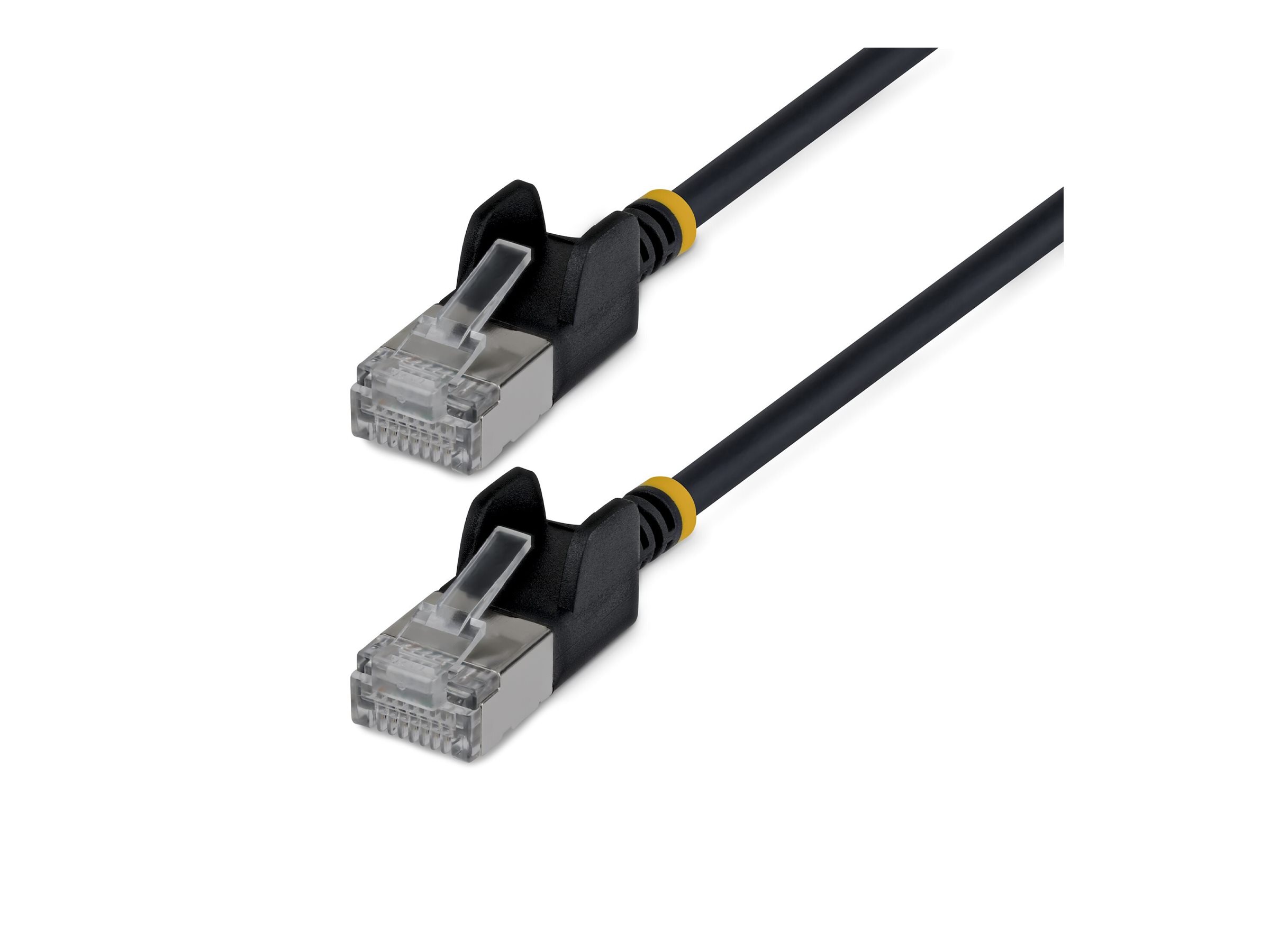

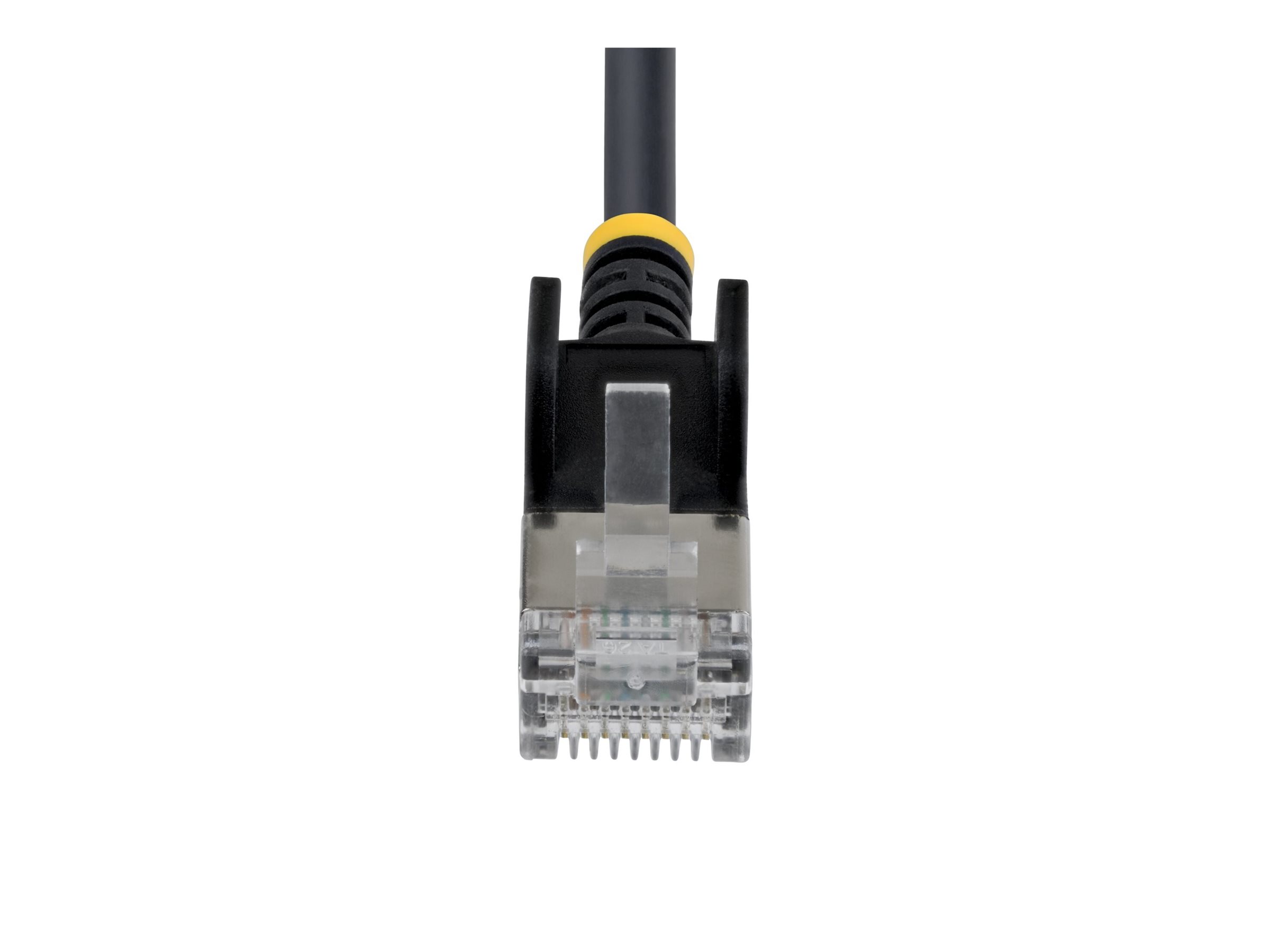

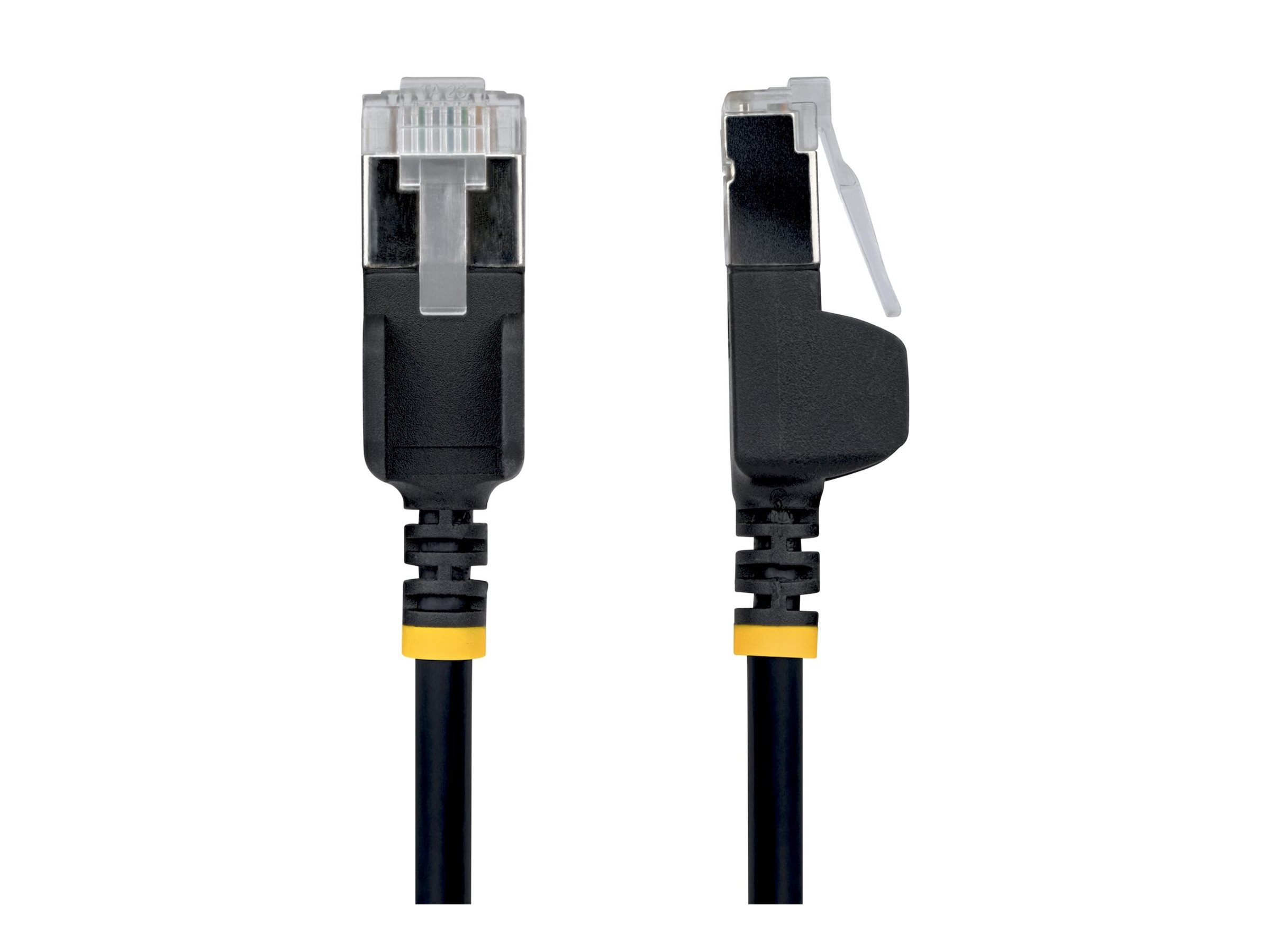

The StarTech 6ASTP34BKS15CM10PK patch cable is designed for performance with its ultraslim structure and snagless design, making networking easier and more efficient. Constructed with a durable thermoplastic elastomer (TPE) jacket and aluminum Mylar foil shielding, it ensures reliable connectivity while minimizing interference. The cable features pure bare copper conductors and supports speeds of up to 10 Gbps, allowing for high-speed data transmission across networks. With gold-plated connectors and a design that focuses on reducing Near-End Crosstalk and Return Loss, this cable is suitable for various networking applications while maintaining a stable and efficient connection.
- Supports data transmission speeds up to 10 Gbps
- Ultraslim and snagless design for easy routing
- Constructed with pure bare copper conductors
- EMI protection to ensure stable connectivity
- Compatible with CAT 6a standards
- Optimized design
The ultraslim design of the patch cable allows for easy installation in tight spaces while ensuring a clutter-free environment. - High-speed transmission
With a tested frequency of up to 500 MHz, this cable supports data transmission speeds reaching 10 Gbps, making it suitable for demanding applications. - Reliable connectivity
Gold-plated RJ-45 connectors enhance the cable’s performance by providing a stable connection and minimizing signal loss. - Durable construction
Crafted with a thermoplastic elastomer jacket and aluminum Mylar foil shielding, the cable is built to withstand various environmental conditions. - Compliance and standards
This product meets several compliance standards including RoHS and WEEE, ensuring it is environmentally friendly and safe for use.
Main Specifications
Product Description | Startech patch cable – 15 cm – black |
Type | Patch cable – CAT 6a |
Packaged Quantity | 10 (specifications are for single item) |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Ultra-slim, snagless, stranded, molded, pure bare copper conductors, 50 micron gold-plated connectors, up to 10 Gbps, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, EMI protection, strain relief |
Cable Length | 15 cm |
Diameter | 3.7 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
General
Packaged Quantity | 10 (specifications are for single item) |
|---|
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Ultra-slim, snagless, stranded, molded, pure bare copper conductors, 50 micron gold-plated connectors, up to 10 Gbps, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, EMI protection, strain relief |
|---|
Cable Length | 15 cm |
|---|
Diameter | 3.7 mm |
|---|
Weight | 6 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, WEEE, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001 – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 21 cm |
|---|
Shipping Depth | 18 cm |
|---|
Shipping Height | 1.6 cm |
|---|
Shipping Weight | 115 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
