Description

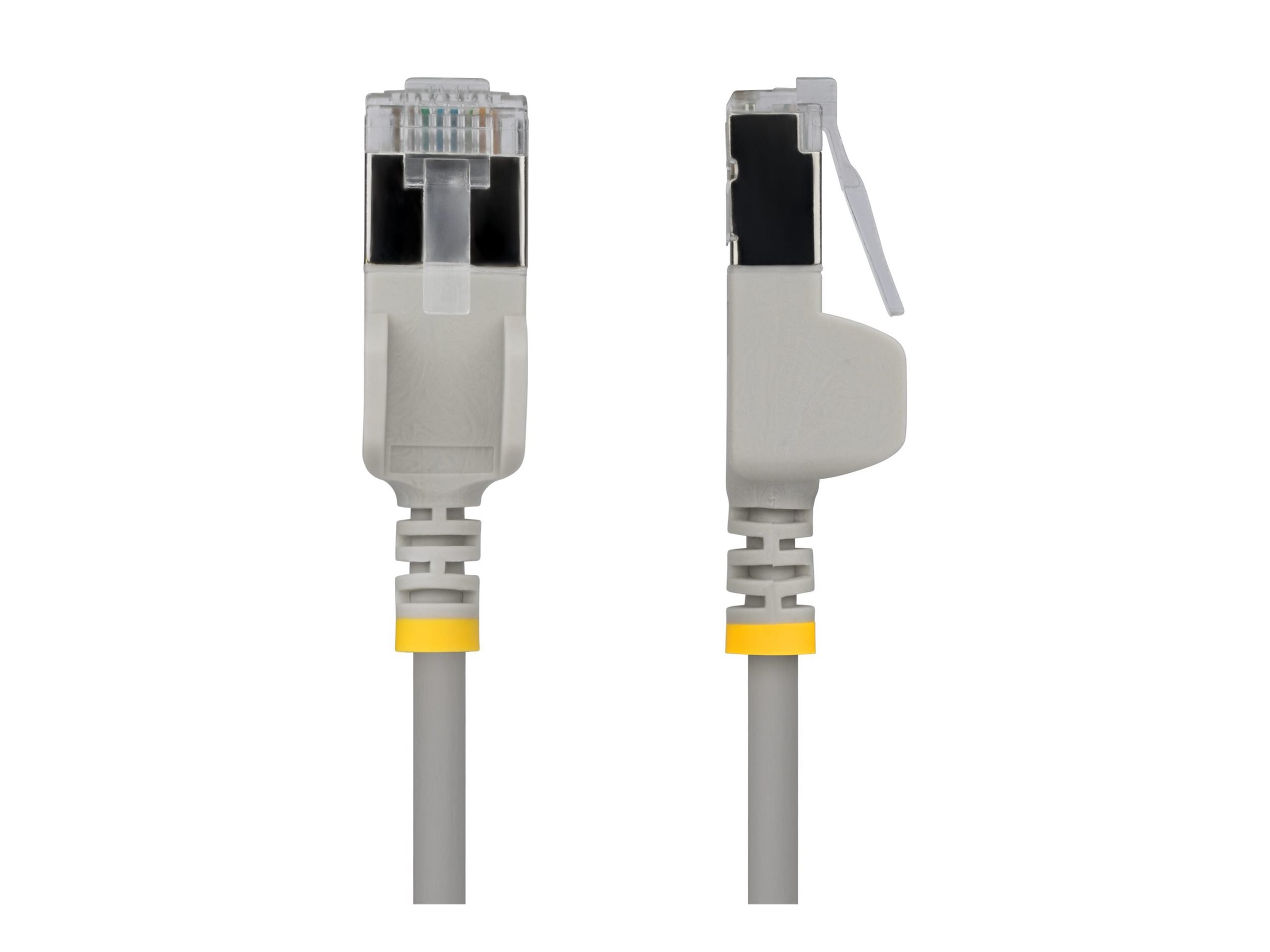

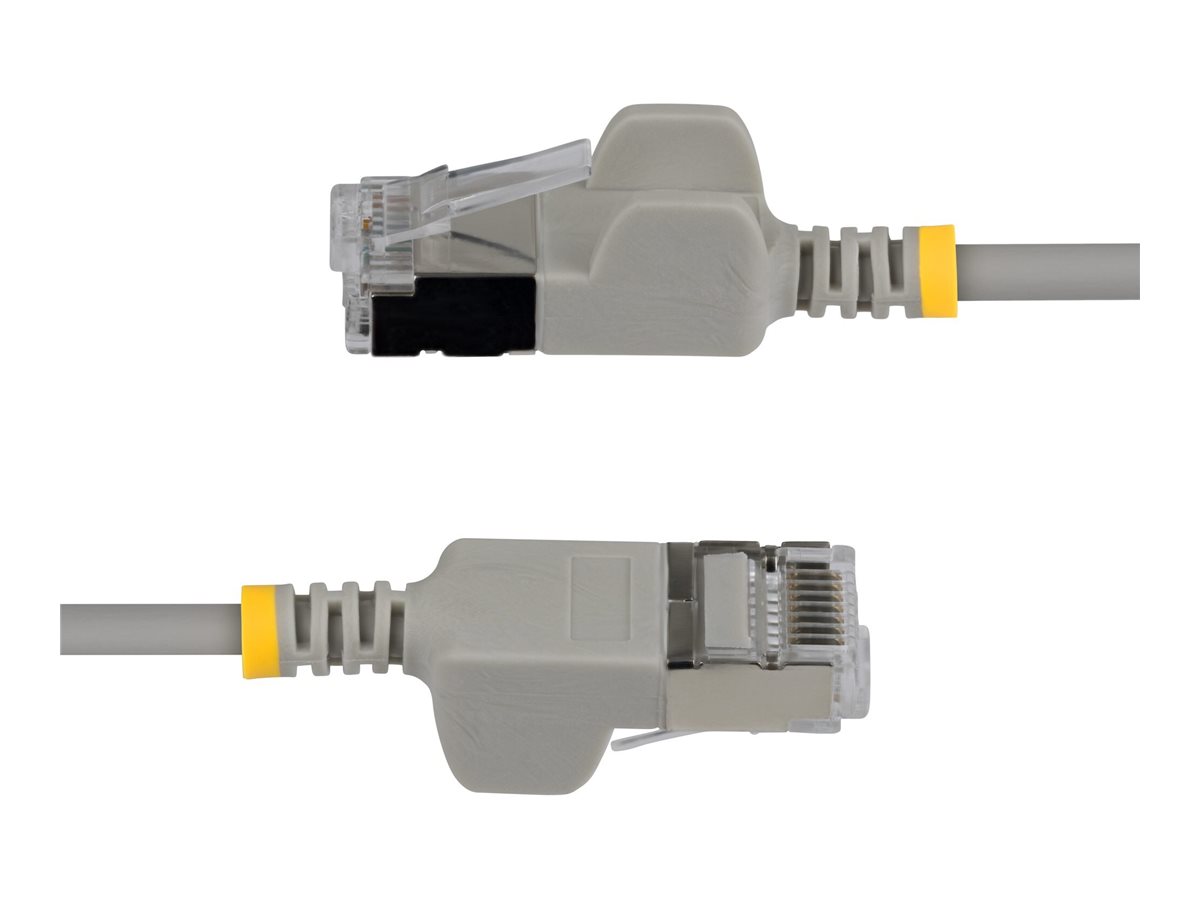

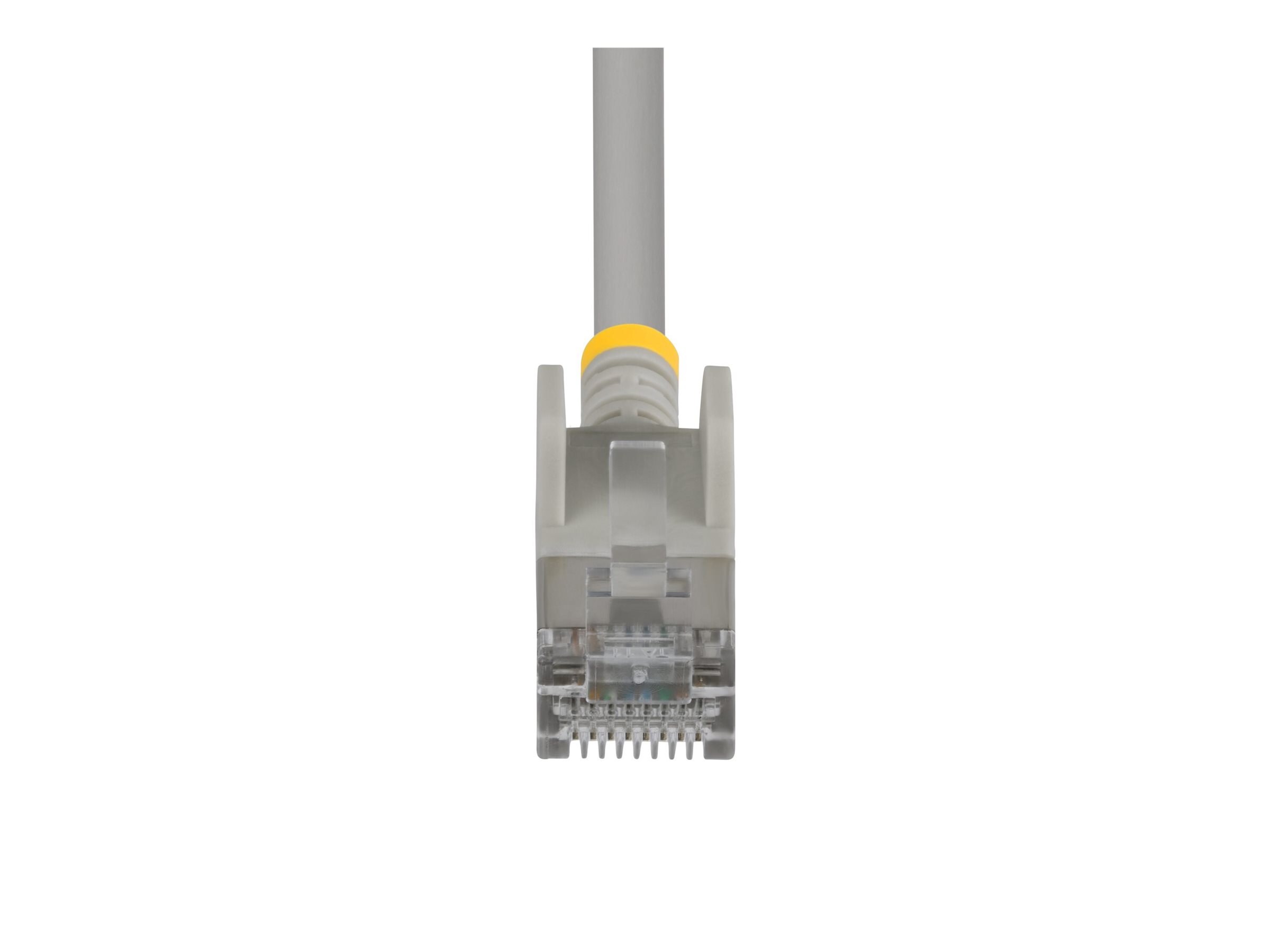

The StarTech 34 AWG CAT 6a patch cable is designed for high-speed networking applications, featuring a U/FTP construction with pure bare copper conductors. Its snagless and ultra-slim design enhances flexibility and space efficiency, making it an option for cable management in tight spaces. The aluminum mylar foil shielding reduces electromagnetic interference, ensuring reliable data transmission up to 10 Gbps, with a tested frequency of up to 500 MHz. Equipped with gold-plated connectors for improved conductivity, this patch cable meets ANSI/TIA-568-C.2 standards and complies with RoHS regulations, making it a durable and environmentally friendly option for any networking setup.
- Supports data transmission speeds up to 10 Gbps
- Features pure bare copper conductors for optimal performance
- Snagless design prevents cable damage during installation
- EMI shielding minimizes interference for reliable connectivity
- Ultra-slim profile suitable for space-constrained environments
- Efficient Design
This patch cable features an ultra-slim profile, allowing for easy management and routing in tight spaces, helping to maintain an organized setup. - High-Performance Capability
Capable of transmitting data at speeds of up to 10 Gbps, this cable offers performance for high-bandwidth applications. - Robust Shielding
The aluminum mylar foil shielding effectively protects against electromagnetic interference, ensuring clear and stable signals during data transmission. - Durable Connectors
Gold-plated connectors provide enhanced corrosion resistance and maintain optimal conductivity for reliable connections. - Compliance with Standards
This patch cable adheres to ANSI/TIA-568-C.2 standards and is RoHS compliant, reflecting its suitability for professional and environmentally conscious users.
Main Specifications
Product Description | Startech patch cable – 1.5 m – grey |
Type | Patch cable – CAT 6a |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
Cable Length | 1.5 m |
Diameter | 3.7 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Grey |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
|---|
Cable Length | 1.5 m |
|---|
Diameter | 3.7 mm |
|---|
Weight | 10 g |
|---|
Colour | Grey |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | ANSI/TIA-568-C.2, RoHS – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 15 cm |
|---|
Shipping Depth | 12 cm |
|---|
Shipping Height | 1.8 cm |
|---|
Shipping Weight | 28 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
