Description

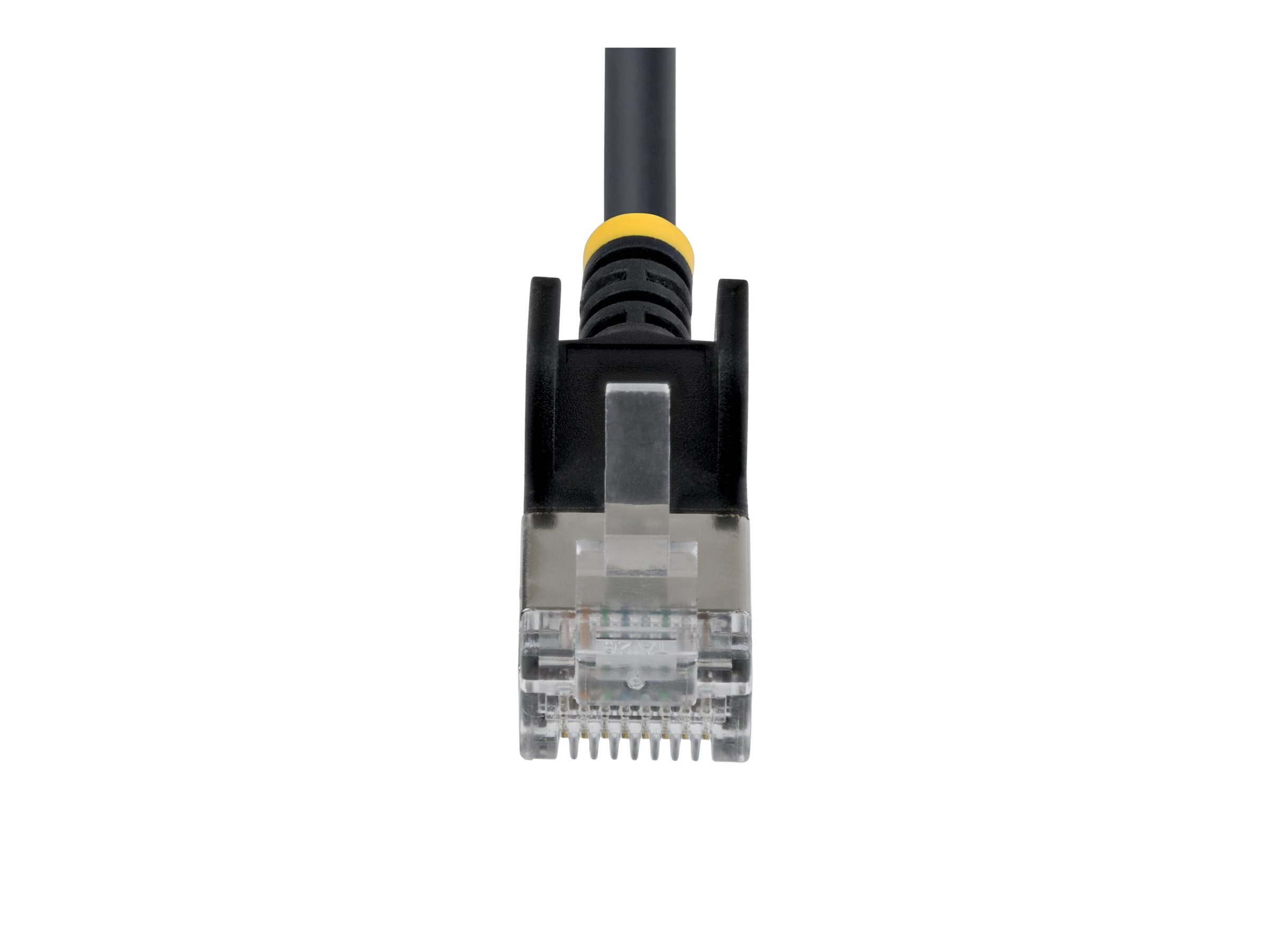

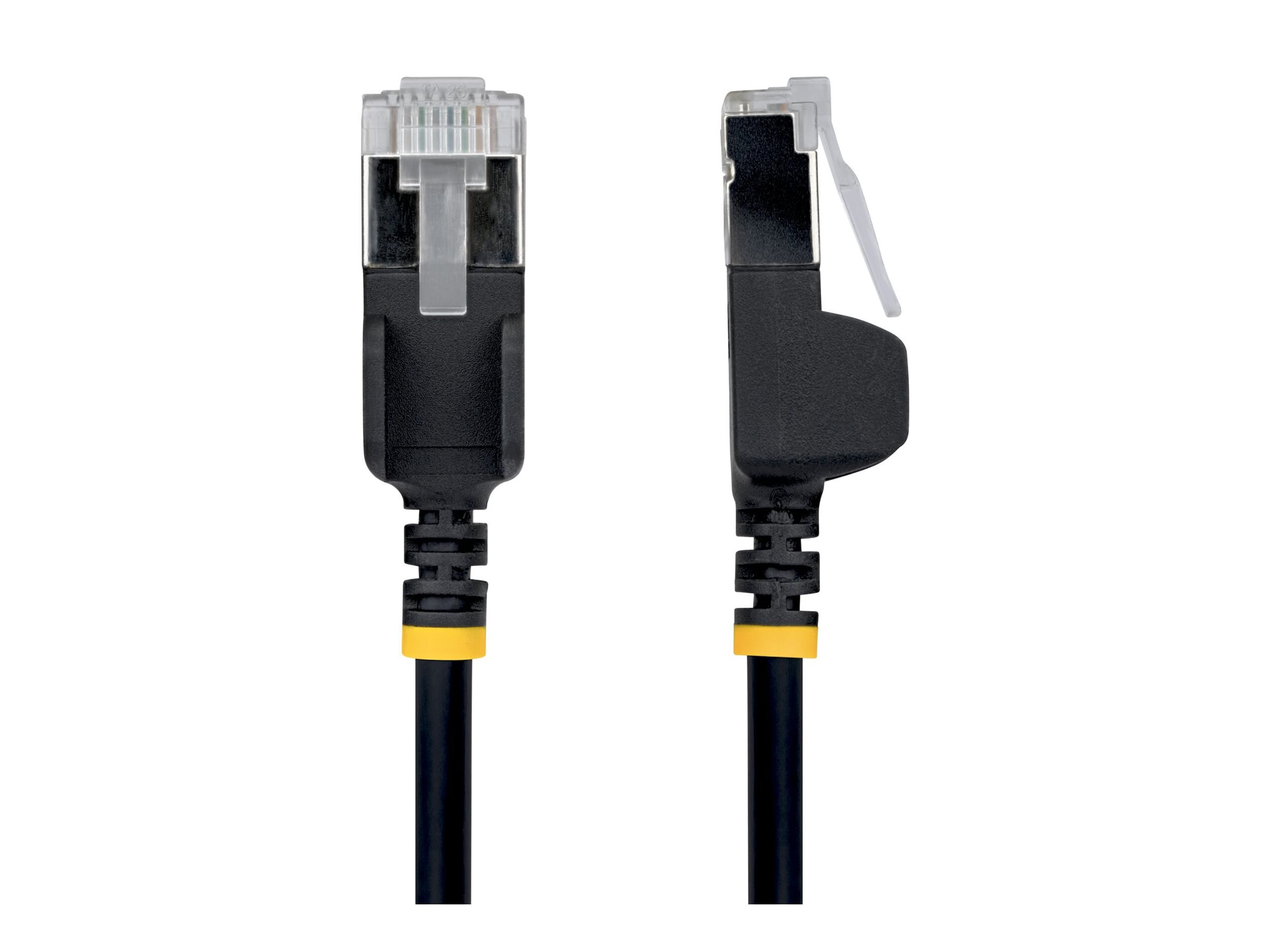

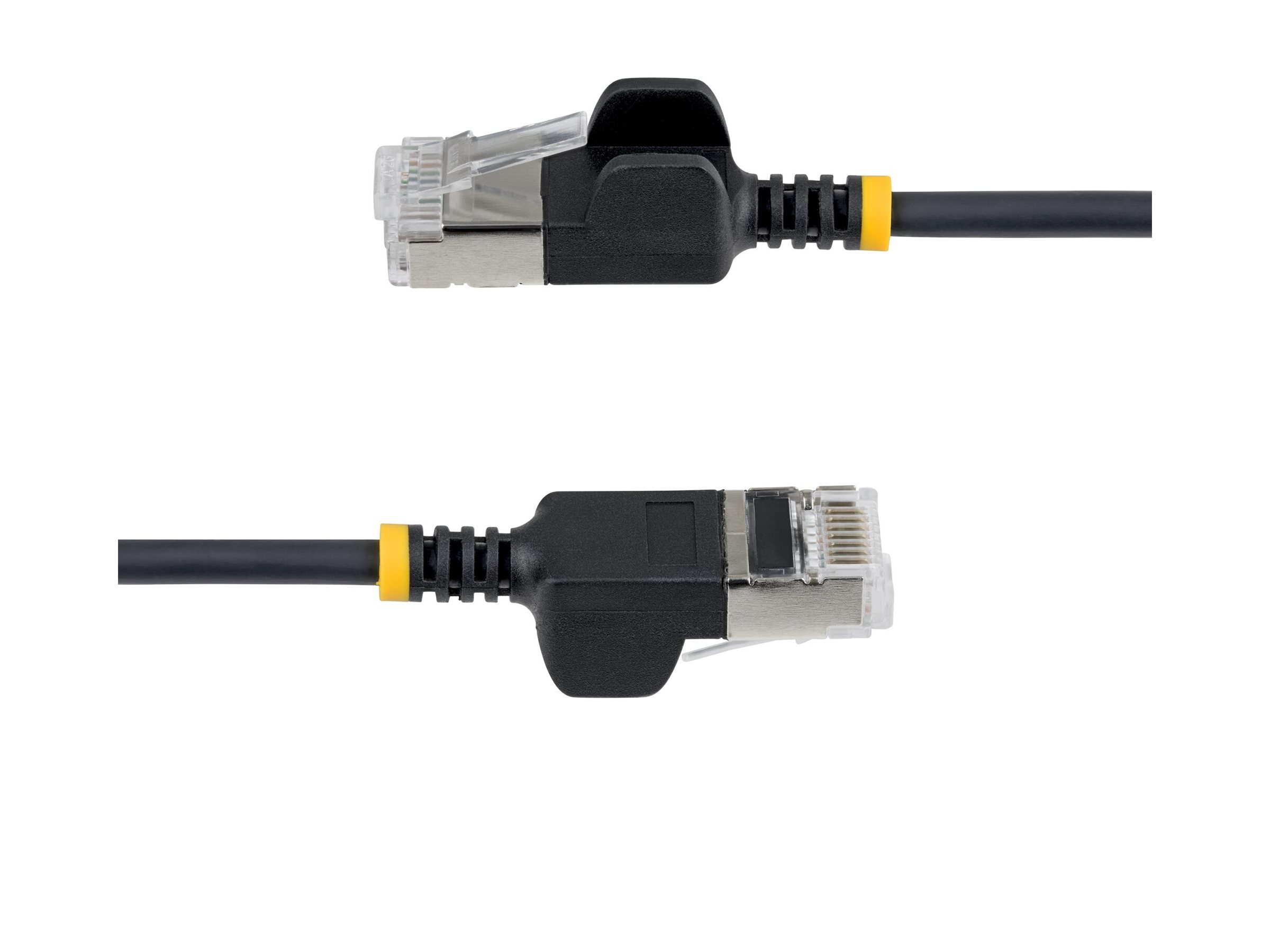

The StarTech N6APATSTP34BKS150CM is a patch cable designed for network connectivity. This CAT 6a cable features U/FTP technology with aluminum mylar foil shielding to minimize interference, ensuring a stable connection with minimized Near-End Crosstalk (NEXT). With a tested frequency of up to 500 MHz and support for data rates up to 10 Gbps, this cable is suitable for demanding environments where high-speed data transmission is critical.
Constructed with pure bare copper conductors and gold-plated connectors, the StarTech patch cable provides exceptional conductivity and durability. The ultraslim design and snagless features make it easy to manage in tight spaces while reducing the risk of cable damage. With flexible jacket material made of thermoplastic elastomer (TPE), this cable offers performance under various environmental conditions, operating effectively in temperatures ranging from -20°C to 60°C.
- Supports data rates up to 10 Gbps
- Minimized Near-End Crosstalk for enhanced performance
- Ultraslim design for easier cable management
- Gold-plated connectors for improved conductivity
- Durable thermoplastic elastomer jacket
- High-performance construction
Made with pure bare copper conductors and 50 micron gold-plated connectors, this cable ensures excellent data transmission efficiency and durability. - Flexible and easy to handle
The thermoplastic elastomer (TPE) jacket allows for easy routing in tight spaces while providing protection against wear and tear. - Effective EMI shielding
The aluminum mylar foil shielding minimizes electromagnetic interference, contributing to a reliable and stable connection. - Reduced Return Loss
This cable features optimized performance characteristics that enhance signal transmission quality, reducing signal degradation. - Compliance with standards
The cable meets several standards, including RoHS and ANSI/TIA-568-C.2, ensuring adherence to safety and performance requirements.
Main Specifications
Product Description | Startech patch cable – 1.5 m – black |
Type | Patch cable – CAT 6a |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Ultra-slim, snagless, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), flexible, reduced Return Loss (RL), translucent connector boots, up to 10 Gbps, EMI shielding |
Cable Length | 1.5 m |
Diameter | 3.7 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Ultra-slim, snagless, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), flexible, reduced Return Loss (RL), translucent connector boots, up to 10 Gbps, EMI shielding |
|---|
Cable Length | 1.5 m |
|---|
Diameter | 3.7 mm |
|---|
Weight | 10 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 15 cm |
|---|
Shipping Depth | 12 cm |
|---|
Shipping Height | 1.8 cm |
|---|
Shipping Weight | 28 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
