Startech, Docking station, USB4 / Thunderbolt 4 / Thunderbolt 5, 2 x DP, 1GbE, 2.5GbE, 100 watt, Australia, New Zealand
$287.69 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
StarTech docking station is designed to expand connectivity for laptops and workstations, enabling a single USB4 connection to power devices, drive high-resolution displays, and provide wired networking and peripheral access. It supports a single 8K 60 Hz display or dual 4K displays at high refresh rates, while delivering up to 100 W Power Delivery to charge a host device and connected accessories. Built-in 2.5 Gigabit Ethernet with wake on LAN and PXE support, multiple USB-A and USB-C ports with high-speed data transfer, and a driverless, Plug-and-Play experience help simplify setup and maintain reliable connections in office and home environments.
- Supports single 8K 60 Hz or dual 4K high-refresh displays
- Delivers up to 100 W Power Delivery over USB4 for laptop charging
- Provides 2.5 Gigabit Ethernet with wake on LAN and PXE support
- Includes multiple high-speed USB-A and USB-C ports for peripherals
- Driverless Plug-and-Play setup with status LED
- Versatile display support
Supports a single 8K 60 Hz display or dual 4K displays at high refresh rates to enable detailed, smooth visuals for productivity and content review. - Powerful charging
Delivers up to 100 W Power Delivery over the USB4 connection to keep laptops charged while powering connected devices and accessories. - Reliable wired networking
Includes 2.5 Gigabit Ethernet with wake on LAN and PXE support to provide faster, dependable wired connectivity for file transfers and network booting. - Convenient peripheral access
Offers multiple USB-A and USB-C ports with up to 10 Gbps data transfer to connect storage, input devices, and other peripherals with minimal setup. - Simple deployment
Driverless Plug-and-Play operation combined with a power LED status indicator makes installation straightforward for shared workspaces and mobile setups.
Main Specifications
Product Description | Startech – docking station – USB4 / Thunderbolt 4 / Thunderbolt 5 – 2 x DP – 1GbE, 2.5GbE |
Product Type | Docking station |
Docking Interface | USB4 / Thunderbolt 4 / Thunderbolt 5 |
Video Interfaces | 2 x DP |
Dimensions (WxDxH) | 19 cm x 8 cm x 2.85 cm |
Weight | 332 g |
Colour | Space grey |
Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
Power | Power adapter 134.4 watt AC 100-240 V 100 watt Power Provided (DC 21 V) |
Extended Specifications
General
Product Type | Docking station |
|---|---|
Width | 19 cm |
Depth | 8 cm |
Height | 2.85 cm |
Weight | 332 g |
Enclosure Colour | Space grey |
Video
Max Resolution Details | 8K – 60 Hz (Single Display) 4K – 144 Hz (Dual Display (DisplayPort 1.4)) 4K – 240 Hz (Single Display) |
|---|
Networking
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
|---|---|
Compliant Standards | USB 3.2 Gen 2, USB4 |
Expansion / Connectivity

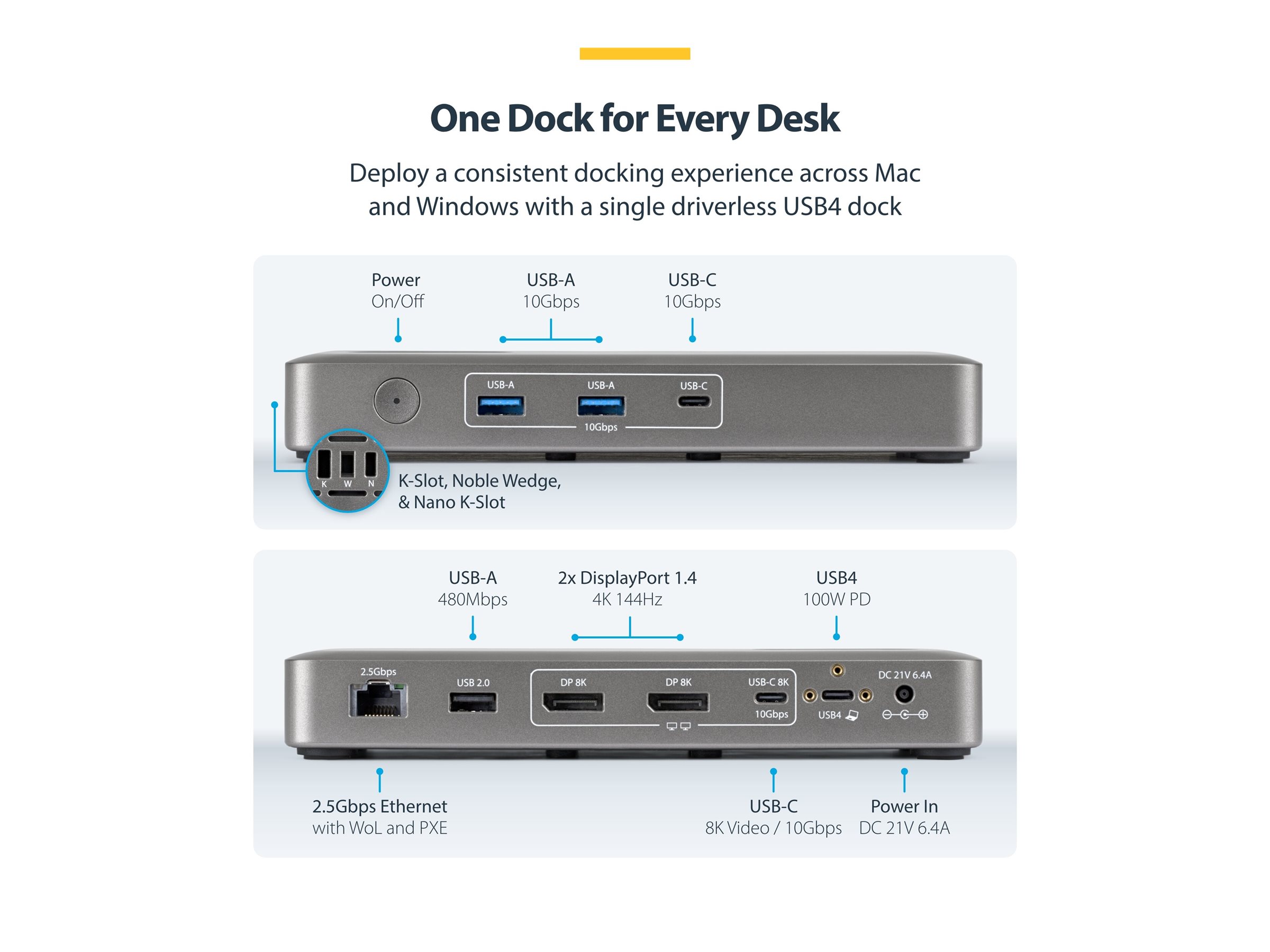

Interfaces | 1 x USB4 with Power Delivery (100W) – 24 pin USB-C 1 x network – 10Base-T/100Base-TX/1000Base-TX/2.5GBase-T – RJ-45 1 x USB-A 2.0 (2.5 W) – 4 pin USB Type A 2 x display / video – DisplayPort – 20 pin DisplayPort 1 x USB-C 3.2 Gen 2 (7.5 W) – 24 pin USB-C 2 x USB-A 3.2 Gen2 (4.5 W) – 9 pin USB Type A 1 x USB-C 3.2 Gen 2 (4.5 W) – 24 pin USB-C |
|---|
Miscellaneous
Cables Included | 1 x USB-C screw-lock cable – external – 1 m |
|---|---|
Features | Driverless, up to 10Gbps data transfer, security lock slot (cable lock sold separately), power LED status, wake on LAN, Preboot Execution Environment (PXE) support, full duplex support |
Security Slot Type | Noble Wedge security slot / Kensington nano security slot / Kensington security slot |
Compliant Standards | WEEE, FCC, RCM, Plug and Play, UASP (USB Attached SCSI Protocol) |
Power
Power Device | Power adapter |
|---|---|
Power Consumption (Max) | 134.4 watt |
Voltage Required | AC 100-240 V |
Power Provided | 100 watt |
Voltage Provided | DC 21 V |
System Requirements
OS Required | Google Chrome OS, Ubuntu, Apple macOS Tahoe 26, Apple macOS Sequoia 15.0, Apple macOS Sonoma 14.0, Apple macOS Ventura 13.0, Apple macOS Monterey 12.0, Apple macOS Big Sur 11.0, Microsoft Windows 10 / 11, Windows 10 (on ARM), Windows 11 (on ARM) |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 27.5 cm |
|---|---|
Shipping Depth | 12.3 cm |
Shipping Height | 8.7 cm |
Shipping Weight | 1.1 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Additional information
| Manufacturer | |
|---|---|
| Colour |
