Milesight AI 360° MS-C12174-YPG1, Network surveillance / panoramic camera, fisheye, vandal / weatherproof, colour (Day&Night), 12 MP, 4000 x 3000, M12 mount, fixed iris, fixed focal, audio, GbE, H.265+, H.265, H.264+, H.264, HEVC, DC 12 V / PoE
$1,851.78 inc GST
✓ In Stock - 15 available
✓ Free NZ Delivery
15 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description

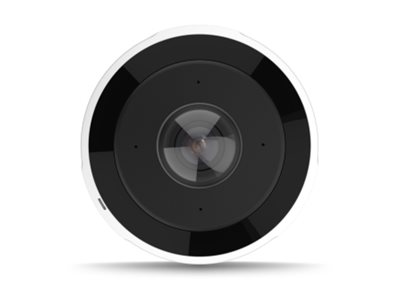

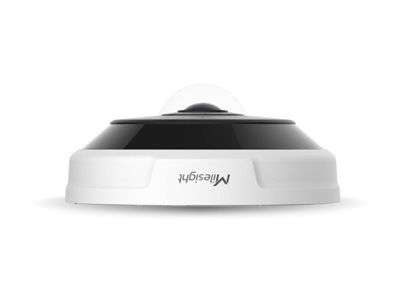

Milesight AI 360° MS-C12174-YPG1 is a panoramic fisheye network camera designed for comprehensive indoor and outdoor surveillance. It delivers high-resolution 12 MP imaging and flexible multi-area viewing to help monitor wide spaces with fewer cameras, while Day/Night functionality and an 850 nm illuminator maintain visibility in low-light conditions. The built-in four-microphone array, speaker, and two-way audio support clear audio communication and sound-assisted location for faster incident response. Robust environmental and security compliance, including IP67 weatherproofing, IK10 vandal resistance, PoE support, and FIPS 140-3 Level 3 encryption, help ensure reliable operation and secure video transmission in demanding installations.
- High-resolution panoramic imaging for wide-area monitoring
- Integrated audio array and two-way communication for clear situational awareness
- Rugged, weatherproof construction with IP67 and IK10 ratings
- Advanced AI analytics and multi-area detection for actionable alerts
- Durable metal housing
Metal housing with IP67 weatherproofing and IK10 vandal resistance provides dependable protection for outdoor and high-traffic indoor installations. - High-resolution imaging
A 12 MP progressive scan CMOS sensor and fisheye optics deliver detailed panoramic images and up to 4000 x 3000 capture resolution for clearer identification and overview. - Advanced audio capability
A built-in four-microphone array, speaker, and two-way audio enable clear voice communication and sound-assisted location for improved incident handling. - Secure and reliable connectivity
Gigabit Ethernet with PoE support, IEEE 802.3af compatibility, and FIPS 140-3 Level 3 encryption help maintain secure, power-efficient network operation.
Main Specifications
Product Description | Milesight AI 360° MS-C12174-YPG1 – network surveillance / panoramic camera – fisheye |
Device Type | Network surveillance / panoramic camera – fixed – fisheye – vandal / weatherproof |
Audio | Yes: built-in speaker, built-in four microphone array, two-way audio capability |
Camera Mount Type | Ceiling mount, wall mount |
Dimensions (WxDxH) | 14 cm x 14 cm x 4.54 cm |
Weight | 700 g |
Connectivity Technology | Wired |
Camera | Colour – Day&Night |
Max Resolution | 4000 x 3000 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Optical Sensor Type | Progressive Scan CMOS – 1/1.7" – 12 MP |
Minimum Illumination | 0.01 lux – colour – F1.2 0.05 lux – colour – F2.8 0 lux – B&W – infrared LEDs on |
Focal Length Control | Fixed focal |
Focal Length | 1.98 mm |
Lens Mounting | M12 mount |
Lens Iris | F/2.8 – fixed iris |
Panning Range (degree) | 360 |
Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
Voltage | DC 12 V / PoE |
Features | Automatic Network Replenishment (ANR), NAS-Ready, VLAN support, 802.1x authentication, region entrance detection, region exiting detection, Advanced Motion Detection, Tampering detection, line-crossing detection, loitering detection, Object Left detection, Object Removed, people counting, 4 programmable motion areas, auto tracking, Heat Map, Backlight Compensation (BLC), Highlight Compensation (HLC), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Automatic Whiteness Balance (AWB), IP address filtering, Automatic Gain Control (AGC), anti-flicker, deblur, watermark, VoIP support, network disconnection, audio alarm, ONVIF (Profile G) support, ONVIF (Profile Q) support, ONVIF (Profile S) support, ONVIF (Profile T) support, FTP upload, SD Card Backup Recording, Event Notification, 16 kHz audio sampling rate, 32 kHz audio sampling rate, 8 kHz audio sampling rate, 44.1 kHz audio sampling rate, 48 kHz audio sampling rate, 120 dB wide dynamic range, 55dB signal-to-noise ratio, AI Analytics, brightness control, Constant Bitrate (CBR), contrast control, ePTZ, privacy masking (up to 24 areas), Region of Interest (ROI), saturation control, sharpness control, Super WDR, up to 8 view areas, Variable Bitrate (VBR), metal housing, 4KV surge protection, Defog, 850nm illuminator, DORI coverage, 6.93m recognize distance, 34.67m detect distance, 3.47m identify distance, 13.87m observe distance, sound assisted location, attribute extraction, intrusion detection, sound classification, vehicle counting, video analytics |
Environmental Parameters (operating) | -40 °C – 60 °C; 0 – 90% (non-condensing) relative humidity |
Documents
Extended Specifications
General
Device Type | Network surveillance / panoramic camera |
|---|---|
Audio Support | Yes: built-in speaker, built-in four microphone array, two-way audio capability |
Audio Formats | AAC, G.711, G.722, G.726 |
Form Factor | Fisheye |
Camera Mount Type | Ceiling mount, wall mount |
Connectivity Technology | Wired |
Width | 14 cm |
Depth | 14 cm |
Height | 4.54 cm |
Weight | 700 g |
Camera
Type | Colour – Day&Night – fixed – vandal / weatherproof |
|---|---|
Digital Video Format | H.265+, H.265, H.264+, H.264, HEVC |
Max Digital Video Resolution | 4000 x 3000 |
Motion Detection | Yes |
Exposure Range | 1 sec – 1/100000 sec |
Minimum Illumination | 0.01 lux – colour – F1.2 0.05 lux – colour – F2.8 0 lux – B&W – infrared LEDs on |
Infrared LEDs | 4 |
Infrared Distance | 20 m |
Video Capture | 3000 x 3000, 60 Hz @ 30 fps 2560 x 2560, 60 Hz @ 30 fps 1920 x 1920, 60 Hz @ 30 fps 1280 x 1280, 60 Hz @ 30 fps 3000 x 3000, 50 Hz @ 25 fps 2560 x 2560, 50 Hz @ 25 fps 1920 x 1920, 50 Hz @ 25 fps 1280 x 1280, 50 Hz @ 25 fps 1280 x 960, 60 Hz @ 30 fps 1024 x 1024, 60 Hz @ 30 fps 736 x 736, 60 Hz @ 30 fps 576 x 576, 60 Hz @ 30 fps 1280 x 960, 50 Hz @ 25 fps 1024 x 1024, 50 Hz @ 25 fps 736 x 736, 50 Hz @ 25 fps 576 x 576, 50 Hz @ 25 fps |
Features | Automatic Network Replenishment (ANR), NAS-Ready, VLAN support, 802.1x authentication, region entrance detection, region exiting detection, Advanced Motion Detection, Tampering detection, line-crossing detection, loitering detection, Object Left detection, Object Removed, people counting, 4 programmable motion areas, auto tracking, Heat Map, Backlight Compensation (BLC), Highlight Compensation (HLC), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Automatic Whiteness Balance (AWB), IP address filtering, Automatic Gain Control (AGC), anti-flicker, deblur, watermark, VoIP support, network disconnection, audio alarm, ONVIF (Profile G) support, ONVIF (Profile Q) support, ONVIF (Profile S) support, ONVIF (Profile T) support, FTP upload, SD Card Backup Recording, Event Notification, 16 kHz audio sampling rate, 32 kHz audio sampling rate, 8 kHz audio sampling rate, 44.1 kHz audio sampling rate, 48 kHz audio sampling rate, 120 dB wide dynamic range, 55dB signal-to-noise ratio, AI Analytics, brightness control, Constant Bitrate (CBR), contrast control, ePTZ, privacy masking (up to 24 areas), Region of Interest (ROI), saturation control, sharpness control, Super WDR, up to 8 view areas, Variable Bitrate (VBR), metal housing, 4KV surge protection, Defog, 850nm illuminator, DORI coverage, 6.93m recognize distance, 34.67m detect distance, 3.47m identify distance, 13.87m observe distance, sound assisted location, attribute extraction, intrusion detection, sound classification, vehicle counting, video analytics |
Image Sensor
Type | 12 MP Progressive Scan CMOS 1/1.7" |
|---|
Lens Construction
Type | M12 mount – fixed focal |
|---|---|
Focal Length | 1.98 mm |
Lens Iris | F/2.8 fixed iris |
Panning
Range (degree) | 360 |
|---|
Interfaces
Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
|---|---|
Network Protocols | NFS, SMB, CIFS, IPv4, IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, QOS, IGMP, ICMP, SSL |
Alarm Inputs Qty | 2 |
Alarm Outputs Qty | 1 |
Expansion / Connectivity
Ports | LAN/power – RJ-45 Audio line in Audio line out Serial RS-485 |
|---|---|
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Encryption Algorithm | FIPS 140-3 Level 3 |
Miscellaneous
Compliant Standards | NDAA, IP67, IK10, IEEE 802.3af, EAL 4+, EMC, EN IEC 61000-3-2:2019+A2:2024, EN 61000-3-3:2013+A2:2021+AC:2022-01, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, FCC 47 CFR Part 15 Subpart B, LVD, BS EN 62368-1:2024+A11:2024, RoHS 2011/65/EU Amendment 2015/863, IEC 60529, IEC 62262 |
|---|
Power
Power Requirements | DC 12 V / PoE |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|---|
Max Operating Temperature | 60 °C |
Relative Humidity (operating) | 0 – 90% (non-condensing) |
