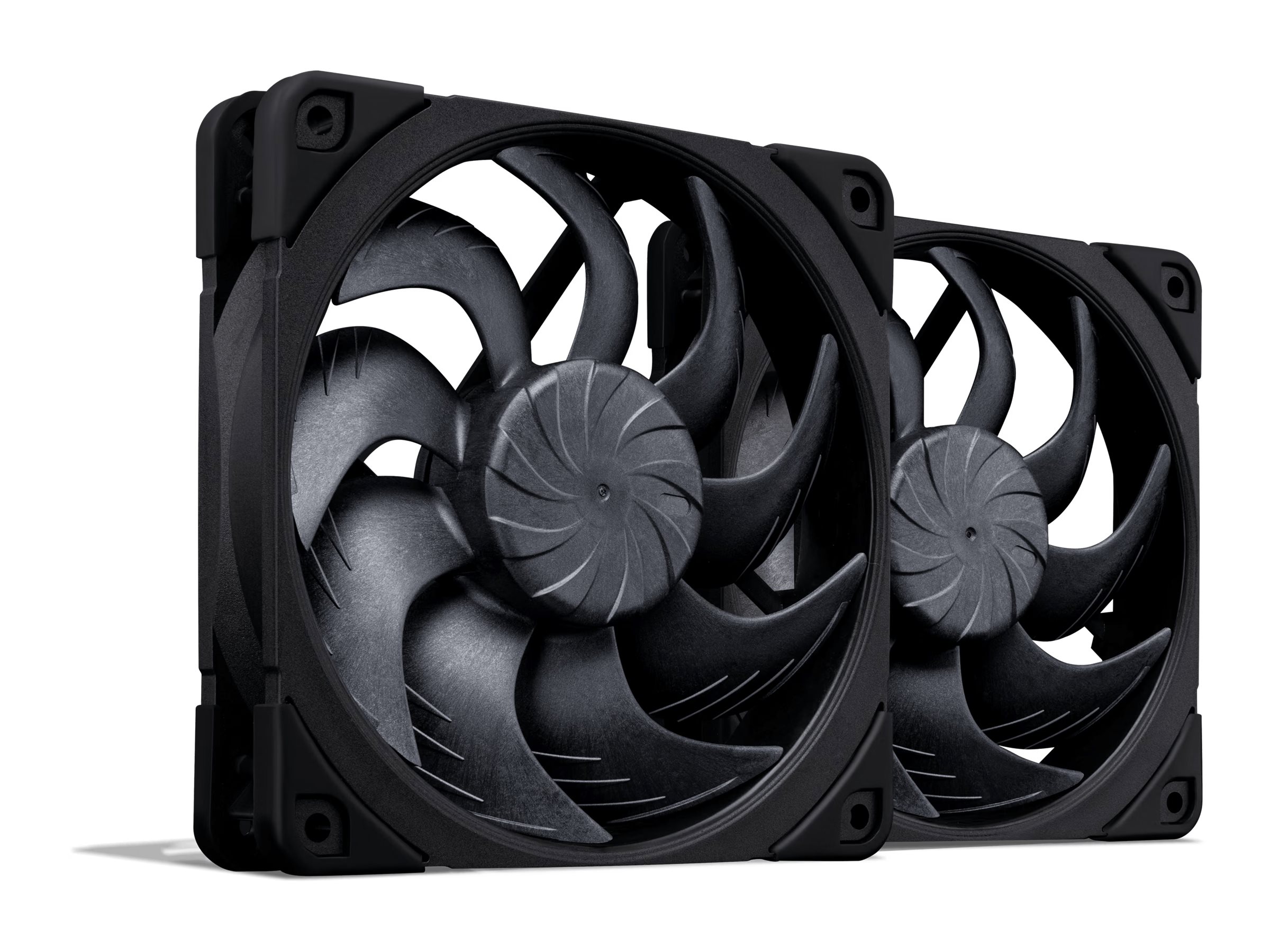

Noctua NF-A14X25 G2 PWM SX2-PP, Case fan, 140 mm (pack of 2)
$213.53 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The NF-A14X25 G2 PWM SX2-PP case fan by Noctua offers a solution for enhancing airflow in your system. Featuring a diameter of 140 mm and a height of 25 mm, this fan can achieve a rotation speed of up to 1500 rpm, delivering an airflow of 91.58 cfm while maintaining a noise level of just 24.8 dBA. Designed with features such as Pulse-width modulation (PWM) support and innovative flow acceleration channels, this fan ensures efficient performance and minimal noise, making it suitable for various builds. The inclusion of anti-vibration pads, low-noise adapters, and a range of mounting accessories makes installation straightforward and improves performance in reducing vibrations. Constructed with Sterrox liquid-crystal polymer (LCP), the NF-A14X25 G2 PWM SX2-PP is built for durability, boasting a mean time between failures (MTBF) of 150,000 hours. The fan’s design incorporates progressive-bend impellers and ultra-tight tip clearance, further improving its quiet and efficient operation. With overcurrent and overvoltage protection features in place, this case fan meets safety standards, ensuring peace of mind while delivering cooling performance.
- 140 mm diameter for efficient airflow
- Noise level of just 24.8 dBA for quiet operation
- PWM support allows for dynamic speed adjustments
- Constructed with Sterrox liquid-crystal polymer for durability
- Includes various mounting accessories for easy installation
- Efficient airflow performance
With a maximum airflow of 91.58 cfm, the NF-A14X25 G2 PWM SX2-PP effectively cools down your system components, enhancing overall performance. - Quiet operation
Operating at a noise level as low as 24.8 dBA, this fan ensures a tranquil computing environment while maintaining high airflow. - Advanced design technology
Incorporating features like flow acceleration channels and A-Series blades, this fan optimizes airflow and pressure for cooling efficiency. - Robust construction
The use of Sterrox liquid-crystal polymer reduces vibrations and contributes to the fan’s long lifespan and reliability. - Versatile installation options
Included accessories such as low-noise adapters and anti-vibration mounts facilitate flexible installation and improve performance.
Main Specifications
Product Description | Noctua NF-A14X25 G2 PWM SX2-PP – case fan |
Product Type | Case fan |
Packaged Quantity | 2 (specifications are for single item) |
Package Content | 2 NA-RC16 low-noise adapters (L.N.A), NA-YC1 4-pin PWM y-cable, 2 NA-EC1 extension cables (30 cm), 8 NA-AV2 anti-vibration mounts, 2 NA-AVG2-LR anti-vibration gaskets, 8 NA-AVP1-LR load-relief anti-vibration pads, fan screws, NF-A14x25 G2 PWM PPA fan, NF-A14x25 G2 PWM PPB fan |
Fan Diameter | 140 mm |
Fan Height | 25 mm |
Fan Bearing | SSO2 bearing |
Rotation Speed | 300-1500 rpm |
Air Flow | 91.58 cfm |
Noise Level | 24.8 dBA |
Power Connector | 4-pin PWM |
Rated Voltage | 12 V |
Features | A-Series blades with flow acceleration channels, Advanced Acoustic Optimisation (AAO), Pulse-width modulation (PWM) support, progressive-bend impeller, flow acceleration channels, winglet blades, ultra-tight tip clearance, Stepped Inlet Design, Inner Surface Microstructures, integrated anti-vibration pads, anti-vibration gaskets, Metal Bearing Shell, stops at 0% PWM, SupraTorque technology, etaPERF motor, Smooth Commutation Drive 2 |
Product Material | Sterrox liquid-crystal polymer (LCP) |
Dimensions (WxDxH) | 14 cm x 14 cm x 2.5 cm |
Features | Overcurrent protection, overvoltage protection |
Extended Specifications
General
Packaged Quantity | 2 (specifications are for single item) |
|---|---|
Product Type | Case fan |
Product Material | Sterrox liquid-crystal polymer (LCP) |
Package Content | 2 NA-RC16 low-noise adapters (L.N.A), NA-YC1 4-pin PWM y-cable, 2 NA-EC1 extension cables (30 cm), 8 NA-AV2 anti-vibration mounts, 2 NA-AVG2-LR anti-vibration gaskets, 8 NA-AVP1-LR load-relief anti-vibration pads, fan screws, NF-A14x25 G2 PWM PPA fan, NF-A14x25 G2 PWM PPB fan |
Width | 14 cm |
Depth | 14 cm |
Height | 2.5 cm |
Heatsink & Fan
Fan Diameter | 140 mm |
|---|---|
Fan Height | 25 mm |
Fan Bearing | SSO2 bearing |
Rotation Speed | 300-1500 rpm |
Air Flow | 91.58 cfm |
Air Pressure | 2.56 mm |
Noise Level | 24.8 dBA |
Noise & Performance Details | 19.7 dBA / 74.81 cfm at 300-1250 rpm |
Power Connector | 4-pin PWM |
Rated Voltage | 12 V |
Rated Current | 0.19 A |
Power Consumption | 2.28 W |
Cable Length | 20 cm |
Features | A-Series blades with flow acceleration channels, Advanced Acoustic Optimisation (AAO), Pulse-width modulation (PWM) support, progressive-bend impeller, flow acceleration channels, winglet blades, ultra-tight tip clearance, Stepped Inlet Design, Inner Surface Microstructures, integrated anti-vibration pads, anti-vibration gaskets, Metal Bearing Shell, stops at 0% PWM, SupraTorque technology, etaPERF motor, Smooth Commutation Drive 2 |
Miscellaneous
MTBF | 150,000 hour(s) |
|---|---|
Features | Overcurrent protection, overvoltage protection |
Compliant Standards | TUV, UKCA, UL, EN 62368-1, EN 55035, EN 55032, UL-507 |
