Description
The StarTech 303NA-TB5-HUB is a port expansion solution designed for high-performance connectivity. With three Thunderbolt 5 ports and USB support, users can easily connect multiple devices while enjoying data transfer speeds of up to 80 Gbps. This docking station supports resolutions up to 7680 x 4320 at a refresh rate of 60 Hz, making it a choice for high-definition displays. The rugged aluminum housing features a power LED status indicator for easy monitoring.
Equipped with USB Power Delivery 3.1 and a 140 W power adapter, this docking station efficiently powers connected devices while facilitating seamless data transfer. The daisy chain function allows for the connecting of multiple Thunderbolt devices, and compatibility with VESA 40 x 40 mm mounts adds versatility to its mounting options. The Kensington security slot provides an extra layer of security, making it suitable for both home and professional environments.
- Triple Thunderbolt 5 ports for extensive connectivity
- Supports up to 7680 x 4320 resolution for high-definition displays
- Rugged aluminum housing enhances durability and longevity
- Power Delivery 3.1 allows for efficient charging and data transfer
- Daisy chain function enables connection of multiple devices
- High-speed data transfer
Experience lightning-fast data transfer rates of up to 80 Gbps, ensuring that large files are moved quickly and efficiently across multiple devices. - Robust power delivery
The device provides up to 140 W of power delivery, allowing users to charge devices while simultaneously using them, streamlining workflows and reducing clutter. - Versatile connectivity options
Supports a wide range of devices through various ports, including three Thunderbolt 5 ports and USB connections, catering to diverse user needs. - Durable construction
Housed in rugged aluminum, this docking station is built to withstand daily use, providing reliable performance in both home and professional settings. - Enhanced security features
Equipped with a Kensington security slot, this docking station ensures that devices remain secure and protected from unauthorized access.
Main Specifications
Product Description | Startech – docking station – USB4 / Thunderbolt 4 / Thunderbolt 5 – 3 x Thunderbolt 5 |
Product Type | Docking station |
Docking Interface | USB4 / Thunderbolt 4 / Thunderbolt 5 |
Video Interfaces | 3 x Thunderbolt 5 |
Dimensions (WxDxH) | 17.26 cm x 7.75 cm x 2 cm |
Weight | 451 g |
Colour | Space grey |
Power | Power adapter 180.18 watt 140 watt Power Provided (DC 21 V) |
Extended Specifications
General
Product Type | Docking station |
|---|
Width | 17.26 cm |
|---|
Depth | 7.75 cm |
|---|
Height | 2 cm |
|---|
Weight | 451 g |
|---|
Enclosure Colour | Space grey |
|---|
Video
Max Resolution Details | 7680 x 4320 – 60 Hz |
|---|
Networking
Compliant Standards | USB 3.2 Gen 2, USB4, Power Delivery 3.1, Battery Charging 1.2 |
|---|
Expansion / Connectivity
Interfaces | 1 x Thunderbolt 5 with Power Delivery (140W) – 24 pin USB-C
3 x Thunderbolt 5 – 24 pin USB-C
1 x USB – 9 pin USB Type A |
|---|
Miscellaneous

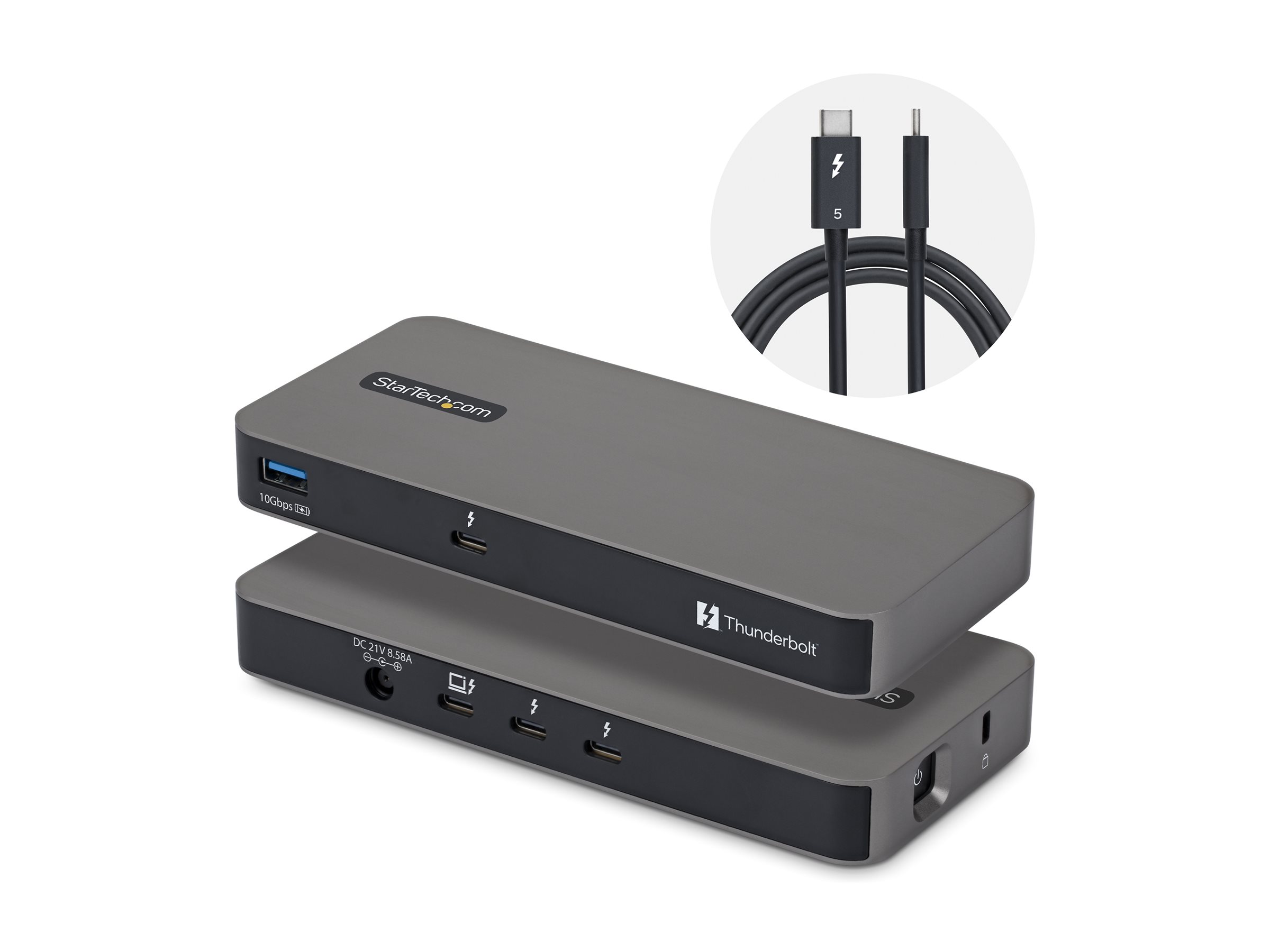

Cables Included | 1 x Thunderbolt 5 host cable – external – 1 m |
|---|
Features | Up to 80Gbps data transfer, security lock slot (cable lock sold separately), power LED status, UASP support, daisy chain function, rugged aluminium housing, on/off switch, VESA 40 x 40 mm, DisplayPort Alt Mode, Thunderbolt Share support, triple display support |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | USB Power Delivery 3.1, USB Battery Charging Specification Rev. 1.2, RoHS, WEEE, FCC, RCM, Thunderbolt 5, Thunderbolt 4 |
|---|
Power
Power Device | Power adapter |
|---|
Power Consumption (Max) | 180.18 watt |
|---|
Power Provided | 140 watt |
|---|
Voltage Provided | DC 21 V |
|---|
System Requirements
OS Required | Microsoft Windows 11, Windows 11 (on ARM), Apple macOS Sequoia 15.0, Apple macOS Tahoe 26 |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 23.5 cm |
|---|
Shipping Depth | 14.5 cm |
|---|
Shipping Height | 9.9 cm |
|---|
Shipping Weight | 1.4 kg |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
