Description
The StarTech N6APATUTP34BKS50CM patch cable provides reliable connectivity for networking environments. Constructed with pure bare copper conductors, this cable supports frequencies up to 500 MHz and data transfer rates of up to 10 Gbps, suitable for high-performance applications. Its ultraslim and snagless design allows for flexible installation in tight spaces, while the gold-plated connectors ensure optimal conductivity and durability.
With a durable thermoplastic elastomer (TPE) jacket, this cable can endure temperatures ranging from -20°C to 60°C, providing versatility in various environments. The T568B wiring scheme is widely used, ensuring compatibility with standard network devices. The translucent connector boots add a unique aesthetic while also preventing wear and tear, making this cable a practical choice for networking needs.
- Constructed with pure bare copper conductors for enhanced performance
- Supports data rates up to 10 Gbps for high-speed connectivity
- Ultraslim and snagless design ideal for tight spaces
- Durable thermoplastic elastomer (TPE) jacket for environmental resilience
- Translucent connector boots for added protection and aesthetics
- Flexible design
The ultraslim design of this patch cable allows for easy routing in crowded areas, making installation a breeze in any networking setup. - High-performance specifications
With a tested frequency of up to 500 MHz and support for data transfer rates up to 10 Gbps, this cable meets the demands of modern networking applications. - Snagless connectors

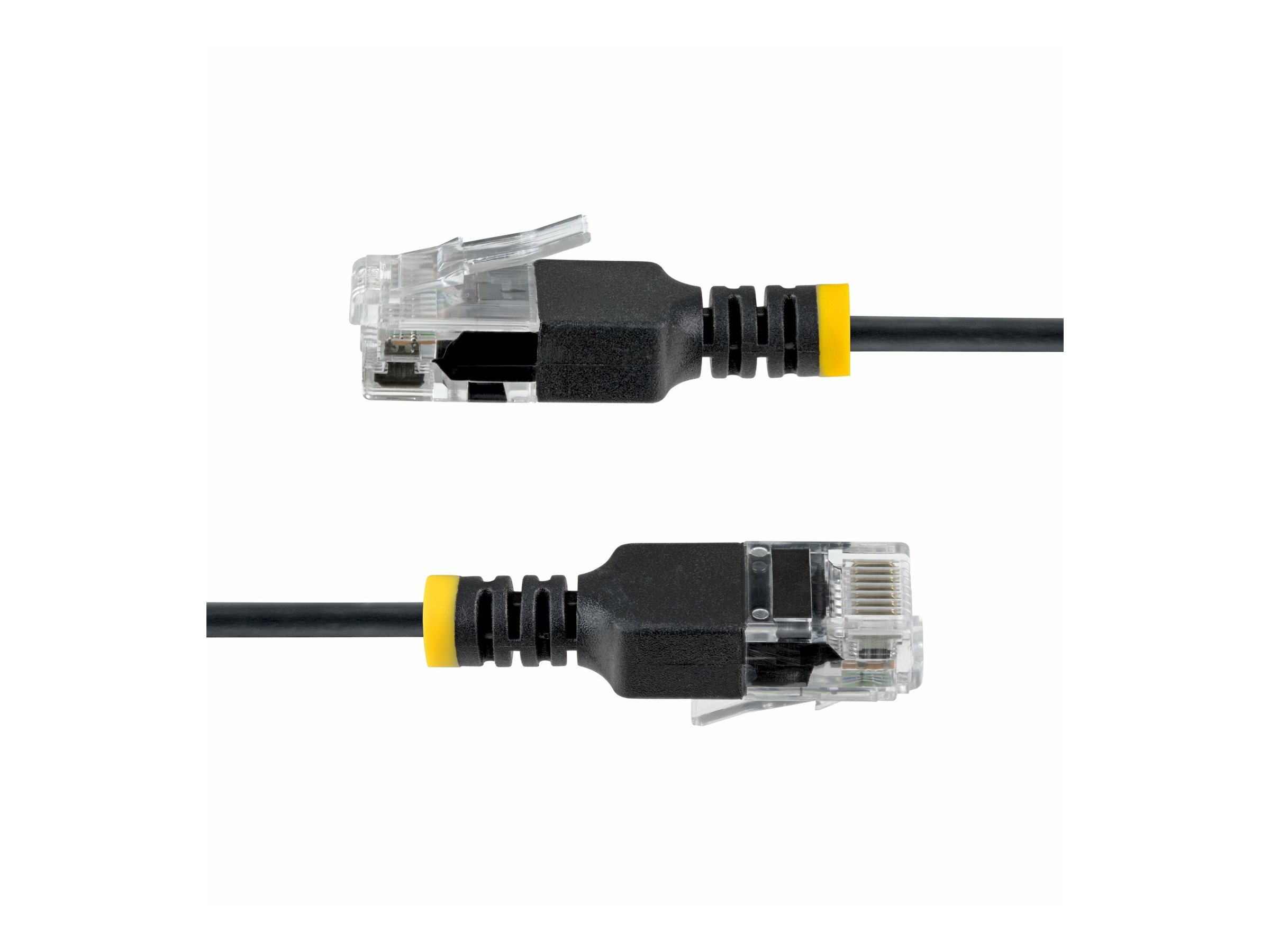

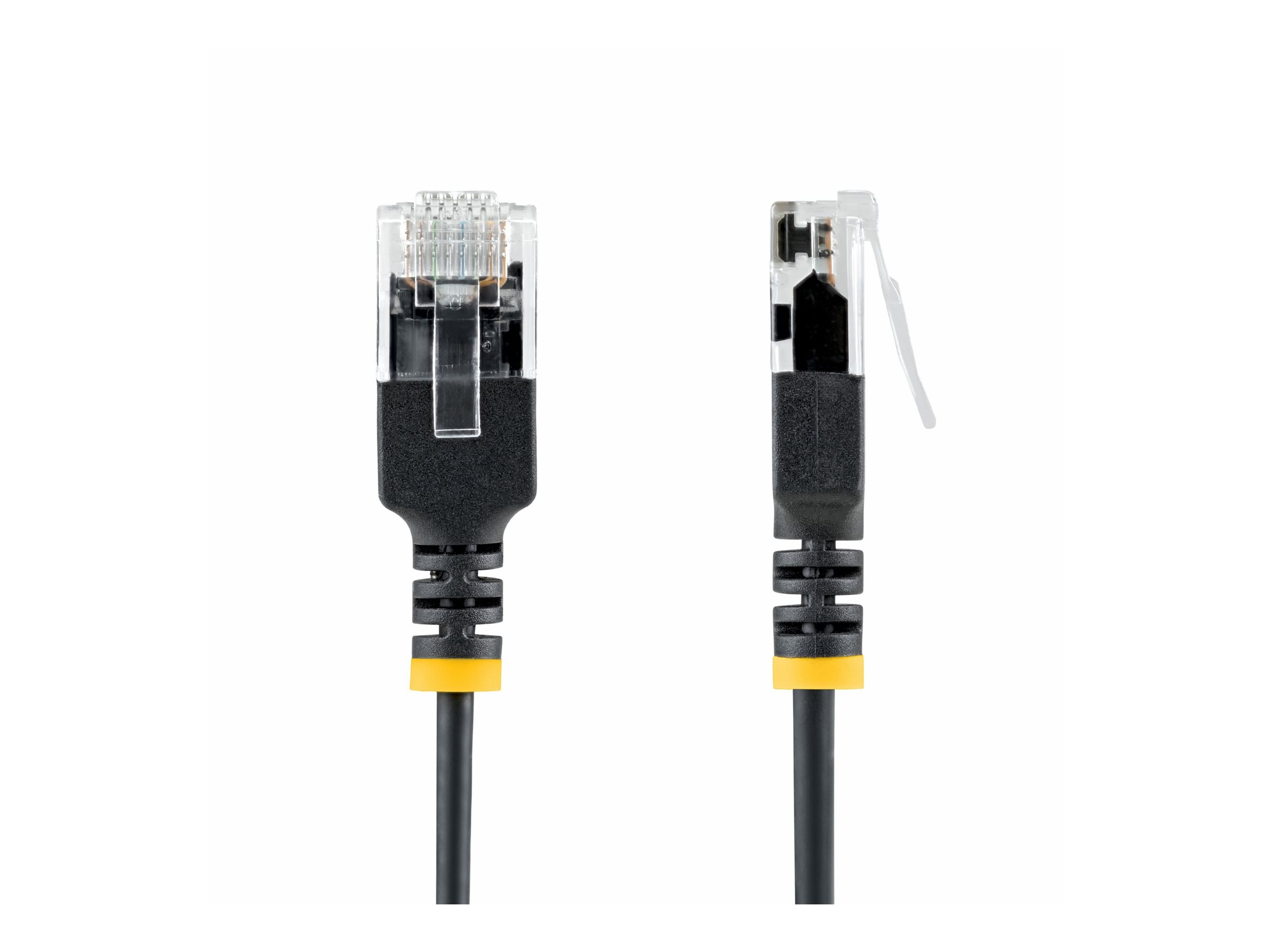

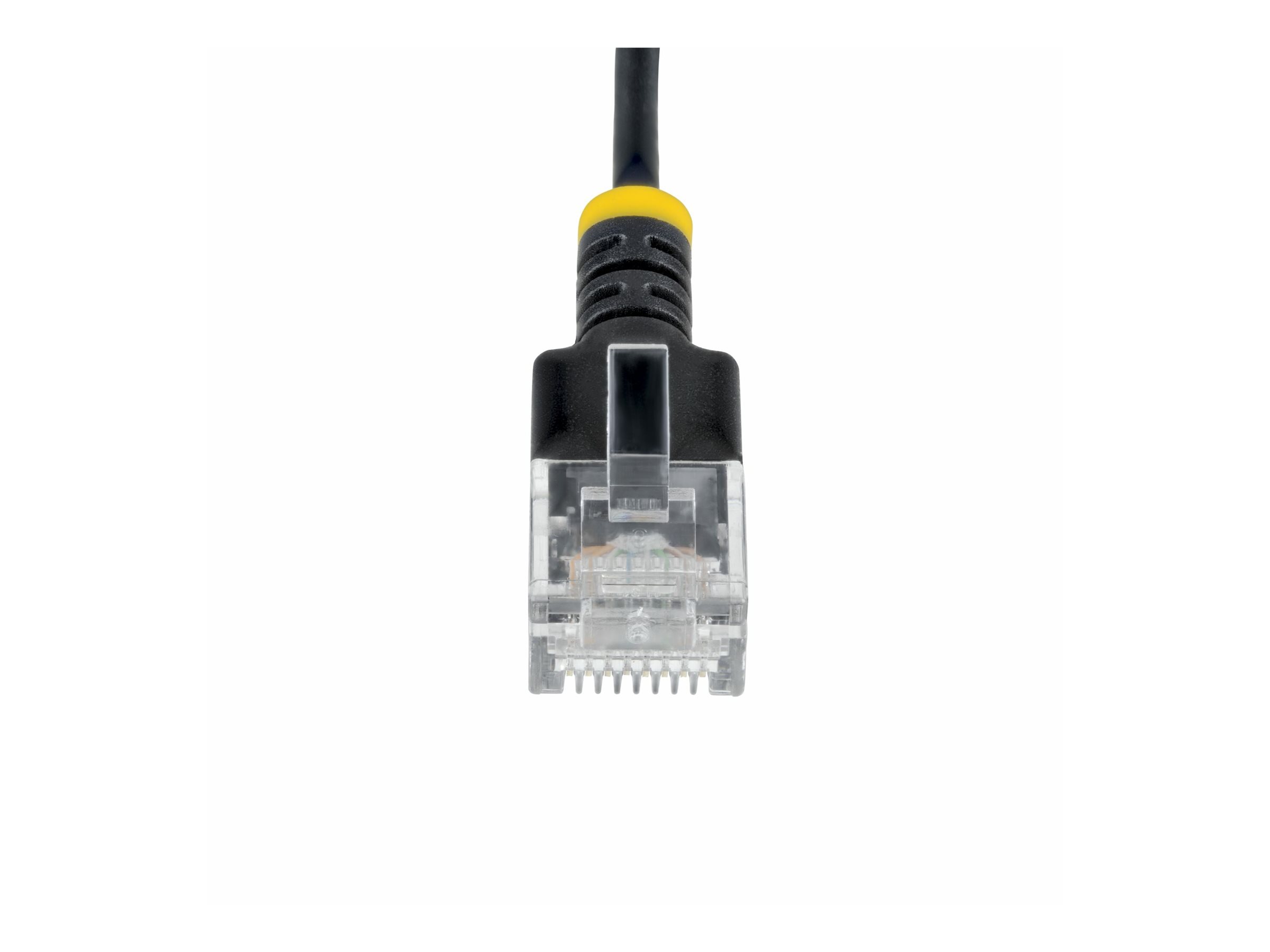

The snagless design of the RJ-45 connectors helps prevent damage during installation and enhances the overall durability of the cable. - Gold-plated connectors
Featuring 50 micron gold-plated connectors, this cable minimizes signal loss and maximizes conductivity for stable connections. - Compliant standards
This cable adheres to several compliance standards, including RoHS and ANSI/TIA-568-C.2, ensuring its quality and environmental safety.
Main Specifications
Product Description | Startech patch cable – 50 cm – black |
Type | Patch cable – CAT 6a |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
Cable Length | 50 cm |
Diameter | 2.6 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | Unshielded twisted pair (UTP) |
|---|
Wiring Scheme | T568B |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
|---|
Cable Length | 50 cm |
|---|
Diameter | 2.6 mm |
|---|
Weight | 10 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 14 cm |
|---|
Shipping Depth | 20 cm |
|---|
Shipping Height | 1.6 cm |
|---|
Shipping Weight | 14 g |
|---|
