Description
The StarTech 34 AWG CAT 6a patch cable is designed for high-performance networking, supporting data transfer speeds of up to 10 Gbps. Featuring an ultraslim and flexible design, this cable is ideal for tight spaces without compromising quality or performance. It includes pure bare copper conductors and gold-plated connectors that minimize Near-End Crosstalk and reduce Return Loss, ensuring reliable data transmission in demanding environments.
With its snagless design and translucent connector boots, this patch cable is durable and easy to manage. The thermoplastic elastomer (TPE) jacket provides added protection against wear and tear, making it suitable for a range of applications. Compliant with RoHS and other standards, this cable is a smart choice for both professional and home networking setups.
- Supports data transfer speeds up to 10 Gbps
- Ultraslim and flexible design for easy installation
- Gold-plated connectors minimize signal loss
- Durable TPE jacket protects against wear and tear
- Snagless design ensures hassle-free connections
- Efficient Connectivity
The cable is designed with pure bare copper conductors that ensure efficient signal transmission, delivering reliable connectivity for various networking needs. - High Performance
It supports a tested frequency of up to 500 MHz, enabling high-performance data transfer for network applications. - Robust Construction
With a jacket made of thermoplastic elastomer (TPE), the cable offers robust protection against environmental factors, enhancing its longevity. - Versatile Compatibility
This patch cable features RJ-45 connections on both ends, making it compatible with a variety of networking devices. - Compliant Standards
The cable meets several standards including RoHS and ANSI/TIA-568-C.2, ensuring it adheres to industry regulations for safe use.
Main Specifications
Product Description | Startech patch cable – 4 m – black |
Type | Patch cable – CAT 6a |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
Cable Length | 4 m |
Diameter | 2.6 mm |

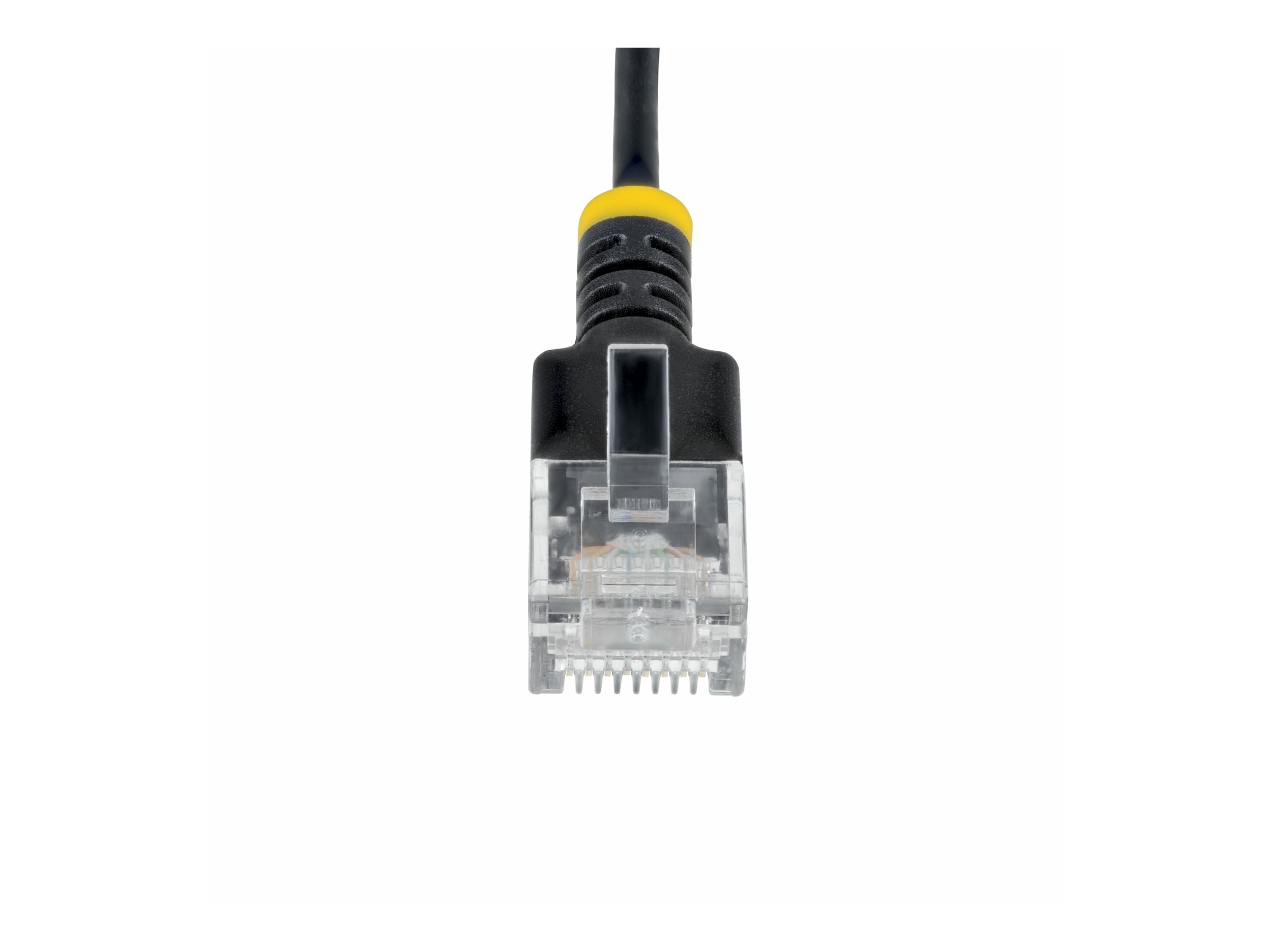

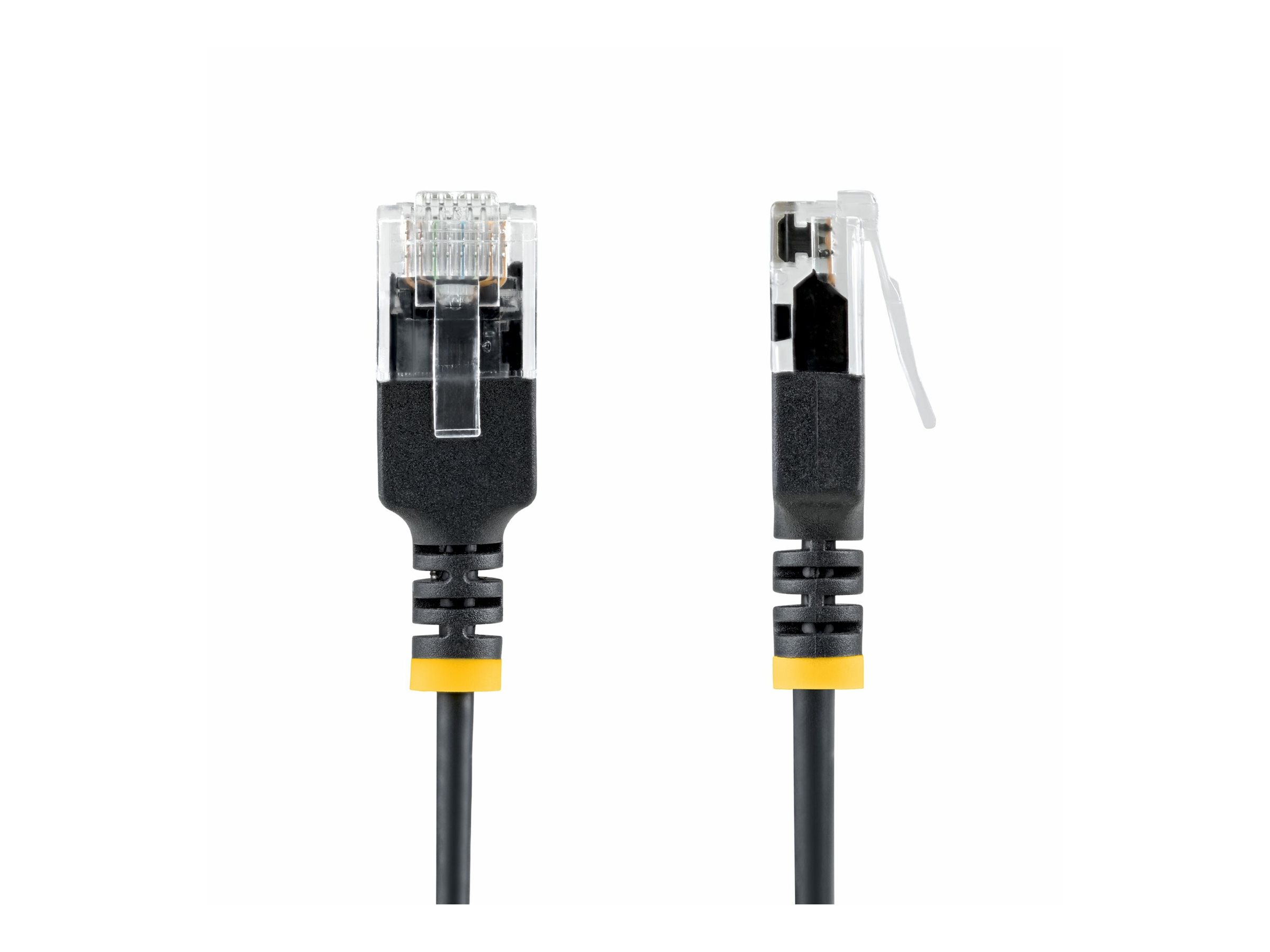

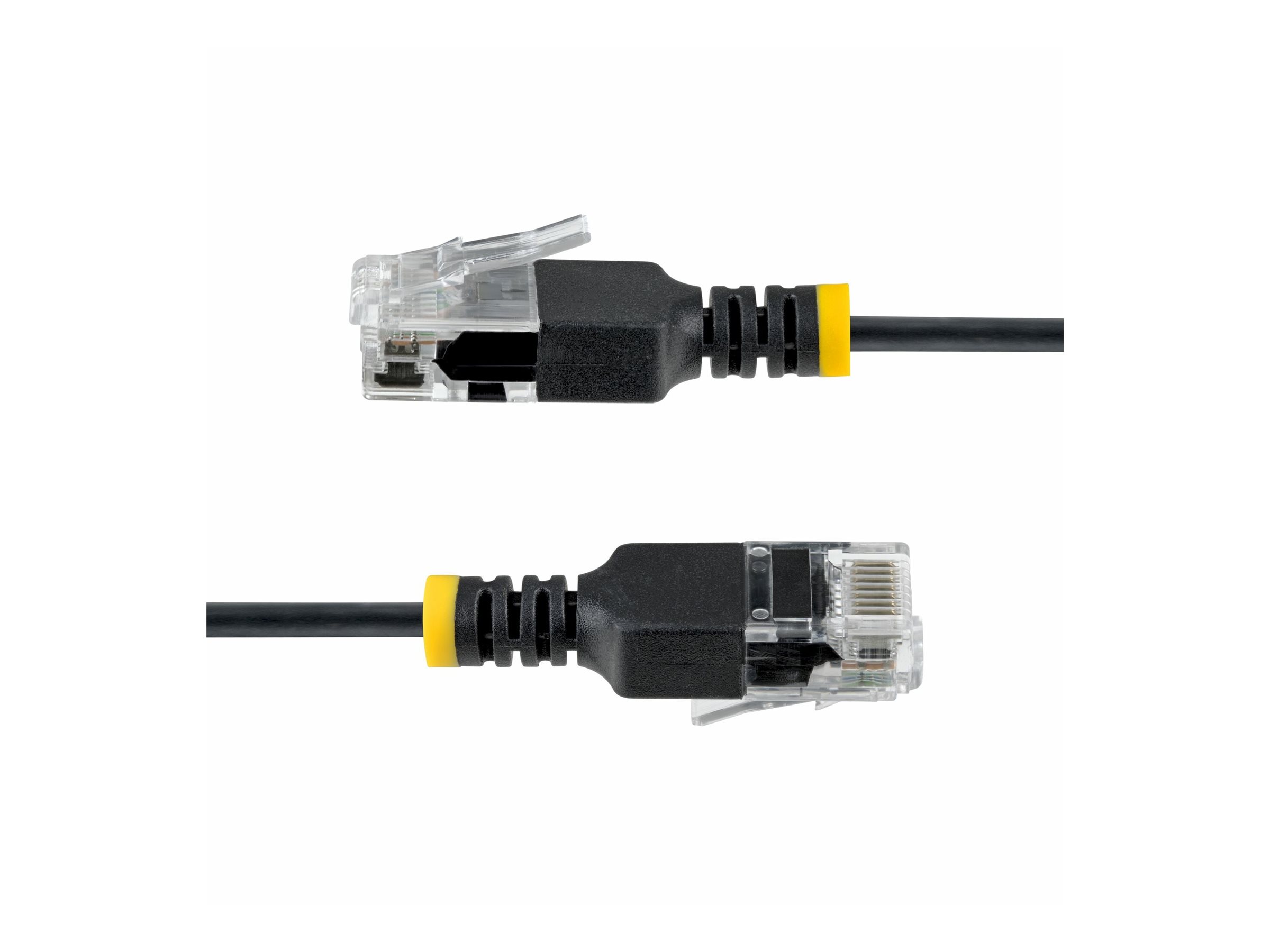

Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | Unshielded twisted pair (UTP) |
|---|
Wiring Scheme | T568B |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
|---|
Cable Length | 4 m |
|---|
Diameter | 2.6 mm |
|---|
Weight | 51 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 14 cm |
|---|
Shipping Depth | 20 cm |
|---|
Shipping Height | 1.8 cm |
|---|
Shipping Weight | 53 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
