Description

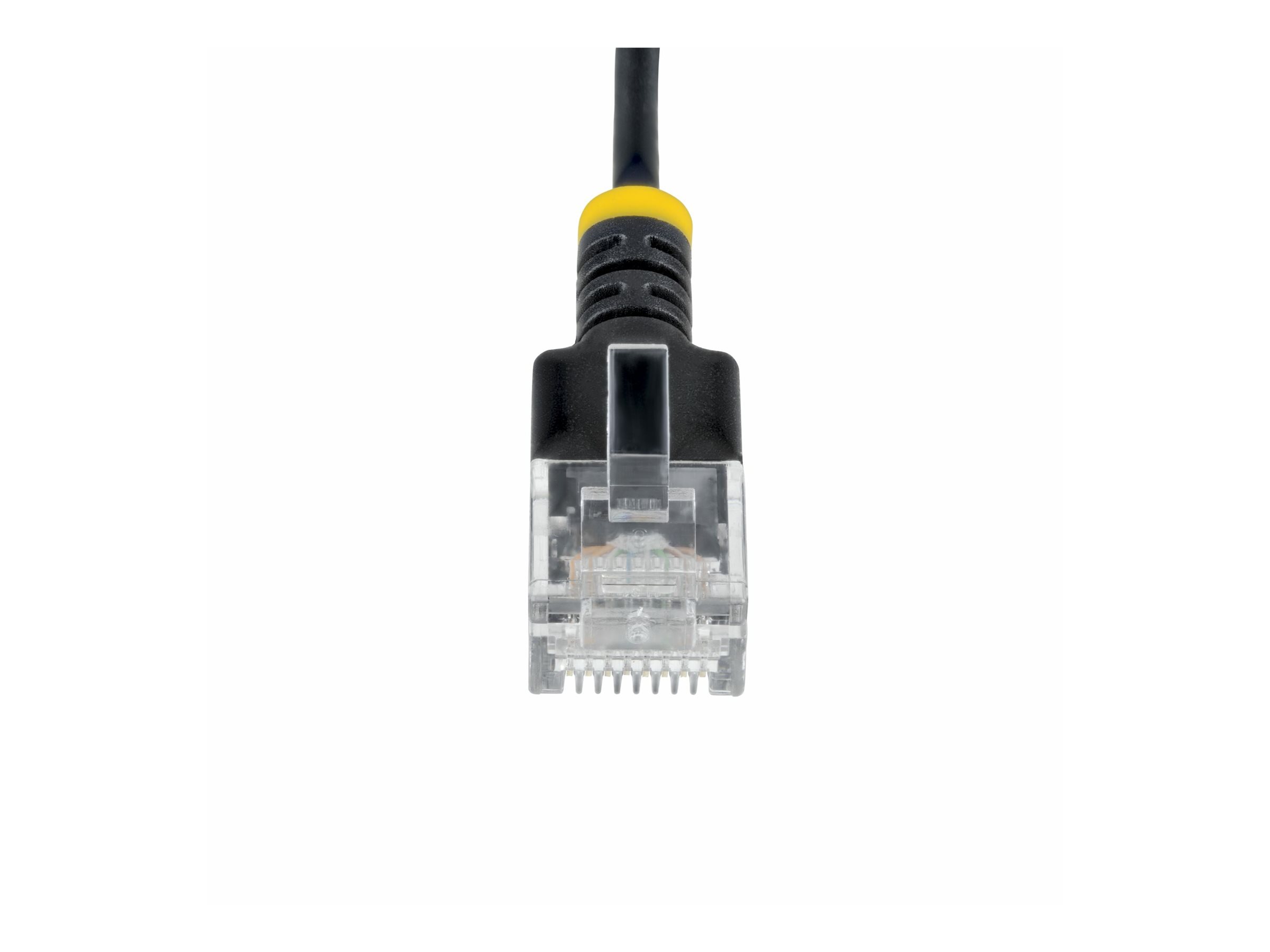

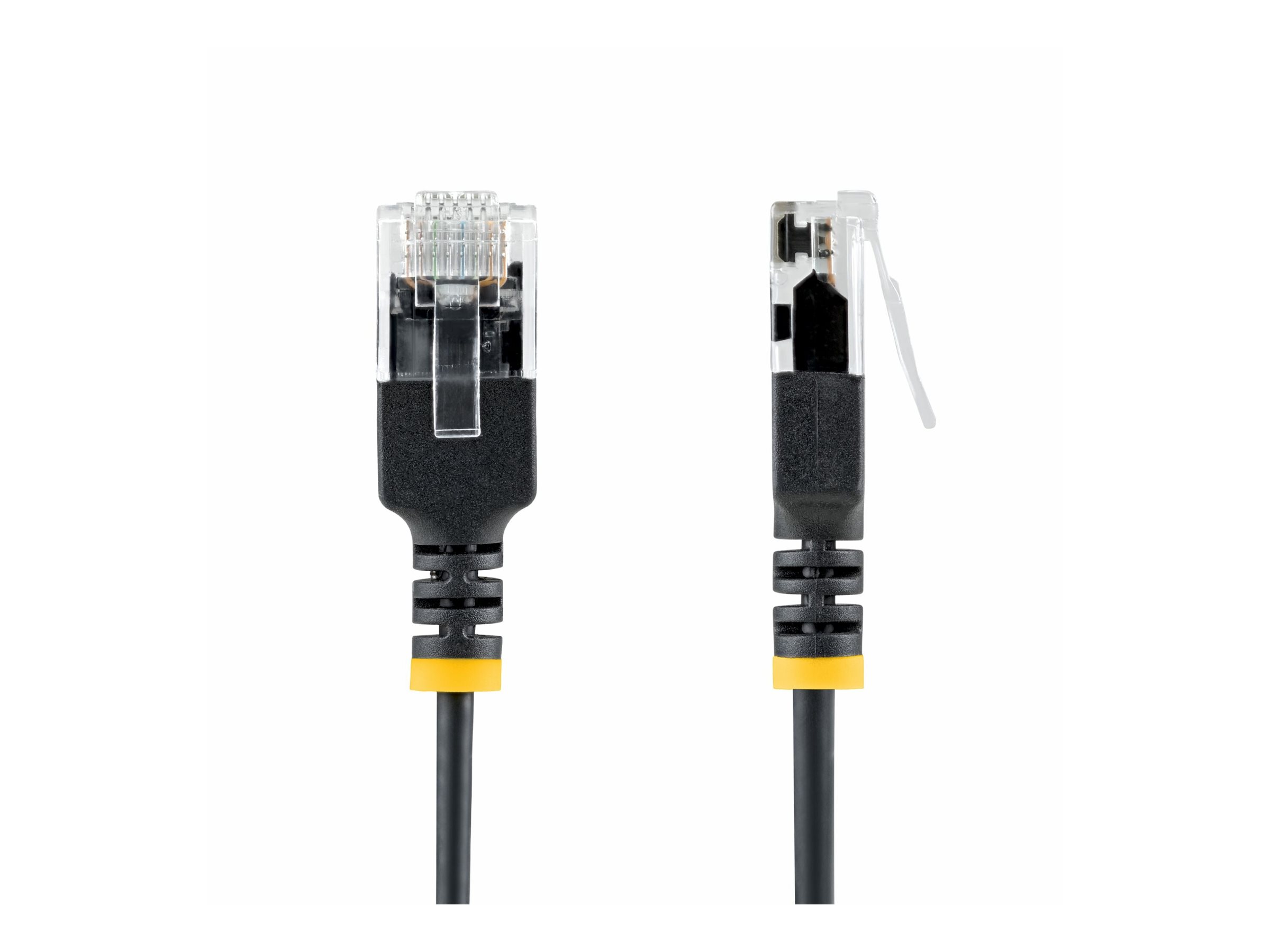

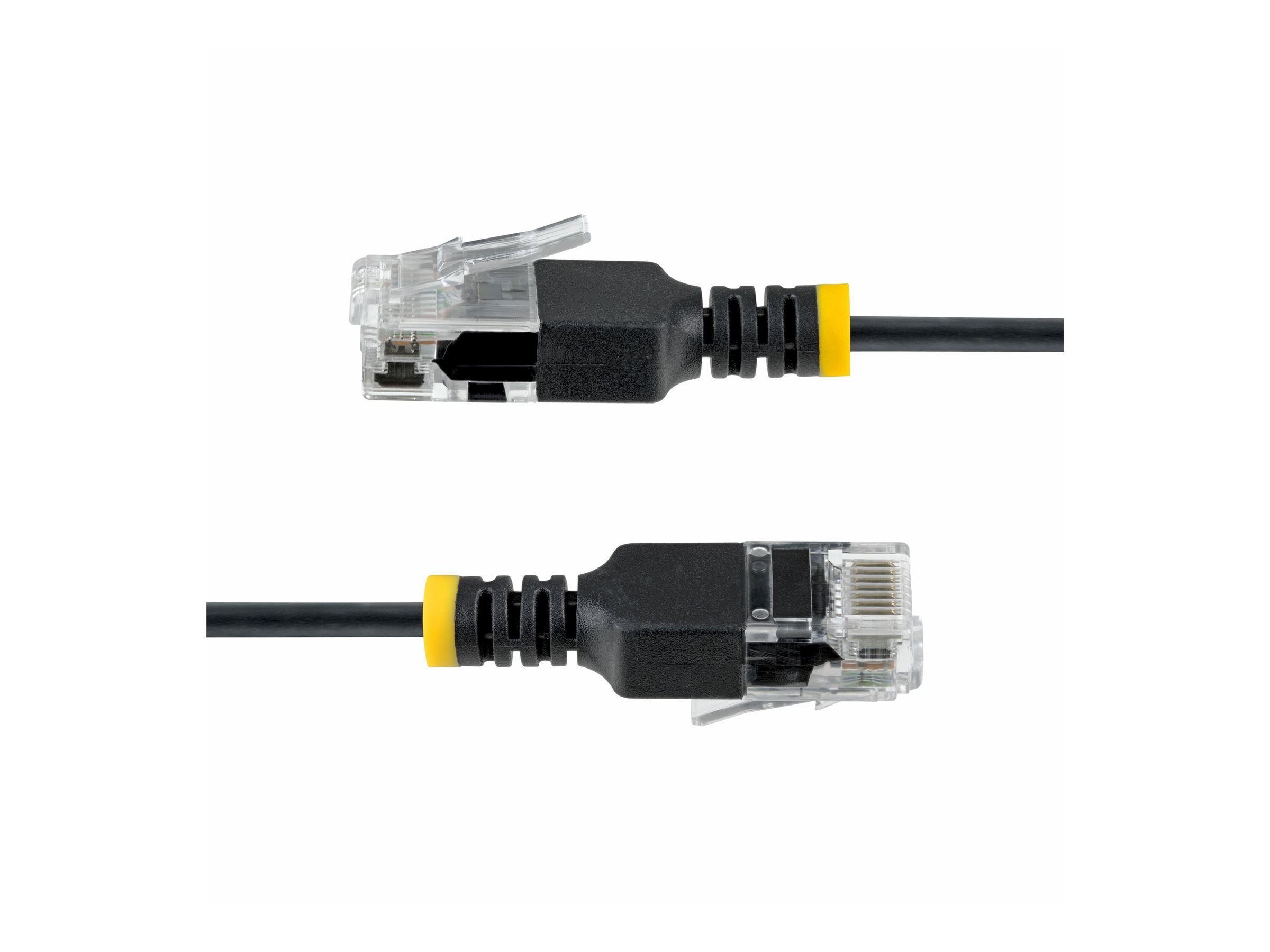

The StarTech patch cable provides reliable connectivity for networking applications, ensuring efficient data transmission up to 10 Gbps. Designed with a flexible thermoplastic elastomer (TPE) jacket, this ultraslim cable features gold-plated RJ-45 connectors that minimize signal loss and maximize performance. With a tested frequency of up to 500 MHz, this CAT 6a cable reduces Near-End Crosstalk (NEXT) and Return Loss (RL), making it a solution for high-speed network environments.
Crafted with pure bare copper conductors and a stranded design, the cable delivers consistent performance while maintaining durability. The snagless design helps to prevent cable damage during installation, while translucent connector boots provide a modern aesthetic. Suitable for various operating conditions, the cable can function effectively in temperatures ranging from -20°C to 60°C, and meets RoHS and WEEE compliance standards, reflecting an eco-friendly choice.
- Supports data transmission speeds up to 10 Gbps
- Ultraslim and flexible TPE jacket for easy handling
- Gold-plated connectors for reduced signal loss
- Minimized Near-End Crosstalk and reduced Return Loss
- Snagless design minimizes damage during installation
- Efficient performance
This patch cable supports speeds up to 10 Gbps, making it ideal for high-bandwidth applications, ensuring smooth data transmission and network stability. - Durable construction
Constructed with pure bare copper conductors and a thermoplastic elastomer jacket, this cable is designed for longevity and reliability in various environments. - Optimized connectivity
Features gold-plated RJ-45 connectors that provide excellent conductivity and minimize signal loss, enhancing overall network quality. - Versatile compatibility
This cable is compatible with a variety of devices and networking equipment, making it suitable for both home and office use. - Environmentally friendly
Compliant with RoHS and WEEE standards, this product reflects a commitment to reducing electronic waste and harmful substances.
Main Specifications
Product Description | Startech patch cable – 3 m – black |
Type | Patch cable – CAT 6a |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, 50 micron gold-plated connectors, pure bare copper conductors, flexible, up to 10 Gbps, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots |
Cable Length | 3 m |
Diameter | 2.6 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | Unshielded twisted pair (UTP) |
|---|
Wiring Scheme | T568B |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, 50 micron gold-plated connectors, pure bare copper conductors, flexible, up to 10 Gbps, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots |
|---|
Cable Length | 3 m |
|---|
Diameter | 2.6 mm |
|---|
Weight | 38 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 14 cm |
|---|
Shipping Depth | 20 cm |
|---|
Shipping Height | 2.5 cm |
|---|
Shipping Weight | 40 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
