Startech, Patch cable, RJ-45 (M) to RJ-45 (M), 30 cm, 2.6 mm, UTP, CAT 6a, snagless, ultra-slim, stranded copper, black

Description

The StarTech 30 cm patch cable is designed for efficient network connectivity with a flexible and ultraslim structure. Utilizing UTP technology and made from stranded copper, it ensures minimized Near-End Crosstalk (NEXT) and reduced Return Loss (RL), suitable for high-frequency applications up to 500 MHz. With a wiring scheme of T568B and pure bare copper conductors, this CAT 6a cable supports data speeds of up to 10 Gbps, suitable for a range of networking environments.
Featuring gold-plated connectors for enhanced connectivity, the snagless design provides protection from cable snags and damage. Compatible with standards such as ANSI/TIA-568-C.2 and RoHS compliant, this cable combines high performance with durability. Operating within a temperature range from -20°C to 60°C, it meets the demands of different environments while delivering reliable performance.

• Flexible ultraslim design for easy routing
• Supports data transmission speeds up to 10 Gbps
• Gold-plated connectors reduce signal loss
• Snagless design prevents cable damage
• RoHS compliant for environmentally friendly usage

• High-performance connection
  With a tested frequency of up to 500 MHz and supporting data rates up to 10 Gbps, this CAT 6a patch cable ensures rapid and reliable data transfer suitable for various network configurations.
• Durable construction
  Featuring a thermoplastic elastomer (TPE) jacket and pure bare copper conductors, this patch cable is built for longevity and flexibility, suitable for diverse installation scenarios.

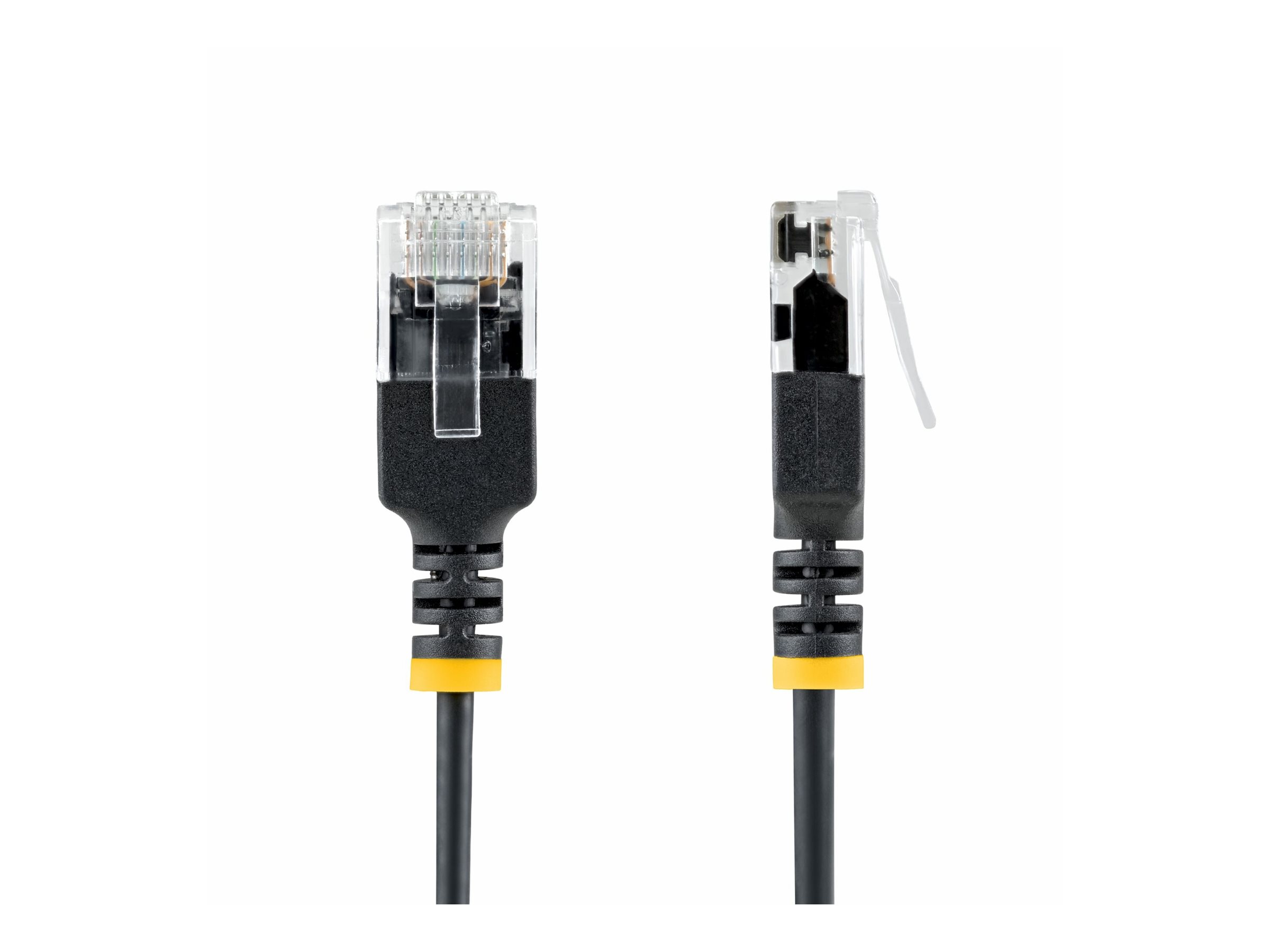

• Snagless design
  The snagless connector design allows for easy plugging and unplugging without snagging on adjacent ports, which helps preserve both the cable and the networking equipment.

Main Specifications

Extended Specifications

General

Connectivity

Miscellaneous

Dimensions & Weight (Shipping)

Environmental Parameters
