Description

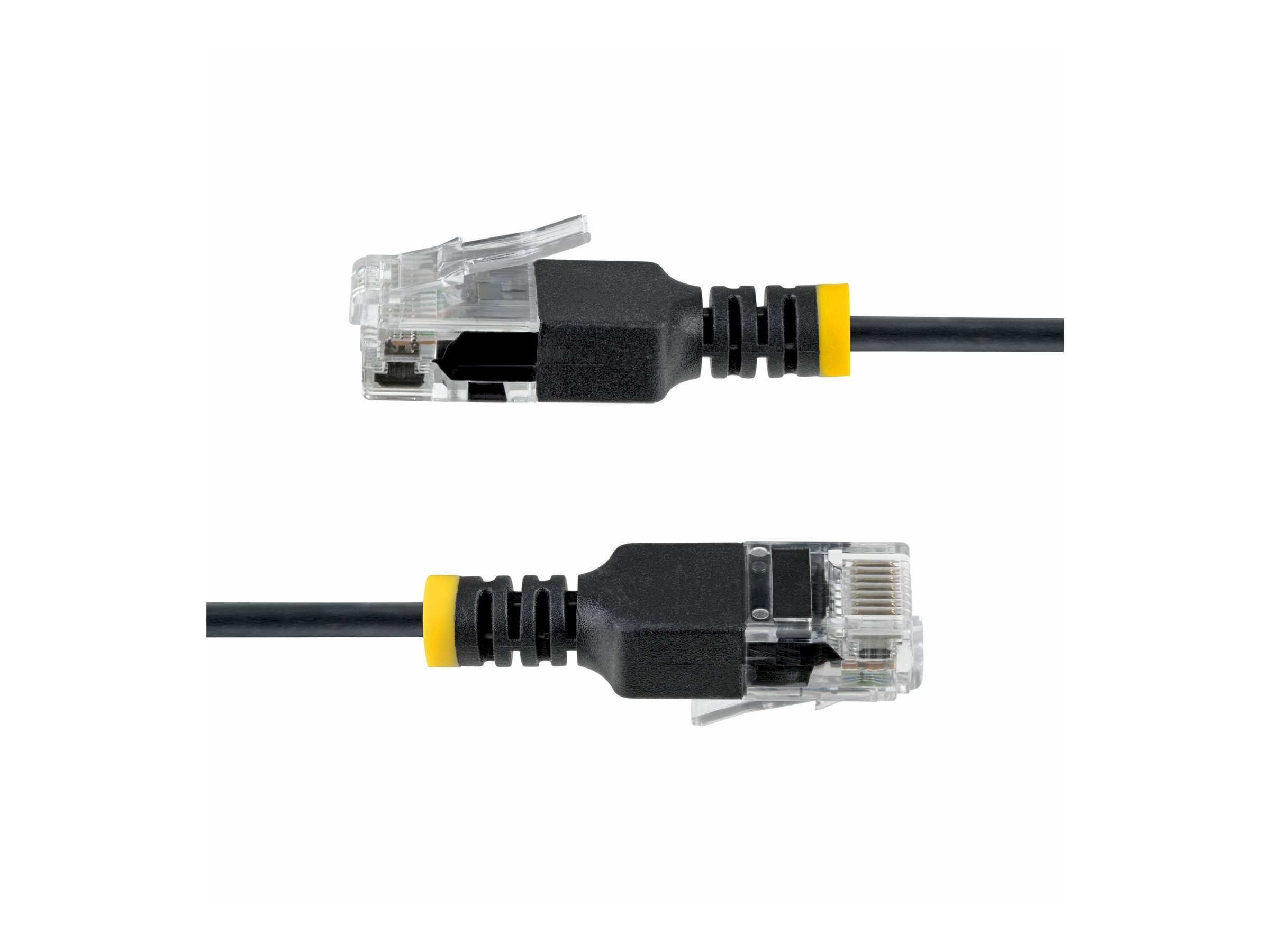

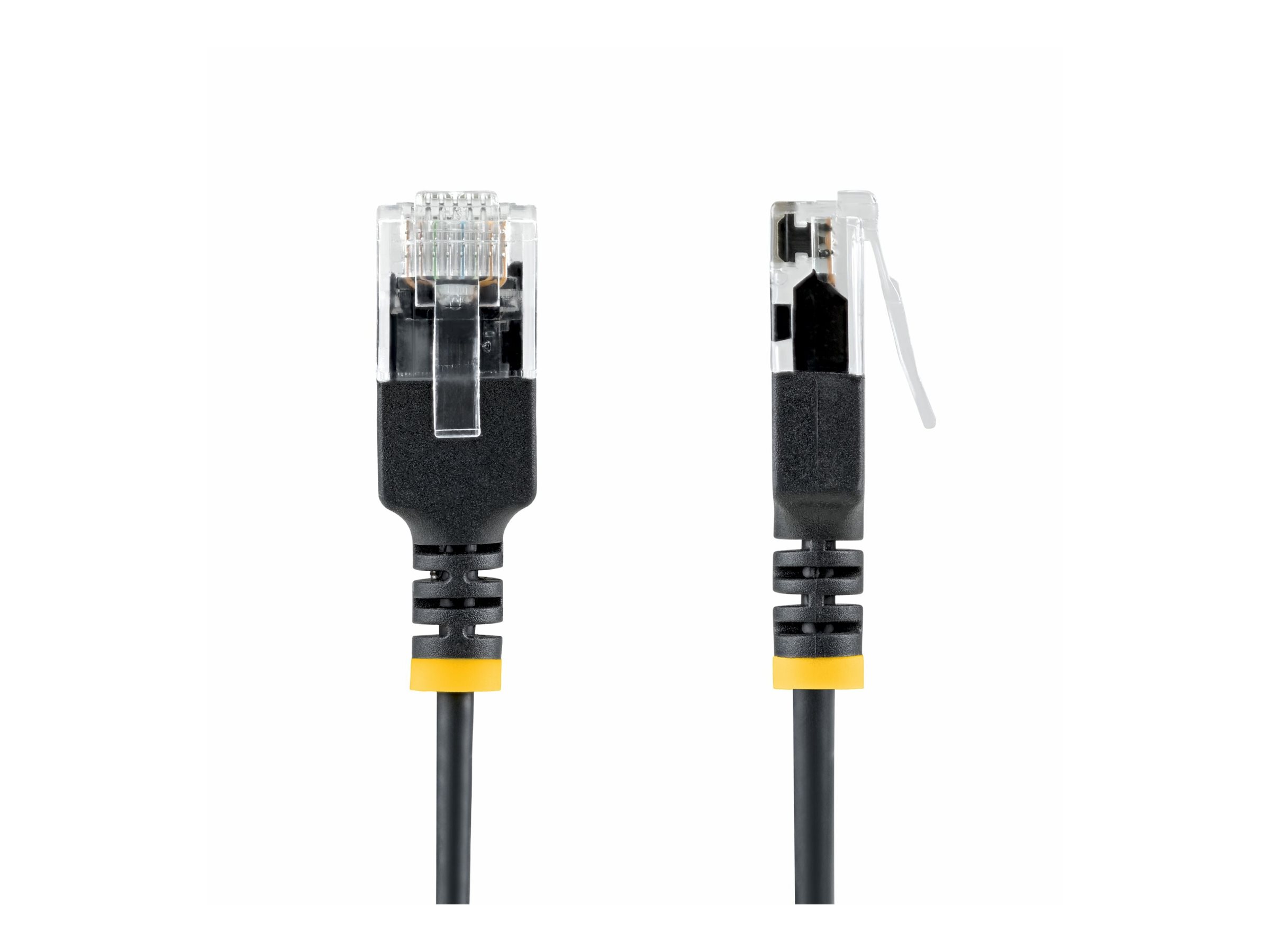

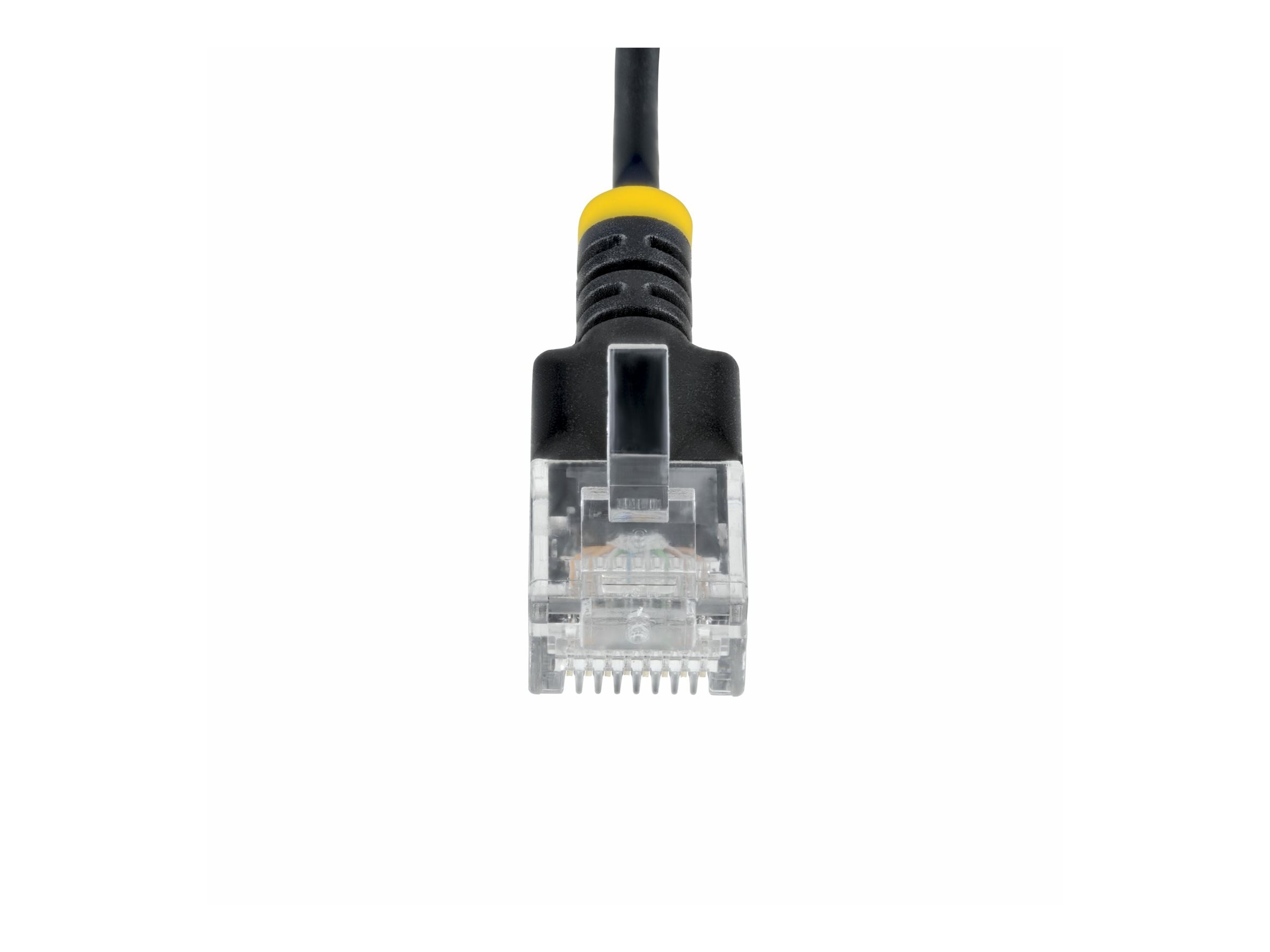

The StarTech N6APATUTP34BKS15CM is an ultraslim CAT 6a patch cable designed for high-performance data transmission. Featuring pure bare copper conductors and 50 micron gold-plated connectors, this cable ensures durability and reliable connectivity up to 10 Gbps. With a tested frequency of 500 MHz, it minimizes Near-End Crosstalk (NEXT) and reduces Return Loss (RL), making it a choice for both home and office networking needs.
Crafted with a thermoplastic elastomer (TPE) jacket, the cable offers flexibility and resilience for various installation scenarios. Its snagless design allows for easy handling while the translucent connector boots add a stylish touch. Each cable is compliant with RoHS and ANSI/TIA standards, confirming its reliable performance in maintaining a stable connection under diverse environmental conditions, ranging from -20°C to 60°C.
- Ultraslim design for easy installation in tight spaces
- Supports data transmission speeds up to 10 Gbps
- Minimized Near-End Crosstalk (NEXT) for improved performance
- Durable thermoplastic elastomer (TPE) jacket for flexibility
- Compatible with various networking standards
- Reliable performance
This CAT 6a patch cable is designed to support data speeds of up to 10 Gbps, making it suitable for high-speed networking applications. - Flexible design
Constructed with a thermoplastic elastomer (TPE) jacket, this cable adapts easily to different installation environments while remaining durable. - Effective signal integrity
The cable features pure bare copper conductors and gold-plated connectors, which contribute to minimized Near-End Crosstalk (NEXT) and reduced Return Loss (RL). - Snagless connectors
The snagless design of the connectors prevents damage during installation and improves the overall durability of the cable. - Environmentally compliant
This cable adheres to RoHS and ANSI/TIA standards, ensuring it meets environmental and performance regulations.
Main Specifications
Product Description | Startech patch cable – 15 cm – black |
Type | Patch cable – CAT 6a |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
Cable Length | 15 cm |
Diameter | 2.6 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Black |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | Unshielded twisted pair (UTP) |
|---|
Wiring Scheme | T568B |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
|---|
Cable Length | 15 cm |
|---|
Diameter | 2.6 mm |
|---|
Weight | 6 g |
|---|
Colour | Black |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 14 cm |
|---|
Shipping Depth | 20 cm |
|---|
Shipping Height | 1.6 cm |
|---|
Shipping Weight | 8 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
