SMART Board MX286-V5, 86" Diagonal Class MX (V5) Pro Series with iQ LED-backlit LCD display, interactive, with built-in interactive whiteboard, touchscreen (multi touch), 6-microphone array, RFID NFC reader/writer CCID, Android, 4K UHD (2160p) 3840 x 2160, white
$8,931.94 inc GST
5 in stock
Ships from Auckland, Wellington, or Christchurch
- Allow 1-2 days for delivery
- add 1-2 days if you are rural
- Collection can be arranged
Description
The SMART Board MX286-V5 from SMART Technologies is an interactive display that enhances engagement in classrooms and professional settings. With its 86-inch 4K UHD display, users enjoy clear visuals, ideal for presentations, lessons, and collaborative projects. The LED backlight and anti-glare technology ensure that images are vivid and easy to see from any angle, even in brightly lit rooms.
This model excels with its advanced connectivity options. It features multiple HDMI inputs, USB-C with DisplayPort and Power Delivery, VGA, and LAN inputs, making it compatible with a wide range of devices. The inclusion of Bluetooth 5.2, NFC, and Wi-Fi 6E technology allows for easy wireless connections, facilitating screen sharing and access to web-based resources without the need for cables.
Moreover, the MX286-V5 is designed to enhance interactive experiences. It incorporates HyPr Touch technology with Advanced IR, providing accurate touch responses for up to 40 simultaneous touchpoints. This, combined with Object Awareness functionality, allows users to interact with the display in a natural and intuitive way. Whether it’s for education or business, the SMART Board MX286-V5 is an excellent choice that promises to transform the way you communicate and collaborate.
- 86-inch 4K UHD display with LED backlight offers stunning visuals
- Built-in interactive whiteboard, PC, and touchscreen with 4-microphone array
- Comprehensive connectivity with HDMI, USB-C, VGA, LAN, and more
- Bluetooth 5.2, NFC, and Wi-Fi 6E for seamless wireless communication
- ENERGY STAR certified for efficient power consumption
- Advanced connectivity
Equipped with a wide range of connections including HDMI, USB-C, VGA, and LAN inputs, this SMART Board MX286-V5 ensures seamless integration with various devices, enhancing user experience with versatile connectivity options. - Immersive audiovisual experience
Featuring a 86-inch 4K UHD display with LED backlight and anti-glare technology, complemented by a built-in 6 array microphone, echo cancellation, and a 40 W speaker system, the MX286-V5 delivers vivid image clarity and superior sound quality for an engaging interactive communication. - Interactive technology
Incorporates HyPr Touch technology with Advanced IR, offering 40 touchpoints, and Object Awareness capability, providing a highly responsive and accurate touch experience for collaborative work and learning environments. - Robust wireless connectivity
With Bluetooth 5.2, NFC, and Wi-Fi 6E support, this model ensures high-speed, reliable wireless connections, enabling effortless screen sharing, web browsing, and access to cloud storage. - Energy-efficient design
ENERGY STAR certified, the MX286-V5 is designed for efficiency with a power consumption of just 149 W during operation and 0.2 W in standby mode, making it an eco-friendly choice for any setting.
What’s in the Box
- SMART Board MX286-V5
- Remote control
- 2 x AAA remote control battery
- USB 2.0 type A to USB type B cable – 5 m
- USB-C 3.2 Gen 1 cable – 1.8 m
- 2 aerials, 2 pens, SMART Meeting Pro software, SMART Ink, SMART Product Drivers, SMART Remote Management
Main Specifications
Product Description | SMART Board MX286-V5 MX (V5) Pro Series with iQ – 86″ LED-backlit LCD display – 4K – for interactive communication |
Product Type | LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch), 6-microphone array, RFID NFC reader/writer CCID |
Diagonal Class | 86″ |
Commercial Use | Yes – interactive |
Colour | White |
Platform | Android |
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
Video Interface | HDMI |
HDMI Ports Qty | 4 ports |
Connectivity | Wi-Fi, LAN, Bluetooth |
PC Interface | VGA (HD-15), USB-C |
LCD Backlight Technology | LED backlight |
Image Aspect Ratio | 16:9 |
TV Tuner | No tuner |
Commercial Features | Open Pluggable Standard (OPS) support |
Speaker System | 2 speakers |
Storage Capacity | 64 GB |
Supported Memory Cards | microSD |
USB | Yes, 13 ports |
Included Accessories | Remote control, SMART Meeting Pro software, SMART Product Drivers, SMART Ink, SMART Remote Management, 2 pens, 2 aerials |
Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 149 watt |
Power Consumption Stand by | 0.2 watt |

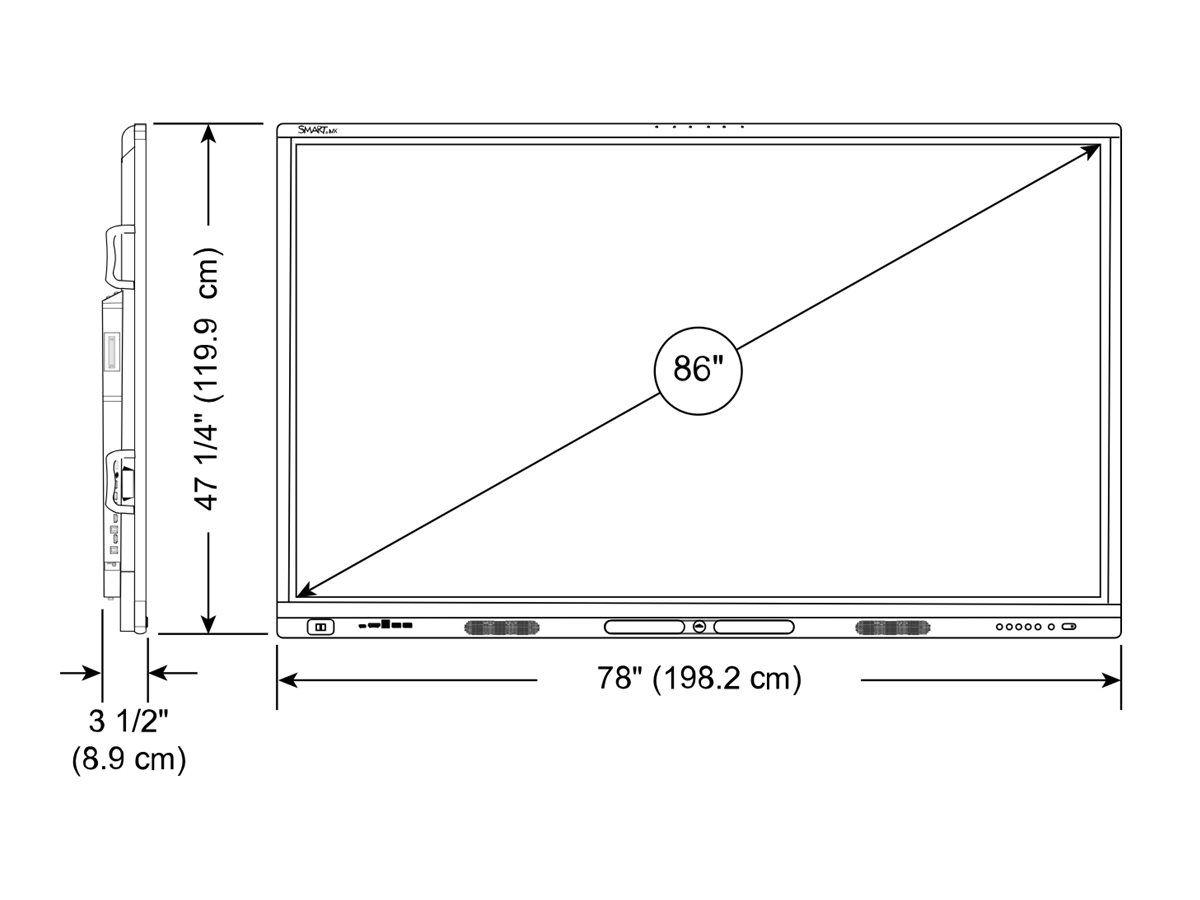

Dimensions (WxDxH) | 198.2 cm x 8.9 cm x 144.5 cm |
Weight | 68 kg |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Product Type | LED-backlit LCD flat panel display |
|---|---|
Power Consumption Operational | 149 watt |
Diagonal Class | 86″ |
Commercial Use | Yes – interactive |
Combined With | Built-in interactive whiteboard, touchscreen (multi touch), 6-microphone array, RFID NFC reader/writer CCID |
Series | MX (V5) Pro Series with iQ |
Platform | Android |
Operating System | Android OS 13 |
TV Tuner | No tuner |
TV Tuner Presence | No |
Sensors | Ambient light sensor (ALS), Infrared (IR) |
Video Interface | HDMI |
HDMI Ports Qty | 4 ports |
PC Interface | VGA (HD-15), USB-C |
Protection | Bonded glass |
Width | 198.2 cm |
Depth | 8.9 cm |
Height | 144.5 cm |
Weight | 68 kg |
Enclosure Colour | White |
Display
Resolution | 3840 x 2160 |
|---|---|
Display Format | 4K UHD (2160p) |
Image Aspect Ratio | 16:9 |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
LCD Backlight Technology | LED backlight |
Coating | Anti-glare, heat-tempered glass |
Brightness | 400 cd/m² |
Viewing Angle | 178 degrees |
Touchpoints Qty | 40 |
Response Time | 8 ms |
Display Menu Language | Basque, Chinese (simplified), Chinese (traditional), Danish, German, English, Estonian, Finnish, French, Galician, Greek, Italian, Japanese, Catalan, Valencian, Korean, Latvian, Lithuanian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Slovak, Slovenian, Spanish, Czech, Ukrainian, Hungarian, Vietnamese, Welsh |
Backlight Life | 50,000 hour(s) |
Commercial Features | Open Pluggable Standard (OPS) support |
Features | HyPr Touch (Hybrid Precision Touch) technology with Advanced IR, Object Awareness, Silktouch, Over-the-Air Update (OTA), simultaneous tool differentiation, picture-in-picture (PIP), split screen, Personalized Home Screen |
Stands & Mounts
Flat Panel Mount Interface | 800 x 400 mm |
|---|---|
VESA Compatibility | Yes |
Media Player
Supported Memory Cards | microSD |
|---|---|
USB Port | Yes |
USB Ports Qty | 13 |
Configuration | Octa-Core – 8 GB DDR4 – 64 GB |
Remote Control
Type | Remote control |
|---|---|
Battery Form Factor | AAA type |
Battery Included | Yes |
Battery Included Qty | 2 |
Battery Required Qty | 2 |
Audio System
Speaker System | 2 speakers |
|---|---|
Output Power / Total | 40 watt |
Features | Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC), echo cancellation |
Speakers | 2 x main channel speaker – 20 watt |
Network & Internet Multimedia
Functionality | Whiteboard, WEB browsing |
|---|---|
Connectivity | Wi-Fi, LAN, Bluetooth |
LAN Protocol | Gigabit Ethernet |
Wi-Fi Protocol | 802.11ax (Wi-Fi 6E) |
Bluetooth Version | Bluetooth 5.2 |
Encryption | WPA2, WPA, WEP, WPA3 |
Connect & Share | Screen Share |
Application Store | Google Play |
Connections
Connector Type | HDMI input – front 3 x HDMI input – rear VGA input – rear Audio line-in – rear RS-232 – rear LAN input – rear USB-C 3.2 with DisplayPort 1.2, touchscreen, 27W Power Delivery – front USB-C 3.2 with DisplayPort 1.2, touchscreen, 65W Power Delivery – rear USB 2.0 – rear 2 x USB 3.2 Gen 1 – front 2 x USB 3.2 Gen 1 – rear USB 3.2 Gen 1 – front 3 x USB 3.2 Gen 1 – rear HDMI output – rear USB-C 3.2 Gen 1 output with DisplayPort 1.4a, 4.5W Power Delivery – rear Audio line-out – rear LAN output – rear SPDIF output – rear |
|---|
Miscellaneous
Included Accessories | SMART Meeting Pro software, SMART Product Drivers, SMART Ink, SMART Remote Management, 2 pens, 2 aerials |
|---|---|
Cables Included | USB 2.0 type A to USB type B cable – 5 m USB-C 3.2 Gen 1 cable – 1.8 m |
Compliant Standards | ISO 14443 type A, ISO 14443 type B, ISO 15693, Google Play Protect certified, HDCP 1.4, HDCP 2.3, DisplayPort 1.2, HDCP 1.3, UL, FCC, ISED, TSCA, CONEG, CP65, UKCA, LVD, CB, EMCD, REACH, RoHS, WEEE, POP, RCM, RSM |
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
Power
Power Device | Power supply |
|---|---|
Input Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Stand by | 0.2 watt |
Dimensions & Weight (Shipping)
Width (Shipping) | 216.5 cm |
|---|---|
Depth (Shipping) | 16 cm |
Height (Shipping) | 144.5 cm |
Weight (Shipping) | 94 kg |
Environmental Parameters
Min Operating Temperature | 5 °C |
|---|---|
Max Operating Temperature | 35 °C |
Humidity Range Operating | 5 – 80% RH (non-condensing) |
Additional information
| Manufacturer | |
|---|---|
| Colour | |
| Screen Size |
