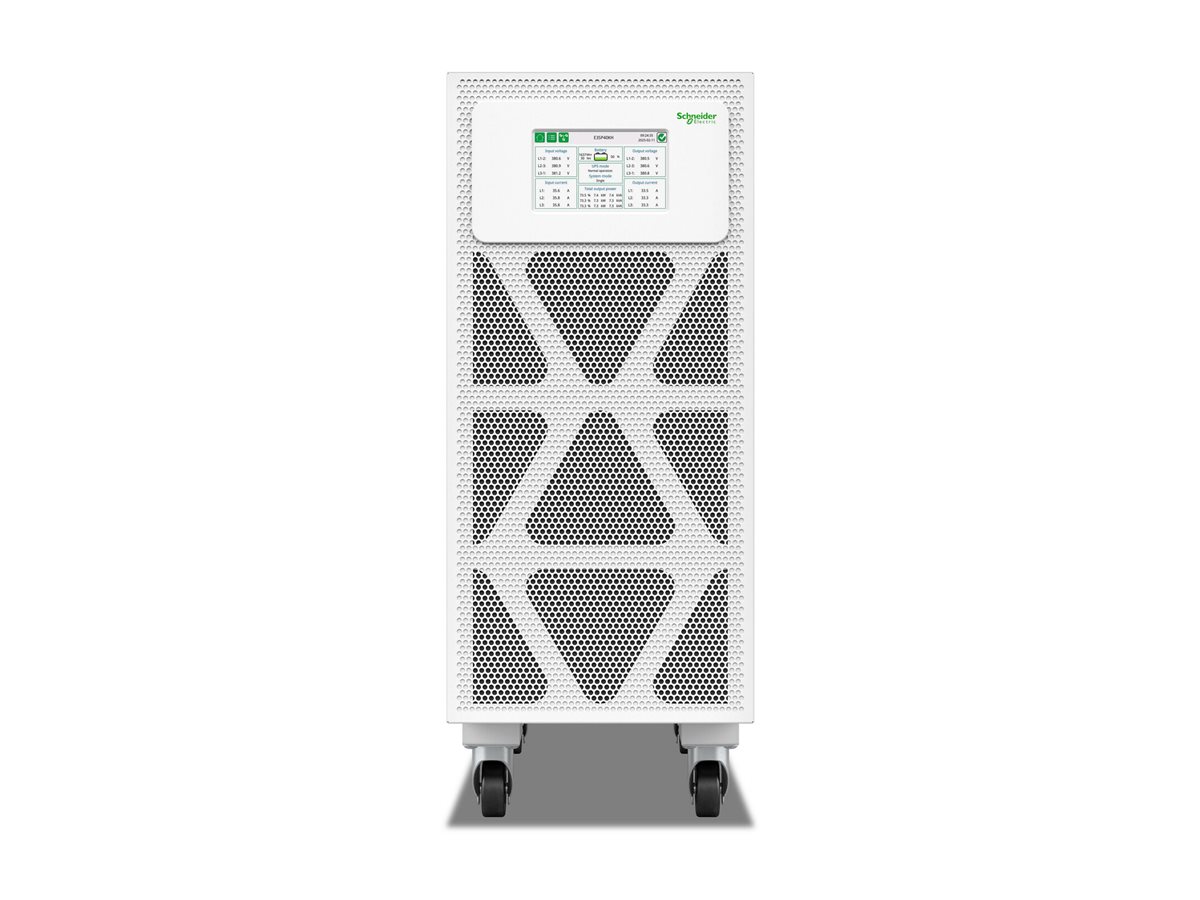

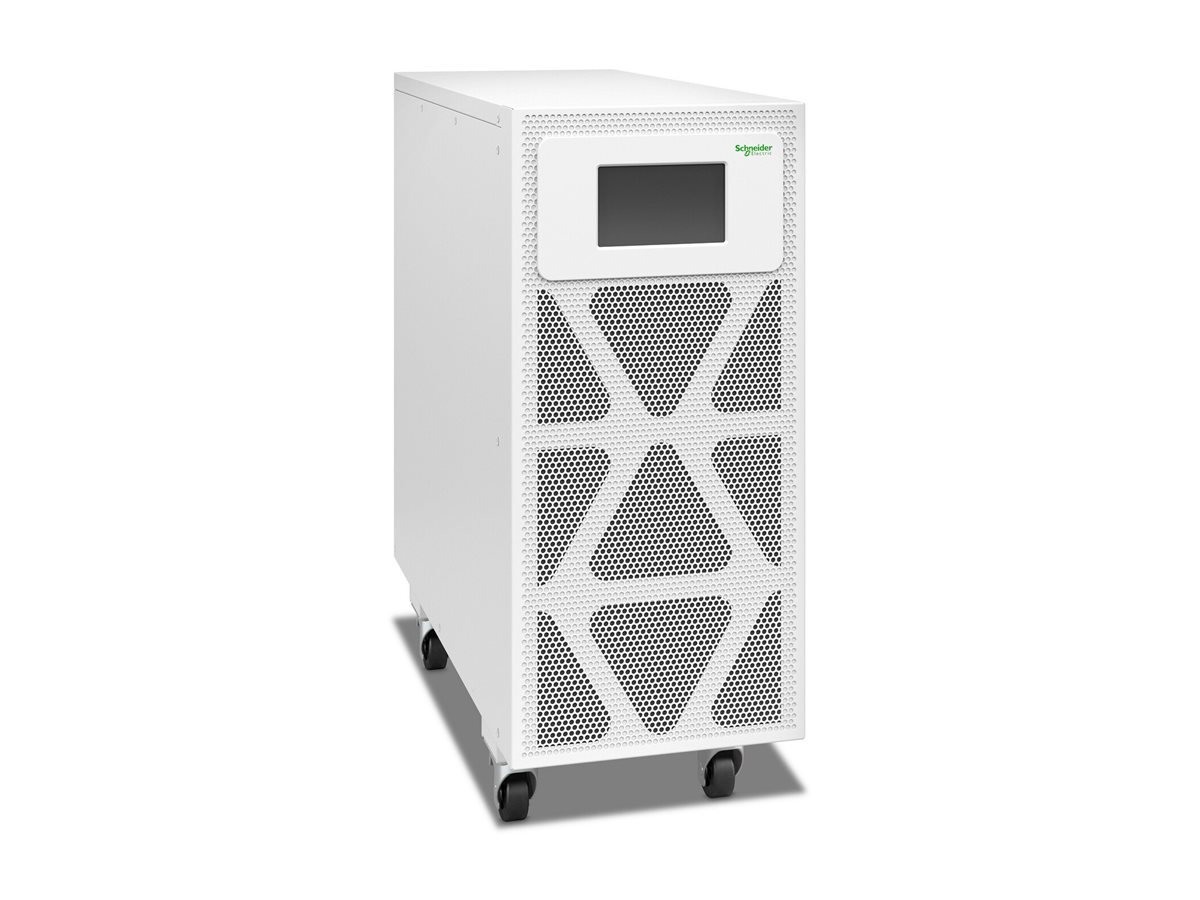

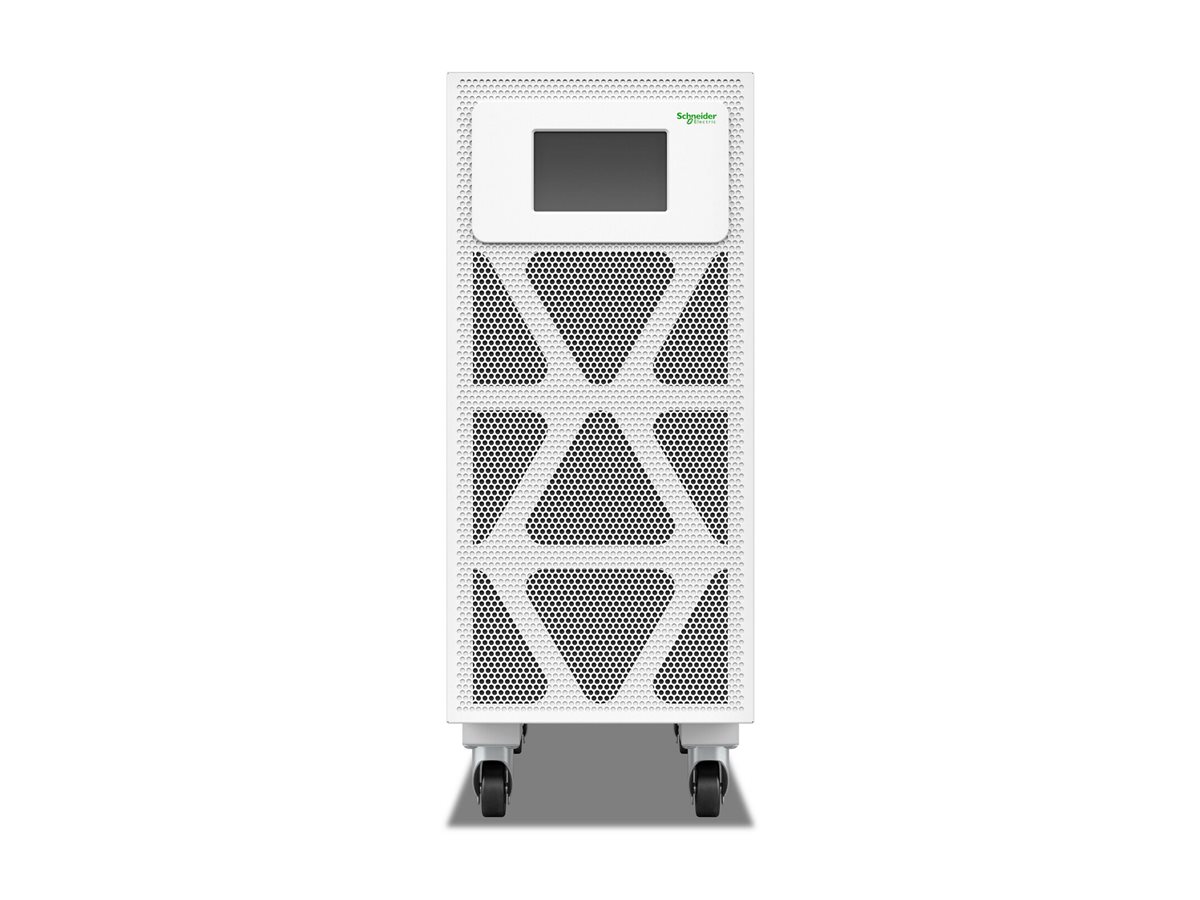

Schneider Electric Easy UPS 3S Pro E3SP15KH, UPS, 3:3, for external batteries, AC 380/400/415 V, 15 kW, 15000 VA, 3-phase, white
$10,469.43 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution. Ideal for small businesses.
- Easy to install and start up
- Compatible with VRLA batteries
- Extended runtime options available
- Unlock resiliency and sustainability with access to EcoStruxure software
- Reliable power management
The Schneider Electric Easy UPS 3S Pro E3SP15KH supports a power capacity of 15,000 VA, ensuring that sensitive equipment remains operational during power disruptions. - User-friendly interface
Equipped with a touchscreen LCD display, this UPS allows users to navigate settings and monitor performance for enhanced usability. - Wide operational range
The UPS functions effectively in operating temperatures from 0°C to 40°C and humidity levels between 0 and 95%, providing versatility in various environments. - Standards compliant
The device adheres to IEC/EN 62040-1, IEC/EN 62040-2, and IEC/EN 62040-3 standards, ensuring reliability and safety for users. - External battery support
This model is designed for external batteries, which facilitates extended power backup capability for critical applications.
What’s in the Box
- dust filter
- installation manual
Main Specifications
Product Description | Schneider Electric Easy UPS 3S Pro E3SP15KH – UPS – 3:3, for external batteries – 15 kW – 15000 VA |
Device Type | UPS – external |
Weight | 36 kg |
Input Wiring | 3-phase |
Input Voltage | AC 380/400/415 V |
Output Voltage | AC 400 V |
Power Capacity | 15 kW / 15000 VA |
Included Accessories | Dust filter |
Colour | White |
Dimensions (WxDxH) | 25 cm x 66 cm x 62.9 cm |
Documents
Extended Specifications
General
Device Type | UPS – external |
|---|---|
Colour | White |
Power Device
Input Voltage | AC 380/400/415 V |
|---|---|
Frequency Provided | 50/60 Hz |
Input Wiring | 3-phase |
Frequency Required | 40 – 70 Hz |
Output Voltage | AC 400 V 50/60 Hz |
Power Capacity | 15 kW / 15000 VA |
Power Factor (PF) | 0.7 |
Total Harmonic Distortion (THD) | 3 % |
Miscellaneous
Included Accessories | Dust filter |
|---|---|
Features | PCE package, touch screen LCD display |
Compliant Standards | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, IP20 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 95% |
Sound Emission | 56 dB |
Dimensions & Weight
Width | 25 cm |
|---|---|
Depth | 66 cm |
Height | 62.9 cm |
Weight | 36 kg |
Dimensions & Weight (Shipping)
Shipping Width | 38 cm |
|---|---|
Shipping Depth | 78 cm |
Shipping Height | 81.3 cm |
Shipping Weight | 51 kg |
