Description

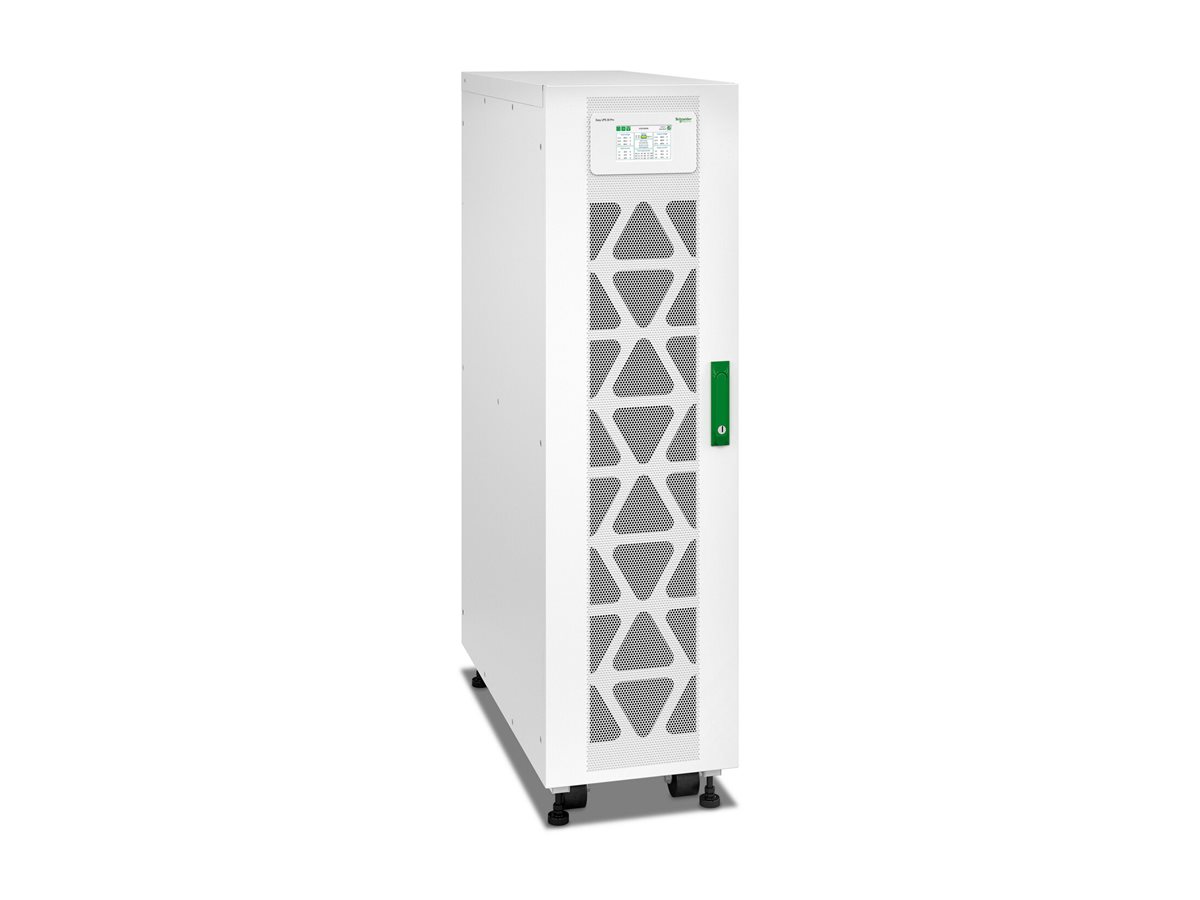

The Schneider Electric Easy UPS 3S Pro delivers robust performance and reliability in power supply management. Operating efficiently in a range of temperatures from 0°C to 40°C, it is built to withstand environmental variations. This external UPS system boasts a power capacity of 10,000 VA, enabling it to provide a steady AC output of 380/400/415 V while maintaining a power factor of 0.7.
Equipped with a touchscreen LCD display, the UPS allows for easy monitoring and management of power conditions. With a total harmonic distortion of just 3% and a maximum crest factor of 3:1, it ensures stable performance while protecting connected equipment from electrical disturbances. This unit complies with several international standards, making it suitable for various applications requiring dependable power solutions.
- Robust performance in a temperature range from 0°C to 40°C
- Power capacity of 10,000 VA with a power factor of 0.7
- Touchscreen LCD display for easy monitoring and management
- Total harmonic distortion limited to 3% for stable power delivery
- Compliant with multiple international standards
- Efficient power management
The Schneider Electric Easy UPS 3S Pro provides reliable power management with a robust capacity of 10,000 VA, ensuring that connected devices receive consistent energy supply during fluctuations. - User-friendly interface
Featuring a touchscreen LCD display, this UPS simplifies monitoring of power parameters, facilitating easy adjustments and management of electrical performance. - Environmentally resilient
Designed to operate within a temperature range of 0°C to 40°C, this unit functions effectively in varying environmental conditions, making it suitable for diverse settings. - Advanced power protection
With a total harmonic distortion of 3% and a maximum crest factor of 3:1, the unit protects connected devices from electrical disturbances, allowing for uninterrupted operation. - Compliance with standards
This UPS complies with IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ISTA 2B, and IP20 standards, ensuring reliability and performance in professional environments.
Main Specifications
Product Description | Schneider Electric Easy UPS 3S Pro E3SP10KHB – UPS – 10 kW – 10000 VA |
Device Type | UPS – external |
Weight | 119 kg |
Input Wiring | 3-phase |
Input Voltage | AC 380/400/415 V |
Output Voltage | AC 380/400/415 V ± 10% |
Power Capacity | 10 kW / 10000 VA |
Input Connectors | Hardwire |
Output connectors | Hardwire – 400 V |
Included Accessories | Dust filter |
Colour | White |
Dimensions (WxDxH) | 38 cm x 90.7 cm x 140 cm |
Extended Specifications
General
Device Type | UPS – external |
|---|
Colour | White |
|---|
Power Device
UPS Technology | On-line |
|---|
Input Voltage | AC 380/400/415 V |
|---|
Frequency Provided | 50/60 Hz ± 0.1% |
|---|
Input Wiring | 3-phase |
|---|
Frequency Required | 40 – 70 Hz |
|---|
Input Connectors | Hardwire |
|---|
Power Output Connectors Details | Hardwire – 400 V |
|---|
Output Voltage | AC 380/400/415 V ± 10% – 50/60 Hz |
|---|
Power Capacity | 10 kW / 10000 VA |
|---|
Power Factor (PF) | 0.7 |
|---|
Total Harmonic Distortion (THD) | 3 % |
|---|
Miscellaneous
Included Accessories | Dust filter |
|---|
Features | PCE package, 3:1 max crest factor, double conversion, touch screen LCD display |
|---|
Compliant Standards | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ISTA 2B, IP20 |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 0 – 95% (non-condensing) |
|---|
Sound Emission | 53 dB |
|---|
Dimensions & Weight
Width | 38 cm |
|---|
Depth | 90.7 cm |
|---|
Height | 140 cm |
|---|
Weight | 119 kg |
|---|
