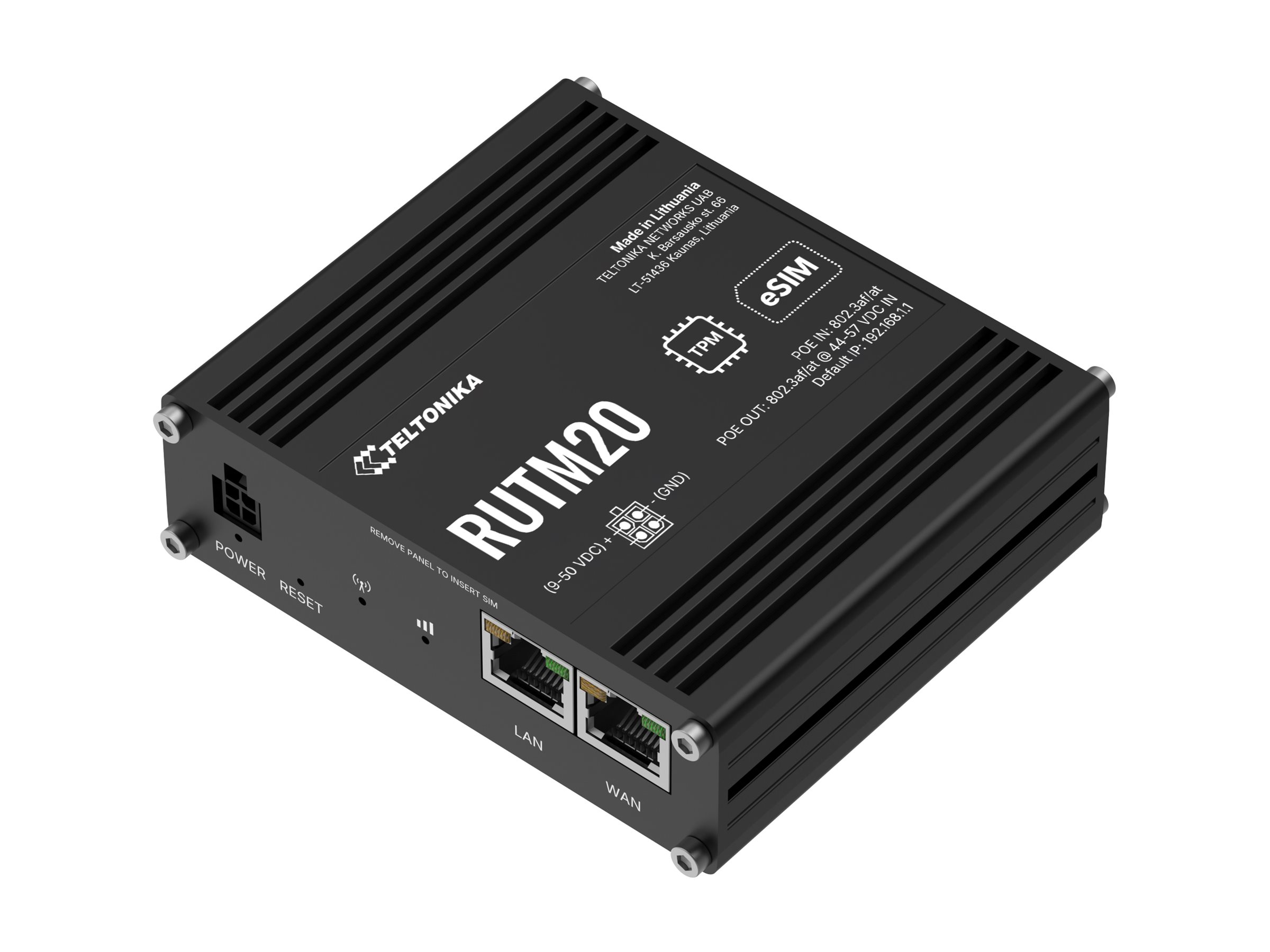

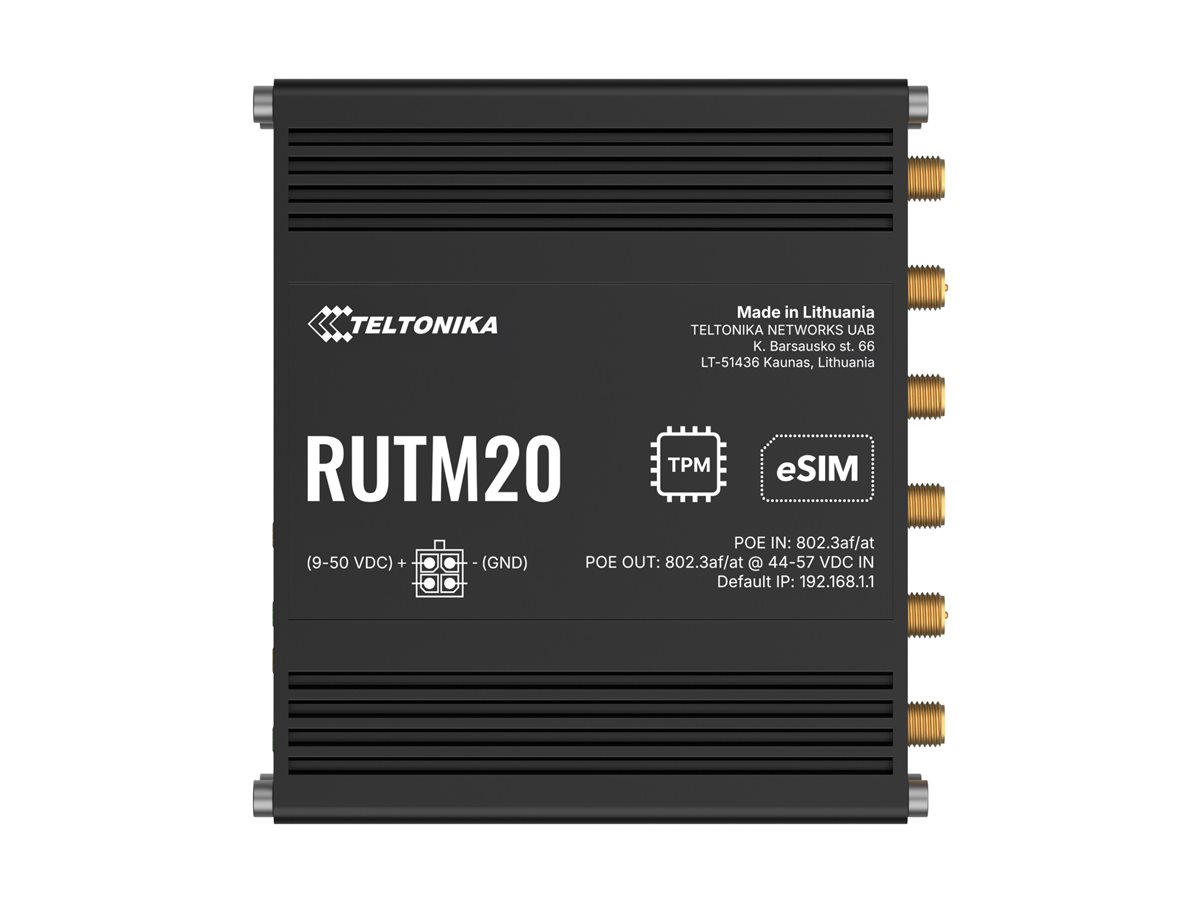

Teltonika RUTM20, Wireless router, WWAN 2-port switch, 1GbE Dual Band, 5G, 4G, 3G, DIN rail mountable, surface-mountable, wall-mountable
$1,379.69 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Teltonika RUTM20 is a versatile wireless cellular modem designed to deliver reliable connectivity in various environments. With a robust external antenna setup featuring 4 detachable LTE antennas and 2 Wi-Fi antennas, this router ensures strong signal strength and seamless Internet access. Operating under extreme conditions, it performs optimally in temperatures ranging from -40°C to 75°C, making it suitable for a variety of applications. It supports up to 150 simultaneous connections, making it a reliable choice for both personal and professional use.
The device offers extensive network options with multiple WAN and LAN ports as well as a 2-port integrated switch. Equipped with advanced encryption protocols including WPA3 and AES, the RUTM20 ensures enhanced security for data transmission. Additionally, with its compatibility for both 4G and 5G mobile broadband, it enables high-speed connectivity up to 3.4 Gbps, perfect for streaming and fast downloads. Its versatile mounting options provide ease of installation in various settings, from DIN rail to wall mount.
- Supports simultaneous connections for up to 150 devices
- Operates in extreme temperatures from -40°C to 75°C
- Equipped with 4 detachable LTE antennas and 2 Wi-Fi antennas
- High-speed data transfer rate up to 3.4 Gbps
- Comprehensive security with multiple encryption algorithms
- Robust antenna design

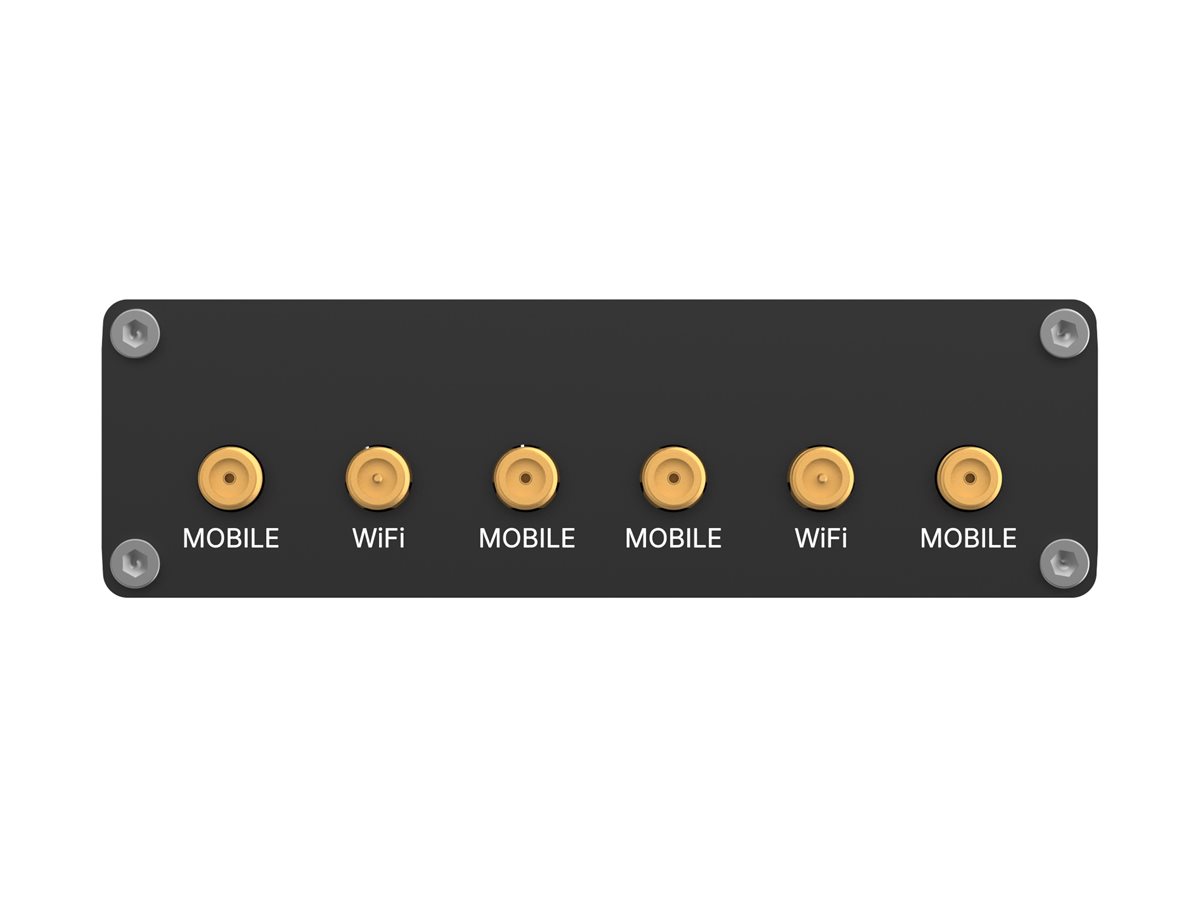

The RUTM20 features 4 detachable external LTE antennas and 2 external Wi-Fi antennas to enhance signal strength and connectivity. - Extreme temperature resilience
This router can operate efficiently within a temperature range of -40°C to 75°C, suitable for diverse environments. - High connection capacity
Support for up to 150 simultaneous connections ensures this device can handle extensive network demands. - Wide broadband compatibility
Compatible with both 4G and 5G mobile broadband, allowing for high-speed Internet access and reliability. - Comprehensive security features
Includes advanced encryption protocols such as WPA3 and AES to safeguard your data and prevent unauthorized access.
Main Specifications
Product Description | Teltonika RUTM20 – wireless router – WWAN – Wi-Fi 5, LTE – 5G, 4G, 3G – DIN rail mountable, surface-mountable, wall-mountable |
Device Type | Wireless router – wireless cellular modem – 2-port switch (integrated) |
Enclosure Type | DIN rail mountable, surface-mountable, wall-mountable |
Mobile Communication Protocol | 5G NR, WCDMA, FDD LTE, TDD LTE, UMTS |
Generation | 5G, 4G, 3G |
Cellular Band | LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B2, LTE B20, LTE B26, LTE B28, LTE B29, LTE B3, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B7, LTE B71, LTE B8, UMTS B1, UMTS B19, UMTS B2, UMTS B4, UMTS B5, UMTS B6, UMTS B8, WCDMA B1, WCDMA B19, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, 5G NR NSA n1, 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n18, 5G NR NSA n2, 5G NR NSA n20, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n28, 5G NR NSA n29, 5G NR NSA n3, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n5, 5G NR NSA n66, 5G NR NSA n7, 5G NR NSA n71, 5G NR NSA n75, 5G NR NSA n76, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, 5G NR NSA n8, 5G n1, 5G n12, 5G n13, 5G n14, 5G n18, 5G n2, 5G n20, 5G n26, 5G n28, 5G n29, 5G n3, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n5, 5G n66, 5G n7, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, 5G n8 |
WAN Ports Qty | 1 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, LTE |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Simultaneous connections: 150 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet |
Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, PPPoE, VXLAN, VRF |
Platform | ThingWorx, Azure IoT Hub, AWS IoT Core, Cumulocity |
Remote Management Protocol | SNMP 2, SNMP 3, SNMP 1, MQTT, SMPP, SSH, ICMP |
VoIP Protocols | H.323, SIP |
Features | UPnP, PPP, VoIP passthrough support, connection monitoring, 3GPP Release 16, 4×4 MIMO technology, 2×2 MIMO technology, WOL, reset button, NAT support, SQM, SMS alert, USSD support, SIM idle protection service, auto APN, static routing, dynamic routing, policy based routing, QoS, load balancing, HotSpot 2.0, SSHFS support, traffic management, PSK, anodised aluminium housing, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DHCP relay, VRF, 802.1x authentication, DNP3 station, bridge mode, multiple PDN, H.323 Pass-Through, SIP ALG, SSTP client instance support, Modbus compatible, FOTA |
Compliant Standards | UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11v |
Power | DC 9 – 50 V |
Dimensions (WxDxH) | 10 cm x 9.37 cm x 3 cm |
Weight | 319 g |
Extended Specifications
General
Device Type | Wireless router – 2-port switch (integrated) |
|---|---|
Enclosure Type | DIN rail mountable, surface-mountable, wall-mountable |
Connectivity Technology | Wired, wireless |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, LTE |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Simultaneous connections: 150 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet |
Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, PPPoE, VXLAN, VRF |
Remote Management Protocol | SNMP 2, SNMP 3, SNMP 1, MQTT, SMPP, SSH, ICMP |
Encryption Algorithm | WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, PMF, MODBUS, DES, 128-bit AES-CBC, DESX, CAST5, 128-bit AES, AES-CFB, AES-OFB, 128-bit AES-GCM, 192-bit AES, 192-bit AES-CBC, 192-bit AES-GCM, 256-bit AES-GCM, 256-bit AES, 256-bit AES-CBC, RC2, SSL, TLS |
Authentication Method | X.509 certificates, TACACS+, RADIUS |
Features | UPnP, PPP, VoIP passthrough support, connection monitoring, 3GPP Release 16, 4×4 MIMO technology, 2×2 MIMO technology, WOL, reset button, NAT support, SQM, SMS alert, USSD support, SIM idle protection service, auto APN, static routing, dynamic routing, policy based routing, QoS, load balancing, HotSpot 2.0, SSHFS support, traffic management, PSK, anodised aluminium housing, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DHCP relay, VRF, 802.1x authentication, DNP3 station, bridge mode, multiple PDN, H.323 Pass-Through, SIP ALG, SSTP client instance support, Modbus compatible, FOTA |
Compliant Standards | UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11v, IP30, UKCA, CB, RCM, FCC, WEEE |
Processor | 1 x MediaTek MIPS 1004Kc 880 MHz |
RAM | 256 MB DDR3 SDRAM |
Flash Memory | 16 MB |
Status Indicators | Signal strength, connection status, status, power |
Communications
Type | Wireless cellular modem |
|---|---|
Mobile Communication Protocol | 5G NR, WCDMA, FDD LTE, TDD LTE, UMTS |
Generation | 5G, 4G, 3G |
Cellular Band | LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B2, LTE B20, LTE B26, LTE B28, LTE B29, LTE B3, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B7, LTE B71, LTE B8, UMTS B1, UMTS B19, UMTS B2, UMTS B4, UMTS B5, UMTS B6, UMTS B8, WCDMA B1, WCDMA B19, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, 5G NR NSA n1, 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n18, 5G NR NSA n2, 5G NR NSA n20, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n28, 5G NR NSA n29, 5G NR NSA n3, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n5, 5G NR NSA n66, 5G NR NSA n7, 5G NR NSA n71, 5G NR NSA n75, 5G NR NSA n76, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, 5G NR NSA n8, 5G n1, 5G n12, 5G n13, 5G n14, 5G n18, 5G n2, 5G n20, 5G n26, 5G n28, 5G n29, 5G n3, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n5, 5G n66, 5G n7, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, 5G n8 |
Max Transfer Rate | 3.4 Gbps |
IP Telephony
VoIP Protocols | H.323, SIP |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|---|
Platform | ThingWorx, Azure IoT Hub, AWS IoT Core, Cumulocity |
Expansion / Connectivity

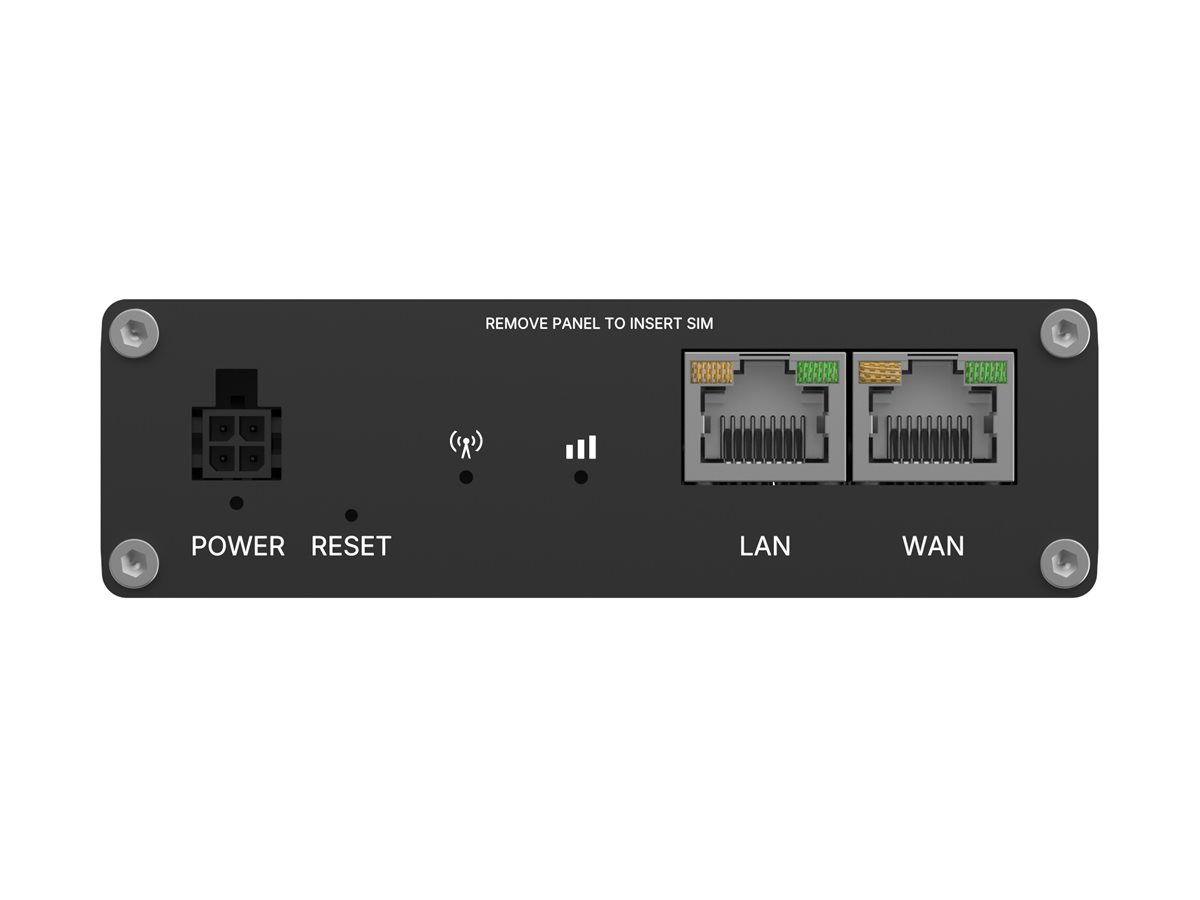

Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Antenna: 4 x SMA – mobile Antenna: 2 x RP-SMA – Wi-Fi |
|---|---|
Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
Aerial
Aerial | External detachable |
|---|---|
Antenna Qty | 6 |
Configuration Details | 4 detachable external LTE antennas, 2 external Wi-Fi antennas |
Power
Power Device | External power adapter |
|---|---|
Voltage Required | DC 9 – 50 V |
Power Consumption Operational | 4.5 watt |
Miscellaneous
Included Accessories | Power adapter (EU), 4 x aerials, 2 x WiFi aerials, SIM card adapter kit, hex key |
|---|---|
Cables Included | 1 x network cable – 1.5 m |
Software / System Requirements
OS Provided | RutOS |
|---|
Dimensions & Weight
Width | 10 cm |
|---|---|
Depth | 9.37 cm |
Height | 3 cm |
Weight | 319 g |
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|---|
Max Operating Temperature | 75 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
