Teltonika RUTM16, Wireless router, WWAN 4-port switch, PPP, 1GbE Dual Band, 3G, 4G, DIN rail mountable, wall-mountable, surface-mountable
$779.14 inc GST
✓ In Stock - 20 available
✓ Free NZ Delivery
20 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Teltonika RUTM16 is a versatile wireless cellular modem that provides reliable connectivity with external detachable antennas for optimal signal strength. Designed for demanding environments, this device operates within a temperature range of -40°C to 75°C, making it suitable for a variety of applications. With support for mobile broadband technologies including 3G and 4G LTE, and a maximum transfer rate of 300 Mbps, it ensures fast and efficient Internet access. The built-in GPS and various compliance standards enhance its functionality and security.
This router features a robust design with multiple interfaces, including WAN and LAN ports, along with a 4-port integrated switch for seamless networking. With Wi-Fi capabilities that support up to 150 users and advanced encryption algorithms for secure data transmission, it meets modern networking demands. Additional features such as VPN support, firewall protections, and remote management options customize the device for specific needs, making it an ideal choice for both residential and commercial use.
- Operates within a temperature range of -40°C to 75°C
- Maximum transfer rate of 300 Mbps for fast Internet access
- Supports up to 150 Wi-Fi users simultaneously
- Integrated GPS for location tracking and services
- Multiple security protocols to protect data
- Robust antenna configuration
Equipped with 2 detachable external LTE antennas, 2 external Wi-Fi antennas, and 1 external GPS antenna to enhance connectivity and signal quality. - Versatile connectivity options
Includes multiple WAN and LAN ports along with a 4-port switch, providing flexibility in network setups. - Advanced security protocols
Supports a range of encryption algorithms and authentication methods, ensuring secure data transmission and access control. - Customizable management features
Offers remote management protocols, including CLI and SNMP, to facilitate easy device administration and monitoring. - High-performance capabilities
Utilizes an 880 MHz MIPS processor and 256 MB of RAM, delivering efficient performance for demanding network tasks.
Main Specifications
Product Description | Teltonika RUTM16 – wireless router – WWAN – Wi-Fi 5, LTE – 3G, 4G – DIN rail mountable, wall-mountable, surface-mountable |
Device Type | Wireless router – wireless cellular modem – 4-port switch (integrated) |
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Mobile Communication Protocol | FDD LTE, TDD LTE |
Generation | 3G, 4G |
Cellular Band | LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B5, WCDMA B8 |
WAN Ports Qty | 1 |
Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP, Ethernet, Fast Ethernet, Gigabit Ethernet |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Maximum WiFi user capacity: 150 |
Network / Transport Protocol | TCP, UDP, IPv4, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, PPPoE, DHCP, ARP |
Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, policy-based routing (PBR), VXLAN |
Platform | ThingWorx, Azure IoT Hub, AWS IoT Core, Cumulocity |
Remote Management Protocol | SMPP, Telnet, MQTT, HTTP, HTTPS, CLI, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus, SSH, SSH-2, TR-069 |
VoIP Protocols | H.323, SIP |
Features | 3GPP Release 12, MQTT support, WOL, Teltonika RMS, reset button, anodised aluminium housing, ESSID stealth mode, auto-uplink (auto MDI/MDI-X), MU-MIMO technology, SSHFS support, DMZ support, IPSec NAT-T, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DHCP relay, QoS, load balancing, VRF, 802.1x authentication, traffic management, DNP3 station, DNP3 outstation, DLMS support, bridge mode, multiple PDN, USSD support, auto APN, H.323 Pass-Through, SIP ALG, SSTP client instance support, Modbus compatible, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support |
Compliant Standards | UPnP, IEEE 802.11w, IEEE 802.11s, IEEE 802.11r, IEEE 802.11k, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
Power | DC 9 – 50 V |
Dimensions (WxDxH) | 13.2 cm x 10.4 cm x 4.42 cm |
Weight | 530 g |
Documents
Extended Specifications
General
Device Type | Wireless router – 4-port switch (integrated) |
|---|---|
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Connectivity Technology | Wired, wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP, Ethernet, Fast Ethernet, Gigabit Ethernet |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Maximum WiFi user capacity: 150 |
Network / Transport Protocol | TCP, UDP, IPv4, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, PPPoE, DHCP, ARP |
Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, policy-based routing (PBR), VXLAN |
Remote Management Protocol | SMPP, Telnet, MQTT, HTTP, HTTPS, CLI, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus, SSH, SSH-2, TR-069 |
Encryption Algorithm | SSL, TLS, WPA2-Enterprise, PEAP, WPA2-PSK, WPA3-SAE, WPA-EAP, WPA-PSK, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, 192-bit AES-GCM, 256-bit AES-GCM, 128-bit AES-GCM, DES, RC2, CAST5, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, IKEv1, IKEv2, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, CBC |
Authentication Method | TACACS+, RADIUS, X.509 certificates |
Features | 3GPP Release 12, MQTT support, WOL, Teltonika RMS, reset button, anodised aluminium housing, ESSID stealth mode, auto-uplink (auto MDI/MDI-X), MU-MIMO technology, SSHFS support, DMZ support, IPSec NAT-T, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DHCP relay, QoS, load balancing, VRF, 802.1x authentication, traffic management, DNP3 station, DNP3 outstation, DLMS support, bridge mode, multiple PDN, USSD support, auto APN, H.323 Pass-Through, SIP ALG, SSTP client instance support, Modbus compatible, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support |
Compliant Standards | UPnP, IEEE 802.11w, IEEE 802.11s, IEEE 802.11r, IEEE 802.11k, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IP30, FCC, Giteki, WEEE, UKCA, REACH, RoHS |
Processor | 1 x MediaTek MIPS 1004Kc 880 MHz |
RAM | 256 MB DDR3 SDRAM |
Flash Memory | 16 MB |
Built-in Devices | Beidou, GPS, Galileo, QZSS, GLONASS |
Status Indicators | WAN, LAN, signal strength, connection status, power, Wi-Fi |
Communications
Type | Wireless cellular modem |
|---|---|
Mobile Communication Protocol | FDD LTE, TDD LTE |
Generation | 3G, 4G |
Cellular Band | LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B5, WCDMA B8 |
Max Transfer Rate | 300 Mbps |
IP Telephony
VoIP Protocols | H.323, SIP |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|---|
Platform | ThingWorx, Azure IoT Hub, AWS IoT Core, Cumulocity |
Expansion / Connectivity

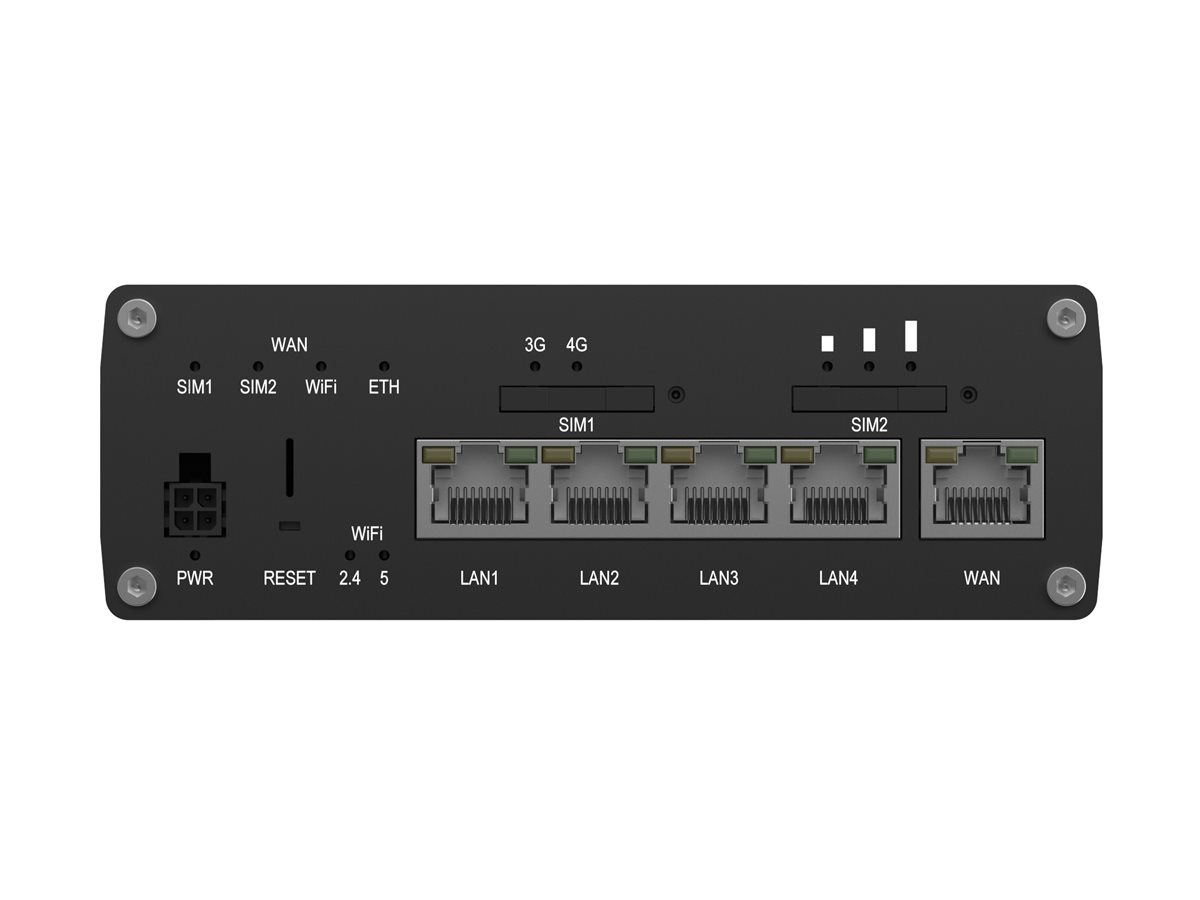

Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Antenna: 2 x SMA – mobile Antenna: 2 x RP-SMA – Wi-Fi Antenna: 1 x SMA – GNSS aerial USB 2.0: 1 x Type A 1 x DO – 4 pin power 1 x DI – 4 pin power |
|---|---|
Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
Aerial
Aerial | External detachable |
|---|---|
Antenna Qty | 5 |

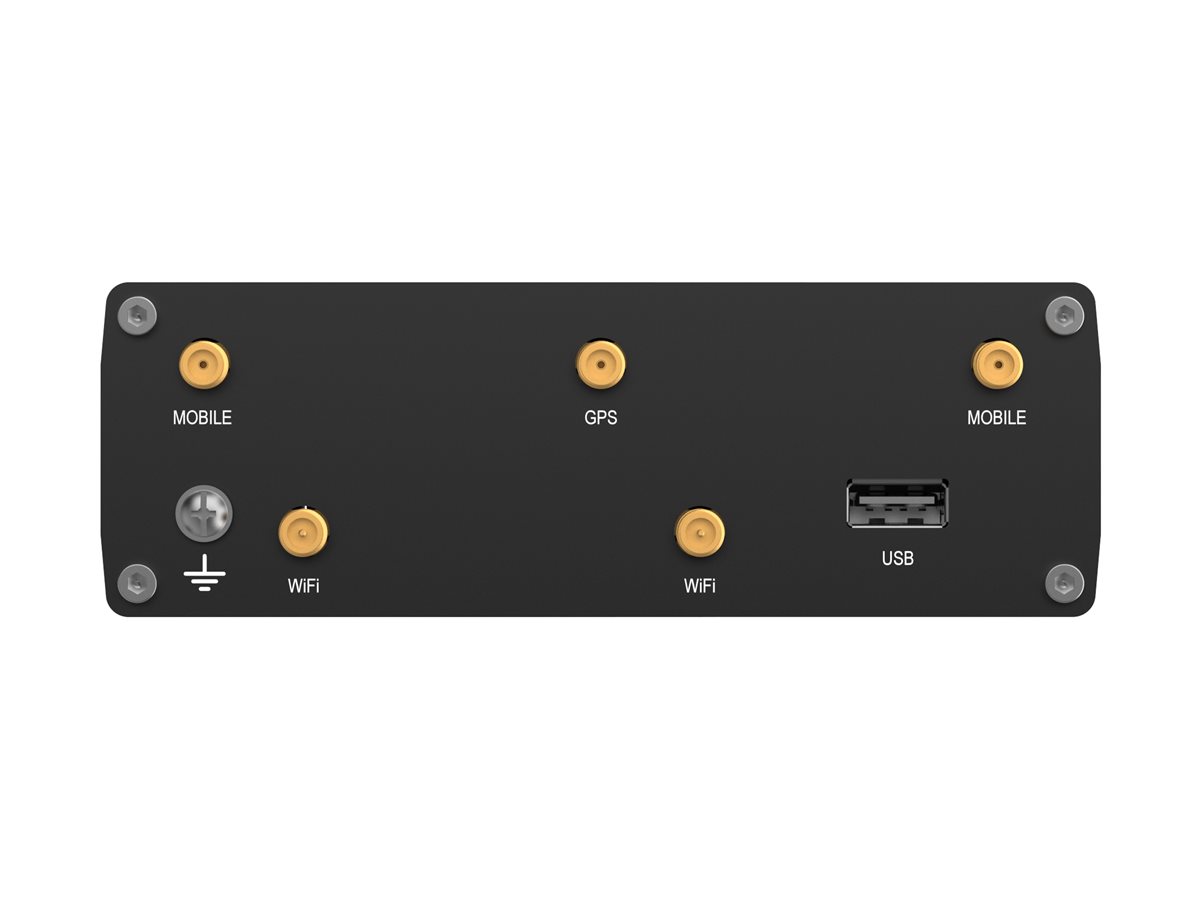

Configuration Details | 2 detachable external LTE antennas, 2 external Wi-Fi antennas, 1 external GPS antenna |
Power
Power Device | External power adapter |
|---|---|
Voltage Required | DC 9 – 50 V |
Power Consumption Operational | 5 watt |
Miscellaneous
Included Accessories | 2 x WiFi aerials, GNSS aerial, 2 x LTE aerials, SIM card adapter kit |
|---|---|
Cables Included | 1 x network cable – 1.5 m 1 x antenna cable – 3 m |
Software / System Requirements
OS Provided | RutOS |
|---|
Dimensions & Weight
Width | 13.2 cm |
|---|---|
Depth | 10.4 cm |
Height | 4.42 cm |
Weight | 530 g |
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|---|
Max Operating Temperature | 75 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
