Description

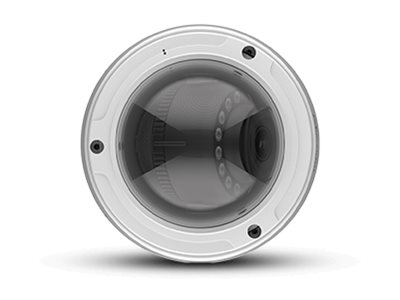

The Milesight AI Motorized MS-CQ8172-FHPG1 is designed for reliability and versatility in surveillance. With a wide operating temperature range from -40°C to 60°C and a humidity tolerance of 0 – 95% (non-condensing), this camera is suitable for various environments. It supports multiple memory card formats, including microSD, microSDHC, and microSDXC, allowing for flexible storage options.
- Robust design with IP67 and IK10 compliance
- High-resolution video capturing at 3840 x 2160
- Advanced audio support with built-in microphone
- Versatile lens system with f/1.4 aperture
- Multiple network protocol support for connectivity
- Durable construction
The camera meets IP67 and IK10 standards, making it resistant to dust, water, and vandalism, suitable for indoor and outdoor installations. - High-definition video quality
Capture video resolutions up to 3840 x 2160, ensuring every detail is recorded clearly for enhanced surveillance. - Flexible connectivity options
Equipped with wired connectivity through Ethernet 10Base-T/100Base-T and supports various network protocols including IPv4 and IPv6 for seamless integration. - Advanced audio capabilities
The integrated microphone supports multiple audio formats, enabling two-way audio transmission for effective communication. - Versatile lens features
With a lens aperture of f/1.4 and a focal length ranging from 2.7 mm to 13.5 mm, this camera offers flexibility for various monitoring needs.
Main Specifications
Product Description | Milesight AI Motorized MS-CQ8172-FHPG1 – network surveillance camera – dome |
Device Type | Network surveillance camera – fixed – dome – vandal / weatherproof |
Audio | Yes: built-in microphone |
Dimensions (WxDxH) | 14.3 cm x 14.3 cm x 10.84 cm |
Weight | 1.1 kg |
Connectivity Technology | Wired |
Camera | Colour – Day&Night |
Max Resolution | 3840 x 2160 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Optical Sensor Type | Progressive Scan CMOS – 1/2.65″ – 8 MP |
Focal Length | 2.7 mm – 13.5 mm |
Lens Mounting | F14 mount |
Lens Iris | F/1.4 |
Interfaces | Ethernet 10Base-T/100Base-T |
Voltage | DC 12 V / PoE |
Environmental Parameters (operating) | -40 °C – 60 °C; 0 – 95% (non-condensing) relative humidity |
Documents
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: built-in microphone |
|---|
Audio Formats | G.711, ACC, G.722, G.726 |
|---|
Form Factor | Dome |
|---|
Connectivity Technology | Wired |
|---|
Width | 14.3 cm |
|---|
Depth | 14.3 cm |
|---|
Height | 10.84 cm |
|---|
Weight | 1.1 kg |
|---|
Camera
Type | Colour – Day&Night – fixed – vandal / weatherproof |
|---|
Digital Video Format | H.265+, H.265, H.264+, H.264, MJPEG |
|---|
Max Digital Video Resolution | 3840 x 2160 |
|---|
Motion Detection | Yes |
|---|
Exposure Range | 1 sec – 1/100000 sec |
|---|
Digital Video Capture Resolution | 3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 640 x 360 |
|---|
Frame Rate (max) | 30 frames per second |
|---|
Image Sensor
Type | 8 MP Progressive Scan CMOS 1/2.65″ |
|---|
Lens Construction
Type | F14 mount |
|---|
Focal Length | 2.7 mm – 13.5 mm |
|---|
Lens Iris | F/1.4 |
|---|
Interfaces
Network Interface | Ethernet 10Base-T/100Base-T |
|---|
Network Protocols | IPv4, IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, QOS, IGMP, ICMP, SSL, NFS, SMB, CIFS |
|---|
Expansion / Connectivity
Ports | LAN/power – RJ-45 |
|---|
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
|---|
Miscellaneous
Compliant Standards | IP67, IK10 |
|---|
Power
Power Requirements | DC 12 V / PoE |
|---|
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
Relative Humidity (operating) | 0 – 95% (non-condensing) |
|---|
