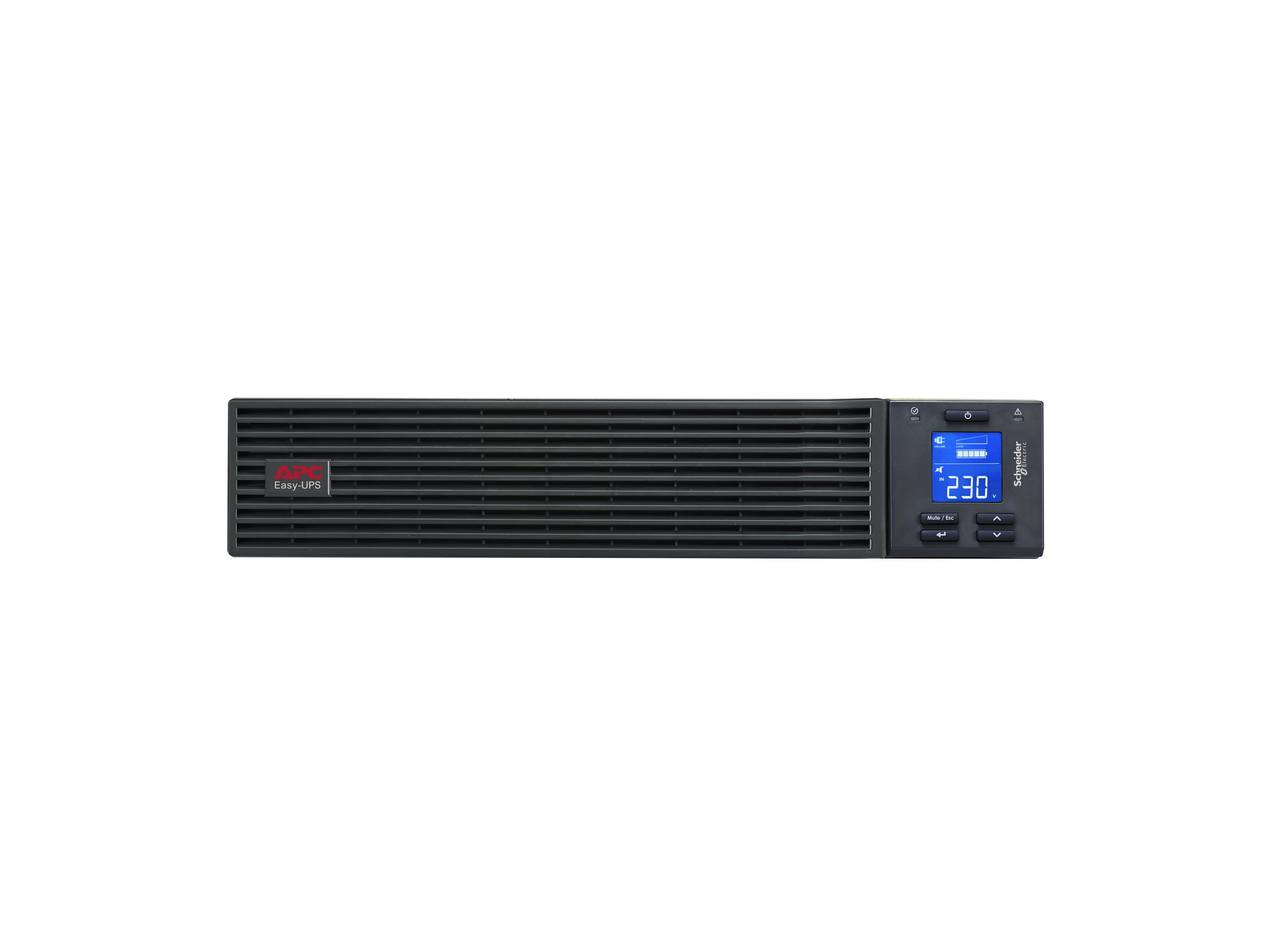

APC Easy UPS SRV SRV3KRI, UPS (rack-mountable), AC 230 V, 2400 Watt, 3000 VA, 9 Ah, USB, RS-232, output connectors: 7, 2U

Description

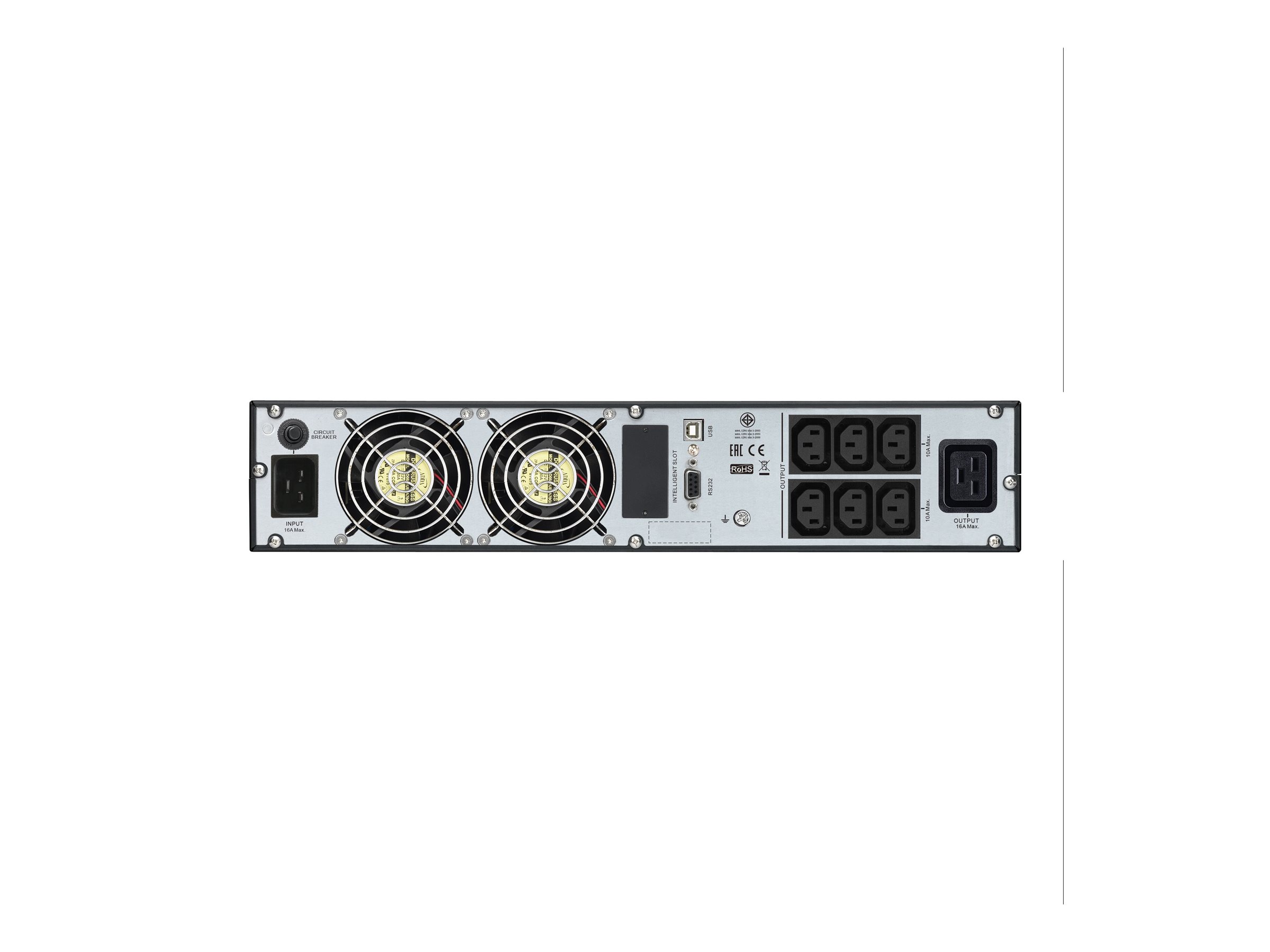

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202. The UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• Scalable runtime
• ECO mode/green mode
• Generator compatible
• Intelligent battery management
• OVCD (Overvoltage Cutoff Device) protection
• Input power factor connection
• Excellent power quality and performance
• Built-in automatic bypass
• Power conditioning

• Scalable runtime
  The capability to add external battery packs to provide extended runtime, fulfilling the needs of long run time applications.
• ECO mode/green mode
  This is an energy saving mode and the input voltage regulation range can be set/ modified through the LCD display.
• Generator compatible
  Ensures clean, uninterrupted power to the loads in the event of an extended power outage.
• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent precision temperature compensated charging.
• OVCD (Overvoltage Cutoff Device) protection
  Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend the life of the UPS.
• Input power factor connection
  Minimizes installation costs by enabling the use of smaller generators and cabling.
• Excellent power quality and performance
  True double conversion – provides tight voltage and frequency regulation and zero transfer time for reactive loads (machinery, lab equipment, etc.).
• Built-in automatic bypass
  Ensures seamless power to the load even in the event of catastrophic UPS failure.
• Power conditioning
  Protects connected loads from surges, spikes, lightning, and other power disturbances.

Main Specifications

Documents

• User Manual
• User Manual

Extended Specifications

General

Power Device

Battery

Networking

Expansion / Connectivity

Miscellaneous

Environmental Parameters

Dimensions & Weight

Dimensions & Weight (Shipping)
