Description

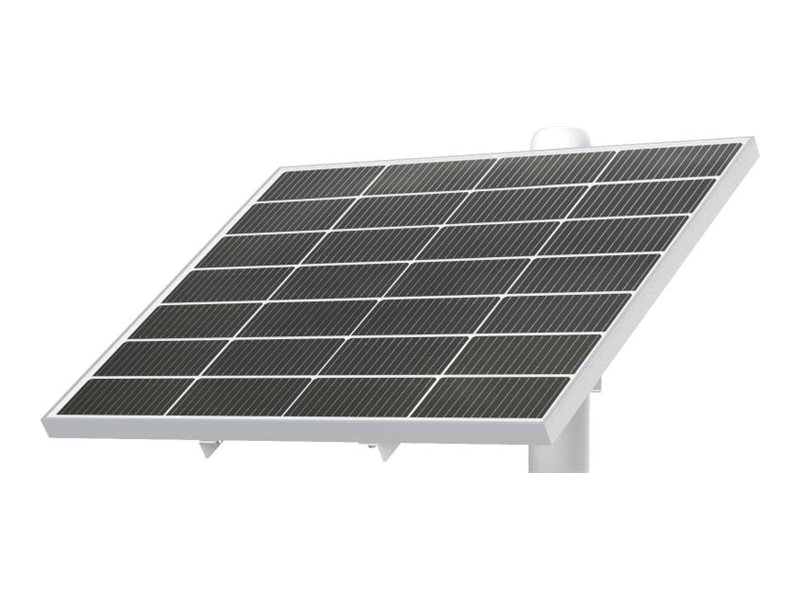

The Milesight S100 solar power system is designed for efficiency and reliability. Featuring a solar charging cable with a length of 1.5 m, this system harnesses energy effectively while ensuring functionality in a wide range of environmental conditions, operating between 0°C and 60°C. This solar panel incorporates monocrystalline cells technology, providing robust performance, enabling a power output of 100 W with a voltage range of DC 9 – 12.6 V. The external form factor allows for easy installation and versatile applications, addressing various power needs with a single 5-pin M12 output connector.
This system is equipped with essential safety features including overcurrent, overheat, overvoltage, short-circuit, and undervoltage protection. These safeguards ensure both the equipment’s longevity and user safety. The integrated LED status indicator offers clear visibility of operational status, making it user-friendly and practical for daily use. Suitable for diverse power applications, the Milesight S100 is a reliable solution for anyone looking to utilize solar energy effectively.
- Integrates a 1.5 m solar charging cable for easy installation
- Features monocrystalline cells technology for energy efficiency
- Provides 100 W of power with a voltage range of DC 9 – 12.6 V
- Equipped with multiple safety protections including overcurrent and short-circuit protection
- Includes an LED status indicator for operational visibility
- Efficient solar energy utilization
The Milesight S100 leverages monocrystalline cells technology, ensuring effective solar energy conversion and providing reliable power output. - Versatile installation options
With an integrated solar charging cable of 1.5 m, the system allows for flexibility in installation, accommodating various setups. - Robust safety measures
Safety is prioritized with built-in overcurrent, overheat, overvoltage, short-circuit, and undervoltage protections to safeguard the device and user. - Visible operational status
The included LED status indicator provides immediate feedback on the operational status, enhancing user experience and reliability.
Main Specifications
Product Description | Milesight S100 S100B96 – solar panel – 100 watt |
Device Type | Solar panel – external |
Weight | 16 kg |
Input Voltage | 18 V |
Output Voltage | DC 9 – 12.6 V |
Power Capacity | 100 watt |
Output connectors | 1 x 5 pin M12 |
Dimensions (WxDxH) | 76.5 cm x 11.25 cm x 63 cm |
Extended Specifications
General
Device Type | Solar panel – external |
|---|
Power Device
Input Voltage | 18 V |
|---|
Power Output Connectors Details | 1 x 5 pin M12 |
|---|
Output Voltage | DC 9 – 12.6 V |
|---|
Power Capacity | 100 watt |
|---|
Miscellaneous
Cables Included | Solar charging cable – integrated – 1.5 m |
|---|
Features | LED status indicator, monocrystalline cells technology, over current protection, overheat protection, overvoltage correction, short-circuit protection, undervoltage protection |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
Dimensions & Weight
Width | 76.5 cm |
|---|
Depth | 11.25 cm |
|---|
Height | 63 cm |
|---|
Weight | 16 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 82.5 cm |
|---|
Shipping Depth | 14 cm |
|---|
Shipping Height | 69 cm |
|---|
