Description

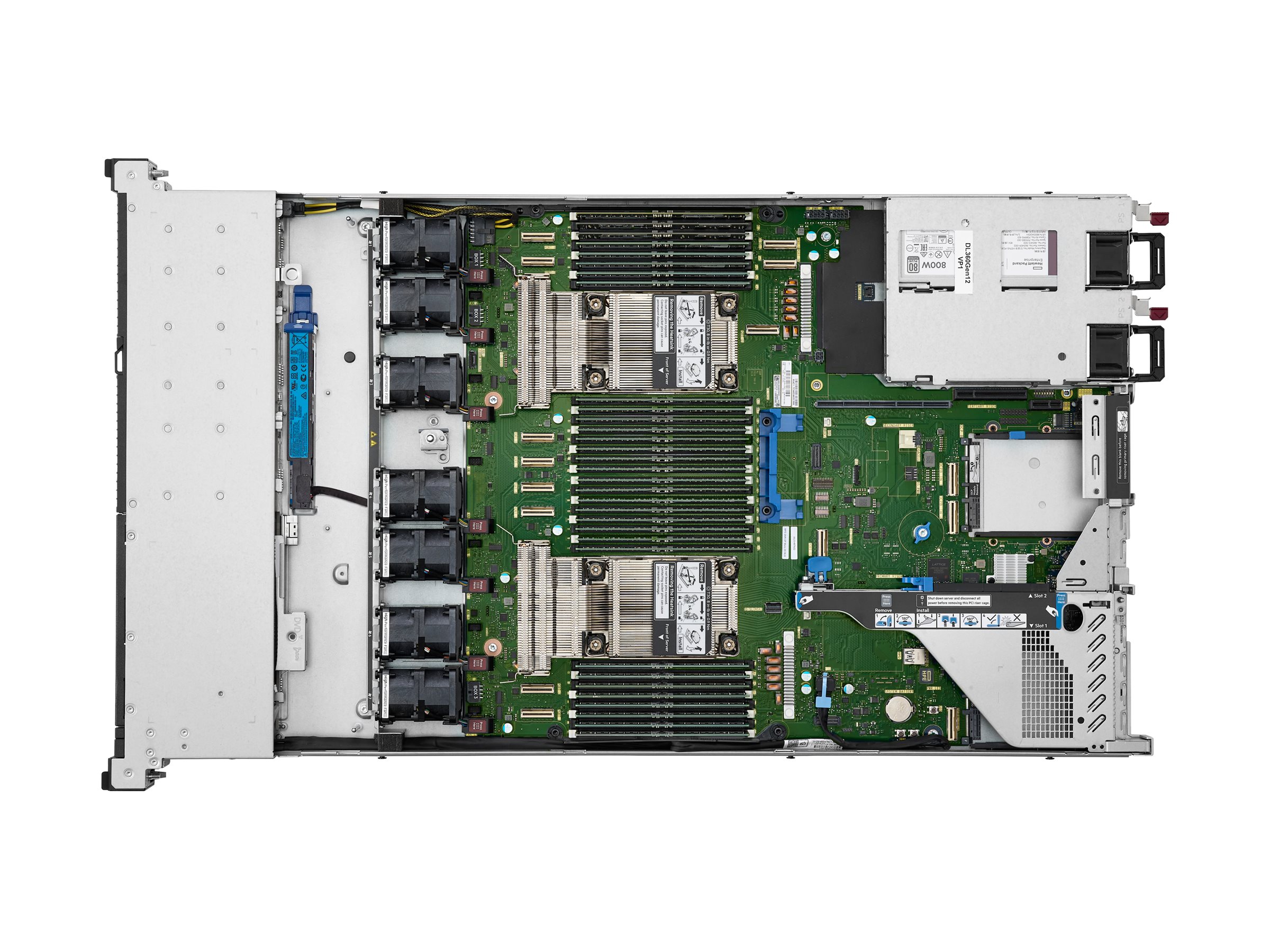

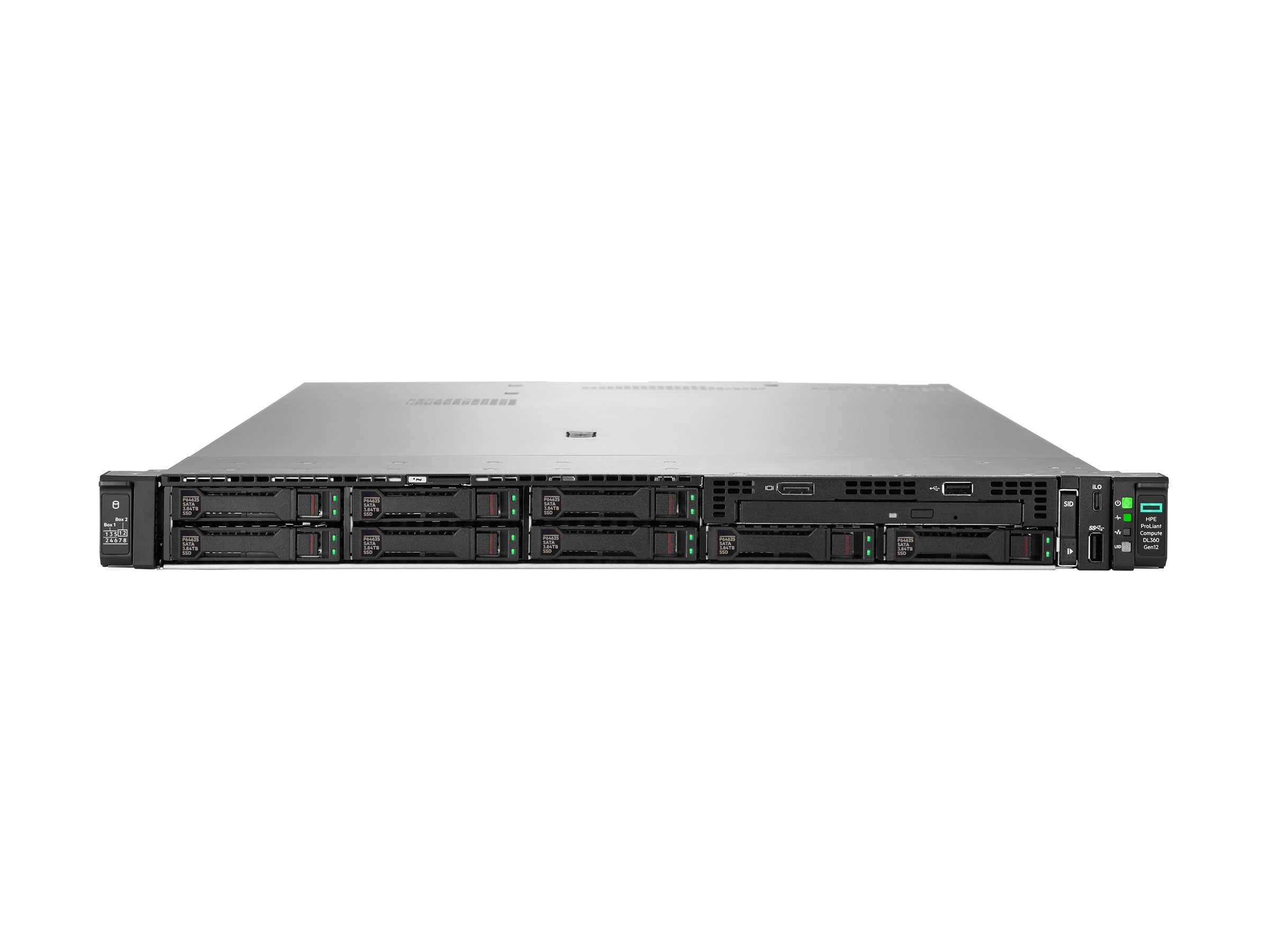

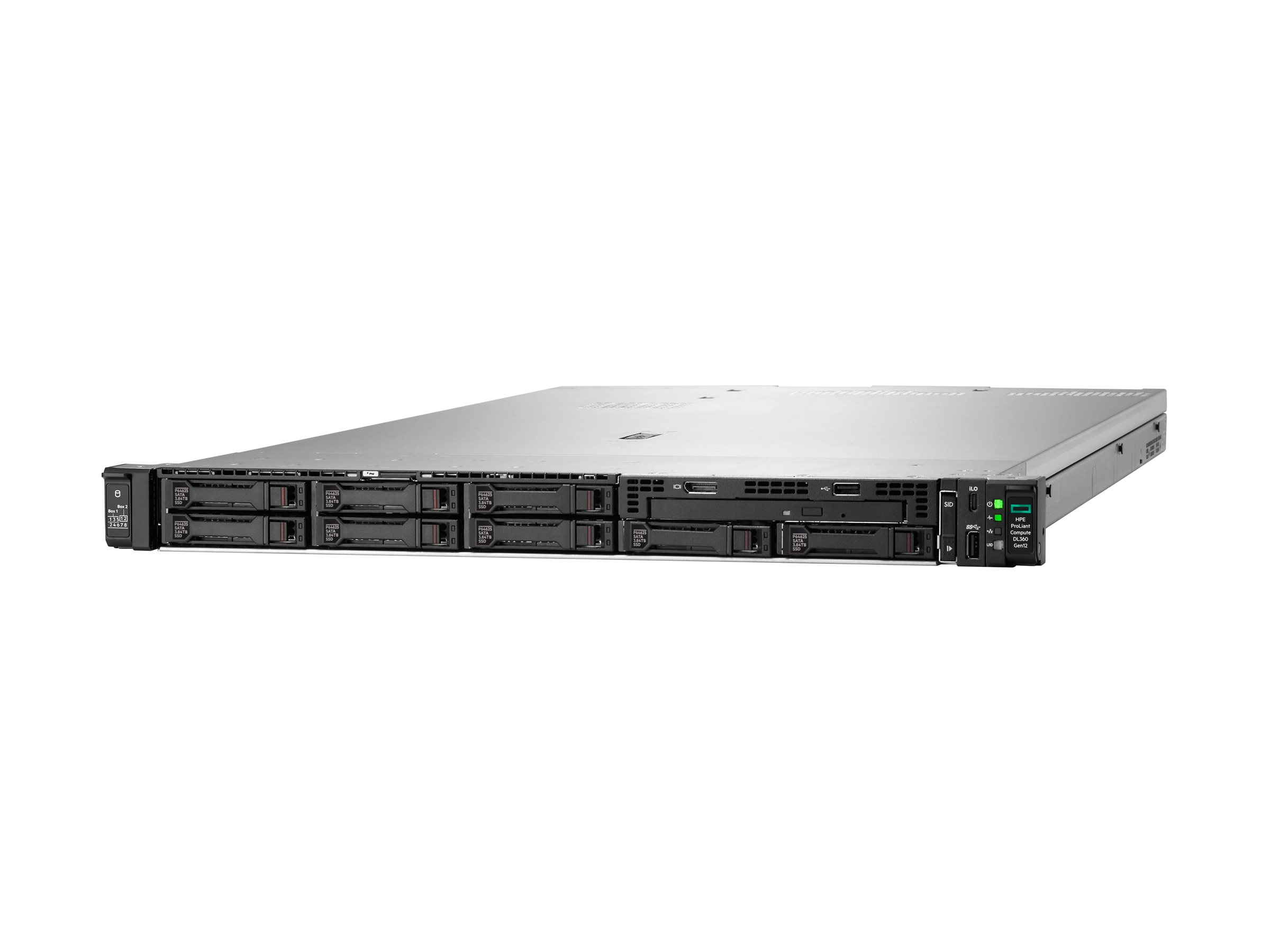

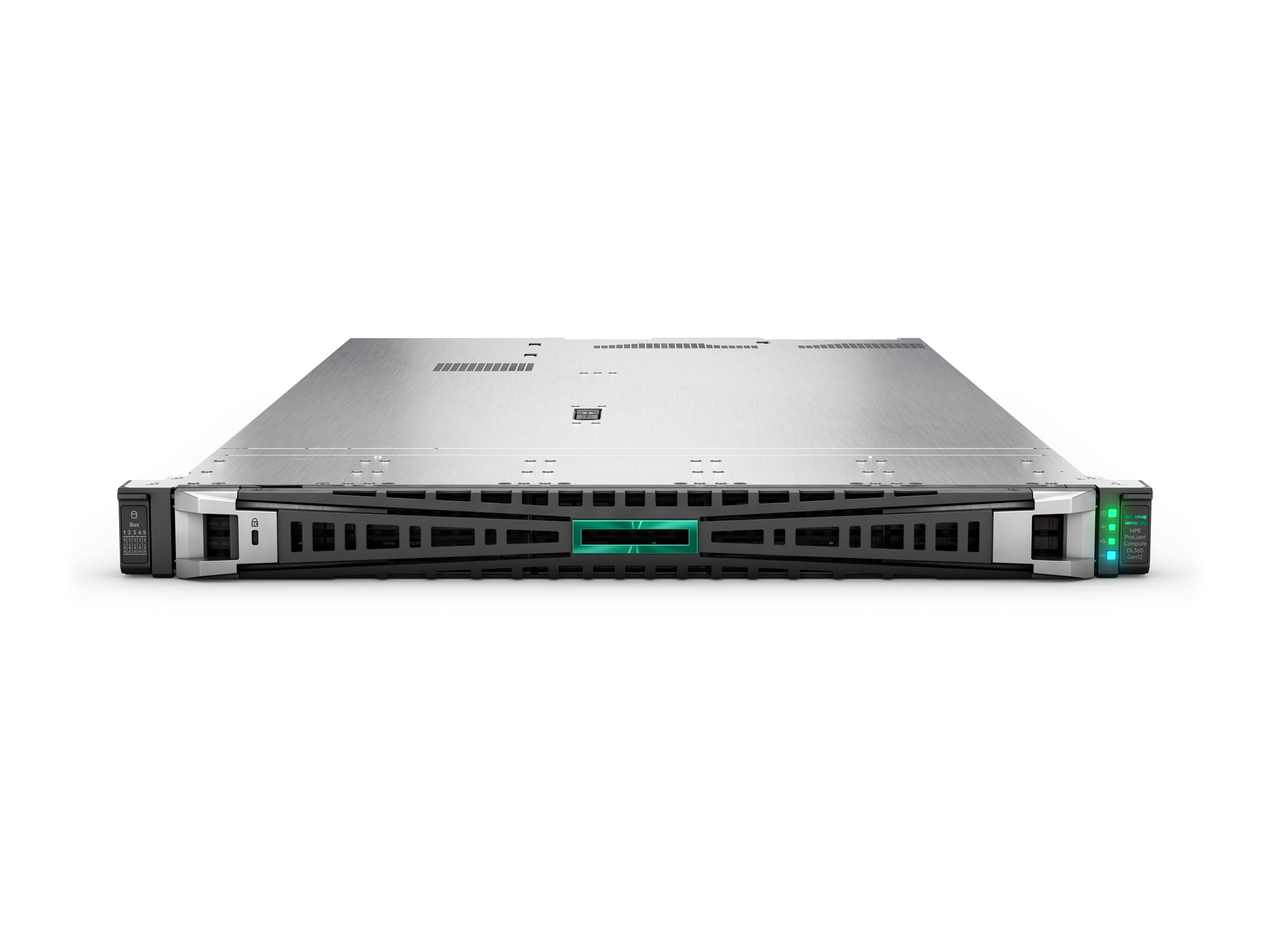

The HPE ProLiant DL360 Gen12 is a rack-mountable server designed for performance and flexibility in demanding environments. With 10 hot-swap bays and support for 2.5″ swappable drives, this server offers storage capabilities, ensuring quick and easy replacement of components without downtime. It also features advanced connectivity options, including multiple USB and Ethernet ports, facilitating management and integration into existing systems. The integrated Lights-Out 7 controller enhances remote management, making it easier to monitor and maintain server operations from virtually anywhere.
Designed to operate in a range of environmental conditions, the HPE ProLiant DL360 Gen12 supports temperatures from 10°C to 35°C and operates effectively in humidity levels between 8% and 90% RH. Its robust build meets various compliance standards, including ENERGY STAR and AES, ensuring the server’s performance aligns with regulatory requirements. With expandable options including PCIe 5.0 slots and support for up to 32 DIMM slots, this server is built to grow alongside organizational needs, providing a reliable and secure computing environment.
- Rack-mountable design for efficient space management
- 10 hot-swap bays for quick drive replacement
- Integrated Lights-Out 7 for enhanced remote management
- Supports multiple connectivity options for versatile integration
- Robust compliance standards ensuring reliability and security
- Flexible storage capacity
With 10 hot-swap bays, the HPE ProLiant DL360 Gen12 provides flexibility in storage management, allowing for quick drive replacement and expansion as needed. - Efficient environmental operation
This server is designed to function effectively across a wide range of operating conditions, supporting temperatures from 10°C to 35°C and a humidity range of 8% to 90% RH. - Expanded expansion options
The inclusion of 2 PCIe 5.0 x16 slots offers room for graphical and networking enhancements, catering to changing technological needs. - Enhanced management capabilities
Integrated Lights-Out 7 technology allows for comprehensive remote management, enabling system monitoring and troubleshooting from any location. - Robust security features
Equipped with a Trusted Platform Module (TPM 2.0) security chip, the HPE ProLiant DL360 Gen12 ensures that data integrity and security remain a priority.
Main Specifications
Product Description | HPE ProLiant Compute DL360 Gen12 – rack-mountable Xeon 6507P 3.5 GHz – 64 GB – no HDD |
Type | Server – rack-mountable |
Height (Rack Units) | 1U |
Server Scalability | 1-way |
Processor | 1 x Intel Xeon 6507P / 3.5 GHz (up to 4.3 GHz, (8-core) |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 16 Threads, 150W TDP |
Cache Memory | 48 MB L3 Cache |
Cache Per Processor | 48 MB |
RAM | 64 GB (installed) / 8 TB (max) – DDR5 SDRAM – Advanced ECC |
Storage Controller | RAID (HPE NS204i-u v2) – OCP 3.0 (HPE MR408i-o Gen11 SPDM) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Power Redundancy | Yes |
OS Provided | No operating system |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE OneView Advanced |
Dimensions (WxDxH) | 75.31 cm x 43.46 cm x 4.29 cm |
Environmental Standards | ENERGY STAR Qualified EPEAT Silver |
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 1U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 1-way |
|---|
Hot-Swap Bays Qty | 8 |
|---|
Processor / Chipset
CPU | Intel Xeon 6507P |
|---|
Clock Speed | 3.5 GHz |
|---|
Max Turbo Speed | 4.3 GHz |
|---|
Number of Cores | 8-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 16 Threads, 150W TDP |
|---|
Cache Memory
Installed Size | L3 Cache – 48 MB |
|---|
Cache Per Processor | 48 MB |
|---|
RAM
Installed Size | 64 GB (installed) / 8 TB (max) |
|---|
Technology | DDR5 SDRAM – Advanced ECC |
|---|
Effective Memory Speed | 6400 MT/s |
|---|
Rated Memory Speed | 6400 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 32 (Total) / 30 (empty) |
|---|
Features | Registered, HPE SmartMemory, slots 17 – 32 are available in two-processor configuration only |
|---|
Configuration Features | 2 x 32 GB |
|---|
Hard Drive
Storage Controller
Type | 1 x RAID – OCP 3.0 |
|---|
Controller Interface Type | HPE NS204i-u v2 |
|---|
Storage Controller Name | HPE MR408i-o Gen11 SPDM |
|---|
Channel Qty | 8 |
|---|
Buffer Size | 4 GB |
|---|
Optical Storage
Monitor
Graphics Controller
Video Memory | 16 MB |
|---|
Video Interfaces | VGA |
|---|
Networking
Ethernet Controller | Broadcom BCM5719 |
|---|
Expansion / Connectivity
Bays | 8 (total) / 8 (free) x hot-swap 2.5″ SFF |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 – full-height, 9.5″ length (x16 mode)
2 (total) / 2 (free) x PCIe 5.0 x16 – half-height (x16 mode)
2 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |
|---|

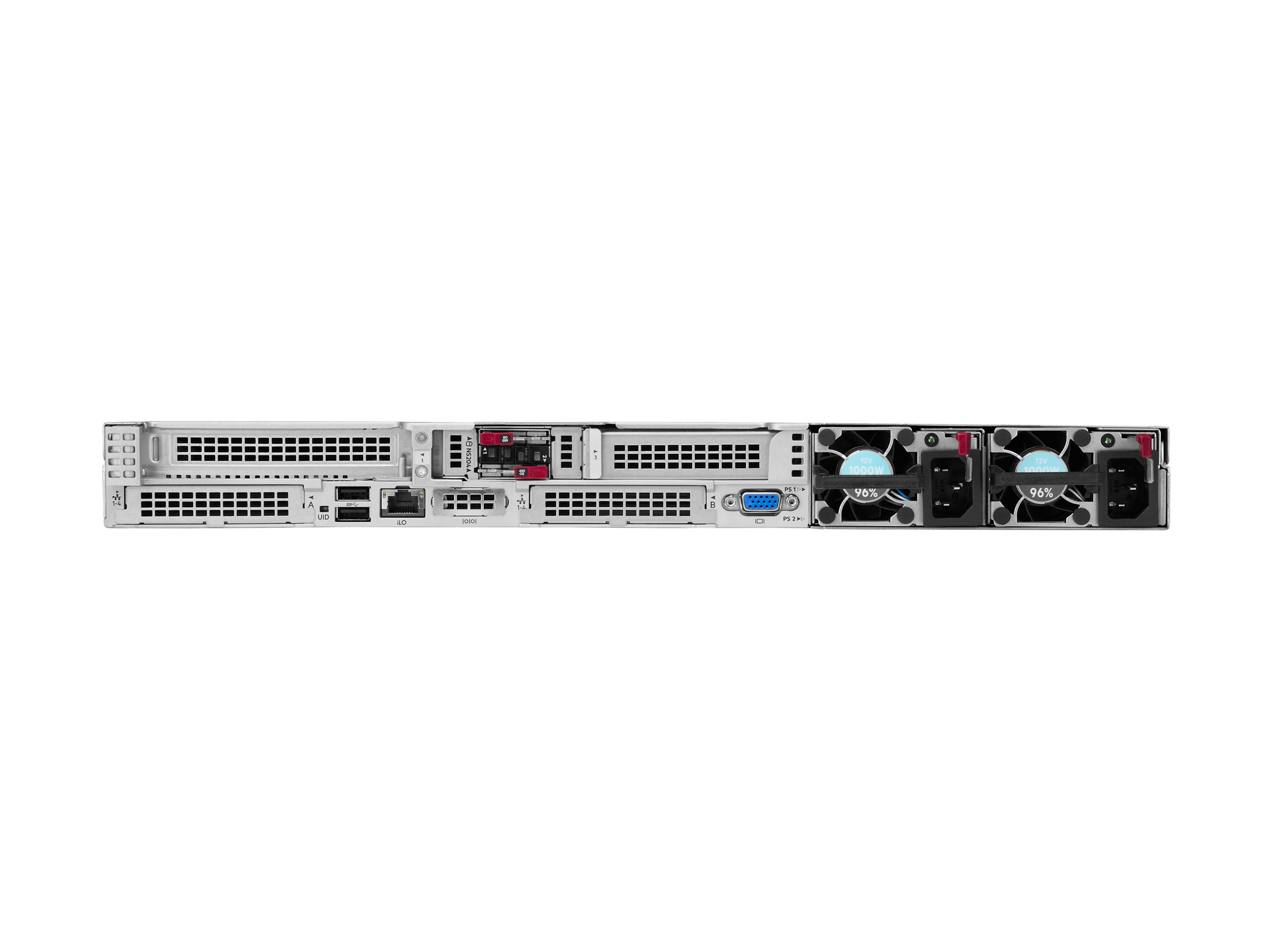

Interfaces | 1 x HPE iLO – Type C (1 in front) (service port)
1 x management (Gigabit Ethernet) – RJ-45 (1 front) (HPE iLO Service Port)
5 x USB 3.2 Gen 1 – Type A (1 front, 2 rear, 2 internal)
1 x VGA (1 rear) |
|---|
Miscellaneous
Included Accessories | 7 x high performance fans |
|---|
Compliant Standards | AES, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, UEFI, ErP Lot 9, PCIe 5.0, DMTF, Active Directory v1.0, UEFI Class 3, ACPI 6.5, SMBIOS 3.7, UEFI 2.10 |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Yes |
|---|
Power Redundancy Scheme | 1+1 |
|---|
Installed Qty | 2 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-240 V |
|---|
Power Provided | 800 watt |
|---|
80 PLUS Certification | 80 PLUS Platinum |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE OneView Advanced |
|---|
Sustainability Information
EPEAT Compliant | EPEAT Silver |
|---|
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 75.31 cm |
|---|
Depth | 43.46 cm |
|---|
Height | 4.29 cm |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
