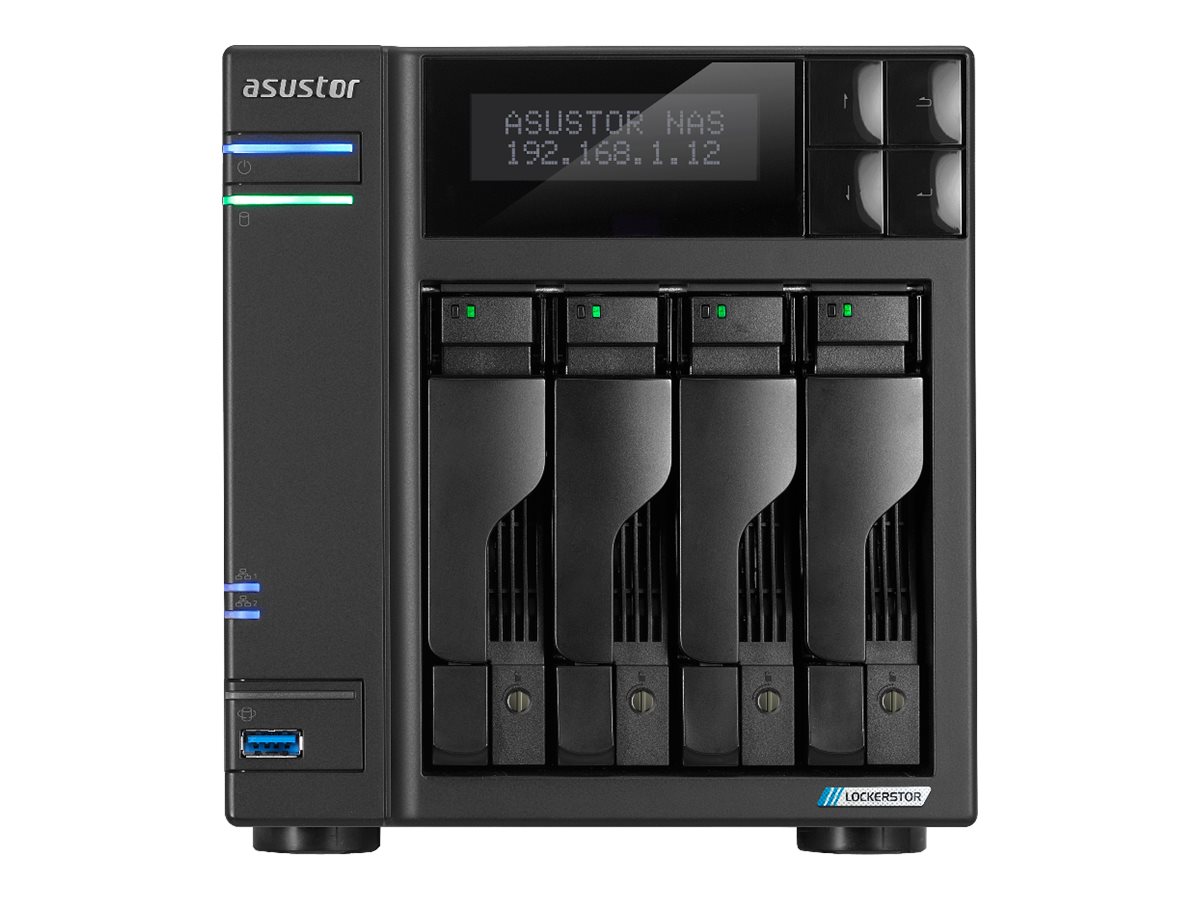

ASUSTOR Lockerstor 4 Gen2+ AS6704T V2, NAS server, 4 bays, SATA 6Gb/s, RAID JBOD, 0, 1, 5, 6, 10, RAM 4 GB, 5 Gigabit Ethernet, iSCSI support
$1,328.13 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The ASUSTOR Lockerstor 4 Gen2+ AS6704T V2 is designed for efficient and robust network storage solutions. With its 5 Gigabit Ethernet connectivity, users can experience high-speed data transfer and seamless access to files across the network. The device supports various RAID levels including RAID 0, RAID 1, RAID 5, and more, ensuring data security and redundancy when managing critical information.
In addition to its speed and flexibility, this NAS server is equipped with a quad-core Intel Celeron processor that operates at a clock speed of 2 GHz, boosting performance for multitasking. The inclusion of 4 GB DDR4 RAM ensures smooth operation and responsiveness while handling multiple simultaneous connections. With built-in features such as an IR sensor, automatic sleep mode, and Smart Fan technology, it offers a user-friendly yet powerful solution for both home and enterprise environments.
- Supports 5 Gigabit Ethernet for high-speed connectivity
- Features a quad-core Intel Celeron processor for efficient performance
- Offers various RAID configurations for data protection
- Includes automatic sleep mode and Smart Fan for energy efficiency
- Compatible with multiple network protocols for versatile use
- Robust storage capabilities
The ASUSTOR Lockerstor 4 comes with four hot-swap compatible bays, supporting 2.5″ and 3.5″ drives, allowing for flexible storage options and easy drive replacements. - Advanced network support
With compatibility for multiple data link protocols, the device ensures seamless integration within various network environments, facilitating smooth data transfer and accessibility. - Efficient cooling system
The built-in 120 mm fan, combined with Smart Fan technology, ensures the device remains cool and quiet during operation, emitting only 17.6 dBA of sound. - Enhanced user management
Features like user quotas and connection monitoring provide administrators with better control over user access and storage allocation. - Flexible backup options
The Lockerstor 4 supports various backup methods including cloud, FTP, and external backups, enabling users to safeguard their data effectively.
Main Specifications
Product Description | ASUSTOR Lockerstor 4 Gen2+ AS6704T V2 – NAS server |
Device Type | NAS server |
Host Connectivity | 5 Gigabit Ethernet |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Dimensions (WxDxH) | 17 cm x 23 cm x 18.55 cm |
Weight | 2.94 kg () |
Processor | 1 x Intel Celeron N5105 2 GHz (Quad-Core) |
Storage Controller | RAID SATA 6Gb/s RAID JBOD, 0, 1, 5, 6, 10 |
Networking | 100Mb LAN, 1GbE, 2.5GbE, 5GbE |
Performance | Maximum iSCSI target: 256 Maximum iSCSI LUN: 256 Maximum number of users: 4096 Maximum number of groups: 512 Maximum number of shared folders: 512 Maximum concurrent connections: 512 |
RAM | 4 GB |
Power | AC 100-240 V |
System Requirements | Windows 10 / 11 or later, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple MacOS, UNIX, Linux, FreeBSD |
Extended Specifications
General
Device Type | NAS server |
|---|---|
Host Connectivity | 5 Gigabit Ethernet |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Width | 17 cm |
Depth | 23 cm |
Height | 18.55 cm |
Weight | 2.94 kg () |
Built-in Devices | Led panel, 1 x 120 mm fan, IR sensor |
Processor / Memory
Processors Installed | 1 x Intel Celeron N5105 2 GHz |
|---|---|
Number of Cores | Quad-Core |
Max Supported Qty | 1 |
Max Turbo Speed | 2.9 GHz |
RAM | 4 GB (installed) / 16 GB (supported) – DDR4 |
Flash Memory Installed | 8 GB |
Storage Controller
Type | RAID |
|---|---|
Interface Type | SATA 6Gb/s |
RAID Level | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Networking
Data Link Protocol | 100Mb LAN, 1GbE, 2.5GbE, 5GbE |
|---|---|
Network / Transport Protocol | CIFS, SMB, NFS, FTP, TFTP, SFTP, HTTP, HTTPs, TCP/IP, IPv4, IPv6, DDNS |
Remote Management Protocol | SSH, SFTP, HTTP, HTTPS, SNMP, Syslog, LDAP |
Network Services Compatibility | Microsoft CIFS, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Apple File Protocol (AFP), FTP, Web-based Distributed Authoring and Versioning (WebDAV), SFTP, DDNS, HTTP, HTTPS, Microsoft Active Directory (AD) |
Performance | Maximum iSCSI target: 256 Maximum iSCSI LUN: 256 Maximum number of users: 4096 Maximum number of groups: 512 Maximum number of shared folders: 512 Maximum concurrent connections: 512 |
Features | Rsync compatible, Jumbo Frames support, VLAN support, online RAID level migration, Btrfs snapshots support, USB key decryption support, target masking, LUN mapping, MPIO, persistent (SCSI-3) reservations, Disk S.M.A.R.T. Scan, scheduled bad block scans, SSD read-only Cache, SSD read-write cache, system log, connection monitoring, user quota, UPS compatible, firewall protection, E-mail alert, SMS alert, black list, white list, cloud backup, FTP backup, external backup, one-touch backup, EZ Sync, HiDrive support, UPnP Media Server, VPN client, VPN Server, RADIUS Server, SNMP server, syslog server |
Encryption Algorithm | 256-bit AES, SSL, TLS |
Compliant Standards | IEEE 802.3ad (LACP), UPnP |
Expansion / Connectivity
Expansion Bays | 4 (total) / 4 (free) x hot-swap – 2.5″ / 3.5″ |
|---|---|
Expansion Slots | 4 (total) / 4 (free) x M.2 |
Interfaces | 2 x 5 Gigabit Ethernet – RJ-45 2 x USB 3.2 Gen 2 – Type A 1 x HDMI output 1 x USB 2.0 – Type A |
Miscellaneous
Cables Included | 2 x CAT5E network cable |
|---|---|
Features | Automatic sleep mode, Smart Fan |
Compliant Standards | FCC, VCCI, BSMI, C-Tick, KCC, BIS, CCC, UKCA |
Included Accessories | Power cable, 16 x flat head screws (for 2.5″ HDD), 16 x flat head screws (for 3.5″ HDD) |
Power
Power Device | External power adapter |
|---|---|
Voltage Required | AC 100-240 V |
Power Consumption Operational | 35 watt |
Power Consumption Stand by | 0.88 watt |
Power Provided | 90 watt |
Software / System Requirements
OS Required | Windows 10 / 11 or later, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple MacOS, UNIX, Linux, FreeBSD |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 – 95% RH |
Sound Emission | 17.6 dBA |
