TP-Link Omada SG2008P V3.36, Switch, smart, 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+), desktop, wall-mountable, PoE+ (62 W), for TP-Link MC200CM, MC210CS, MC220L

Manufacturer:TP-Link
Part Number:SG2008P
Warranty:3 Years
PPID:AB58854

$193.83 inc GST

Free Delivery

Available on back-order

Out of Stock! Email us for a lead time or ETA

Ships from Auckland, Wellington, or Christchurch

Ships from Auckland, Wellington, or Christchurch

  • Allow 1-2 days for delivery
  • add 1-2 days if you are rural
  • Collection can be arranged

Description

The TP-Link Omada SG2008P V3.36 is a powerful and efficient Gigabit Ethernet switch designed to meet the demands of modern networking. With a versatile 8-port configuration, it allows for seamless connectivity and enhanced network performance. Its support for Power over Ethernet (PoE+) ensures that devices can be powered directly through the Ethernet cable, simplifying installation and reducing the need for additional power sources. It comes equipped with advanced features such as Quality of Service (QoS), multicast filtering, and VLAN support, allowing for optimized traffic management and enhanced security within your network environment.
Built with reliability in mind, this switch operates in a wide temperature range, making it suitable for various environments. The fanless design ensures silent operation while the sturdy metal housing contributes to durability. Managed remotely through various protocols, such as HTTPS and SSH, it offers easy and efficient control over network settings. Whether for small businesses or home networks, the TP-Link Omada SG2008P V3.36 is an effective choice for a robust and manageable networking solution.

  • 8 Gigabit Ethernet ports for fast and reliable connectivity
  • Power over Ethernet (PoE+) capability for simplified device power management
  • Quality of Service (QoS) features for optimized network traffic control
  • Remote management options for efficient network administration
  • Robust design with metal housing and fanless operation for durability
  • Efficient bandwidth management
    With a bandwidth capacity of 16 Gbps, the switch provides ample resources for high-speed data transfer across devices, ensuring smooth network performance.
  • High port capacity
    The switch includes 8 ports, each capable of handling 10/100/1000 Mbps connections, accommodating a variety of devices for flexibility in network design.
  • Enhanced security features
    Offering features such as DHCP snooping, ARP inspection, and 802.1x authentication, this switch helps safeguard the network against unauthorized access and attacks.
  • Temperature resilient design
    Designed to function effectively in temperatures ranging from -5 °C to 40 °C, it can be deployed in diverse environments without compromising performance.
  • User-friendly management options
    Supports multiple remote management protocols including HTTPS and SNMP, allowing for straightforward network monitoring and configuration from anywhere.

Main Specifications

Product Description

TP-Link Omada SG2008P V3.36 – switch – 8 ports – smart

Device Type

Switch – 8 ports – smart

Subtype

Gigabit Ethernet

Ports

4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

PoE Budget

62 W

Performance

Bandwidth: 16 Gbps
Packet forwarding rate: 11.90 Mpps
Packet buffer size: 4.1 Mbit

Capacity

Priority queues: 8
IPv4 groups (Multicast): 511
IPv6 groups (Multicast): 511
ACL entries: 230
Layer 2 multicast filtering entries per profile: 16
IP multicast profiles: 256
VLAN groups: 4000
MAC VLAN address entries: 12
IPv6 MAC port binding entries: 512
IPv4 source guard entries: 253
IPv6 source guard entries: 183
MAC addresses per port: 64

MAC Address Table Size

8K entries

Jumbo Frame Support

9KB

Routing Protocol

Static IP routing

Remote Management Protocol

CLI, IPv4, IPv6, HTTPS, SSH, SSH-2, Telnet, HTTP, MIB 2, MIB, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, UDP, TCP/IP, BOOTP, TFTP

Features

Reset button, fanless, metal housing, auto-negotiation, auto-uplink (auto MDI/MDI-X), security lock slot (cable lock sold separately), QoS, SP, WRR, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay, Link Aggregation, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, Multicast filtering function, MVR, automatic device discovery, schedule reboot, VLAN support, IP-MAC binding, 802.1x authentication, AAA, MAB, Guest VLAN, DHCP snooping, DHCPv6 snooping, ARP inspection, ND detection, DoS protection, port isolation, MLD, Cable Diagnostics Function, ZTP

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1x

Dimensions (WxDxH)

20.9 cm x 12.6 cm x 2.6 cm

Weight

600 g

System Requirements

Microsoft Windows 98SE/2000/NT/XP/Vista/7/8, Microsoft Windows 10 / 11, Apple MacOS, Novell NetWare, UNIX, Linux

Designed For

TP-Link MC200CM, MC210CS, MC220L

Extended Specifications

General

Device Type

Switch – 8 ports – smart

Enclosure Type

Desktop, wall-mountable

Subtype

Gigabit Ethernet

Ports

4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

PoE Budget

62 W

Performance

Bandwidth: 16 Gbps
Packet forwarding rate: 11.90 Mpps
Packet buffer size: 4.1 Mbit

Capacity

Priority queues: 8
IPv4 groups (Multicast): 511
IPv6 groups (Multicast): 511
ACL entries: 230
Layer 2 multicast filtering entries per profile: 16
IP multicast profiles: 256
VLAN groups: 4000
MAC VLAN address entries: 12
IPv6 MAC port binding entries: 512
IPv4 source guard entries: 253
IPv6 source guard entries: 183
MAC addresses per port: 64

MAC Address Table Size

8K entries

Jumbo Frame Support

9KB

Routing Protocol

Static IP routing

Remote Management Protocol

CLI, IPv4, IPv6, HTTPS, SSH, SSH-2, Telnet, HTTP, MIB 2, MIB, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, UDP, TCP/IP, BOOTP, TFTP

Encryption Algorithm

SSL 3.0, TLS 1.2

Authentication Method

PAP, EAP-MD5, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2)

Features

Reset button, fanless, metal housing, auto-negotiation, auto-uplink (auto MDI/MDI-X), security lock slot (cable lock sold separately), QoS, SP, WRR, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay, Link Aggregation, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, Multicast filtering function, MVR, automatic device discovery, schedule reboot, VLAN support, IP-MAC binding, 802.1x authentication, AAA, MAB, Guest VLAN, DHCP snooping, DHCPv6 snooping, ARP inspection, ND detection, DoS protection, port isolation, MLD, Cable Diagnostics Function, ZTP

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1x

RAM

256 MB

Flash Memory

32 MB

Status Indicators

PoE activity, PoE max, power, system, link/activity/speed

Expansion / Connectivity

Interfaces

4 x 1000Base-T RJ-45
4 x 1000Base-T RJ-45 PoE+ – 30 W

Power

Power Device

External power adapter

Power Provided

DC 53.5 V – 1.31 A

Miscellaneous

Included Accessories

Rubber feet, power cord

Compliant Standards

FCC, RoHS

Software / System Requirements

OS Required

Microsoft Windows 98SE/2000/NT/XP/Vista/7/8, Microsoft Windows 10 / 11, Apple MacOS, Novell NetWare, UNIX, Linux

Dimensions & Weight

Width

20.9 cm

Depth

12.6 cm

Height

2.6 cm

Weight

600 g

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 – 90% RH (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 – 90% RH (non-condensing)

Compatibility Information

Designed For

TP-Link MC200CM, MC210CS, MC220L

Additional information

Manufacturer

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

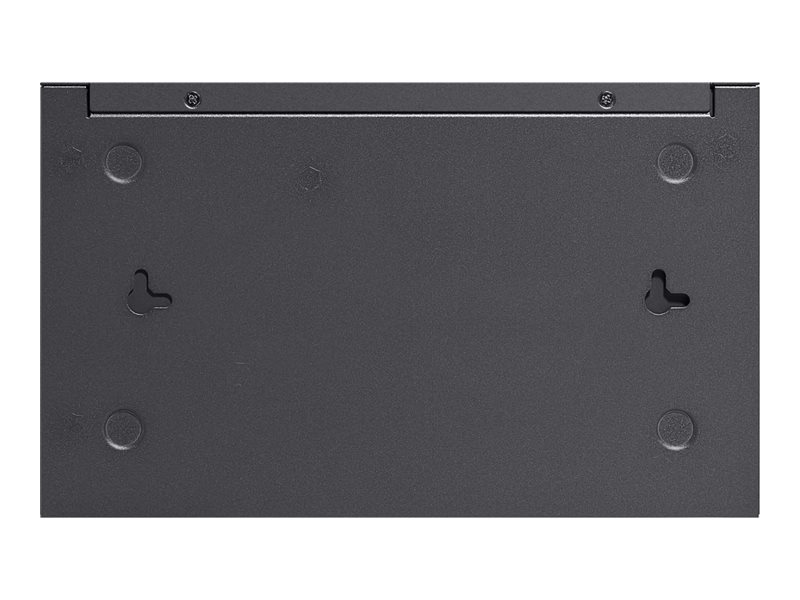

TP-Link Omada SG2008P V3.36 switch 8 ports Product shot Bottom 74950
