Description

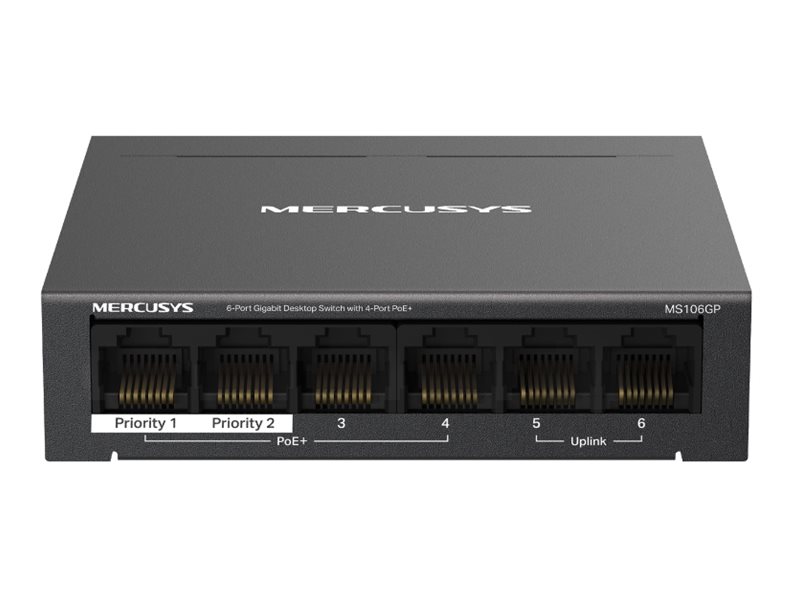

The Mercusys MS106GP V1 is a reliable Gigabit Ethernet switch designed to enhance networking efficiency in various settings. With six RJ-45 ports, including four Power over Ethernet (PoE+) ports, this device delivers power and data over a single cable, facilitating easy installation and management. Its robust metal housing ensures durability while providing a fanless design for silent operation, making it suitable for any workspace.
Operating efficiently in temperatures ranging from 0°C to 40°C, the switch is built to withstand a wide range of environmental conditions, with storage capabilities between -40°C and 70°C. With features such as long-range PoE, port isolation, and auto-negotiation, the Mercusys MS106GP V1 ensures a stable and efficient network performance. The PoE Auto Recovery feature enhances system reliability, making this switch a choice for your networking needs.
- Six 10/100/1000 Base-T RJ-45 ports including four PoE+ ports
- Robust metal housing for enhanced durability and fanless operation
- Long range PoE capabilities extending up to 250 meters
- PoE Auto Recovery feature ensures network reliability
- Plug-and-Play compliant for easy setup
- Efficient power over Ethernet support
Equipped with four PoE+ ports, the Mercusys MS106GP V1 allows for power and data transmission over the same Ethernet cable, simplifying installation and reducing cable clutter. - Durable design
The sturdy metal housing ensures longevity and protection against physical damage, making it suitable for various environments while maintaining a professional appearance. - Wide operational temperature range
With an operational temperature range of 0°C to 40°C and storage capabilities from -40°C to 70°C, this switch is designed to function reliably in diverse climate conditions. - Effective network performance features
Additional functionalities like port isolation, flow control, and store-and-forward processing contribute to optimal data handling and network performance, ensuring comprehensive connectivity. - Easy setup with Plug-and-Play capability
The Mercusys MS106GP V1 is designed for simple installation, featuring Plug-and-Play compliance that allows for immediate use without complicated configuration.
Main Specifications
Product Description | Mercusys MS106GP V1 – switch – 6 ports |
Device Type | Switch – 6 ports |
Subtype | Gigabit Ethernet |
Ports | 6 x 10/100/1000 (4 PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 65 W |
Performance | Switching capacity: 12 Gbps |
MAC Address Table Size | 2K entries |
Features | Long range PoE up to 250m, metal housing, PoE Auto Recovery, port isolation, port priority, extend mode, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, MAC address auto-aging, MAC address auto-learning, flow control |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Power | AC 110-220 V (50/60 Hz) |
Dimensions (WxDxH) | 9.98 cm x 9.8 cm x 2.5 cm |
Extended Specifications
General
Device Type | Switch – 6 ports |
|---|
Enclosure Type | Desktop, wall-mountable |
|---|
Subtype | Gigabit Ethernet |
|---|
Ports | 6 x 10/100/1000 (4 PoE+) |
|---|
Power Over Ethernet (PoE) | PoE+ |
|---|
PoE Budget | 65 W |
|---|
Performance | Switching capacity: 12 Gbps |
|---|
MAC Address Table Size | 2K entries |
|---|
Features | Long range PoE up to 250m, metal housing, PoE Auto Recovery, port isolation, port priority, extend mode, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, MAC address auto-aging, MAC address auto-learning, flow control |
|---|
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
|---|
Status Indicators | Power, PoE, link/activity |
|---|
Expansion / Connectivity
Interfaces | 6 x 10/100/1000 Base-T RJ-45 4 ports (PoE+) – 30 W |
|---|
Power
Power Device | External power adapter |
|---|
Voltage Required | AC 110-220 V (50/60 Hz) |
|---|
Power Consumption Stand by | 0.94 Watt |
|---|
Miscellaneous
Compliant Standards | Plug and Play, RoHS |
|---|
Dimensions & Weight
Width | 9.98 cm |
|---|
Depth | 9.8 cm |
|---|
Height | 2.5 cm |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% RH (non-condensing) |
|---|
Min Storage Temperature | -40 °C |
|---|
Max Storage Temperature | 70 °C |
|---|
Humidity Range Storage | 5 – 95% RH (non-condensing) |
|---|
