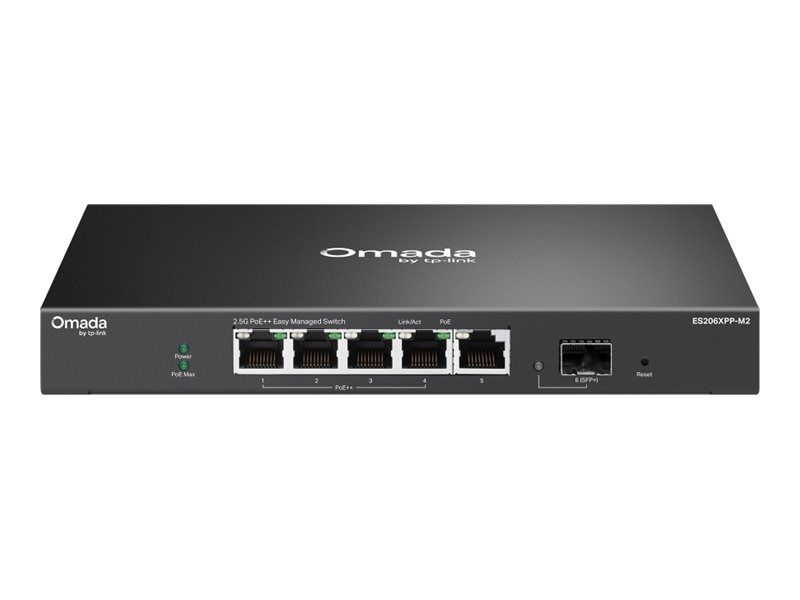

TP-Link Omada ES206XPP-M2 V1, Switch, Managed, 5 x 10/100/1000/2.5G (PoE++) + 1 x 10 Gigabit SFP+, desktop, wall-mountable, PoE++ (120 W)
$312.03 inc GST
✓ In Stock - 4 available
✓ Free NZ Delivery
4 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The TP-Link Omada ES206XPP-M2 V1 is designed to meet the diverse networking needs of modern environments. With a robust switching capacity of 45 Gbps and support for up to 4000 VLANs, this switch excels in managing high-traffic data applications efficiently. Its PoE++ functionality delivers 90 W across four ports, ensuring devices receive reliable power alongside data connectivity. The fanless design introduces silent operation, making it an ideal choice for office spaces where noise is a concern.
- Supports up to 4000 VLANs for flexible network segmentation
- Provides 120 W PoE budget enabling powering multiple devices
- Fanless design ensures quiet operation in office settings
- Wall-mountable form factor for versatile installation
- Cloud management capabilities allow for easy remote monitoring
- Efficient performance
With a switching capacity of 45 Gbps and a packet forwarding rate of 33.48 Mpps, this switch provides quick and reliable data transmission for demanding applications. - Robust VLAN support
Equipped with 4000 VLANs and 32 VLAN groups, the ES206XPP-M2 V1 allows for detailed management of network traffic and ensures efficient resource allocation across different departments. - Enhanced power delivery
The PoE++ functionality delivers up to 90 W across four ports, allowing for the simultaneous powering of cameras, access points, and other devices without additional power adapters. - Durable design
Built with a metal housing and equipped with surge and ESD protection, this switch ensures longevity and reliability in various environments, even under harsh conditions. - User-friendly management
Cloud-managed capabilities and automatic device discovery streamline network management, allowing users to maintain control and monitor performance from anywhere.
What’s in the Box
- TP-Link Omada ES206XPP-M2 V1
- External power adapter, 4 rubber feet, power cord
Main Specifications
Product Description | TP-Link Omada ES206XPP-M2 V1 – switch – 5 ports – Managed |
Device Type | Switch – 5 ports – Managed |
Subtype | 2.5 Gigabit Ethernet |
Ports | 5 x 10/100/1000/2.5G (PoE++) + 1 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE++ |
PoE Budget | 120 W |
Performance | Switching capacity: 45 Gbps Packet forwarding rate: 33.48 Mpps Packet buffer size: 5 Mbit |
Capacity | Priority queues: 8 VLAN groups: 32 VLANs supported: 4000 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 10KB |
Routing Protocol | IGMP, IGMPv2, IGMPv3 |
Remote Management Protocol | DHCP |
Features | Reset button, fanless, metal housing, security slot (Kensington security lock compatible), loop prevention, VLAN support, port isolation, QoS, IGMP snooping, fast PoE, perpetual PoE, store and forward, 2KV Surge protection, 4KV ESD Protector (contact discharge), 6KV Surge protection, 8KV ESD Protector (air-gap discharge), cloud managed, automatic device discovery, firmware upgradable, flow control, Link Aggregation, loopback detection, One-to-Many, One-to-One, port mirroring, fast leave, WRR, bandwidth control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Cable Diagnostics Function |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Power | DC 53.5 V |
Dimensions (WxDxH) | 20.9 cm x 12.6 cm x 2.6 cm |
Weight | 670 kg |
Extended Specifications
General
Capacity | Priority queues: 8 VLAN groups: 32 VLANs supported: 4000 |
|---|---|
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 10KB |
Routing Protocol | IGMP, IGMPv2, IGMPv3 |
Remote Management Protocol | DHCP |
Features | Reset button, fanless, metal housing, security slot (Kensington security lock compatible), loop prevention, VLAN support, port isolation, QoS, IGMP snooping, fast PoE, perpetual PoE, store and forward, 2KV Surge protection, 4KV ESD Protector (contact discharge), 6KV Surge protection, 8KV ESD Protector (air-gap discharge), cloud managed, automatic device discovery, firmware upgradable, flow control, Link Aggregation, loopback detection, One-to-Many, One-to-One, port mirroring, fast leave, WRR, bandwidth control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Cable Diagnostics Function |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Flash Memory | 64 MB |
Status Indicators | Link/activity, PoE max, power |
Expansion / Connectivity
Interfaces | 4 x 10/100/1000/2.5G RJ-45 PoE++ – 90 W 1 x 10/100/1000/2.5G RJ-45 1 x 10 Gigabit Ethernet SFP+ SFP+ |
|---|
Power
Power Device | External power adapter |
|---|---|
Voltage Required | DC 53.5 V |
Power Consumption Stand by | 3.5 Watt |
Miscellaneous
Included Accessories | 4 rubber feet, power cord |
|---|---|
MTBF | 702,277 hours |
Compliant Standards | Plug and Play, RoHS, FCC |
Dimensions & Weight
Width | 20.9 cm |
|---|---|
Depth | 12.6 cm |
Height | 2.6 cm |
Weight | 670 kg |
Environmental Parameters
Min Operating Temperature | -5 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% RH (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
General
Device Type | Switch – 5 ports – Managed |
|---|---|
Enclosure Type | Desktop, wall-mountable |
Subtype | 2.5 Gigabit Ethernet |
Ports | 5 x 10/100/1000/2.5G (PoE++) + 1 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE++ |
PoE Budget | 120 W |
Performance | Switching capacity: 45 Gbps Packet forwarding rate: 33.48 Mpps Packet buffer size: 5 Mbit |
Additional information
| Manufacturer |
|---|
