Description

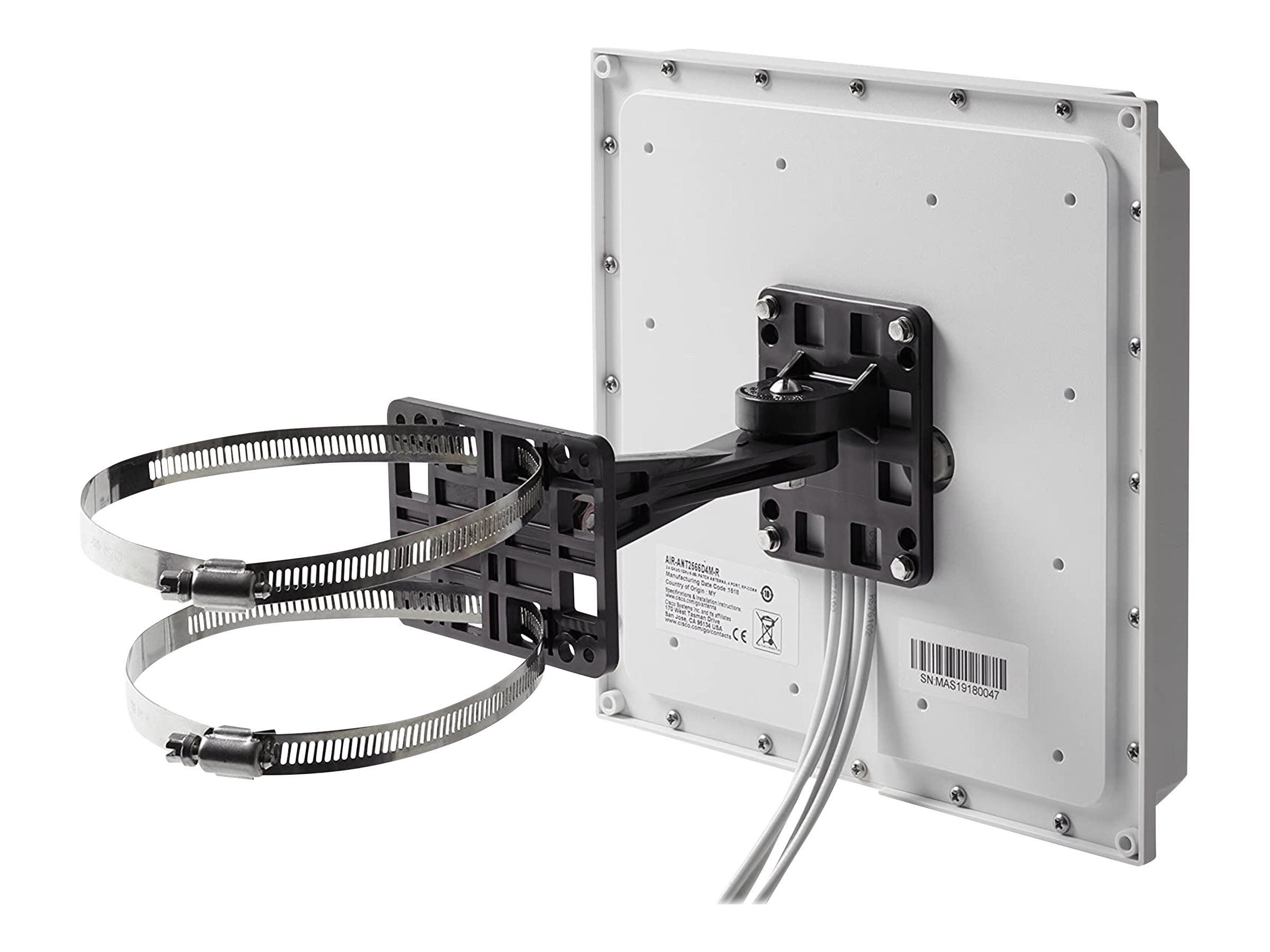

The Cisco Aironet AIR-ANT2566D4M-RS= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved performance in mind. It directs the energy it receives from the transmitter to provide more energy in one direction and less in other directions. This FCC-approved patch antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.
- Dual-band support for 2.4 GHz and 5 GHz frequencies
- IP67 protection for durability in extreme conditions
- Directional directivity for precise signal control
- Operates efficiently across a wide temperature range from -40°C to 70°C
- Equipped with four RP-TNC connectors for easy integration
- PATCH ANTENNA
6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 dual-band ports); designed for use with dual-band port access points such as the Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series - CONNECTION AND MOUNT
4 RP-TNC male connectors; wall mount - DIRECTED RADIATION PATTERN
Intended for deployment when directed coverage is required - PERFORMANCE
Designed for improved directional coverage - PEACE OF MIND
1-year limited hardware warranty
What’s in the Box
- AIR-ANT2566D4M-RS Antenna
Main Specifications
Product Description | Cisco Aironet Dual-Band Polarization-Diverse Array – antenna |
Product Type | Antenna |
Dimensions (WxDxH) | 25.4 cm x 4.1 cm x 25.4 cm |
Weight | 1.13 kg |
Frequency Range | 2.4 GHz, 5 GHz |
Gain | 6 dBi (for 2.4 GHz), 6 dBi (for 5 GHz) |
Directivity | Directional |
Designed For | Catalyst 9120AXE, 9120AXP |
Documents
Extended Specifications
General
Product Type | Antenna |
|---|
Width | 25.4 cm |
|---|
Depth | 4.1 cm |
|---|
Height | 25.4 cm |
|---|
Weight | 1.13 kg |
|---|
Cable Length | 91.4 cm |
|---|
Aerial
Frequency Range | 2.4 GHz, 5 GHz |
|---|
Gain | 6 dBi (for 2.4 GHz), 6 dBi (for 5 GHz) |
|---|
Directivity | Directional |
|---|
Horizontal Beamwidth | 55° (at 5.15 – 5.925 GHz), 65° (at 2.4 – 2.5 GHz) |
|---|
Vertical Beamwidth | 60° (at 5.15 – 5.925 GHz), 65° (at 2.4 – 2.5 GHz) |
|---|
Cabling & Wiring
Connector Provided | 4 x RP-TNC |
|---|
Miscellaneous
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
Compatibility Information
Designed For | Cisco Catalyst 9120AXE, 9120AXP |
|---|
