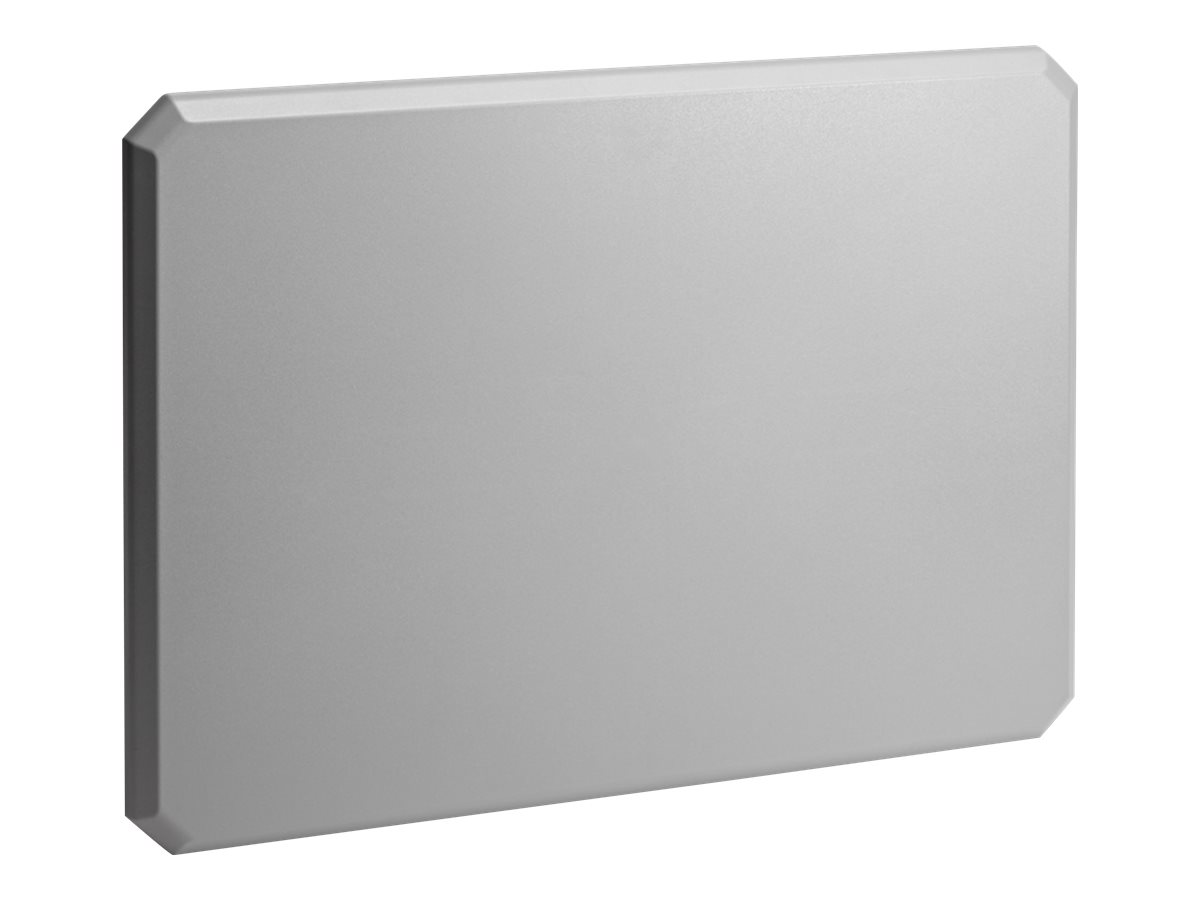

Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna, Antenna, Wi-Fi, 13 dBi, directional, outdoor, ceiling mountable, wall-mountable, pole mount, indoor
$2,229.60 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Cisco Aironet AIR-ANT2513P4M-N= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved coverage and performance in mind. This FCC-approved patch antenna directs the energy it receives from the transmitter to provide more energy in one direction and less energy in all other directions.
- Ceiling, indoor, outdoor, pole, and wall-mountable for versatile installation options
- Dual-band operation with 13 dBi gain for improved signal strength and coverage
- IP67 compliant for enhanced durability against dust and water
- Includes a mounting kit for easy installation
- PATCH ANTENNA
13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 ports; outdoor rated - CONNECTION AND MOUNT

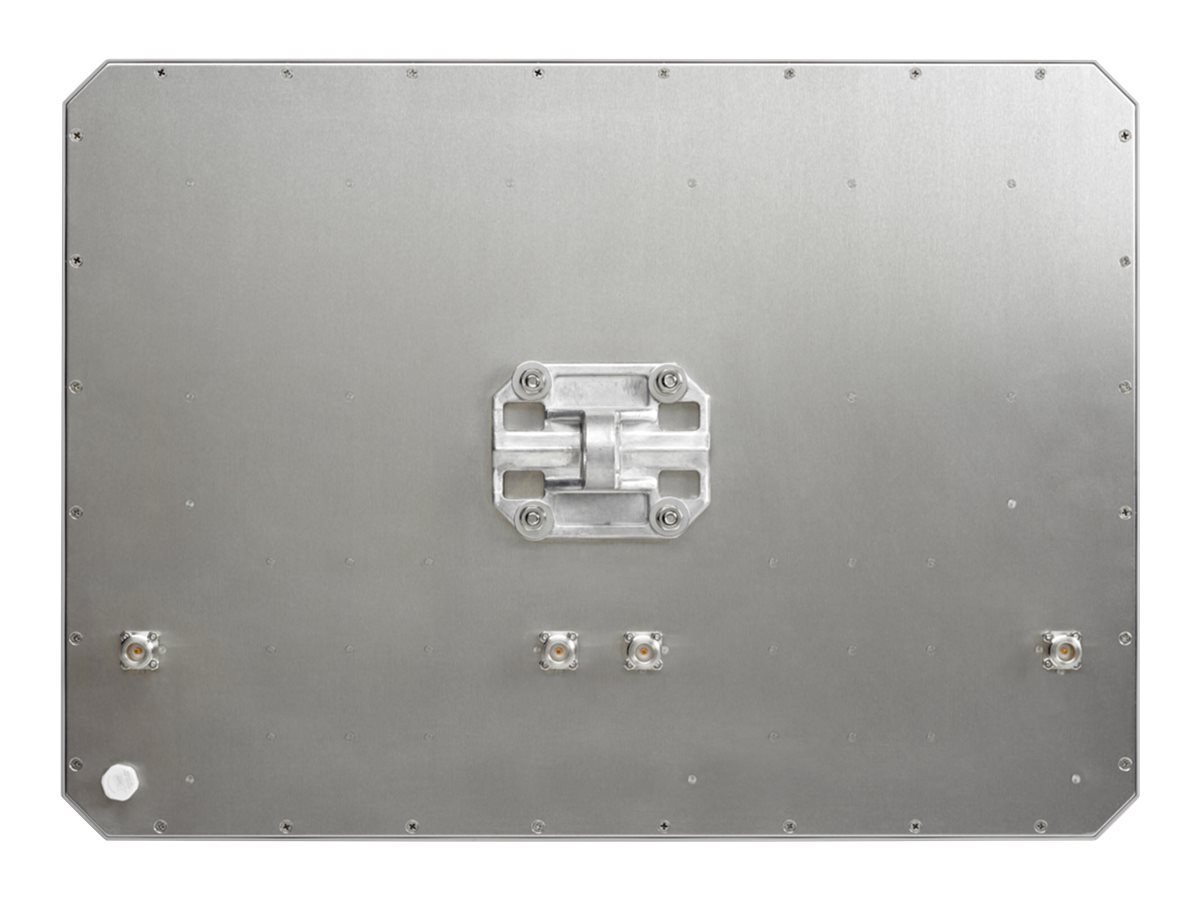

4 N-type connectors; no cable attachments - DIRECTED RADIATION PATTERN
Intended for deployment when directed coverage is required - PERFORMANCE
Designed for improved directional coverage - PEACE OF MIND
1-year limited hardware warranty
What’s in the Box
- What’s in the Box
- AIR-ANT2513P4M-N Antenna
Main Specifications
Product Description | Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna – antenna |
Product Type | Antenna |
Dimensions (WxDxH) | 50.7 cm x 36.8 cm x 2.11 cm |
Weight | 2.3 kg |
Intended For | Wi-Fi |
Aerial Placing / Mounting | Outdoor, ceiling mountable, wall-mountable, pole mount, indoor |
Compatibility | 802.11n |
Frequency Range | 2.4 – 2.5 GHz, 5.15 – 5.925 GHz |
Gain | 13 dBi |
Directivity | Directional |
Compliant Standards | IP67 |
Documents
Extended Specifications
General
Product Type | Antenna |
|---|---|
Width | 50.7 cm |
Depth | 36.8 cm |
Height | 2.11 cm |
Weight | 2.3 kg |
Aerial
Intended For | Wi-Fi |
|---|---|
Aerial Placing / Mounting | Outdoor, ceiling mountable, wall-mountable, pole mount, indoor |
Compatibility | 802.11n |
Frequency Range | 2.4 – 2.5 GHz, 5.15 – 5.925 GHz |
Gain | 13 dBi |
Directivity | Directional |
Voltage Standing Wave Ratio (VSWR) | 1.6:1 (for 2400-2500 MHz), 2.0:1 (for 5150-5700 MHz), 1.5:1 (for 5700-5900 MHz) |
Impedance | 50 ohm |
Cabling & Wiring
Connector Provided | 4 x N connector |
|---|
Miscellaneous
Mounting Kit | Included |
|---|---|
Compliant Standards | IP67 |
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|---|
Max Operating Temperature | 70 °C |
