Description

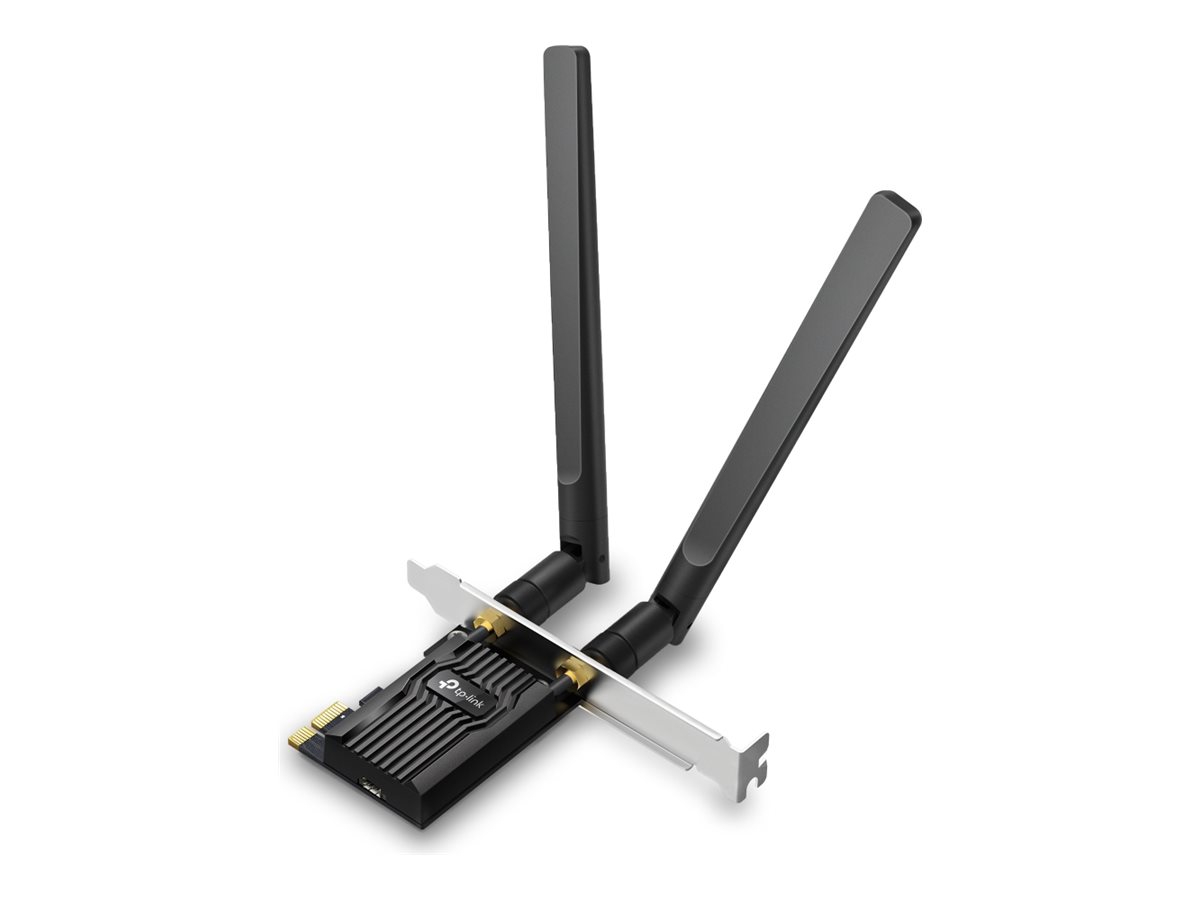

The TP-Link Archer TX10E V1 is a versatile network adapter designed to enhance wireless connectivity for any setup. With support for both dual band and Wi-Fi 6 technology, this adapter ensures high-speed data transfer rates up to 887 Mbps, suitable for streaming, gaming, and other bandwidth-intensive activities. The external dual antennas provide improved signal strength and coverage, allowing for reliable connections even in larger areas.
Equipped with convenient features such as MU-MIMO technology, the Archer TX10E V1 can handle multiple devices simultaneously, optimizing the network experience for everyone. It supports various encryption protocols, including WPA3, which ensures robust security for your network. Whether connecting to 2.4 GHz or 5 GHz bands, this plug-in card seamlessly adapts to your networking needs, making it an excellent choice for both home and office environments.
- Supports dual band connectivity for diverse networking needs
- High data transfer rate of 887 Mbps for efficient performance
- Features MU-MIMO technology for simultaneous device connections
- Compliant with multiple encryption standards for enhanced security
- External antennas improve signal strength and coverage
- Efficient performance
The Archer TX10E V1 offers a maximum throughput of 600 Mbps on the 5 GHz band and 287 Mbps on the 2.4 GHz band, ensuring smooth connectivity for various applications. - Enhanced coverage
Equipped with two external antennas, this adapter significantly boosts signal strength and range, providing reliable connections throughout larger spaces. - Advanced security options
With support for WPA2, WPA3, and various encryption algorithms, users can enjoy a secure networking environment while using this network adapter. - Seamless device management
MU-MIMO technology allows multiple devices to connect simultaneously without losing speed or performance, making it ideal for busy households or offices.
Main Specifications
Product Description | TP-Link Archer TX10E V1 – network adapter – PCIe |
Device Type | Network adapter |
Form Factor | Plug-in card – low profile |
Interface (Bus) Type | PCI Express x1 |
Dimensions (WxDxH) | 12.8 cm x 7.85 cm x 2.9 cm |
Data Link Protocol | Wi-Fi 5, Wi-Fi 6, Bluetooth 5.3 |
Data Transfer Rate | 887 Mbps |
Performance | Maximum throughput (2.4 GHz): 287 Mbps
Maximum throughput (5 GHz): 600 Mbps |
Frequency Band | 2.4 GHz, 5 GHz |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Bluetooth 5.3, Wi-Fi CERTIFIED 6 |
System Requirements | Microsoft Windows 10 / 11 |
Extended Specifications
General
Device Type | Network adapter |
|---|
Form Factor | Plug-in card – low profile |
|---|
Interface (Bus) Type | PCI Express x1 |
|---|
Networking
Connectivity Technology | Wireless |
|---|
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3 |
|---|
Wi-Fi Rating | AX900 |
|---|
Spread Spectrum Method | OFDMA |
|---|
Data Transfer Rate | 887 Mbps |
|---|
Performance | Maximum throughput (2.4 GHz): 287 Mbps
Maximum throughput (5 GHz): 600 Mbps |
|---|
Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 16 QAM, 1024 QAM, OFDM |
|---|
Frequency Band | 2.4 GHz, 5 GHz |
|---|
Features | MU-MIMO technology, dual band, client mode |
|---|
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Bluetooth 5.3, Wi-Fi CERTIFIED 6 |
|---|
Aerial
Antenna | External |
|---|
Antenna Qty | 2 |
|---|
Expansion / Connectivity
Miscellaneous
Included Accessories | Low-profile bracket, resource CD, 2 x Wi-Fi aerials |
|---|
Cables Included | 1 x Bluetooth header cable |
|---|
Encryption Algorithm | WEP, WPA, WPA2, WPA3, WPA3-Personal, WPA3-Enterprise, WPA-PSK, WPA2-PSK |
|---|
Compliant Standards | FCC, RoHS |
|---|
Software / System Requirements
OS Required | Microsoft Windows 10 / 11 |
|---|
Dimensions & Weight
Width | 12.8 cm |
|---|
Depth | 7.85 cm |
|---|
Height | 2.9 cm |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
