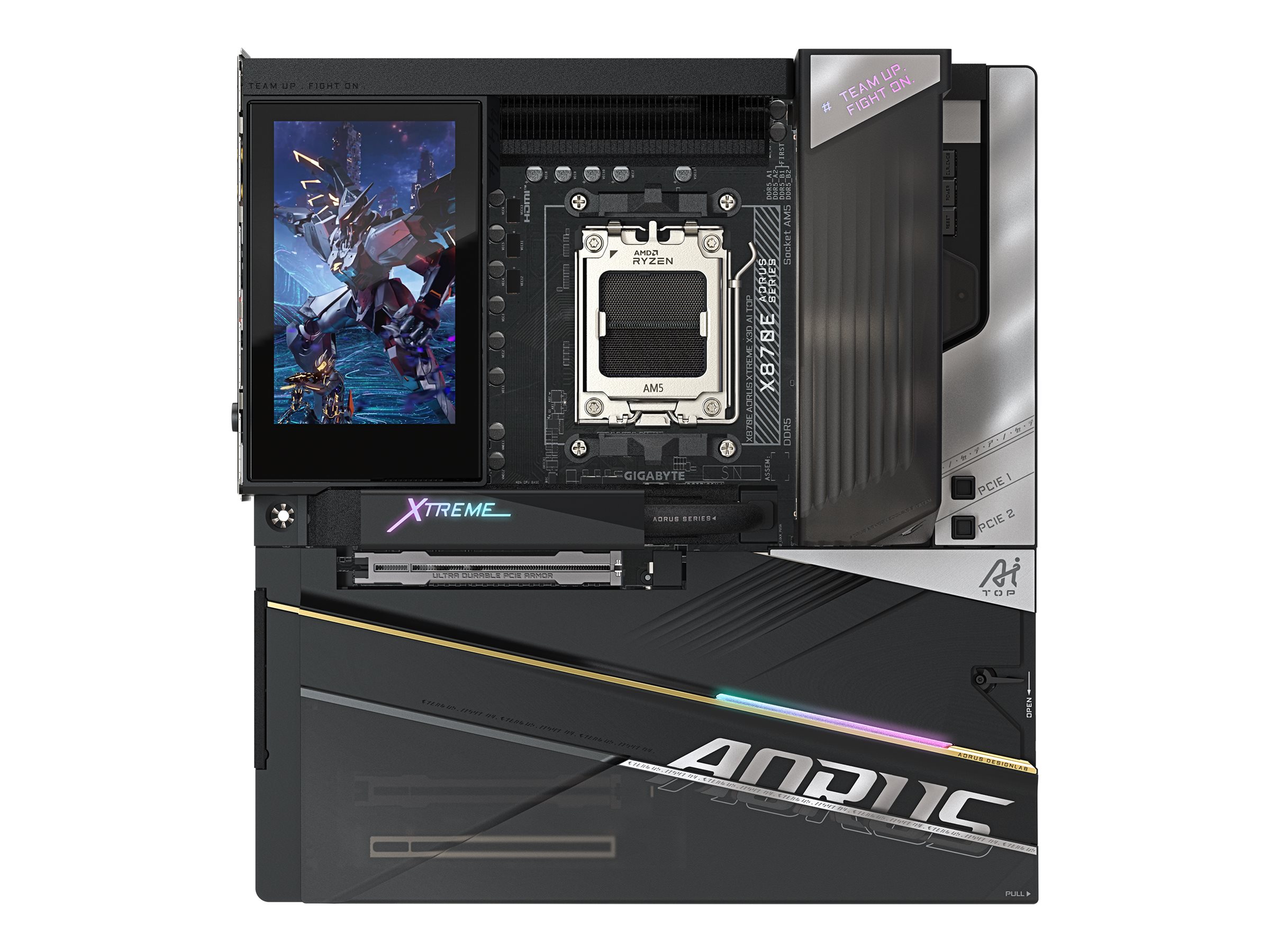

AORUS X870E XTREME X3D AI TOP, Motherboard, extended ATX, Socket AM5, AMD X870E Chipset, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4, USB-C 3.2 Gen2, 2 x 10 Gigabit LAN, Wi-Fi 7, Bluetooth, onboard graphics (CPU required), HD Audio (8-channel)
$2,241.15 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The GIGABYTE AORUS X870E XTREME X3D AI motherboard is engineered for high-performance computing, offering robust support for the Ryzen 7000/8000/9000 Series processors. With its extended ATX form factor, this motherboard provides ample space for advanced cooling solutions and expansion possibilities. The motherboard’s power design includes a 24+2+2 phase power configuration and multiple connectors, ensuring stable operations even under heavy loads. Equipped with features such as AI Overclocking and RGB FUSION, it integrates performance with aesthetics, allowing customizable lighting options to enhance your build’s visual appeal.
Incorporating high-definition audio through the ESS ES9280AC codec, users can enjoy 8-channel surround sound for an immersive audio experience. The motherboard’s expansive connectivity options include multiple USB ports – ranging from USB 4 to USB 3.2 Gen 2×2 – ensuring seamless data transfer and device connection. Storage needs are met with a versatile array of interfaces, including SATA and M.2 slots, which support RAID configurations for enhanced performance and data redundancy. The GIGABYTE AORUS X870E XTREME X3D AI is engineered for users aiming to build a powerful and future-proof system.
- Supports Ryzen 7000/8000/9000 Series processors
- High-definition audio with ESS ES9280AC codec
- Multiple USB connectivity options including USB 4
- Advanced power design with 24+2+2 phase power
- Customizable RGB lighting with RGB FUSION
- Robust power design
The motherboard features a 24+2+2 phase power design, providing consistent power delivery for stable performance during intense tasks. - Extensive connectivity options
Equipped with 8 USB ports, including USB 4 and USB 3.2 Gen 2×2, this motherboard facilitates high-speed data transfers and supports various devices. - Advanced audio capabilities
The ESS ES9280AC audio codec supports high-definition audio and enables an immersive 8-channel sound setup, enhancing the audio experience. - Efficient thermal management
Designed with features like M.2 Thermal Guard Extreme and an 8-layer PCB for effective heat dissipation, ensuring operational stability. - Versatile storage support
Offers multiple M.2 and SATA ports, supporting RAID configurations for improved performance and data reliability.
Main Specifications
Product Description | AORUS X870E XTREME X3D AI TOP – motherboard – extended ATX – Socket AM5 – AMD X870E |
Product Type | Motherboard – extended ATX |
Chipset Type | AMD X870E |
Processor Socket | 1 x Socket AM5 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Max RAM Size | 256 GB |
RAM Supported | 4 DIMM slots – DDR5, non-ECC, unbuffered |
Storage Ports | 2 x SATA-600 (RAID), 5 x M.2 |
USB / FireWire Ports | 2 x USB4 + 1 x USB-C 3.2 Gen 2×2 + 1 x USB-C 3.2 Gen 2 + 8 x USB 3.2 Gen 2 + (1 x USB-C 3.2 Gen 2×2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 2 x 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Extended Specifications
General
Product Type | Motherboard – extended ATX |
|---|---|
Chipset Type | AMD X870E |
Processor Socket | Socket AM5 |
Max Processors Qty | 1 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Supported RAM
Max Size | 256 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 9000 MT/s (O.C.), 8800 MT/s (O.C.), 8600 MT/s (O.C.), 8400 MT/s (O.C.), 8200 MT/s (O.C.), 8000 MT/s (O.C.), 7800 MT/s (O.C.), 7600 MT/s (O.C.), 7200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6600 MT/s (O.C.), 6400 MT/s (O.C.), 6200 MT/s (O.C.), 6000 MT/s (O.C.), 5600 MT/s (O.C.), 5200 MT/s, 4800 MT/s, 4400 MT/s |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
Audio
Type | HD Audio (8-channel) |
|---|---|
Audio Codec | ESS ES9280AC |
Compliant Standards | High Definition Audio, DTS Sound Unbound, DTS:X Ultra |
LAN
Network Controller | Mediatek MT7927 / RZ738 |
|---|---|
Network Interfaces | 2 x 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Expansion / Connectivity
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2280/2580 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot) 3 x M.2 socket (2280/22110 M.2 Key M slot) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA – RAID 0 / RAID 1 PCIe 4.0 -connectors: 3 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Interfaces | 2 x USB4 8 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 1 x USB-C 3.2 Gen2x2 2 x aerial 2 x LAN (10Gigabit Ethernet) 1 x audio line-out – mini-jack 1 x microphone – mini-jack 1 x SPDIF out 1 x HDMI |
Internal Interfaces | 1 x USB-C 3.2 Gen 2×2 – header 4 x USB 3.2 Gen 1 – header 4 x USB 2.0 – header 1 x USB-C 3.2 Gen 2 – header |
Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection |
Hardware Features | Q-Flash, Q-Flash Plus, power button, reset button, Clear CMOS Button, OC Ignition button, Q-Flash Plus button, DIY Friendly Design, M.2 EZ Flex Design, M.2 Thermal Guard Extreme, X3D Turbo Mode 2.0, PCIe EZ Latch Plus Duo, 24+2+2 Phase Power Design, LCD Edge View, 2x Copper PCB, 8 Layer PCB, AI Overclocking, AORUS AI SNATCH, DDR Wind Blade XTREME, GIGABYTE Smart Fan 6, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 EZ Match, M.2 Thermal Guard Ext., Matte Black PCB, metal backplate, Premium Power Choke, RGB FUSION, Ultra Durable, Ultra Durable PCIe Armor, VRM Thermal Armor Advanced, WIFI EZ Plug |
Miscellaneous
Included Accessories | Wi-Fi aerial, 2 x fan extension power cables, ARGB extension cable, fan extension power cable, front panel extension cable, USB and fan extension cable, 2 thermistor cables, cable ties, ESSential USB DAC, G-Connector, DDR Wind Blade Xtreme, CPU Thermal Matrix, M.2 Thermal Guard Xtreme, AORUS 3-in-1 multifunction bottle opener, AORUS MiiR double-wall insulated tumbler |
|---|---|
Cables Included | 2 x Serial ATA cable |
Software Included | GIGABYTE Smart Backup, Norton Internet Security (OEM Version), HWiNFO, GIGABYTE Control Center |
Compliant Standards | HDCP 2.3, DisplayPort 1.4 |
Width | 30.5 cm |
Depth | 28.5 cm |
