AORUS X870E ELITE X3D ICE, Motherboard, ATX, Socket AM5, AMD X870E Chipset, USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet, onboard graphics (CPU required), HD Audio (8-channel)
$799.25 inc GST
✓ In Stock - 9 available
✓ Free NZ Delivery
9 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description

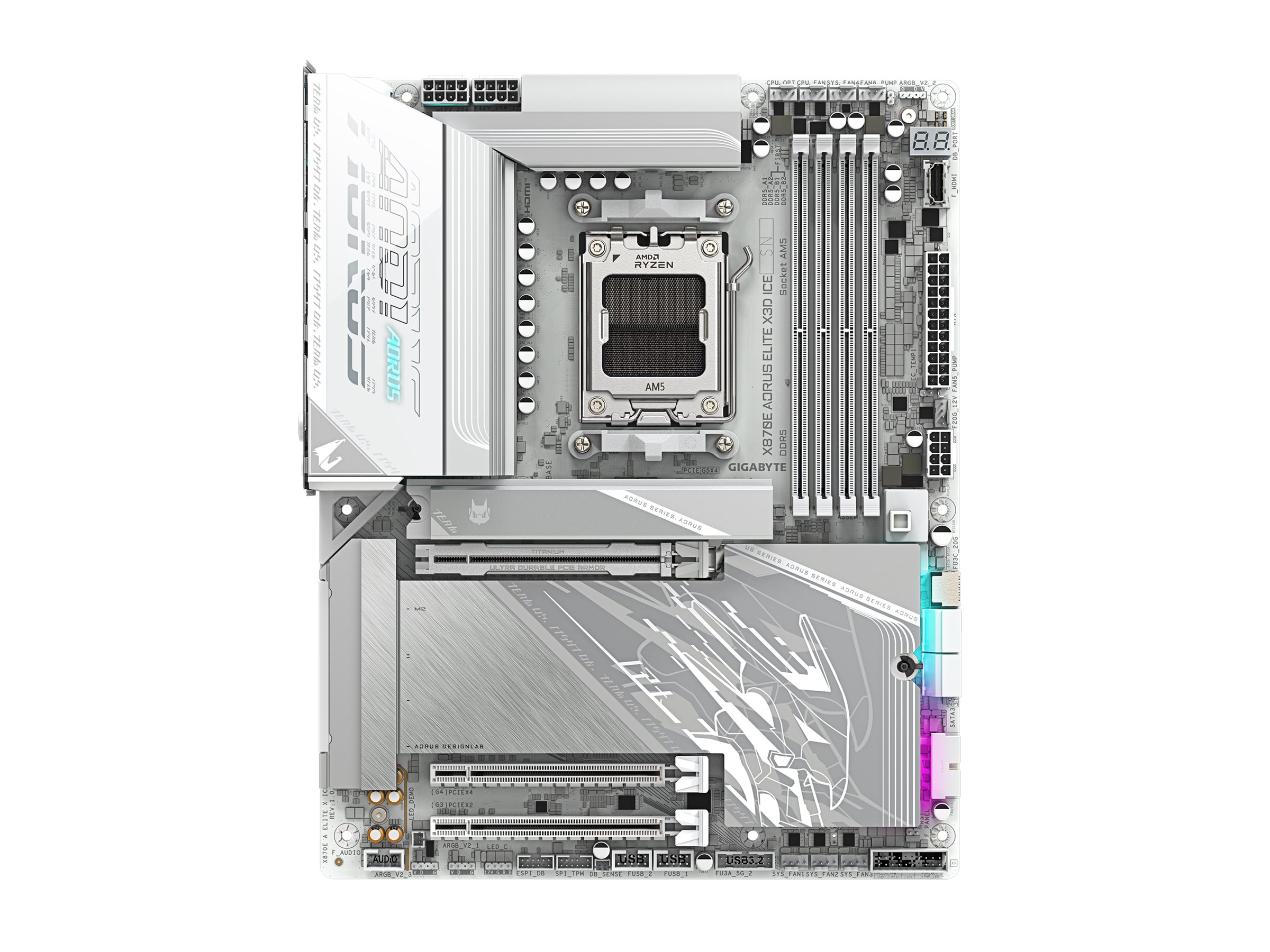

The GIGABYTE AORUS X870E ELITE X3D ICE motherboard is engineered for gamers and creators seeking refined performance and connectivity. This ATX motherboard supports the Ryzen 7000/8000/9000 Series processors with a Socket AM5, ensuring compatibility with advanced hardware setups. Featuring a robust AMD X870E chipset and support for up to 4 DIMM slots with DDR5 SDRAM, it delivers memory speed capabilities from 4800 MT/s up to 9000 MT/s when overclocked.
- Supports DDR5 RAM for higher data transfer speeds
- Equipped with high-definition audio for an immersive sound experience
- Includes multiple USB interfaces for versatile connectivity
- Features advanced thermal solutions to maintain optimal performance
- Designed with RGB FUSION for customizable lighting effects
- Robust connectivity options
The motherboard includes five USB 3.2 Gen 2 ports, three USB 3.2 Gen 1 ports, and additional USB-C connections to ensure users have a wide array of options for peripheral connections. - Advanced thermal management
With features like M.2 Thermal Guard and a VRM thermal armor design, this motherboard offers effective heat dissipation, ensuring reliability even during high-performance tasks. - Enhanced audio experience
Equipped with a Realtek ALC1220 audio codec, the motherboard supports high-definition audio quality across eight channels, providing a rich audio experience for gaming and media consumption. - Flexible storage options
The AORUS X870E ELITE X3D ICE supports multiple storage configurations with 4 x SATA-600 (RAID) and 4 x M.2 storage ports, allowing for expansive and customizable storage setups. - Robust build quality
Constructed with a durable 8-layer PCB and a metal backplate, this motherboard is built to withstand the demands of rigorous use, ensuring stability.
Main Specifications
Product Description | AORUS X870E ELITE X3D ICE – motherboard – ATX – Socket AM5 – AMD X870E |
Product Type | Motherboard – ATX |
Chipset Type | AMD X870E |
Processor Socket | 1 x Socket AM5 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Max RAM Size | 256 GB |
RAM Supported | 4 DIMM slots – DDR5, non-ECC, unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 4 x M.2 |
USB / FireWire Ports | 2 x USB4 + 1 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2×2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
Extended Specifications
General
Product Type | Motherboard – ATX |
|---|---|
Chipset Type | AMD X870E |
Processor Socket | Socket AM5 |
Max Processors Qty | 1 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Supported RAM
Max Size | 256 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 9000 MT/s (O.C.), 8800 MT/s (O.C.), 8600 MT/s (O.C.), 8400 MT/s (O.C.), 8200 MT/s (O.C.), 8000 MT/s (O.C.), 7800 MT/s (O.C.), 7600 MT/s (O.C.), 7200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6600 MT/s (O.C.), 6400 MT/s (O.C.), 6200 MT/s (O.C.), 6000 MT/s (O.C.), 5600 MT/s (O.C.), 5200 MT/s, 4800 MT/s |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
Audio
Type | HD Audio (8-channel) |
|---|---|
Audio Codec | Realtek ALC1220 |
Compliant Standards | High Definition Audio |
LAN
Network Controller | Qualcomm QCNCM865 |
|---|---|
Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
Expansion / Connectivity
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x2 mode) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 2 x M.2 socket (2280/22110 M.2 Key M slot) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 5 x 7pin SATA – RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Interfaces | 2 x USB4 5 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 1 x USB-C 3.2 Gen 2 2 x aerial 1 x LAN (5Gigabit Ethernet) 1 x audio line-out – mini-jack 1 x microphone – mini-jack 1 x SPDIF out 1 x HDMI 1 x HDMI (internal) |
Internal Interfaces | 1 x USB-C 3.2 Gen 2×2 – header 4 x USB 3.2 Gen 1 – header 4 x USB 2.0 – header 1 x audio – header 1 x SPI – header |
Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection |
Hardware Features | Q-Flash, Q-Flash Plus, DIY Friendly Design, M.2 EZ Flex Design, 16+2+2 Phase Power Design, 2x Copper PCB, 8 Layer PCB, metal backplate, VRM Thermal Armor Advanced, pre-mounted I/O shield, M.2 Thermal Guard L, M.2 Thermal Guard Ext., RGB FUSION, AI Overclocking, AORUS AI SNATCH, Clear CMOS Button, Debug LED, GIGABYTE Smart Fan 6, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 EZ Match, PCIe EZ Latch Plus, power button, Q-Flash Plus button, Ultra Durable, VRM heatsink design, WIFI EZ Plug, X3D Turbo Mode 2.0 |
Miscellaneous
Included Accessories | Wi-Fi aerial, G-Connector, 2 x thermal pads for M.2 SSD thick/thin |
|---|---|
Cables Included | 2 x Serial ATA cable |
Software Included | GIGABYTE Smart Backup, Norton Internet Security (OEM Version), HWiNFO, GIGABYTE Control Center |
Compliant Standards | HDCP 2.3, DisplayPort 1.4 |
Width | 30.5 cm |
Depth | 24.4 cm |
