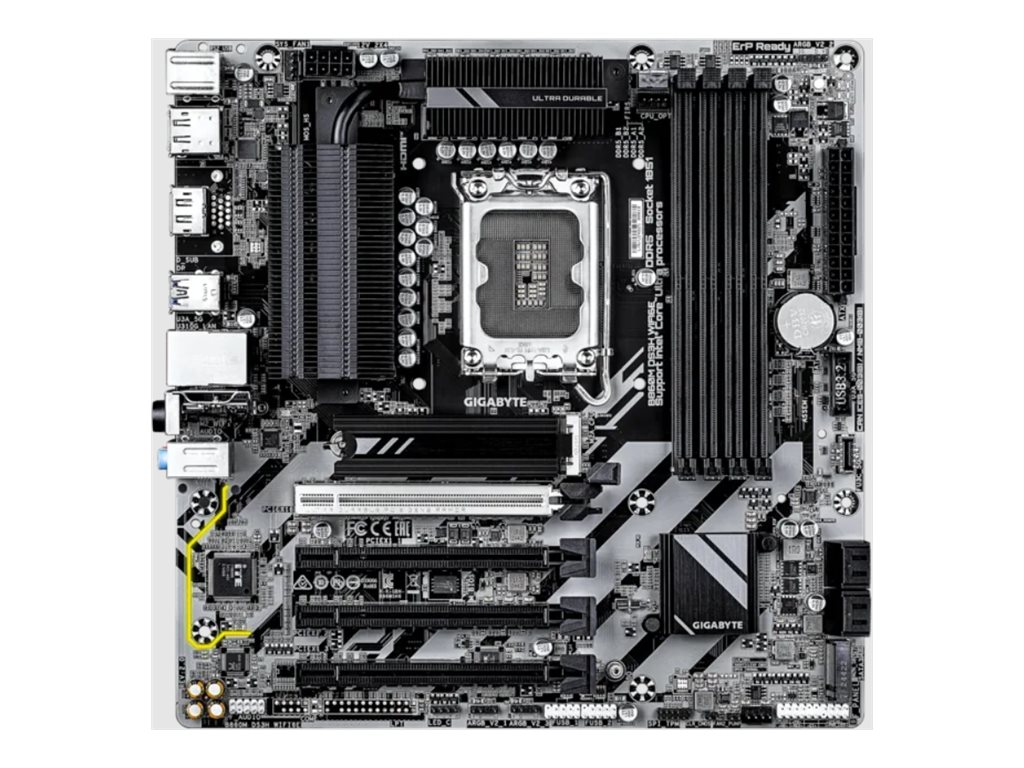

Gigabyte B860M DS3H WIFI6E, 2.0, motherboard, micro ATX, LGA1851 Socket, B860M Chipset, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, Bluetooth, Wi-Fi 6E, 2.5 Gigabit LAN, onboard graphics (CPU required), HD Audio (8-channel)
$278.06 inc GST
✓ In Stock - 30 available
✓ Free NZ Delivery
30 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The GIGABYTE B860M DS3H WIFI6E motherboard combines essential features designed for performance and reliability. It comes with an Intel B860M chipset and supports Intel Core Ultra processors, ensuring efficient processing power. With a micro ATX form factor, this motherboard features four DIMM slots capable of supporting DDR5 RAM up to 4400 MHz, allowing for an efficient multitasking environment. The inclusion of multiple expansion slots ensures flexibility for adding additional components and graphics cards. Users can enjoy high-definition audio through its 8-channel sound card, providing an immersive audio experience.
- Supports Intel Core Ultra processors
- Up to 4400 MHz DDR5 RAM support
- Features 8-channel high definition audio
- Wide array of connectivity options including USB 3.2 Gen 2 and HDMI
- Integrated 2.5 Gigabit Ethernet and Wi-Fi 6E
- Flexible expansion options
With three PCIe slots and a dedicated M.2 socket, this motherboard allows for versatile upgrades and enhancements based on evolving needs. - High performance networking
Equipped with 2.5 Gigabit Ethernet and support for Wi-Fi 6E, users can experience faster and more reliable Internet connectivity, ideal for both gaming and streaming. - Comprehensive audio capabilities
Features a high definition audio output that ensures rich, immersive sound quality, making it suitable for music and gaming applications. - Robust hardware monitoring
The built-in hardware monitoring features include system voltage, temperature detection, and fan control to help keep your system running efficiently. - User-friendly design
Designed with ease of installation in mind, featuring a DIY-friendly layout along with PCIe EZ Latch and Wi-Fi EZ-Plug for simplified components installation.
Main Specifications
Product Description | Gigabyte B860M DS3H WIFI6E – 2.0 – motherboard – micro ATX – LGA1851 Socket – B860M |
Product Type | Motherboard – micro ATX |
Chipset Type | Intel B860M |
Processor Socket | 1 x LGA1851 Socket |
Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
Max RAM Size | 256 GB |
RAM Supported | 4 DIMM slots – DDR5, non-ECC, ECC (operate in non-ECC mode), unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
USB / FireWire Ports | 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 3 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet |
Extended Specifications
General
Product Type | Motherboard – micro ATX |
|---|---|
Chipset Type | Intel B860M |
Processor Socket | LGA1851 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
Supported RAM
Max Size | 256 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 9066 MT/s (O.C.), 8800 MT/s (O.C.), 8600 MT/s (O.C.), 8400 MT/s (O.C.), 8266 MT/s (O.C.), 8200 MT/s (O.C.), 8000 MT/s (O.C.), 7950 MT/s (O.C.), 7900 MT/s (O.C.), 7800 MT/s (O.C.), 7600 MT/s (O.C.), 7400 MT/s (O.C.), 7200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6600 MT/s (O.C.), 6400 MT/s, 5600 MT/s |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
Registered or Buffered | Unbuffered |
Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
Audio
Type | HD Audio (8-channel) |
|---|---|
Compliant Standards | High Definition Audio |
LAN
Network Controller | Intel AX211 |
|---|---|
Network Interfaces | Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet |
Expansion / Connectivity
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 3 x PCIe 4.0 x1 2 x M.2 socket (2280 M.2 Key M slot) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 PCIe 5.0 -connectors: 1 x M.2 |
Interfaces | 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 3 x USB 2.0 1 x PS/2 keyboard / mouse 2 x DisplayPort 1 x HDMI 2 x aerial 1 x audio line-in – mini-jack 1 x audio line-out – mini-jack 1 x microphone – mini-jack 1 x LAN (2.5Gigabit Ethernet) |
Internal Interfaces | 1 x USB-C 3.2 Gen 1 – header 2 x USB 3.2 Gen 1 – header 4 x USB 2.0 – header 1 x audio – header 1 x SPI – header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
Hardware Features | 5+1+2 Hybrid Phase Power Design, AI Perfdrive, WIFI EZ-Plug, PCIe EZ Latch, DIY Friendly Design, Q-Flash Plus button, M.2 EZ Latch plus |
Miscellaneous
Included Accessories | Wi-Fi aerial, M.2 screw package, rubber pad |
|---|---|
Cables Included | 2 x Serial ATA cable |
Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
Compliant Standards | DisplayPort 2.1, HDCP 2.3 |
Width | 24.4 cm |
Depth | 24.4 cm |
Additional information
| Manufacturer | |
|---|---|
| Case/Motherboard Form Factor | |
| Compatible Socket |
