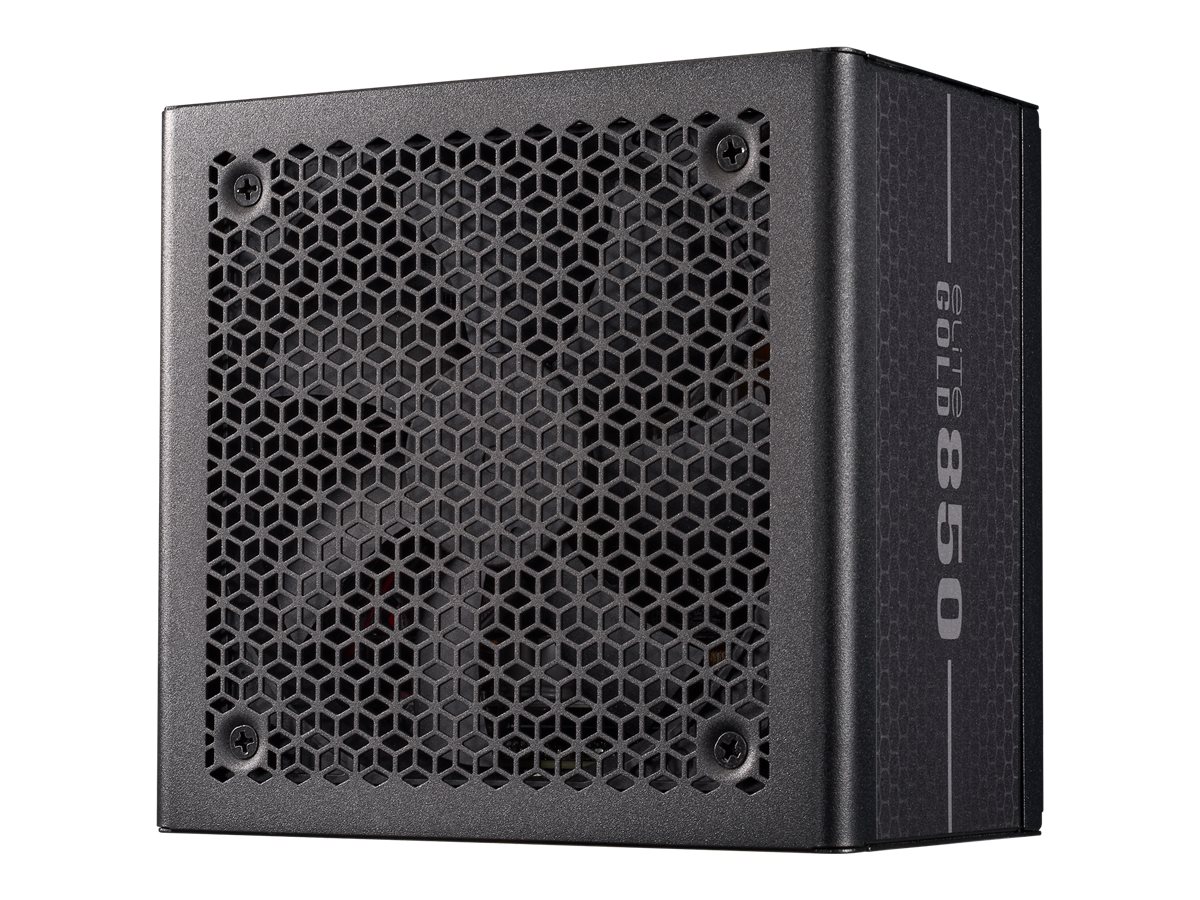

Cooler Master Elite Series Gold 850, Power supply (internal), ATX12V 3.1/ EPS12V, 80 PLUS Gold, AC 100-240 V, 850 Watt, active PFC
$180.57 inc GST
✓ In Stock - 30 available
✓ Free NZ Delivery
30 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The Cooler Master Elite Series Gold 850 power supply offers reliable performance and efficiency for PC and server setups. With a power output of 850 watts and an 80 PLUS Gold certification, this power supply ensures that your system runs smoothly while minimizing energy costs. Equipped with fully modular cable management, it allows for a clean and organized build while providing essential protection features including overvoltage, undervoltage, overpower, overheat, and short-circuit protection.
Featuring a robust internal design, it utilizes a 120 mm rifle bearing cooling fan for effective heat dissipation, ensuring stable operation even under heavy workloads. The Gold 850 power supply is compliant with multiple standards such as cTUVus, FCC, and RoHS, making it a suitable choice for environmentally conscious users. With a mean time between failures (MTBF) of 100,000 hours and versatile compatibility for various PC components, this power supply provides a dependable solution for powering demanding systems.
- 80 PLUS Gold certification for energy efficiency
- Fully modular design for easy cable management
- Robust protection features for enhanced safety
- Rifle bearing cooling fan for effective thermal management
- Compatible with PC and server setups
- Efficient power output
The power supply delivers a maximum power output of 850 watts, suitable for a wide range of PC and server applications. - Comprehensive modular cabling
This unit includes various modular cables, ensuring flexibility and ease in system configuration while reducing cable clutter. - Advanced cooling technology
A 120 mm rifle bearing fan provides optimal airflow and cooling, enhancing performance and longevity. - Multiple protection systems
Built-in protections against overvoltage, undervoltage, overpower, and overheat ensure safe operation and component longevity. - Durable design and compliance
Designed for reliability with an MTBF of 100,000 hours and compliance with various safety standards, supporting high-quality performance.
Main Specifications
Product Description | Cooler Master Elite Series Gold 850 – power supply – 850 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V |
80 PLUS Certification | 80 PLUS Gold |
Weight | 2 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 70.8 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 1 x 8 pin PCI Express power with detachable 2 pin section 2 x 2 x 8 pin PCI Express power with detachable 2 pin section 2 x 4 PIN internal power 4 x 15 pin Serial ATA power |
Modular Cable Management | Yes |
Cooling System | 120 mm fan |
Dimensions (WxDxH) | 15 cm x 15 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V |
PSU Form Factor | ATX |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 1 x 8 pin PCI Express power with detachable 2 pin section 2 x 2 x 8 pin PCI Express power with detachable 2 pin section 2 x 4 PIN internal power 4 x 15 pin Serial ATA power |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 70.8 A -12V – 0.3 A +5VSB – 3 A |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
Cables Included | AC power cable Power 24 pin ATX with detachable 4 pin section modular cable 55 cm Power 8 pin +12V with detachable 4 pin section modular cable 60 cm Power 8 pin EPS12V modular cable 60 cm 4 x power 15 pin SATA cable / 4 pin internal power cable modular cable 64 cm 2x 8 pin PCI Express power with detachable 2 pin section modular cable 62 cm 8 pin PCI Express power with detachable 2 pin section modular cable 50 cm 16-pin 12VHPWR power modular cable 65 cm |
|---|---|
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Rifle bearing cooling fan, fully modular, undervoltage protection, over voltage protection, overpower protection, overheat protection, short-circuit protection |
Compliant Standards | cTUVus, CB, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS 2.0, ErP Lot 3 2014 Ready |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 15 cm |
Height | 8.6 cm |
Weight | 2 kg |
Dimensions & Weight (Shipping)
Shipping Width | 20 cm |
|---|---|
Shipping Depth | 33 cm |
Shipping Height | 10.3 cm |
Shipping Weight | 2.53 kg |
