Description

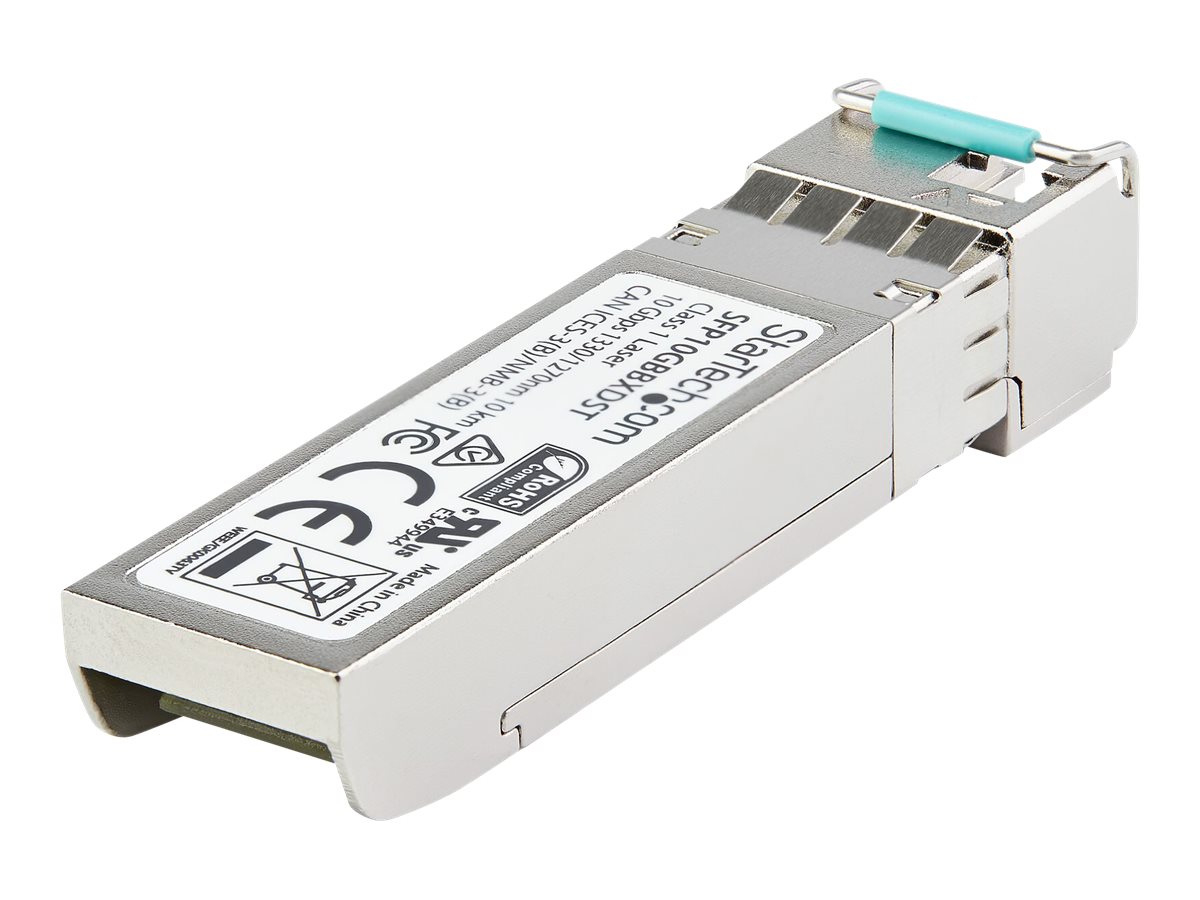

The SFP10GBX40DS is a Dell EMC SFP-10G-BX40-D compatible downstream fiber SFP transceiver which pairs with StarTech.com’s SFP10GBX40US. They are designed, programmed and tested to work with 10GBase-BX40 compatible Dell EMC switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Main Specifications
Product Description | Startech Dell EMC SFP-10G-BX40-D Compatible SFP+ Module, 10GBASE-BX-D, 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+, LC 40km, Mini GBIC Transceiver SFP+ Module – Lifetime Warranty (SFP10GBX40DS) – SFP+ transceiver module – 10GbE |
Device Type | SFP+ transceiver module – LC single-mode |
Form Factor | Plug-in module |
Cabling Type | 10GBase-BX40-D |
Data Transfer Rate | 10 Gbps |
Optical Wave Length | 1270 nm / 1330 nm |
Data Link Protocol | 10GbE |
Max Transfer Distance | 40 km |
OEM Manufacturer Equivalent Part Number | Dell EMC SFP-10G-BX40-D |
Dimensions (WxDxH) | 5.84 cm x 1.39 cm x 1.26 cm |
Weight | 30 g |
Extended Specifications
General
Device Type | SFP+ transceiver module |
|---|
Form Factor | Plug-in module |
|---|
Networking
Connectivity Technology | Wired |
|---|
Cabling Type | 10GBase-BX40-D |
|---|
Data Link Protocol | 10GbE |
|---|
Data Transfer Rate | 10 Gbps |
|---|
Optical Wave Length | 1270 nm / 1330 nm |
|---|
Max Transfer Distance | 40 km |
|---|
Features | Full duplex mode, Digital Diagnostics Monitoring (DDM) |
|---|
Expansion / Connectivity

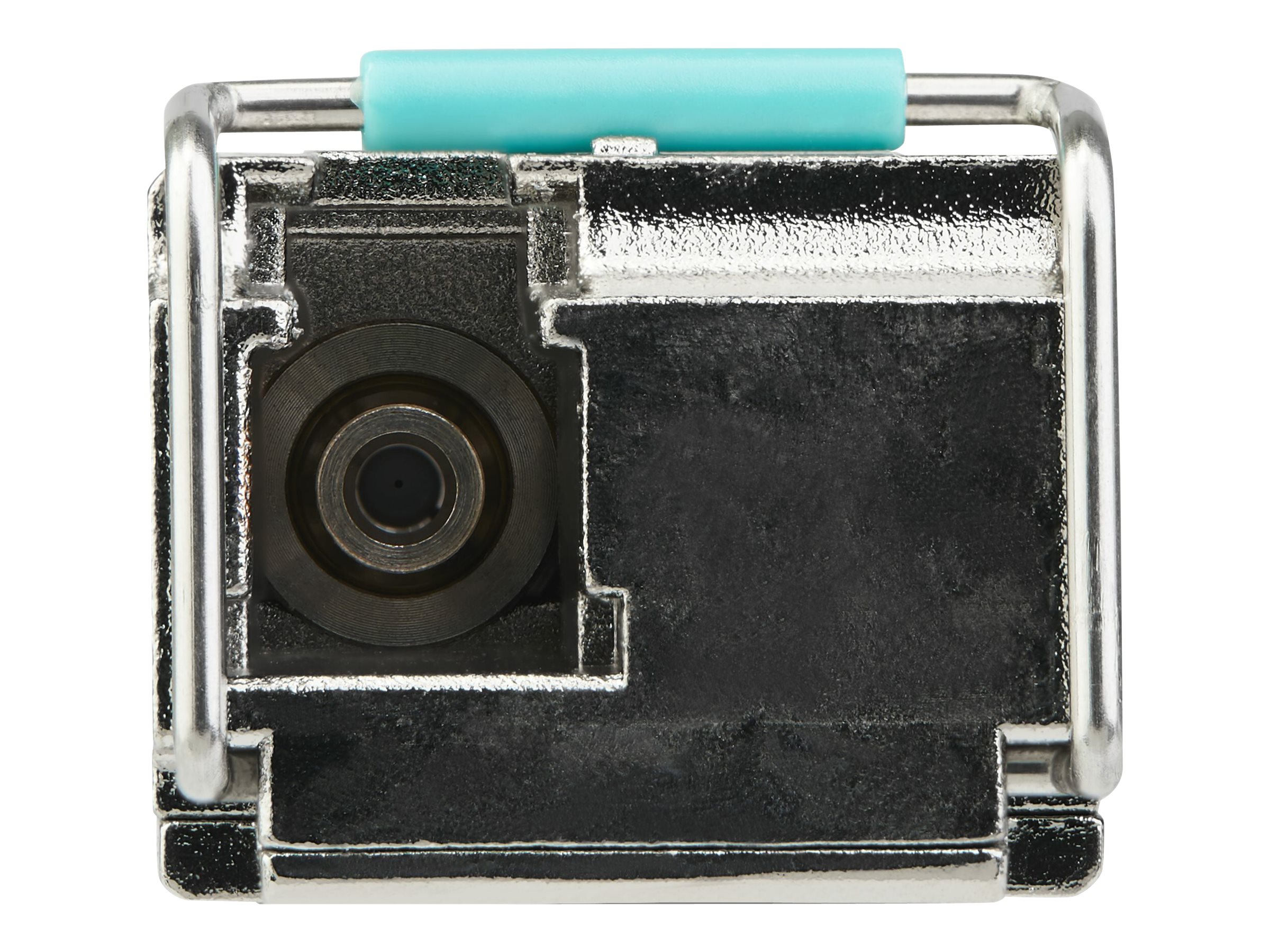

Interfaces | 1 x Ethernet 10GBase-BX40-D – LC single-mode female |
|---|
Miscellaneous
MTBF | 3,736,187 hours |
|---|
Compliant Standards | UL, FCC, MSA |
|---|
OEM Manufacturer Equivalent Part Number | Dell EMC SFP-10G-BX40-D |
|---|
Power
Power Consumption Operational | 1.6 Watt |
|---|
Dimensions & Weight
Width | 5.84 cm |
|---|
Depth | 1.39 cm |
|---|
Height | 1.26 cm |
|---|
Weight | 30 g |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 9 cm |
|---|
Shipping Depth | 11.5 cm |
|---|
Shipping Height | 3.1 cm |
|---|
Shipping Weight | 50 g |
|---|
