Description

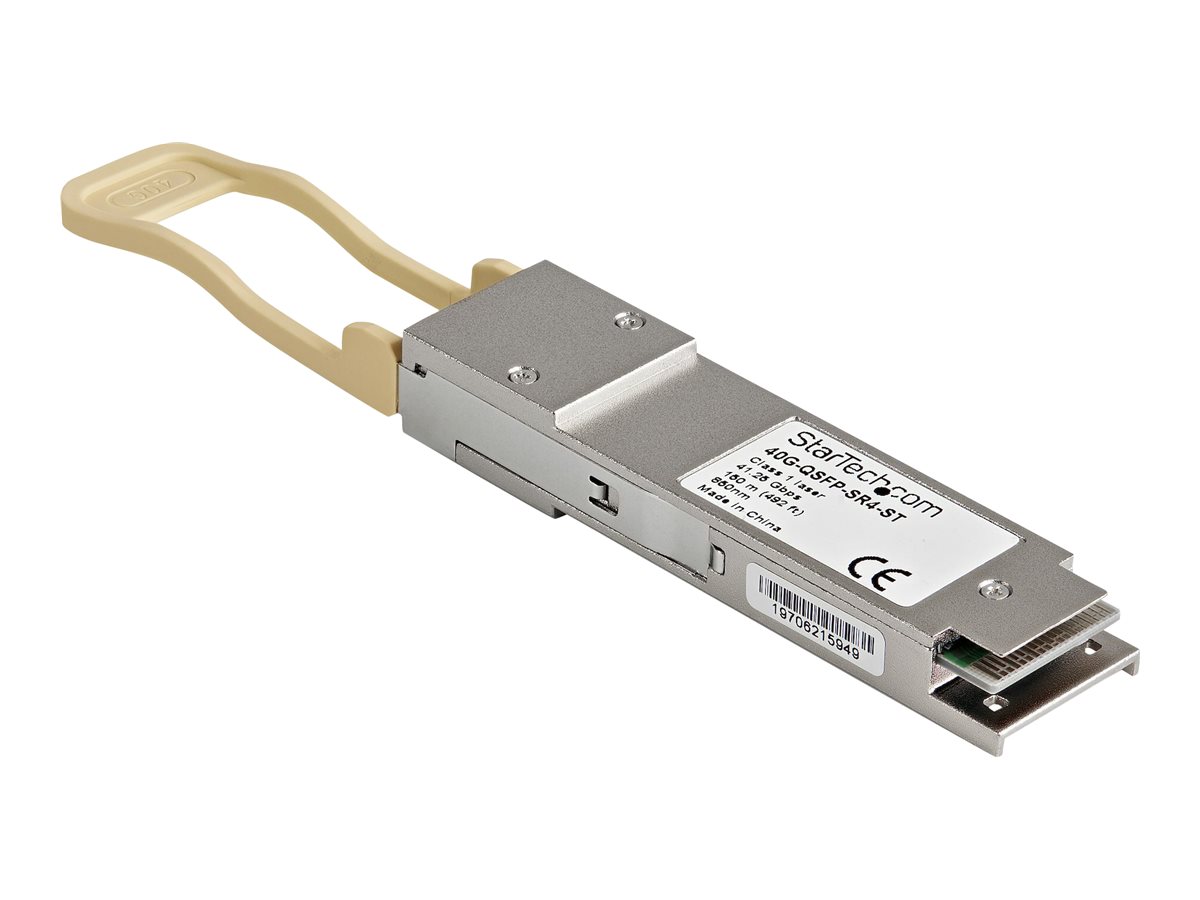

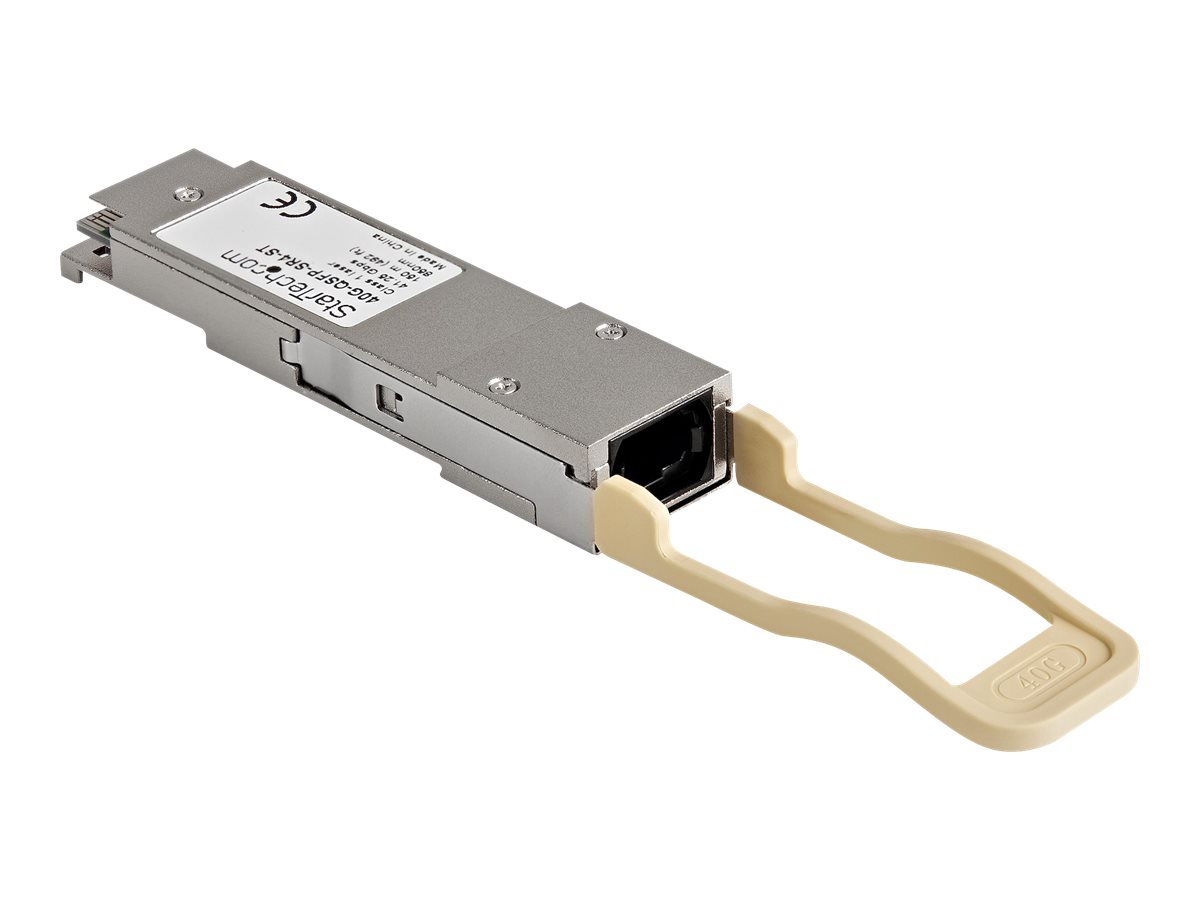

The 40G-QSFP-SR4-ST is a Brocade 40G-QSFP-SR4compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft.).
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Main Specifications
Product Description | Startech Brocade 40G-QSFP-SR4 Compatible QSFP+ Module, 40GBASE-SR4, 40GbE Multimode Fiber MMF Optic Transceiver, 40GE Gigabit Ethernet QSFP+, MPO Connector, 150m, 850nm, DDM, Mini GBIC – Lifetime Warranty (40G-QSFP-SR4-ST) – QSFP+ transceiver module – 40GbE |
Device Type | QSFP+ transceiver module – MPO multi-mode |
Form Factor | Plug-in module |
Cabling Type | 40GBASE-SR4 |
Data Transfer Rate | 40 Gbps |
Optical Wave Length | 850 nm |
Data Link Protocol | 40GbE |
Max Transfer Distance | 150 m |
OEM Manufacturer Equivalent Part Number | Brocade 40G-QSFP-SR4 |
Dimensions (WxDxH) | 12.2 cm x 1.86 cm x 0.85 cm |
Weight | 37.5 g |
Extended Specifications
General
Device Type | QSFP+ transceiver module |
|---|
Form Factor | Plug-in module |
|---|
Networking
Connectivity Technology | Wired |
|---|
Cabling Type | 40GBASE-SR4 |
|---|
Data Link Protocol | 40GbE |
|---|
Data Transfer Rate | 40 Gbps |
|---|
Optical Wave Length | 850 nm |
|---|
Max Transfer Distance | 150 m |
|---|
Features | Digital Diagnostics Monitoring (DDM) |
|---|
Expansion / Connectivity
Interfaces | 1 x Ethernet 40GBASE-SR4 – MPO multi-mode female |
|---|
Miscellaneous
MTBF | 244,610,583 hours |
|---|
Compliant Standards | FCC, MSA |
|---|
OEM Manufacturer Equivalent Part Number | Brocade 40G-QSFP-SR4 |
|---|
Dimensions & Weight
Width | 12.2 cm |
|---|
Depth | 1.86 cm |
|---|
Height | 0.85 cm |
|---|
Weight | 37.5 g |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 9 cm |
|---|
Shipping Depth | 11.5 cm |
|---|
Shipping Height | 3.1 cm |
|---|
Shipping Weight | 50 g |
|---|
