Description

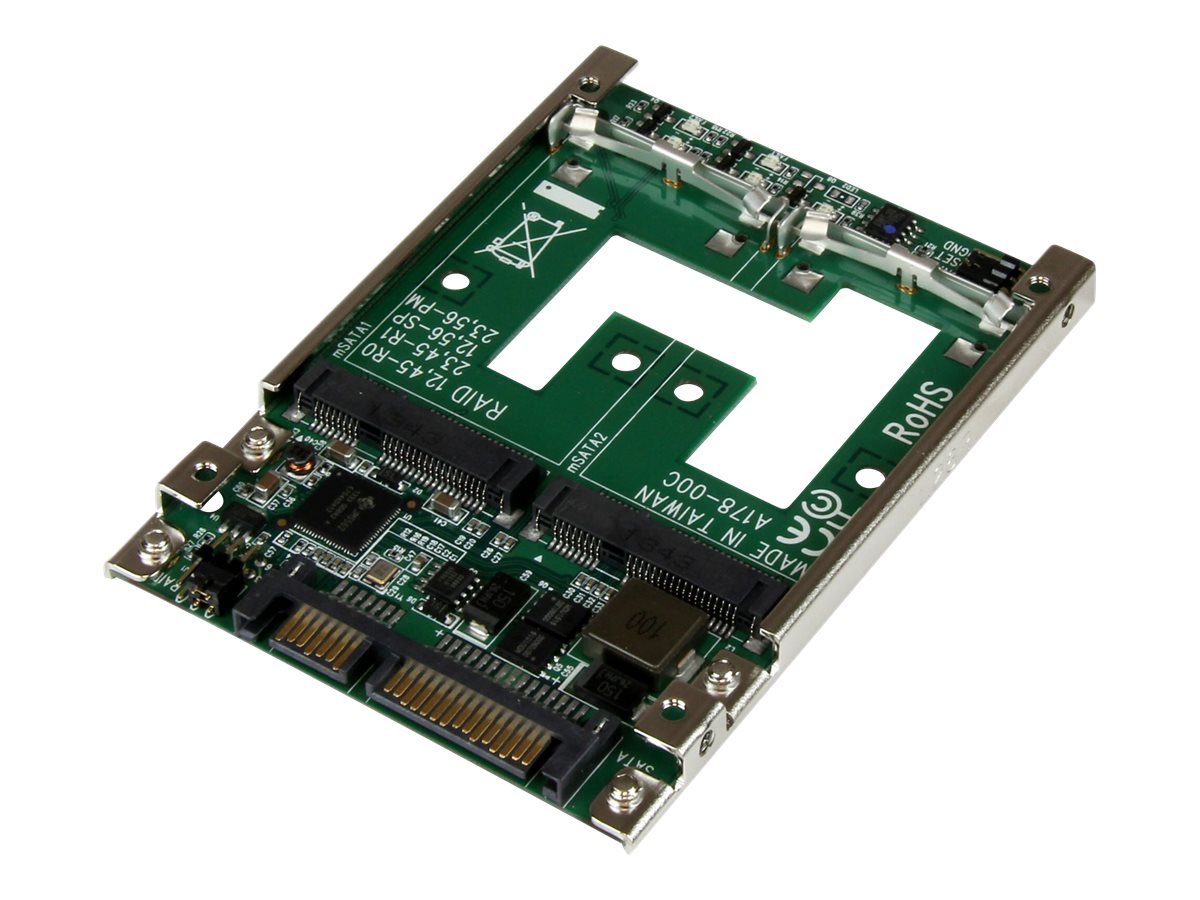

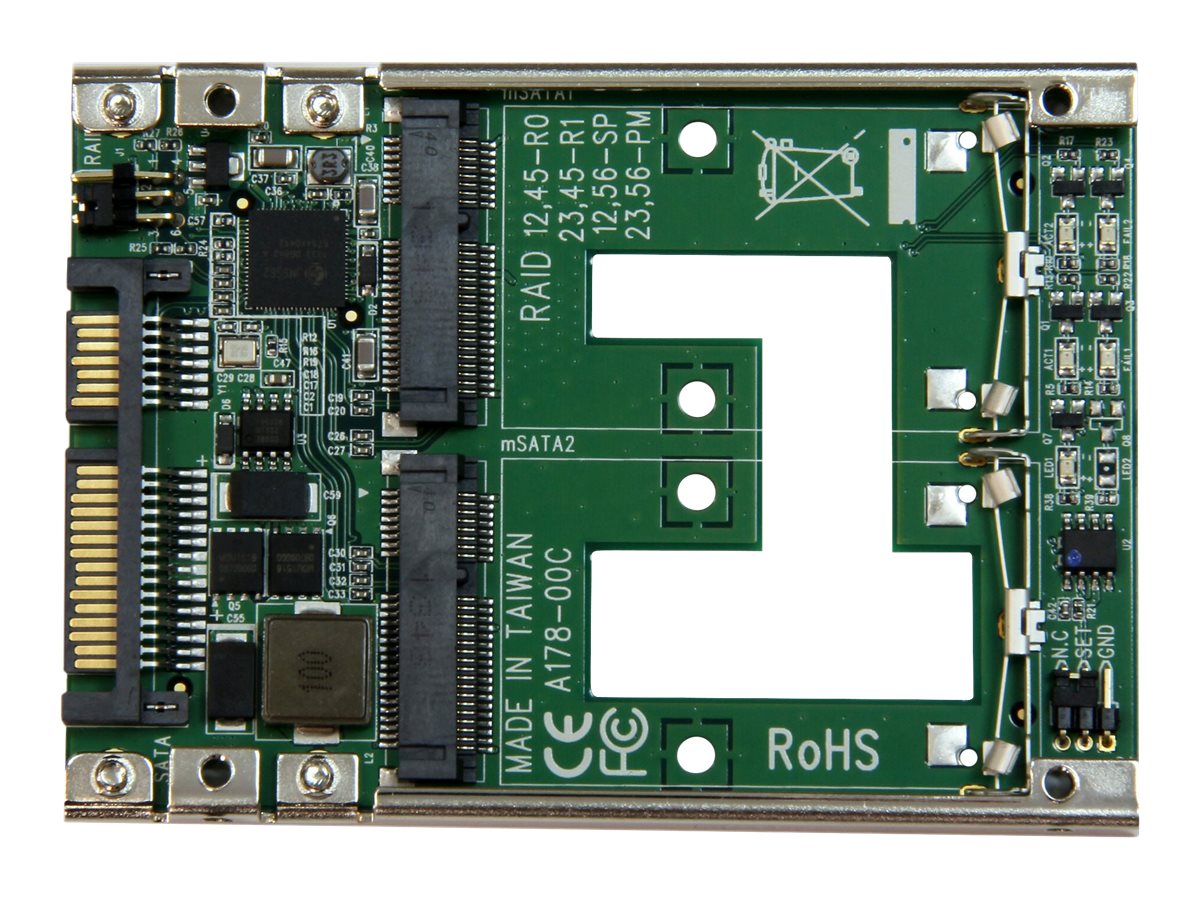

Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay. Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5″ SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
Main Specifications
Product Description | Startech Dual mSATA SSD to 2.5″ SATA RAID Adapter Converter – 2x mSATA SSD to 2.5in SATA Adapter with RAID and 7mm Open Frame Housing (25SAT22MSAT) – storage controller – mSATA – SATA 6Gb/s |
Device Type | Storage controller – internal |
Bus Type | SATA 6Gb/s |
Interface | mSATA |
Data Transfer Rate | 6 Gbit/s |
Supported Devices | Hard drive, solid state drive |
Channel Qty | 2 |
RAID Level | RAID 0, RAID 1, JBOD, BIG |
Dimensions (WxDxH) | 7 cm x 10 cm x 0.7 cm |
Weight | 40 g |
Designed For | P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F |
Extended Specifications
General
Device Type | Storage controller – internal |
|---|
Host Bus | SATA 6Gb/s |
|---|
Storage Controller
Interface | mSATA |
|---|
Data Transfer Rate | 6 Gbit/s |
|---|
Supported Devices | Hard drive, solid state drive |
|---|
Channel Qty | 2 |
|---|
RAID Level | RAID 0, RAID 1, JBOD, BIG |
|---|
Expansion / Connectivity
Interfaces | 2 x – mSATA |
|---|
Connections | 1 x SATA 6Gb/s – 15 pin Serial ATA power |
|---|
Miscellaneous
Mounting Kit | Included |
|---|
Compliant Standards | FCC, RoHS |
|---|
Dimensions & Weight
Width | 7 cm |
|---|
Depth | 10 cm |
|---|
Height | 0.7 cm |
|---|
Weight | 40 g |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 85 °C |
|---|
Compatibility Information
Designed For | P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F |
|---|
