Description

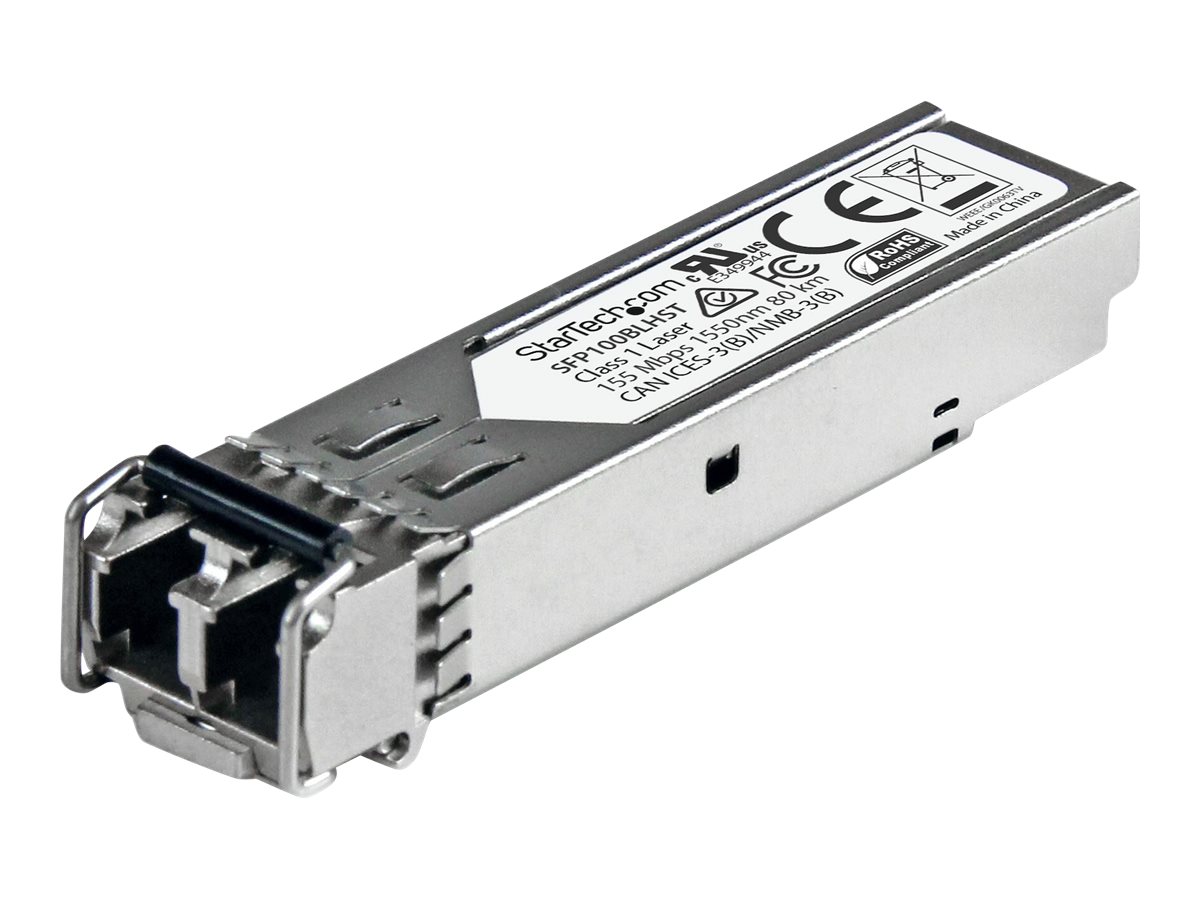

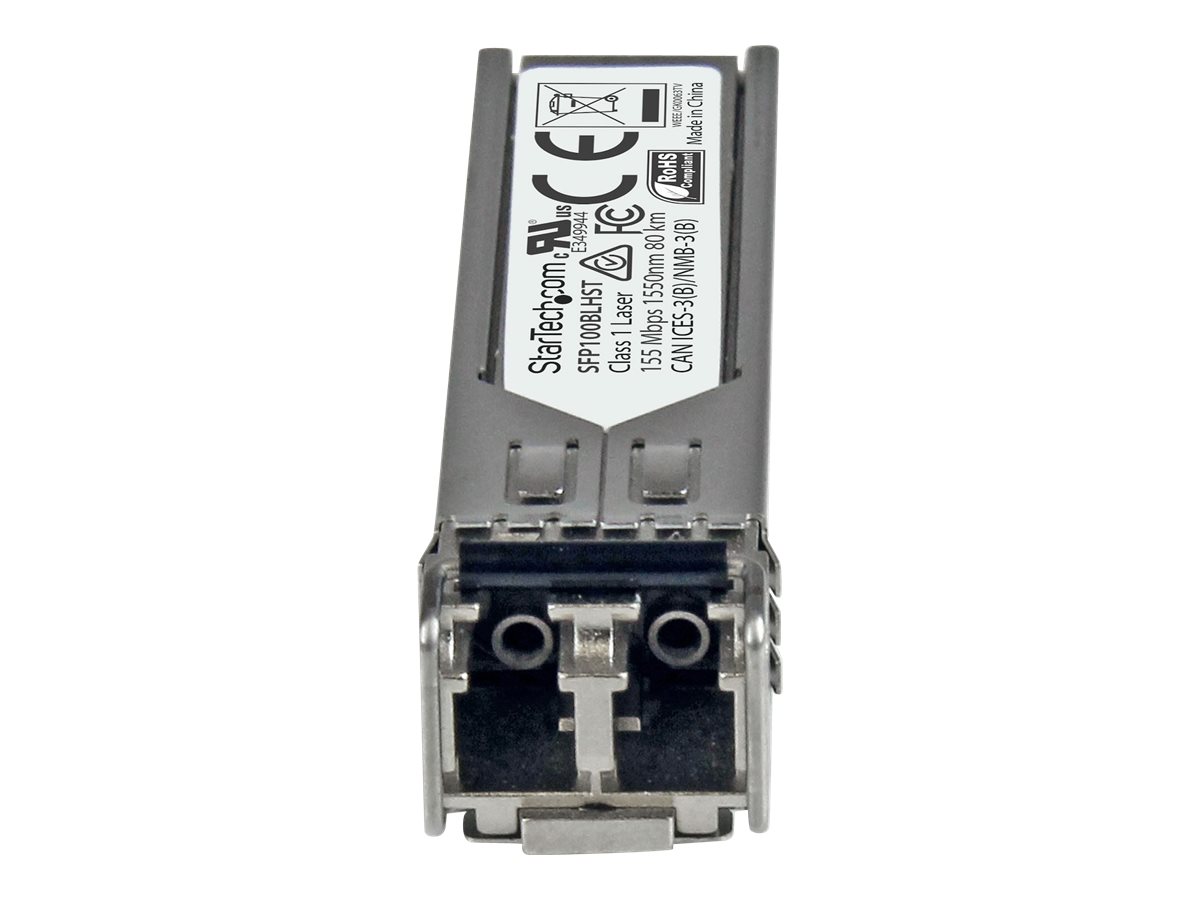

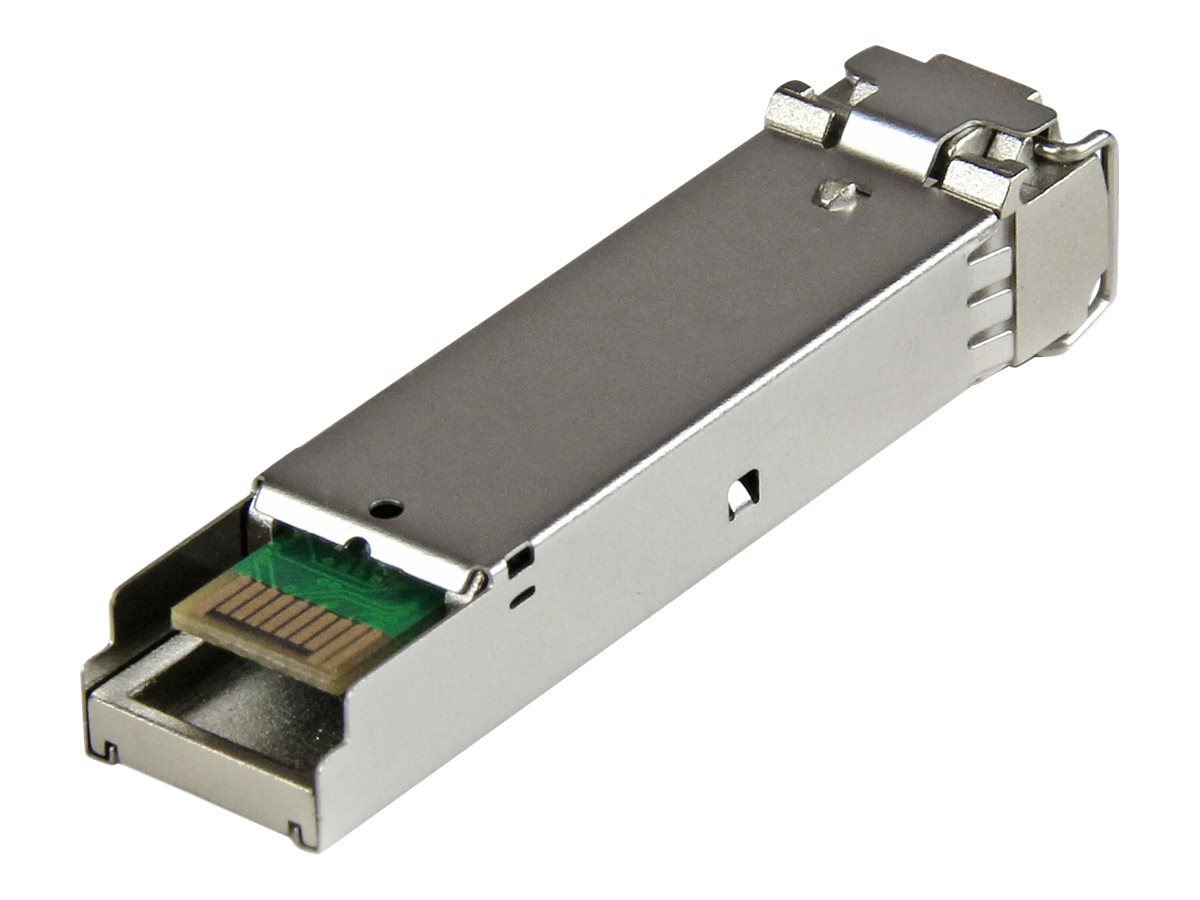

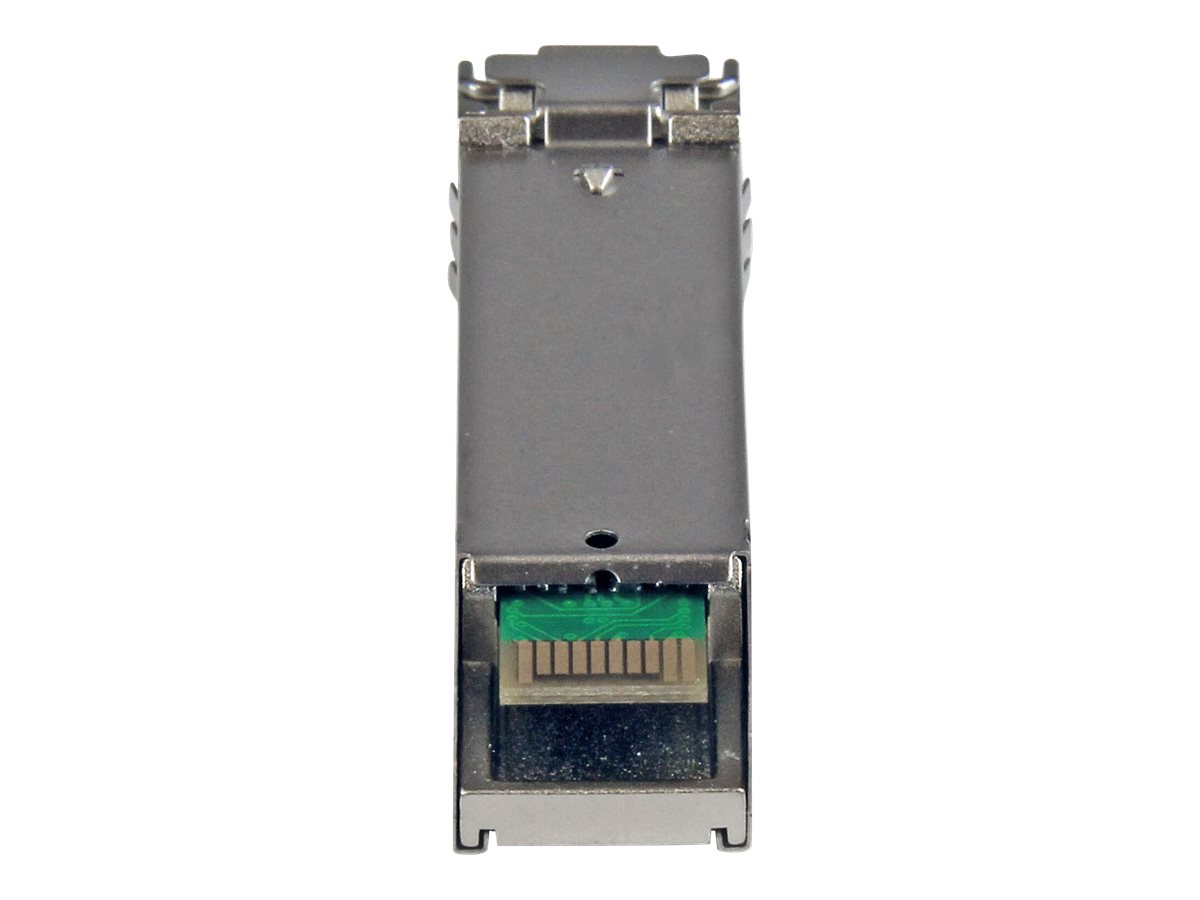

The SFP100BLHST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LH compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Main Specifications
Product Description | Startech MSA Uncoded Compatible SFP Module, 100BASE-LH, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 80km, 1550nm, DDM, Mini GBIC Module, 100Mbps – Lifetime Warranty (SFP100BLHST) – SFP (mini-GBIC) transceiver module – 100Mb LAN |
Device Type | SFP (mini-GBIC) transceiver module – LC single-mode |
Form Factor | Plug-in module |
Cabling Type | 100Base-LH |
Data Transfer Rate | 155 Mbps |
Optical Wave Length | 1550 nm |
Data Link Protocol | 100Mb LAN |
Max Transfer Distance | 80 km |
Dimensions (WxDxH) | 1.39 cm x 5.84 cm x 1.26 cm |
Weight | 30 g |
Extended Specifications
General
Device Type | SFP (mini-GBIC) transceiver module |
|---|
Form Factor | Plug-in module |
|---|
Colour | Silver |
|---|
Networking
Connectivity Technology | Wired |
|---|
Cabling Type | 100Base-LH |
|---|
Data Link Protocol | 100Mb LAN |
|---|
Data Transfer Rate | 155 Mbps |
|---|
Optical Wave Length | 1550 nm |
|---|
Max Transfer Distance | 80 km |
|---|
Features | Half duplex mode, full duplex mode, Digital Diagnostics Monitoring Interface (DDMI), Digital Optical Monitoring (DOM) support |
|---|
Compliant Standards | IEEE 802.3u |
|---|
Expansion / Connectivity
Interfaces | 1 x Ethernet 100Base-LH – LC single-mode x 2 |
|---|
Miscellaneous
Compliant Standards | FCC, RoHS, WEEE, MSA, RCM |
|---|
Dimensions & Weight
Width | 1.39 cm |
|---|
Depth | 5.84 cm |
|---|
Height | 1.26 cm |
|---|
Weight | 30 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
Humidity Range Operating | 5 – 95% |
|---|
