Description

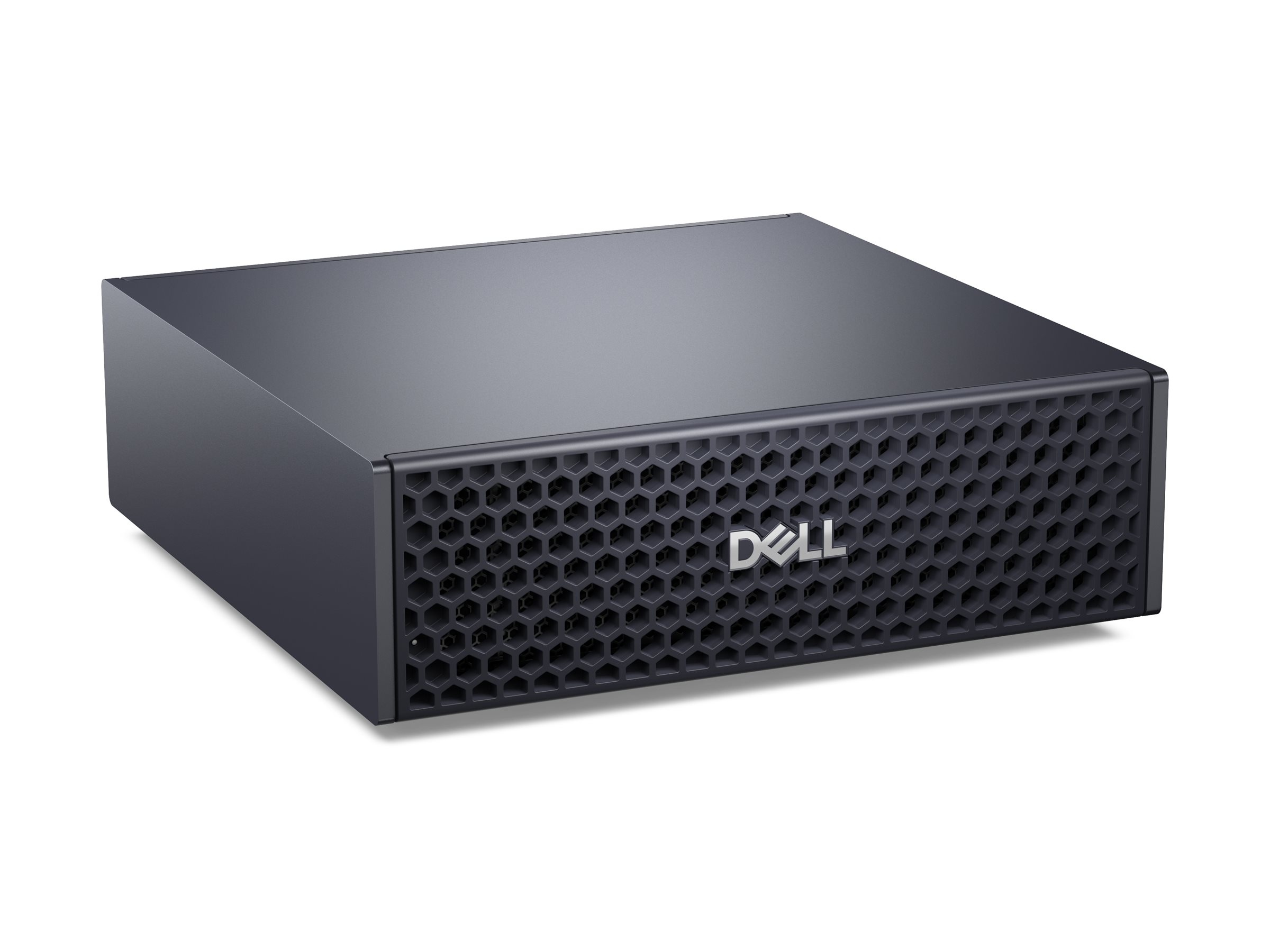

The Dell Pro Max with GB10 FCM1253 is a workstation designed to meet the demands of high-performance computing. Featuring an ultra small form factor, this desktop combines processing capability with an efficient design. Perfect for various professional applications, it has a 20-core processor and 128 GB of LPDDR5X RAM, ensuring smooth multitasking and efficient workflow, making it a suitable choice for any business environment. Equipped with connectivity options including HDMI and USB-C, along with 10 Gigabit and 200 Gigabit Ethernet capabilities, users can enjoy fast and reliable data transfer that enhances productivity.
- Compact ultra small form factor design for space-saving efficiency
- 20-core processor for performance
- 128 GB of soldered LPDDR5X RAM for multitasking
- Comprehensive connectivity with multiple USB-C and Ethernet options
- Built-in features ensure robust networking and wireless capabilities
- Efficient thermal management
The workstation operates effectively within a temperature range of 0°C to 35°C, ensuring stable performance in various environments. - Advanced networking support
Equipped with multiple data link protocols including Wi-Fi 7 and Bluetooth, this workstation allows for seamless connectivity across devices. - Impressive storage specifications
With an installed NVM Express SSD and PCI Express 4.0 interface, the system offers rapid data access and transfer speeds. - Robust security features
Incorporating a Trusted Platform Module (TPM 2.0) security chip, this device ensures that data remains secure from unauthorized access. - Powerful graphics capabilities
The inclusion of the NVIDIA Blackwell graphics processor supports high-definition visual output and enhances the computing experience.
What’s in the Box
- Dell Pro Max with GB10 FCM1253
- Power adapter
Main Specifications
Product Description | Dell Pro Max with GB10 FCM1253 – micro GB10 Grace Blackwell Superchip Cortex-A725 + Cortex-X925 – 128 GB – SSD 4 TB |
Type | Workstation – micro |
Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
EU Data Act | Https://www.dell.com/en-us/lp/legal/eu-data-act-products-services |
Processor | 1 x NVIDIA GB10 Grace Blackwell Superchip Cortex-A725 + Cortex-X925 (20-core) |
RAM | 128 GB LPDDR5X SDRAM |
Hard Drive | SSD 4 TB – PCI Express 4.0 – M.2 2242 – Self-Encrypting Drive, NVM Express (NVMe), triple-level cell (TLC) |
Optical Storage | No optical drive |
Graphics Controller | NVIDIA Blackwell |
Networking | Bluetooth, 802.11a, 10GbE, 802.11b/g/n, Wi-Fi 5, 200GbE, Wi-Fi 6, Wi-Fi 7 |
Power | (50/60 Hz) |
OS Provided | NVIDIA DGX OS 7 |
Colour | Magnetite |
Dimensions (WxDxH) | 15 cm x 15 cm x 5.1 cm |
Weight | 1.22 kg |
Carbon Footprint | 427 kg carbon emissions |
Documents
Extended Specifications
General
Type | Workstation |
|---|
Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
|---|
EU Data Act | Https://www.dell.com/en-us/lp/legal/eu-data-act-products-services |
|---|
Product Form Factor | Micro |
|---|
Built-in Devices | Internal aerial |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Magnetite |
|---|
Processor / Chipset
CPU | NVIDIA GB10 Grace Blackwell Superchip Cortex-A725 + Cortex-X925 |
|---|
Number of Cores | 20-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
RAM
Installed Size | 128 GB |
|---|
Technology | LPDDR5X SDRAM |
|---|
Effective Memory Speed | 8533 MT/s |
|---|
Rated Memory Speed | 8533 MT/s |
|---|
Configuration Features | Provided memory is soldered |
|---|
Hard Drive
Type | SSD – M.2 2242 |
|---|
Capacity | 1 x 4 TB |
|---|
Interface Type | PCI Express 4.0 |
|---|
Features | Self-Encrypting Drive, NVM Express (NVMe), triple-level cell (TLC) |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | NVIDIA Blackwell |
|---|
Video Interfaces | HDMI, USB-C |
|---|
Networking
Ethernet Ports | 1 x 10 Gigabit Ethernet, 2 x 200 Gigabit Ethernet QSFP |
|---|
Ethernet Controller | Realtek RTL8127-CG, Mellanox ConnectX-7 |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | AzureWave AW-EM637 |
|---|
Data Link Protocol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, 200 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
|---|
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
|---|
Expansion / Connectivity
Interfaces | 3 x USB-C 3.2 Gen 2×2/DisplayPort 1.4a
1 x USB-C
1 x HDMI
1 x LAN (10Gigabit Ethernet) – RJ-45
2 x LAN (200 Gigabit Ethernet) – QSFP |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | (50/60 Hz) |
|---|
Power Provided | 280 watt |
|---|
Operating System / Software
OS Provided | NVIDIA DGX OS 7 |
|---|
Sustainability Information
Carbon Footprint | 427 kg carbon emissions |
|---|
Total CF/unit Standard Deviation (kg CO2e) | 110 |
|---|
PAIA Version | 1.5.1 |
|---|
Dimensions & Weight
Width | 15 cm |
|---|
Depth | 15 cm |
|---|
Height | 5.1 cm |
|---|
Weight | 1.22 kg |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
