Description

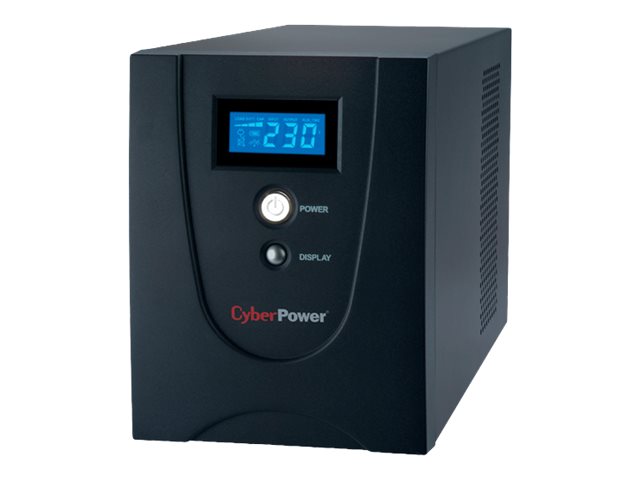

The Value SOHO series UPS offers home and small office users clean and stable battery backup while the featured RJ11/RJ45 port ensures phone, fax, and modem lines are protected from surges. With Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, this allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The multifunction LCD readout provides immediate access to precise information of critical power/battery condition.
- GreenPower UPS technology
- Automatic Voltage Regulator (AVR)
- EMI, RFI, surge and spike protection
- Phone/fax/modem/DSL/network protection
- Auto-restart/auto-charge
- LCD status monitor
- USB and serial connectivity ports
- Metal housing design
- Equipment protection policy
Main Specifications
Product Description | CyberPower Value SOHO Series VALUE2200ELCD – UPS – 2200 Watt – 1320 VA |
Device Type | UPS – external |
Weight | 14.5 kg |
Input Voltage | AC 230 V |
Output Voltage | AC 230 V ± 10% |
Power Capacity | 2200 Watt / 1320 VA |
Input Connectors | Power IEC 60320 C14 |
Battery | Lead Acid – 9 Ah |
Batteries Qty | 2 (installed) / 2 (supported) |
Run Time (Up To) | 1 min at full load |
Networking | RS-232, USB |
Dimensions (WxDxH) | 14 cm x 32.6 cm x 18 cm |
Extended Specifications
General
Device Type | UPS – external |
|---|
Power Device
UPS Technology | Line interactive |
|---|
Input Voltage | AC 230 V |
|---|
Input Voltage Range | AC 170 – 290 V |
|---|
Frequency Provided | 50/60 Hz |
|---|
Frequency Required | 50/60 Hz |
|---|
Input Connectors | Power IEC 60320 C14 |
|---|
Output Voltage | AC 230 V ± 10% – 50/60 Hz |
|---|
Power Capacity | 2200 Watt / 1320 VA |
|---|
Dataline Surge Protection | Network/phone line – RJ-45/RJ-11 – 1 input line / 1 output line |
|---|
Output Waveform | Stepped approximation to a sinewave |
|---|
Surge Suppression | Yes |
|---|
Surge Energy Rating | 125 Joules |
|---|
Circuit Protection | Circuit breaker |
|---|
Power Factor (PF) | 0.6 |
|---|
Battery
Quantity | 2 (installed) / 2 (supported) |
|---|
Technology | Lead Acid |
|---|
Voltage Provided | 12 V |
|---|
Capacity | 9 Ah |
|---|
Run Time (Up To) | 1 min at full load
6 min at half load |
|---|
Recharge Time | 8 hours |
|---|
Transfer Time | 4 ms |
|---|
Features | Sealed |
|---|
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity
Interfaces | 1 x RS-232
1 x USB |
|---|
Miscellaneous
Cables Included | Power cable 1.8 m |
|---|
Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection |
|---|
Compliant Standards | C-Tick, GOST, RoHS |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 95% (non-condensing) |
|---|
Dimensions & Weight
Width | 14 cm |
|---|
Depth | 32.6 cm |
|---|
Height | 18 cm |
|---|
Weight | 14.5 kg |
|---|
